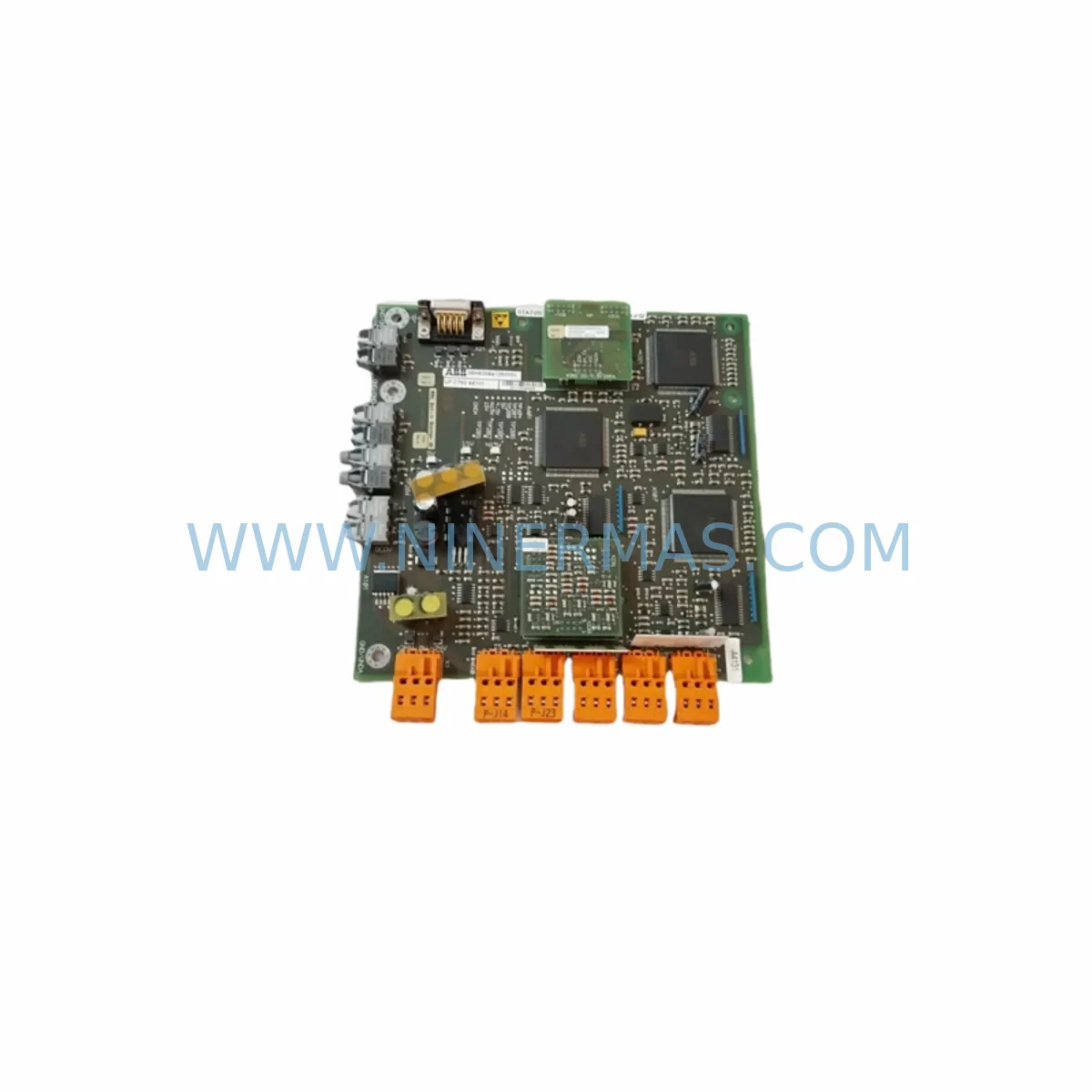

ABB 3BHB002916R0101 UFC721AE101 Retrofit Digital Control

ABB 3BHB002916R0101 UFC721AE101 Retrofit-Compatible Digital Control Module for Legacy Systems

The ABB 3BHB002916R0101 UFC721AE101 is a ruggedized digital control module engineered for demanding industrial environments and designed to serve as a direct retrofit replacement within legacy ABB automation architectures. As production facilities face increasing pressure to extend the operational life of existing control infrastructure while managing the risks associated with discontinued spare parts, this module provides a reliable, tested, and immediately deployable solution. Whether you are upgrading an aging DCS platform, restoring a failed control node, or migrating from an end-of-life ABB system, the UFC721AE101 offers the compatibility, form factor, and signal integrity required to minimize disruption and protect your existing program logic.

This module is commonly deployed in ABB Advant, Master, and AC450/AC460 control environments, where it interfaces directly with the existing backplane and rack infrastructure. Engineers undertaking a retrofit project should verify the backplane slot assignment and module address configuration before installation, as address conflicts with adjacent I/O modules — such as the ABB DSDI110A digital input module or the DSDO110A digital output module — can cause initialization faults. Confirm that the rack’s power supply module, such as the ABB DSDP150 or DSDP110, provides sufficient current capacity for the UFC721AE101 alongside any co-installed communication modules.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the ABB 3BHB002916R0101 UFC721AE101 into an existing control system requires a structured pre-installation review. Begin by auditing the current rack configuration: identify all occupied slots, confirm the physical dimensions of the target slot, and document the existing wiring at the terminal block. In many legacy ABB installations, the terminal wiring follows a fixed I/O channel assignment that must be preserved during module swap to avoid remapping signal addresses in the PLC program.

Power budget verification is a critical step that is frequently overlooked. The ABB DSDP150 power supply module, for example, has a defined current output ceiling; adding or replacing a control module without recalculating the total rack load can result in undervoltage conditions that cause intermittent faults across all installed modules. If the existing power supply is operating near capacity, consider installing a supplementary ABB DSDP110 or upgrading to a higher-capacity unit before proceeding with the retrofit.

Communication link continuity must also be confirmed. In systems using MasterBus 300 or PROFIBUS DP, the UFC721AE101 must be assigned the correct node address and baud rate to match the existing network configuration. If the system includes an ABB DSSB110 or DSSC110 communication interface module, verify that the new control module is recognized by the network master before releasing the system to automatic operation. For installations migrating from serial Modbus RTU to PROFIBUS DP, a protocol gateway or communication bridge module may be required as an intermediate step.

HMI screen updates are another consideration in retrofit projects. If the facility uses an ABB Operator Panel or a third-party SCADA system connected via OPC, the tag database may reference the old module’s I/O addresses. After installing the UFC721AE101, validate all HMI display values against live field signals to confirm that no address offsets have been introduced. Signal isolators — such as those used between the control module’s analog outputs and field transmitters — should also be checked for range compatibility, particularly if the replacement module uses a different output impedance than the original.

Finally, confirm that the installation space within the control cabinet accommodates the module’s depth and that adequate ventilation clearance is maintained. ABB ruggedized modules are designed for high-ambient-temperature environments, but airflow restrictions caused by cable congestion or adjacent equipment can still lead to thermal derating. Document the final installed configuration, including slot position, address settings, and terminal wiring, as part of the site’s maintenance records.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any live-system retrofit. When replacing the ABB 3BHB002916R0101 UFC721AE101 in an operating facility, the recommended approach is to perform a full backup of the existing PLC program and configuration data before removing the original module. Use the ABB programming tool or the system’s built-in configuration export function to save the current logic, I/O mapping, and communication parameters to an offline storage medium.

Where possible, schedule the physical module swap during a planned maintenance window or a production changeover period. If the system architecture supports hot-standby or redundant control paths — for example, through a paired ABB DSQC661 or equivalent redundancy module — activate the standby path before removing the primary module to maintain control continuity during the swap interval. In non-redundant systems, coordinate with the operations team to place the affected process loop in manual control or safe-state hold before proceeding.

After installing the UFC721AE101, perform a cold-start sequence and monitor the system diagnostic LEDs for fault indicators before restoring automatic control. Verify that all I/O channels are reading correctly, that communication links have re-established, and that the HMI is displaying live data before releasing the loop to automatic. A structured commissioning checklist — covering power-on sequence, module self-test, I/O channel verification, communication link confirmation, and HMI validation — reduces the risk of returning a system to service with an undetected fault.

NINERMAS maintains ready stock of the ABB 3BHB002916R0101 UFC721AE101 and can support expedited shipment for emergency breakdown situations. All units are function-tested prior to dispatch and covered by a 12-month warranty, providing assurance that the replacement module will perform to specification from the moment it is installed.

Retrofit Support FAQ

Q: Is the ABB 3BHB002916R0101 UFC721AE101 a direct drop-in replacement for other UFC721 series variants?
A: The UFC721AE101 is designed for direct physical and functional compatibility within the UFC721 series family. However, firmware revision and backplane interface differences between sub-variants should be confirmed against your system’s hardware revision documentation before installation. NINERMAS technical support can assist with compatibility verification based on your existing module’s nameplate data.

Q: What commissioning steps are required after installing the module?
A: After physical installation, verify the module address setting matches the original configuration, confirm backplane seating, restore the PLC program from backup, and perform an I/O channel scan to validate signal mapping. Communication links should be re-established and confirmed active before returning the system to automatic control.

Q: Can this module be used in systems that have migrated from MasterBus 300 to PROFIBUS DP?
A: The UFC721AE101 supports multiple communication protocols depending on system configuration. For protocol migration projects, confirm the module’s firmware version supports the target protocol and that the network master recognizes the new node address. A communication interface module may be required as a bridge in mixed-protocol environments.

Q: Does NINERMAS provide pre-shipment testing and warranty coverage?
A: Yes. All ABB 3BHB002916R0101 UFC721AE101 units supplied by NINERMAS are function-tested prior to dispatch and covered by a 12-month warranty. In-stock units are available for same-day or next-business-day shipment to support emergency breakdown and planned maintenance requirements.
