ABB 3BHB002916R0101 UFC721AE Retrofit-Compatible Excitation Controller

ABB 3BHB002916R0101 UFC721AE Retrofit-Compatible Excitation Controller for Legacy Systems

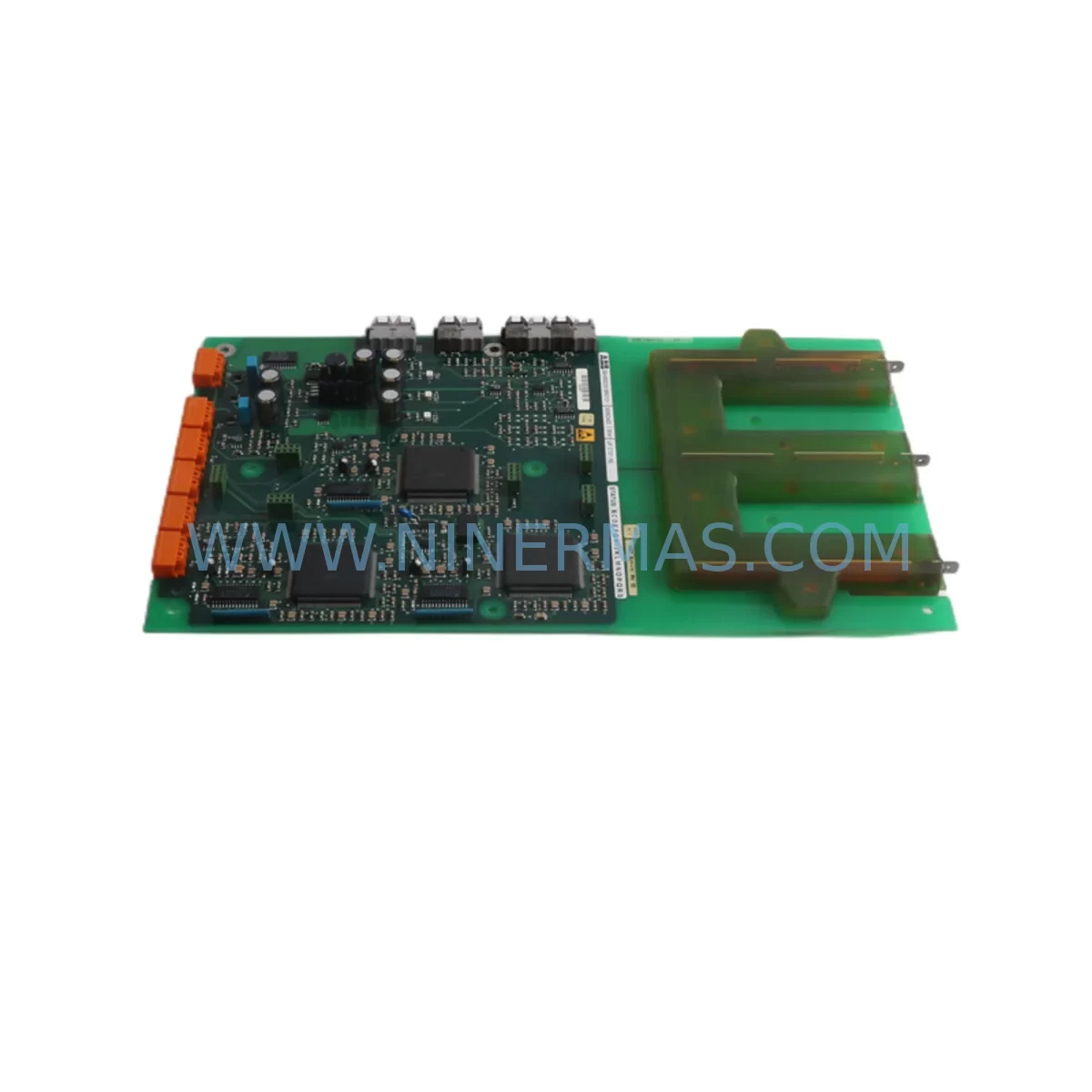

The ABB 3BHB002916R0101 UFC721AE is a retrofit-compatible excitation controller belonging to ABB’s UFC721 Series, designed for generator excitation regulation in power generation and heavy industrial environments. As legacy excitation systems reach end-of-life and OEM support is discontinued, the UFC721AE remains one of the most sought-after replacement modules for engineers tasked with modernizing aging control architectures without full system overhauls.

NINERMAS maintains verified stock of the ABB 3BHB002916R0101 UFC721AE, sourced from authorized channels and subject to full functional testing prior to dispatch. Each unit ships with a 12-month warranty, providing procurement teams and plant engineers with the confidence needed for critical retrofit projects.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the ABB 3BHB002916R0101 UFC721AE within an existing excitation system requires a structured approach that goes well beyond simply swapping the module. Engineers must begin by auditing the existing control cabinet layout to confirm available rack space and backplane slot compatibility. The UFC721AE occupies a defined form factor within the ABB UNITROL excitation chassis, and any dimensional mismatch with adjacent modules — such as the UFC760 power interface board or the UFC718 field current controller — must be resolved before installation proceeds.

Terminal wiring is a critical checkpoint. The original wiring schedule for the excitation transformer secondary, field winding feedback, and PT/CT measurement inputs must be cross-referenced against the UFC721AE terminal block layout. In many legacy installations, field engineers encounter non-standard wiring adaptations made during previous maintenance cycles. These must be documented and normalized before the new module is connected. Where the original SDCS-CON-4 or similar interface cards were used as signal conditioning intermediaries, their continued compatibility with the UFC721AE must be verified.

Power supply capacity is another area requiring careful pre-retrofit assessment. The UFC721AE draws regulated DC supply from the excitation cabinet’s internal power distribution rail. If the existing SDCS-POW-4 or equivalent power supply module is aging or operating near its rated output, it should be replaced concurrently to avoid nuisance trips after commissioning. Failing to address marginal power supply conditions is one of the most common causes of post-retrofit instability in excitation systems.

Communication link integrity must be confirmed across the full excitation control chain. In plants where the UFC721AE interfaces with a DCS via PROFIBUS DP or Modbus RTU, the communication module — often an NDBU-95 or NINT-73 fieldbus adapter — must be checked for firmware compatibility with the replacement board. Any changes to the module’s node address or baud rate settings must be reflected in the DCS configuration before the system is brought back online.

HMI screen mapping is frequently overlooked during excitation retrofits. If the plant uses an ABB Panel 800 or a third-party SCADA system to display excitation parameters — field current, terminal voltage, reactive power output, and AVR mode status — the tag database must be audited to ensure all mapped addresses remain valid after the module swap. Discrepancies in tag mapping can result in incorrect readings or alarm suppression, both of which carry operational risk.

For plants integrating the UFC721AE into a broader AC800M or AC500 controller architecture, I/O module assignments and program logic blocks referencing the excitation controller’s status outputs must be reviewed. The AI810 analog input module and DI810 digital input module are commonly used in conjunction with excitation systems for measurement and interlock functions, and their channel assignments should be verified against the updated control narrative.

Finally, installation space confirmation is essential in older switchgear rooms and control buildings where cable trays, conduit runs, and adjacent equipment may restrict access. A physical site survey prior to ordering ensures that the UFC721AE can be installed, wired, and tested without requiring structural modifications to the control cabinet.

Downtime Control During System Migration

Minimizing downtime during an excitation controller replacement is a primary concern for power generation facilities and industrial plants where continuous operation is critical. The most effective strategy is to complete all pre-commissioning work — parameter backup, wiring verification, communication configuration, and HMI tag audit — while the existing UFC721AE is still in service, so that the physical swap becomes a brief, well-rehearsed procedure rather than an open-ended troubleshooting exercise.

Before removing the existing module, engineers should use the ABB UNITROL 1000 or equivalent commissioning tool to export the full parameter set, including AVR gain settings, PSS parameters, limiters, and protection thresholds. This parameter file serves as the baseline for the replacement unit and eliminates the need for re-tuning from scratch, which is the single largest contributor to extended outage duration in excitation retrofit projects.

Where a hot-standby excitation channel is available — as is the case in many large generator installations using dual-channel UNITROL configurations — the switchover to the standby channel should be executed and verified before the primary UFC721AE is removed. This approach allows the physical replacement and initial bench testing of the new module to occur without interrupting generator output.

For single-channel installations without redundancy, a planned maintenance window should be scheduled during a low-demand period. The replacement procedure should be rehearsed with the maintenance team using a detailed step-by-step checklist covering module removal, connector inspection, new module installation, parameter upload, communication link verification, and staged energization. A pre-agreed go/no-go criterion at each stage ensures that any anomaly is caught before the generator is returned to service, protecting both the equipment and the plant’s operational continuity.

Post-installation, the first energization should be conducted under close supervision with protection relays armed and a qualified commissioning engineer present. Excitation response, terminal voltage regulation accuracy, and reactive power control should all be verified against the pre-retrofit baseline before the unit is declared fit for normal operation.

Retrofit Support FAQ

Q1: Is the ABB 3BHB002916R0101 UFC721AE a direct drop-in replacement for my existing UFC721 series board?
In most cases, yes — the UFC721AE is designed as a form-fit-function replacement within the UFC721 series excitation platform. However, you should confirm the backplane connector version, terminal block layout, and firmware revision compatibility with your existing system documentation before installation. NINERMAS can assist with compatibility verification based on your existing part numbers and system configuration.

Q2: What pre-shipment testing does NINERMAS perform on the UFC721AE?
Each ABB 3BHB002916R0101 UFC721AE unit dispatched by NINERMAS undergoes functional testing to verify board-level operation prior to shipment. Units are inspected for physical condition, connector integrity, and component health. A 12-month warranty is provided on all units, covering functional defects under normal operating conditions. Test reports are available upon request for critical procurement applications.

Q3: How do I handle the wiring transition if my existing terminal layout differs from the UFC721AE standard?
Wiring adaptation is common in legacy excitation retrofits. We recommend preparing a terminal-by-terminal cross-reference between your existing wiring schedule and the UFC721AE terminal block diagram before the maintenance window begins. In cases where signal levels or impedance characteristics differ, signal isolators or interposing relays may be required. NINERMAS technical support can provide terminal block documentation to assist your engineering team in planning the wiring transition.

Q4: What is the typical lead time and do you maintain ongoing inventory of the 3BHB002916R0101?
NINERMAS maintains active stock of the ABB 3BHB002916R0101 UFC721AE to support urgent retrofit and breakdown replacement requirements. Standard lead time for in-stock units is same-week dispatch, subject to order confirmation and export documentation requirements. For projects requiring multiple units or long-term supply agreements, contact our sales team to discuss inventory reservation and scheduled delivery options.
