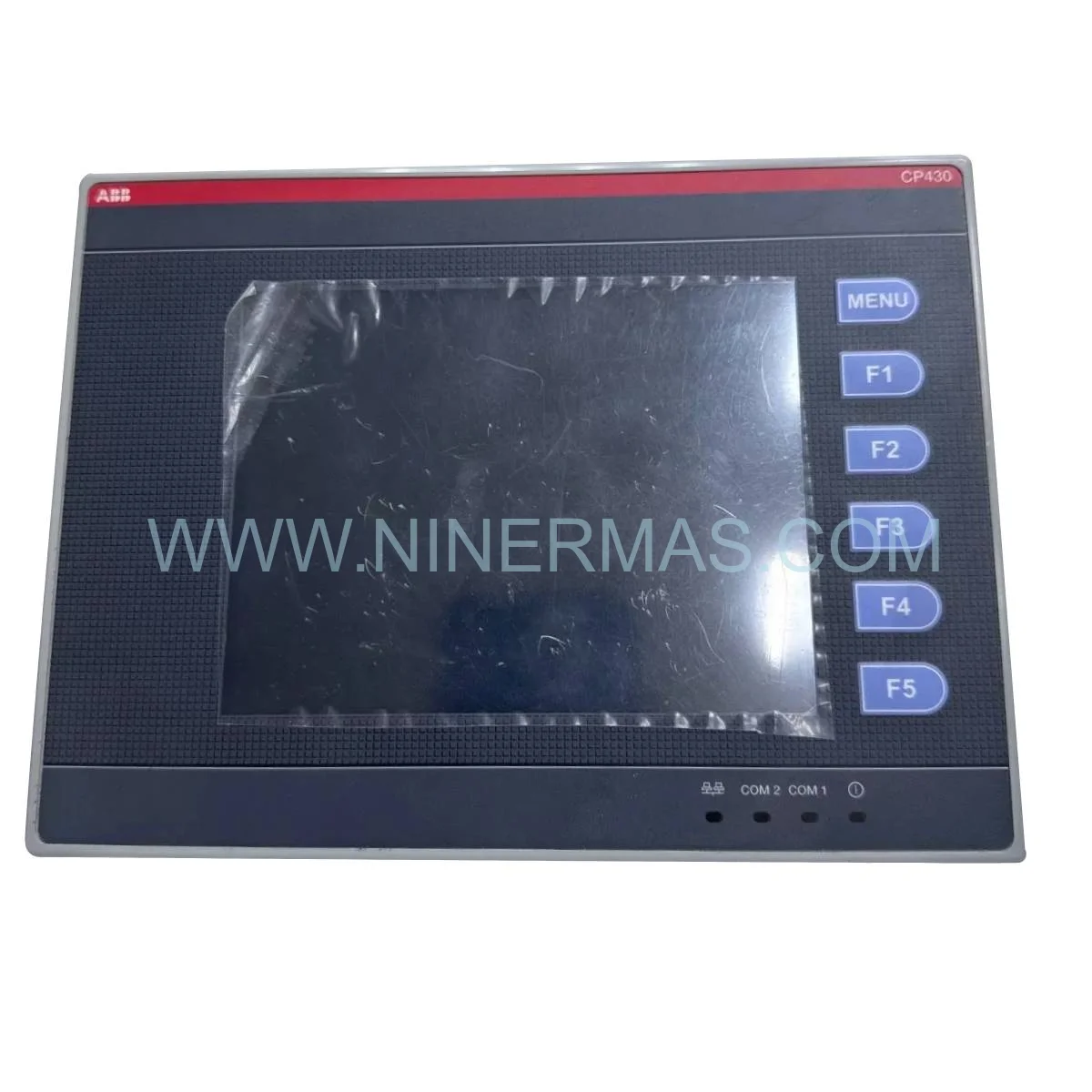

ABB 1SBP260196R1001 CP430T-ETH Industrial HMI Control Panel

ABB 1SBP260196R1001 – Lifecycle Excellence & Technical Performance

Operational Integrity & System Analysis

From the perspective of an Industrial Compliance Consultant, the ABB 1SBP260196R1001 (CP430T-ETH) represents a cornerstone component in maintaining the operational integrity of mission-critical industrial control architectures. Its role extends beyond simple human-machine interfacing — it serves as a certified, standards-compliant node within complex automation ecosystems, ensuring that system performance remains within validated parameters throughout the full asset lifecycle. The ABB 1SBP260196R1001 is engineered to uphold Safety Integrity requirements across diverse industrial environments, from discrete manufacturing to continuous process operations.

Within the framework of Industry 4.0 and IIoT-enabled plant architectures, this component demonstrates long-term compatibility with both legacy fieldbus topologies and modern Ethernet-based communication layers. Its dual serial port architecture (RS232/RS485 and RS232/RS422/RS485) combined with a 10/100 Mbps Ethernet interface ensures sustained interoperability across evolving network standards, supporting Asset Optimization strategies that extend well beyond initial commissioning cycles.

As a factory-sealed, certified original component, the 1SBP260196R1001 delivers measurable value to system safety frameworks. Its CE, UL, and cUL certifications — alongside full RoHS and EMC Directive compliance — confirm adherence to global Compliance Standards, reducing regulatory risk and supporting audit-ready documentation for safety-critical installations.

Compliance & Safety Benchmarks

✅ CE Marking (EU): Declaration of Conformity 1SBD240515C1000 — EMC Directive 2014/30/EU & Low Voltage Directive 2014/35/EU

✅ UL Listing (North America): File No. NRAQ.E240320 — Verified for industrial control panel integration

✅ cUL Recognition (Canada): Certificate 1SAA960000-1709 — Full Canadian market compliance

✅ RoHS Compliance: Declaration 1SBD340002R0202 — Mercury <0.001%, Cadmium <0.002%

EMC Immunity: EN 61000-6-2 — Validated for electrically noisy industrial environments

Safety Standard: EN 61010-1 — Electrical equipment for measurement, control, and laboratory use

IP65 Front Panel Protection: Dust-tight and jet-water resistant when installed per Original Documentation specifications

WEEE Directive Compliant: End-of-life recycling pathway documented for circular economy alignment

Vertical Industry Integration & Optimization

Semiconductor & Electronics Manufacturing: The 1SBP260196R1001 supports cleanroom-compatible panel integration with its sealed front face (IP65) and low-particulate design. Nine-level password protection enforces strict access control for process recipe management, ensuring batch-to-batch consistency and traceability — critical for yield optimization and regulatory audit compliance in semiconductor fabrication environments.

Pharmaceutical & Life Sciences: In GMP-regulated facilities, this HMI panel’s time-stamped alarm logging, recipe management (up to 1,000 parameter sets), and audit-trail-capable event records directly support 21 CFR Part 11 and EU Annex 11 documentation requirements. Its battery-backed real-time clock ensures accurate timestamp integrity across validation cycles.

Chemical & Petrochemical Processing: Deployed in hazardous area control rooms (behind safe-area barriers), the CP430T-ETH provides robust Modbus RTU/ASCII communication with field instruments, enabling continuous process variable monitoring (temperature, pressure, flow) with trend visualization. Its 60,000-hour backlight lifecycle minimizes planned maintenance interventions in high-continuity production environments.

Energy & Power Infrastructure: Interfacing with protective relays, power quality analyzers, and generator management systems via Ethernet and serial protocols, this panel enables centralized visualization of grid parameters. Password-protected access tiers prevent unauthorized configuration changes in substations and distributed energy resource (DER) management applications.

Water & Wastewater Treatment: The panel’s CSV data logging to USB media supports regulatory compliance reporting for environmental agencies. Alarm management with configurable priority classes ensures immediate operator notification of out-of-specification process conditions, supporting System Performance continuity in 24/7 utility operations.

Comprehensive Engineering Specifications

Fulfillment Strategy & Technical Support

Factory Sealed Condition: Every ABB 1SBP260196R1001 unit is dispatched in its original manufacturer packaging with factory-applied tamper-evident sealing, ensuring component authenticity and full traceability from production to installation. Original Documentation — including the ABB CP400 Series Hardware Manual and CP400 Soft software license — is included with each shipment.

Rapid Global Logistics: Leveraging established international freight partnerships, orders are processed within 1-3 business days with express air freight options available for time-critical maintenance scenarios. Export documentation (commercial invoice, packing list, certificate of origin) is prepared in compliance with international trade regulations for seamless customs clearance.

12-Month Quality Guarantee for Legacy Systems: All units are covered by a 12-month quality assurance guarantee from the date of delivery, encompassing defects in materials, workmanship, and factory-verified functionality. For legacy system integration — where the 1SBP260196R1001 replaces end-of-life predecessor panels — our technical team provides compatibility verification and migration support at no additional cost.

Technical Support Services: Pre-sales application engineering consultation, communication protocol configuration guidance, and post-installation troubleshooting are available via direct channel support. Lifecycle Management advisory services are offered for customers managing multi-site ABB HMI panel fleets.

Expert Technical FAQ

Q1: What installation compliance requirements apply to the ABB 1SBP260196R1001 in CE-marked machinery?
A: The 1SBP260196R1001 carries its own CE Declaration of Conformity (1SBD240515C1000), covering EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. When integrated into CE-marked machinery, the machine builder must include this panel’s DoC in the technical file and verify that the overall system EMC performance meets EN 61000-6-4 (emission) and EN 61000-6-2 (immunity) requirements. Proper cable segregation and shielding per ABB’s Original Documentation are mandatory for maintaining compliance.

Q2: What are the environmental adaptability limits for this panel in high-humidity or coastal industrial environments?
A: The 1SBP260196R1001 is rated for 10% 95% relative humidity (non-condensing) at operating temperatures of 0°C to +50°C. For coastal or high-humidity environments, IP65 front panel sealing (achieved through correct torquing of mounting clips to 0.5-0.8 Nm) provides protection against moisture ingress. Internal conformal coating of PCBs provides additional corrosion resistance. Condensation risk should be mitigated through panel enclosure heating or desiccant management in environments with significant temperature cycling.

Q3: Which firmware versions of CP400 Soft are compatible with the 1SBP260196R1001, and how are firmware updates managed?
A: The CP430T-ETH is supported by CP400 Soft V3.x and later releases. Firmware updates are delivered via the USB Device Port (Type B) using the CP400 Soft IDE’s built-in firmware update wizard. ABB recommends maintaining firmware version alignment across all panels in a multi-HMI installation to ensure consistent protocol driver behavior. Version compatibility matrices are published in ABB’s Original Documentation library (document 1SAP500900R0001).

Q4: How does the nine-level password system support Safety Integrity requirements in regulated industries?
A: The hierarchical access control system of the 1SBP260196R1001 enables role-based operator authentication — from read-only process monitoring (Level 1) through full engineering parameter access (Level 9). This architecture directly supports Safety Integrity frameworks by preventing unauthorized modification of safety-relevant setpoints. Access level assignments and password change events can be logged to USB media for audit trail documentation, satisfying requirements under IEC 62443 industrial cybersecurity standards and pharmaceutical 21 CFR Part 11 electronic records regulations.

Q5: Can the 1SBP260196R1001 communicate simultaneously with multiple PLCs from different manufacturers?
A: Yes. The CP430T-ETH supports multi-driver communication through its three independent communication interfaces (Ethernet + 2 serial ports). A single project can simultaneously poll an ABB AC500 PLC via Ethernet Modbus TCP, a Siemens S7-300 via RS485 Modbus RTU on Port 1, and a third-party energy meter via RS422 on Port 2. Protocol driver licensing and tag address mapping are configured within CP400 Soft, with no additional hardware required for this multi-vendor integration scenario.

Q6: What end-of-life and asset disposition considerations apply to the 1SBP260196R1001 under WEEE regulations?
A: As a WEEE Directive-compliant product, the 1SBP260196R1001 must be disposed of through certified WEEE collection and recycling channels — not via general industrial waste streams. The panel contains a lithium coin cell battery (CR2032) that requires separate disposal per local battery regulations. ABB’s Lifecycle Management program offers take-back and certified disposal services for decommissioned panels, supporting circular economy objectives and corporate sustainability reporting requirements.
