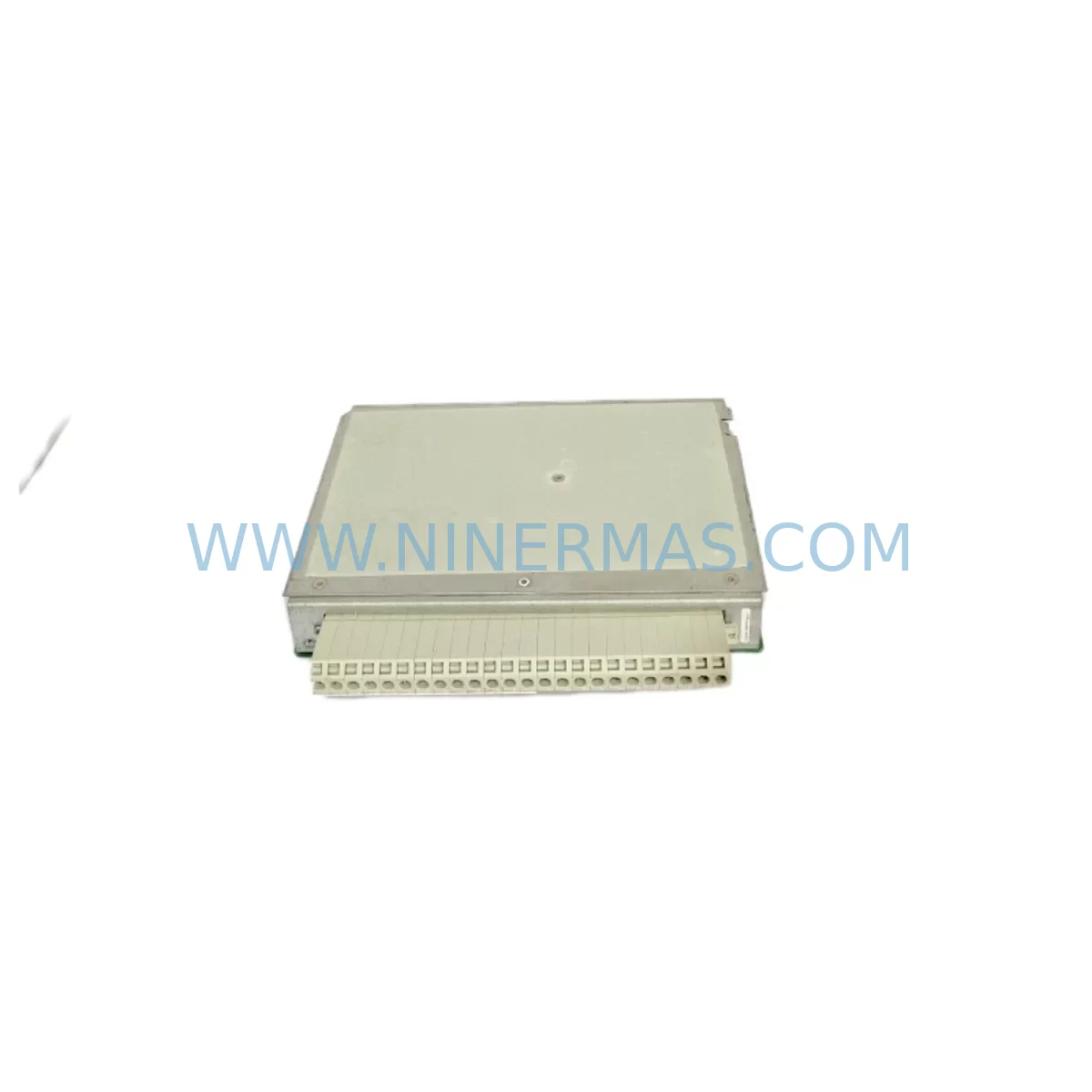

ABB 1MRK002247-AGR05 Retrofit Module for REL Series

ABB 1MRK002247-AGR05 Retrofit Module for REL Series: Legacy System Compatible Upgrade

The ABB 1MRK002247-AGR05 is a retrofit-compatible module designed for integration into ABB REL series protection relay systems. As legacy protection relay platforms approach end-of-life and OEM support windows close, plant engineers and maintenance teams face increasing pressure to source verified replacement modules that preserve existing panel wiring, backplane interfaces, and relay logic without requiring full system redesign. The 1MRK002247-AGR05 addresses this need directly — offering a functionally equivalent, pre-tested replacement that slots into existing REL series relay racks with minimal modification.

This module is particularly relevant for substations, switchgear panels, and industrial power distribution systems where ABB REL protection relays remain in active service. Procurement teams sourcing discontinued ABB spare parts will find the 1MRK002247-AGR05 available with verified stock, pre-shipment functional testing, and a 12-month warranty covering manufacturing defects and operational failures under normal service conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 1MRK002247-AGR05 within an active REL series protection relay panel requires careful pre-work to avoid unplanned outages or protection gaps. Before the module swap, engineers should document the existing terminal wiring layout — particularly CT secondary circuits, VT inputs, binary input assignments, and trip relay output contacts. These connections are typically defined in the relay’s original engineering drawings and must be preserved exactly during the replacement process.

The REL series rack uses a standardized backplane that supports multiple module types. When inserting the 1MRK002247-AGR05, confirm the module address is set correctly via the onboard DIP switches or jumper configuration, as address conflicts with adjacent modules — such as the ABB REL 316 or REL 511 main protection units — can cause communication faults on the station bus. If the panel includes an ABB REC 670 or REC 561 bay control unit sharing the same IEC 61850 GOOSE network, verify that the replacement module’s IED name and logical node mapping are updated in the substation configuration tool (SCT) before energizing.

For panels that also house ABB RET 670 transformer protection relays or REF 615 feeder protection units on the same rack or communication ring, ensure that the IEC 61850 Edition compatibility is consistent across all IEDs. A mismatch in Edition 1 versus Edition 2 configurations can disrupt GOOSE message subscriptions and require re-engineering of the SCD file. Similarly, if the installation uses MODBUS RTU over RS-485 alongside the REL series modules, verify that the baud rate, parity, and slave address settings on the 1MRK002247-AGR05 match the SCADA master’s polling configuration.

Power supply capacity is another critical checkpoint. REL series panels often share a 24 VDC or 48 VDC station battery supply across multiple modules including ABB PSM 24 or PSM 48 power supply modules. Adding or replacing a module changes the total current draw on the DC bus — confirm that the existing power supply module has sufficient headroom before completing the installation. If the panel also includes signal isolators or interposing relay modules for binary I/O expansion, verify that their wiring to the 1MRK002247-AGR05 terminal blocks is correctly mapped to the new module’s I/O register assignments.

For sites using ABB MicroSCADA or Relion-based HMI displays, the replacement module may require a configuration update in the HMI database to reflect the new module’s data points and alarm definitions. This is especially important if the original 1MRK002247-AGR05 was configured with custom function blocks or user-defined logic in the relay’s application configuration tool (ACT). Retain a backup of the original relay configuration file before proceeding, and restore it to the replacement module as the baseline for commissioning.

Downtime Control During System Migration

Minimizing downtime during a 1MRK002247-AGR05 replacement requires a structured outage plan. Begin by coordinating with the operations team to schedule the swap during a planned maintenance window, ideally when the protected feeder or transformer can be taken out of service safely. Before de-energizing the panel, export the full relay configuration from the existing module using ABB’s PCM600 relay configuration tool. This backup preserves all protection settings, I/O assignments, communication parameters, and user-defined logic that must be restored to the replacement unit.

During the physical swap, follow the relay manufacturer’s module extraction procedure to avoid damaging the backplane connector pins. Label all terminal block wiring before disconnection, and photograph the wiring layout as a secondary reference. Once the 1MRK002247-AGR05 replacement is seated and secured, restore the configuration backup via PCM600 and perform a full settings verification — checking overcurrent pickup levels, time-delay settings, directional element polarization, and differential protection bias characteristics where applicable.

Before returning the feeder or transformer to service, conduct a secondary injection test on the CT and VT circuits to confirm that the protection elements operate correctly at the expected thresholds. Verify that all binary inputs respond to test signals and that trip output contacts operate the correct circuit breaker or contactor. Confirm that the IEC 61850 GOOSE messages are being transmitted and received correctly by adjacent IEDs on the station bus. A structured commissioning checklist reduces the risk of protection gaps and ensures that the replacement module is fully functional before the system is returned to normal operation — keeping total downtime to a minimum and protecting the integrity of the existing control logic.

Retrofit Support FAQ

Q1: Is the 1MRK002247-AGR05 a direct drop-in replacement for the original ABB REL series module?
A: Yes, the 1MRK002247-AGR05 is designed as a functionally equivalent replacement for the original module in REL series protection relay panels. Terminal wiring, backplane connector, and module dimensions are compatible with the existing rack. However, customers should verify the module address configuration and restore the original relay settings via PCM600 after installation to ensure correct protection operation.

Q2: What commissioning steps are required after installing the replacement module?
A: After physical installation, restore the relay configuration backup using ABB PCM600, verify all protection settings and I/O assignments, perform secondary injection testing on CT/VT circuits, and confirm IEC 61850 GOOSE communication with adjacent IEDs. Update the HMI database if the site uses ABB MicroSCADA or a Relion-based display system.

Q3: Is pre-shipment testing performed on the 1MRK002247-AGR05 before dispatch?
A: Yes. Every 1MRK002247-AGR05 unit undergoes functional testing before shipment to verify operational integrity. Units are dispatched only after passing pre-shipment checks, and each module is covered by a 12-month warranty from the date of shipment.

Q4: What is the stock availability and lead time for the 1MRK002247-AGR05?
A: Stock is maintained for prompt dispatch. Lead time varies by order volume and destination. Contact our team directly for current availability confirmation and delivery schedule. All orders are supported by a 12-month warranty and pre-shipment functional test certification.
