Abaco PMC-GBIT-DT2BP PMC610J4RC Safety-Reliable GbE PMC Module

Abaco PMC-GBIT-DT2BP PMC610J4RC Safety-Reliable GbE PMC Module for Critical Control Sites

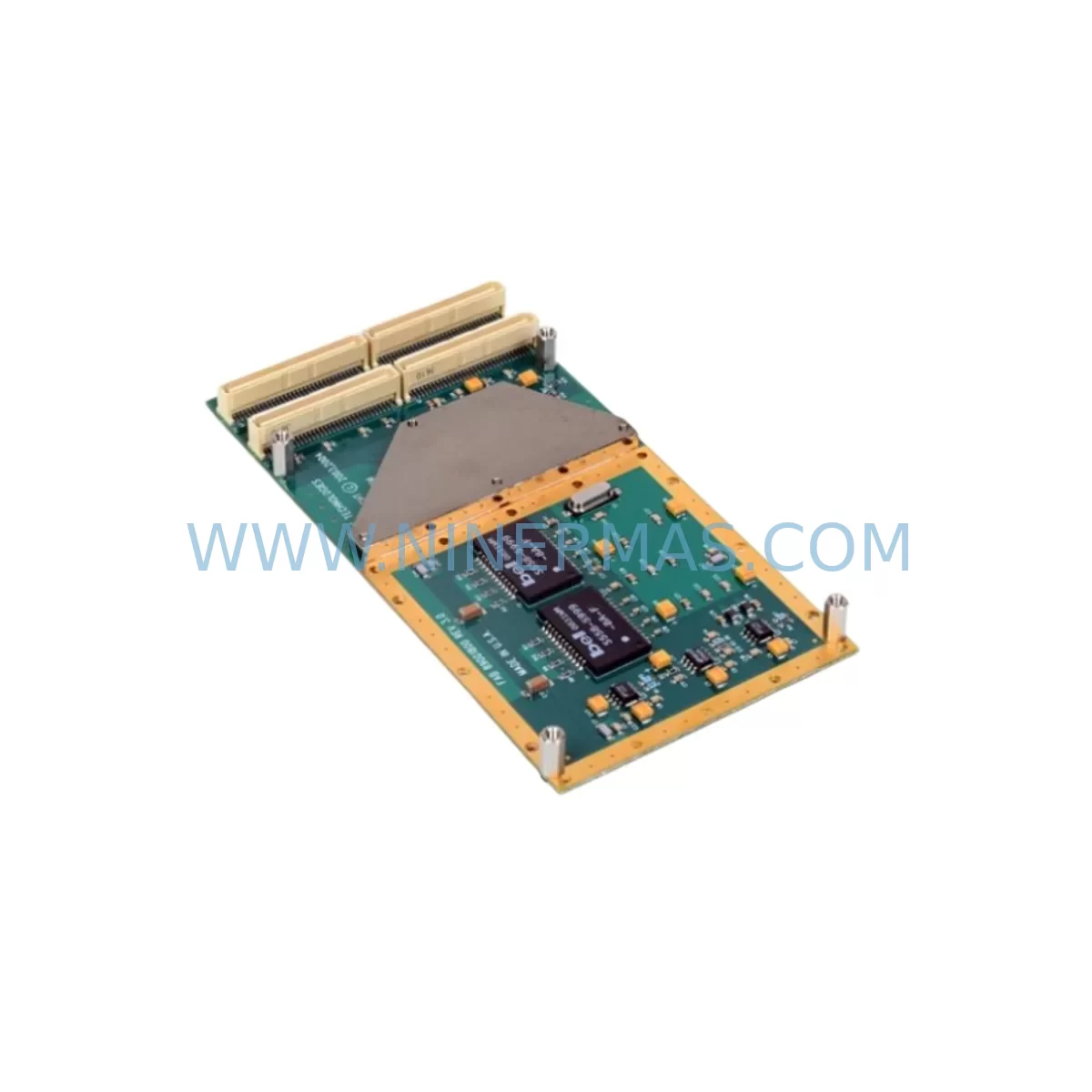

The Abaco Systems PMC-GBIT-DT2BP (alternate part number PMC610J4RC) is a dual-port Gigabit Ethernet PMC (PCI Mezzanine Card) network interface module engineered for safety-critical industrial and defense control environments. Designed to sustain continuous, high-integrity data communication across demanding field conditions — including high electromagnetic interference, wide temperature swings, mechanical shock, and persistent vibration — this module delivers the network reliability that mission-critical control architectures demand. NINERMAS maintains verified stock of the PMC-GBIT-DT2BP PMC610J4RC with pre-shipment functional testing and a 12-month warranty, supporting rapid deployment and unplanned downtime recovery across petrochemical, power generation, naval, railway, and advanced manufacturing sites.

Industrial control networks are the backbone of safe, continuous production. When a network interface module fails in a critical control cabinet, the consequences extend far beyond a single node — they can cascade into interlock failures, loss of supervisory visibility, and unplanned process shutdowns. The PMC-GBIT-DT2BP addresses this risk by providing a ruggedized, field-proven communication path that maintains signal integrity under the electrical noise and environmental stress typical of heavy industrial sites. Its dual-port Gigabit Ethernet architecture supports redundant network topologies, enabling engineers to design fault-tolerant communication loops that remain operational even when one path is compromised.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Replacing the PMC-GBIT-DT2BP PMC610J4RC in a live control cabinet requires a structured approach to risk containment. Network interface modules do not operate in isolation — they are embedded within a broader communication and control architecture where adjacent components directly influence system stability. Before and during replacement, maintenance engineers should audit the full communication chain to prevent secondary failures from masking the root cause or introducing new fault conditions.

Begin with the carrier board or single-board computer hosting the PMC module. Common host platforms include the VMIVME-7750 and VMIVME-7807 VMEbus single-board computers, as well as VPX-based carrier boards used in newer ruggedized deployments. Inspect the PCI bus connectors for oxidation, mechanical damage, or intermittent contact — a degraded carrier board can cause repeated network module failures even after replacement. If the system uses a VMIPMC-5565 reflective memory module for real-time data sharing across nodes, verify that its network synchronization remains intact after the PMC-GBIT-DT2BP is reseated or replaced, as reflective memory timing is sensitive to bus resets.

Power integrity is a critical factor in network module reliability. Inspect the cabinet’s 3.3V and 5V DC power rails supplying the VME or VPX backplane. Voltage ripple or transient spikes — common in cabinets shared with variable frequency drives, large contactors, or servo amplifiers — can corrupt Ethernet frame transmission and trigger false link-down events. A dedicated industrial DC/DC power module with surge suppression and filtering should be verified as part of the replacement workflow. Similarly, check the backplane’s power distribution board for signs of thermal stress or connector fatigue.

For systems integrated into a broader SCADA or DCS architecture, the PMC-GBIT-DT2BP’s replacement must be coordinated with the supervisory communication layer. If the control system uses a GE IC695ETM001 Ethernet communication module or an IC697CPX935 CPU module as the network gateway, confirm that IP address assignments, subnet configurations, and firewall rules are preserved after the module swap. In turbine or generator control applications where IS200VTURH2B or IS215UCVEH2A controller boards are present, network reconfiguration after a PMC module replacement can disrupt protective relay communication — a risk that must be managed with a pre-approved change control procedure.

Signal isolation is equally important. In high-EMI environments such as arc furnace control rooms, motor control centers, or offshore platform control cabinets, Ethernet signals are vulnerable to common-mode noise injection. Verify that signal isolators or industrial Ethernet switches with optical isolation are installed between the PMC-GBIT-DT2BP and field network segments. Surge protection devices on RJ45 ports should be inspected and replaced if they show signs of prior surge absorption. Terminal blocks, cable shields, and grounding continuity across the cabinet should be confirmed before the replacement module is powered on.

Critical Industrial Safety Applications

The PMC-GBIT-DT2BP PMC610J4RC is deployed across a wide range of safety-critical industrial sectors where network communication reliability directly affects process safety and regulatory compliance.

In petrochemical and refinery control systems, this module supports real-time data exchange between distributed control nodes and safety instrumented systems (SIS). Loss of network communication in these environments can trigger emergency shutdowns or, worse, mask a developing process hazard. The module’s ruggedized design and wide operating temperature range make it suitable for control rooms adjacent to high-temperature process areas.

In power generation and grid control, the PMC-GBIT-DT2BP is used in turbine control systems, excitation control panels, and substation automation platforms. Its dual-port architecture supports the redundant Ethernet topologies required by IEC 61850 substation communication standards, ensuring that protection relay data reaches the control system without interruption.

In mining and mineral processing, where vibration, dust ingress, and wide ambient temperature swings are constant challenges, the module’s MIL-STD-810 mechanical qualification provides confidence in long-term field reliability. It is used in conveyor control systems, crusher automation, and ventilation monitoring networks where unplanned downtime carries significant safety and production cost implications.

In naval and maritime applications, the conduction-cooled variant of the PMC-GBIT-DT2BP is used in shipboard combat management systems, propulsion control networks, and damage control monitoring platforms. Its ability to operate without forced-air cooling makes it suitable for sealed enclosures in marine environments.

In railway signaling and train control, the module supports trackside control units and onboard network gateways where communication integrity is a safety-of-life requirement. Its PCI 2.2 compatibility ensures integration with legacy embedded computing platforms that remain in service across long-lifecycle railway programs.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the PMC-GBIT-DT2BP PMC610J4RC?
All PMC-GBIT-DT2BP PMC610J4RC units supplied by NINERMAS carry a 12-month warranty covering functional defects under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify Ethernet link establishment, PCI bus enumeration, and port-level communication integrity before dispatch. Warranty claims are supported with direct technical assistance from our engineering team.

Q2: How is compatibility with my existing carrier board or VME system confirmed?
Compatibility is confirmed based on the PMC IEEE P1386.1 standard, PCI 2.2 bus compliance, and the specific carrier board or SBC in your system. NINERMAS engineers can assist with compatibility verification for VMIVME-7750, VMIVME-7807, and other common VME/VPX carrier platforms. Provide your system configuration details to sale@ninermas.com for a pre-purchase compatibility assessment.

Q3: Can NINERMAS support long-term supply of the PMC-GBIT-DT2BP for multi-year maintenance programs?
Yes. NINERMAS maintains reserved inventory programs for obsolete and long-lead industrial modules including the PMC-GBIT-DT2BP PMC610J4RC. Long-term supply agreements are available for customers with multi-year maintenance contracts, ensuring predictable lead times and price stability for critical spare parts procurement planning.

Q4: What is the recommended approach for replacing the PMC-GBIT-DT2BP in a live control system?
NINERMAS recommends a controlled replacement procedure: (1) document current network configuration including IP addresses, VLAN assignments, and link-speed settings; (2) power down the carrier board following the system’s approved lockout/tagout procedure; (3) install the replacement PMC-GBIT-DT2BP and verify seating on the PMC connector; (4) restore power and confirm PCI enumeration in the host OS or BIOS; (5) validate Ethernet link status on both ports before returning the system to service. Contact sale@ninermas.com for application-specific replacement guidance.
