AB 5069-L320ER Safety-Reliable Ruggedized Controller

AB 5069-L320ER Safety-Reliable Ruggedized Controller for Critical Control Sites

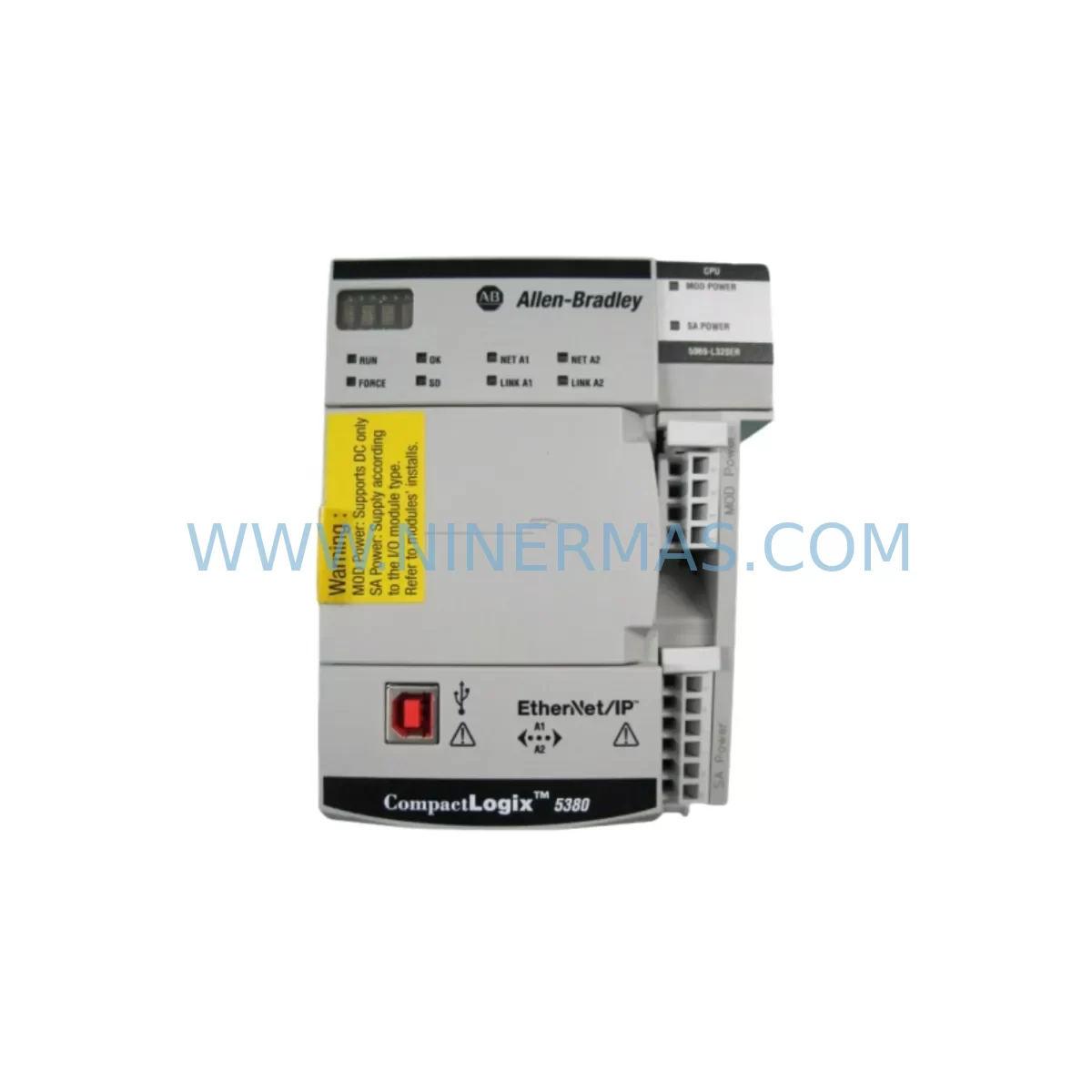

The Allen-Bradley 5069-L320ER is a ruggedized variant of the Compact GuardLogix 5380 / CompactLogix 5380 controller platform, engineered specifically for deployment in harsh industrial environments where standard control hardware cannot sustain reliable operation. Designed to meet the demands of continuous production facilities, critical safety interlocks, and high-consequence control cabinets, the 5069-L320ER delivers deterministic scan-time performance, integrated safety task execution, and robust resistance to electrical noise, vibration, thermal stress, and airborne contaminants.

In industries where an unplanned control interruption carries significant safety, environmental, or financial risk — including petrochemical processing, power generation, mining, water treatment, metallurgy, and port logistics — the 5069-L320ER provides the architectural foundation for a dependable control loop. Its extended temperature tolerance, conformal coating, and reinforced I/O backplane make it a preferred spare and active replacement for aging CompactLogix and GuardLogix installations operating beyond their original design envelope.

NINERMAS maintains verified stock of the 5069-L320ER with full pre-shipment functional testing, 12-month warranty coverage, and documented traceability. Each unit is inspected against Allen-Bradley factory specifications before dispatch, ensuring that field engineers receive a controller ready for immediate commissioning without the uncertainty associated with grey-market or untested inventory.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Deploying the 5069-L320ER as the primary or redundant safety controller in a critical control cabinet requires a holistic approach to risk reduction across power, I/O, communication, and safety layers. The controller’s dual EtherNet/IP ports support Device Level Ring (DLR) topology, eliminating single-point network failure — a critical advantage when paired with managed switches such as the Stratix 5400 or Stratix 5700 series in ring-configured plant networks.

On the power supply side, the 5069-PA1 and 5069-PB1 Compact I/O power supplies are the recommended companions, providing stable 24 VDC bus power with built-in surge tolerance. For applications where incoming AC power quality is poor — common in mining substations and heavy industrial switchgear rooms — pairing the cabinet with a 1606-XLP or 1606-XLS series power supply upstream ensures the 5069-L320ER receives clean, regulated DC input free from voltage sags and transient spikes.

Safety I/O expansion is handled through the 5069-IB16S safety digital input modules and 5069-OBV8S safety digital output modules, which integrate directly into the GuardLogix safety task without requiring external safety relays for most SIL 2 interlock circuits. For legacy field devices that output relay contacts, the 5069-IB8S provides a compact, high-density safe input interface. Where analog process variables feed into safety logic — such as pressure transmitters in a high-pressure reactor interlock — the 5069-IF8 analog input module provides the necessary resolution and channel isolation.

Communication integrity between the 5069-L320ER and remote I/O panels or distributed control nodes is maintained through 5069-AEN2TR EtherNet/IP adapter modules, which support DLR and linear topologies and are themselves rated for extended temperature operation. In environments with high electromagnetic interference from large VFDs, welding equipment, or high-voltage bus bars, proper cabinet segregation, shielded cable routing, and the use of 1492-AIFM analog interface modules for signal conditioning further reduce the risk of signal drift and spurious trips.

For safety relay backup and manual override circuits, the 440R-N23132 Guardmaster safety relay provides a hardwired safety layer that operates independently of the PLC scan cycle, ensuring that emergency stop and gate interlock circuits remain functional even during controller firmware updates or communication faults. This layered architecture — controller, safety I/O, safety relay, and network redundancy — forms the backbone of a robust, auditable safety control system aligned with IEC 62061 and ISO 13849 requirements.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: The 5069-L320ER is well-suited for burner management systems (BMS), emergency shutdown (ESD) panels, and compressor control cabinets in refineries and gas processing facilities. Its SIL 2 safety task capability allows it to execute safety instrumented functions (SIFs) directly, reducing the need for separate safety PLCs and simplifying the overall safety architecture. Conformal coating protects internal circuitry from hydrogen sulfide, ammonia, and other corrosive process gases that permeate control rooms in these environments.

Power Generation and Substation Control: In coal-fired, gas turbine, and hydroelectric generation facilities, the ruggedized controller manages turbine governor interlocks, generator protection relay coordination, and auxiliary system sequencing. The extended temperature range and vibration tolerance make it suitable for installation in outdoor switchgear kiosks and turbine hall control panels where ambient conditions fluctuate significantly across seasons.

Mining and Mineral Processing: Underground and surface mining operations subject control hardware to extreme dust loading, mechanical shock, and wide temperature swings. The 5069-L320ER’s conformal coating and ruggedized design allow it to operate reliably in conveyor drive control panels, crusher interlock systems, and ventilation fan safety circuits without the accelerated degradation seen in standard commercial-grade controllers.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities require continuous, unattended operation of pump stations, chemical dosing systems, and UV disinfection interlocks. The 5069-L320ER’s high-humidity tolerance and corrosion-resistant design make it a dependable choice for wet-area control panels, while its EtherNet/IP connectivity supports integration with SCADA systems for remote monitoring and alarm management.

Metallurgy and Steel Production: Rolling mill control systems, ladle transfer car interlocks, and furnace atmosphere control loops in steel plants demand controllers that can withstand radiant heat, electromagnetic interference from large induction furnaces, and the mechanical vibration of heavy rolling equipment. The 5069-L320ER’s thermal and EMI resilience directly addresses these challenges, supporting safe and productive operation in some of the most demanding industrial environments.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the 5069-L320ER?
All 5069-L320ER units supplied by NINERMAS carry a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing against Allen-Bradley factory specifications, and test records are available upon request. Warranty coverage includes replacement or repair for any verified manufacturing or component defect identified during normal operating conditions.

Q2: How is the 5069-L320ER tested before shipment?
Each unit is powered up and subjected to a functional verification routine that confirms communication port operation, I/O backplane integrity, safety task execution capability, and firmware version. Units that do not pass all verification checks are quarantined and not dispatched. This process ensures that field engineers receive a controller in confirmed working condition, reducing commissioning risk and unplanned downtime at the installation site.

Q3: Is the 5069-L320ER compatible with existing CompactLogix 5380 installations?
Yes. The 5069-L320ER is a ruggedized variant within the CompactLogix / Compact GuardLogix 5380 family and is fully compatible with 5069 Compact I/O modules, 5069-PA/PB power supplies, and Studio 5000 Logix Designer projects developed for standard 5069-L3 series controllers. Safety task projects developed for Compact GuardLogix 5380 controllers are directly transferable, subject to firmware version alignment. NINERMAS technical support can assist with compatibility verification prior to order confirmation.

Q4: Can NINERMAS support long-term spare parts supply for the 5069-L320ER?
Yes. NINERMAS operates a structured spare parts program for critical Allen-Bradley CompactLogix and GuardLogix controllers, including the 5069-L320ER. Long-term supply agreements are available for customers with planned maintenance schedules, turnaround projects, or multi-site spare parts standardization programs. Contact our technical sales team to discuss stock reservation, lead time commitments, and volume pricing arrangements.
