AB 2711P-T10C21D8S Retrofit-Compatible Ruggedized HMI

AB 2711P-T10C21D8S Retrofit-Compatible Ruggedized HMI for Legacy Systems

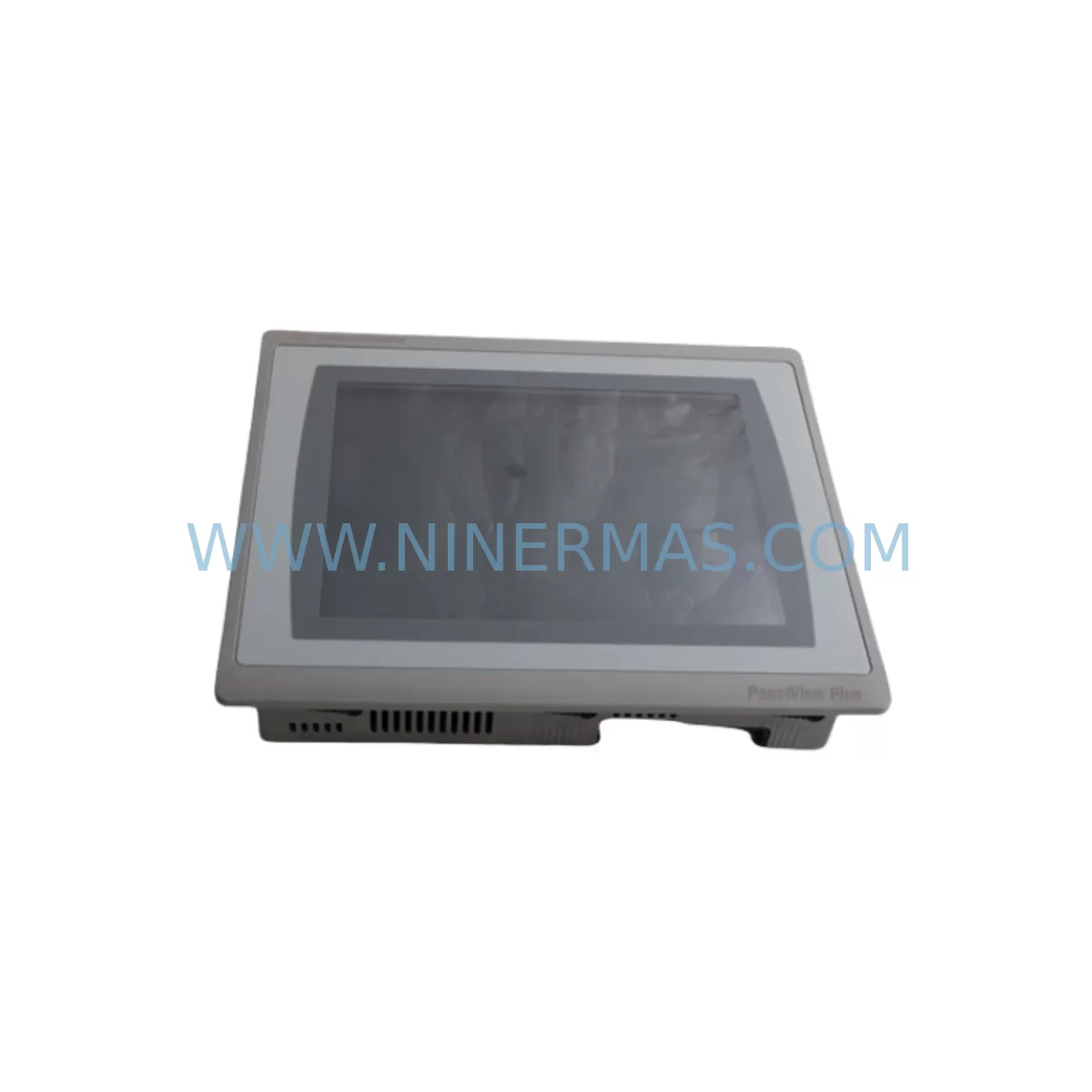

The Allen-Bradley 2711P-T10C21D8S is a 10.4-inch ruggedized HMI safety terminal from the PanelView Plus 7 series, engineered for demanding industrial environments where legacy operator interface panels are reaching end-of-life or have been discontinued. This unit is a direct retrofit candidate for aging PanelView 1000, PanelView 1200, and earlier PanelView Plus 6 installations, offering a smooth migration path without requiring a complete control cabinet redesign. With its Class I Division 2 hazardous location rating, stainless steel front bezel option, and IP66-rated enclosure, the 2711P-T10C21D8S is purpose-built for food and beverage, oil and gas, chemical processing, and water treatment facilities where environmental exposure and operator safety are primary concerns.

When planning a retrofit from an older PanelView 550, PanelView 900, or PanelView Plus 6 terminal, engineers must first verify the existing panel cutout dimensions. The 2711P-T10C21D8S requires a specific cutout size that may differ from earlier generations, and panel modification or a dedicated adapter plate may be needed. Power supply compatibility is a critical checkpoint: the unit accepts 24V DC input, and the existing 1606-XLP or 1606-XLS series power supply modules in the control cabinet must be confirmed to deliver adequate current capacity before commissioning. If the cabinet uses an older 1606-XL series unit, a capacity audit is strongly recommended.

Communication migration is another key planning step. The 2711P-T10C21D8S supports EtherNet/IP as its primary network protocol, which means legacy installations running DH+ or DH-485 will require a protocol gateway or a 1761-NET-AIC or 1761-NET-ENI adapter to bridge the existing PLC backplane to the new HMI. In many brownfield sites, the controller may be a legacy SLC 500 or PLC-5 series unit communicating over DH+. In these cases, a 1784-PKTX or 1784-U2DHP USB-to-DH+ adapter combined with a 1761-NET-ENI Ethernet interface module provides a reliable migration path without replacing the controller. For sites already running ControlLogix or CompactLogix platforms with EtherNet/IP, the 2711P-T10C21D8S connects natively with no additional hardware.

Application migration from FactoryTalk View ME software requires careful version alignment. Existing .MER application files developed for PanelView Plus 6 terminals are generally compatible with PanelView Plus 7 hardware after conversion using FactoryTalk View Studio ME, but screen resolution differences between the older 640×480 displays and the newer SVGA panel may require layout adjustments. Tag database imports, alarm configurations, and trend objects should be validated in simulation mode before live commissioning. HMI screen graphics referencing legacy tag structures tied to SLC 500 or MicroLogix 1100 controllers should be reviewed for address mapping changes if the controller is being upgraded simultaneously.

Terminal block wiring and I/O signal integrity must be confirmed during the retrofit. If the existing installation uses a 1492-IFM series interface module for pre-wired terminal connections, verify that the new HMI’s discrete I/O pinout matches the existing field wiring. For installations where the 2711P-T10C21D8S is being installed alongside a new 1756-L85E ControlLogix controller or a 5069-L330ERM CompactLogix controller, the EtherNet/IP network topology should be reviewed to ensure the managed switch infrastructure — such as a Stratix 5700 or Stratix 2000 series — supports the required port count and VLAN segmentation for the control network.

Backplane and rack considerations apply when the 2711P-T10C21D8S is part of a broader panel upgrade. If the control cabinet also houses a 1756-A17 or 1756-A10 ControlLogix chassis with 1756-EN2T or 1756-EN3TR EtherNet/IP communication modules, the HMI’s network address must be assigned within the same subnet and the I/O tree in the Logix Designer project must be updated to reflect the new terminal’s node address. Duplicate IP address conflicts are a common commissioning error in brownfield upgrades and should be resolved before powering the new HMI for the first time.

Pre-shipment testing is performed on every 2711P-T10C21D8S unit before dispatch. Each terminal is powered on, display uniformity is verified, touchscreen calibration is confirmed, and communication port functionality is tested. Units are shipped with original-style packaging to prevent transit damage. A 12-month warranty covers all hardware defects from the date of shipment, providing procurement teams and maintenance engineers with a reliable supply assurance for planned shutdowns and emergency replacements alike.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 2711P-T10C21D8S retrofit begins with a thorough site survey of the existing control cabinet. Maintenance teams should document the current HMI model, panel cutout dimensions, power rail capacity, network topology, and PLC communication protocol before ordering replacement hardware. In many legacy installations, the control cabinet will also contain a 1756-PA75 or 1756-PB75 ControlLogix power supply, a 1756-L71 or 1756-L74 Logix controller, and one or more 1756-IF16 analog input modules or 1756-OB16I digital output modules. These components are typically retained during an HMI-only swap, but their firmware versions should be confirmed compatible with the updated FactoryTalk View ME application.

For sites running CompactLogix platforms, the 5069-L330ERM or 1769-L36ERM controller communicates natively over EtherNet/IP, making the 2711P-T10C21D8S a plug-compatible replacement at the network level. The Stratix 5700 managed switch should be configured with the correct VLAN and QoS settings to prioritize HMI traffic. Where signal isolation is required between the HMI power circuit and field I/O, a 1492-AIFM8-F-5 or equivalent signal conditioner or isolator module should be installed on the terminal rail to prevent ground loop interference during commissioning.

Programming cable access is required during initial commissioning. A 1784-U2DHP USB-to-DH+ cable or a standard USB-to-Ethernet adapter connected to the HMI’s USB programming port allows FactoryTalk View Studio ME to download the converted application file directly. After download, the application should be tested in runtime mode with the PLC in program mode to verify all tag bindings, alarm setpoints, and trend historian connections before returning the line to production.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern during any HMI retrofit. The recommended approach is to pre-stage the 2711P-T10C21D8S with the converted FactoryTalk View ME application loaded and tested offline before the scheduled maintenance window. During the cutover, the existing HMI is powered down, disconnected from the network and power rail, and removed from the panel. The new terminal is installed, network and power connections are made, and the application is verified in runtime mode — all within a single planned shutdown window.

To protect the original program logic, a full backup of the existing PLC project should be taken using Logix Designer or RSLogix 5000 before any changes are made to the controller. The FactoryTalk View ME application backup (.MER file) should also be archived. If the controller is a legacy SLC 500, an RSLogix 500 offline backup should be saved and stored off-site. These backups ensure that if the retrofit encounters an unexpected compatibility issue, the system can be restored to its previous state without data loss.

Field control continuity is maintained by keeping the PLC in run mode throughout the HMI swap wherever process safety permits. Since the 2711P-T10C21D8S is an operator interface device and does not directly control I/O, the underlying control logic continues to execute on the ControlLogix or CompactLogix controller during the terminal replacement. Operators should be briefed on manual override procedures for the duration of the cutover window, and a qualified commissioning engineer should be on-site to supervise the reconnection and initial runtime verification.

Retrofit Support FAQ

Q: Is the 2711P-T10C21D8S a direct replacement for the 2711P-T10C4D8 or 2711P-T10C4A8?
A: The 2711P-T10C21D8S shares the same 10.4-inch display size and PanelView Plus 7 platform as earlier 2711P-T10 variants, but the D8S suffix denotes the ruggedized stainless steel bezel and Class I Div 2 rating. Panel cutout dimensions are compatible with most 2711P-T10 series installations. Confirm the power supply rating and communication module before finalizing the replacement order.

Q: Can this unit communicate with a legacy SLC 500 or PLC-5 controller?
A: Yes, via a protocol gateway. The 2711P-T10C21D8S uses EtherNet/IP natively. For DH+ or DH-485 networks, a 1761-NET-ENI or 1761-NET-AIC interface module bridges the legacy backplane to the EtherNet/IP network. Alternatively, a 1784-U2DHP adapter can be used for programming and diagnostics during commissioning.

Q: What pre-shipment testing is performed on each unit?
A: Every 2711P-T10C21D8S is powered on before dispatch. Display uniformity, touchscreen calibration, USB port function, and EtherNet/IP port link status are verified. Units pass a functional check before packaging. A 12-month warranty applies from the shipment date, covering hardware defects under normal operating conditions.

Q: What is the typical lead time and stock availability?
A: Stock availability is maintained for immediate dispatch on confirmed orders. Lead time for in-stock units is typically 3–7 business days depending on destination. For urgent plant shutdowns or emergency replacements, expedited shipping options are available. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current inventory and shipping schedule.
