AB 150-C25NBR Safety-Reliable Soft Starter for Critical Sites

AB 150-C25NBR Safety-Reliable Soft Starter for Critical Control Sites

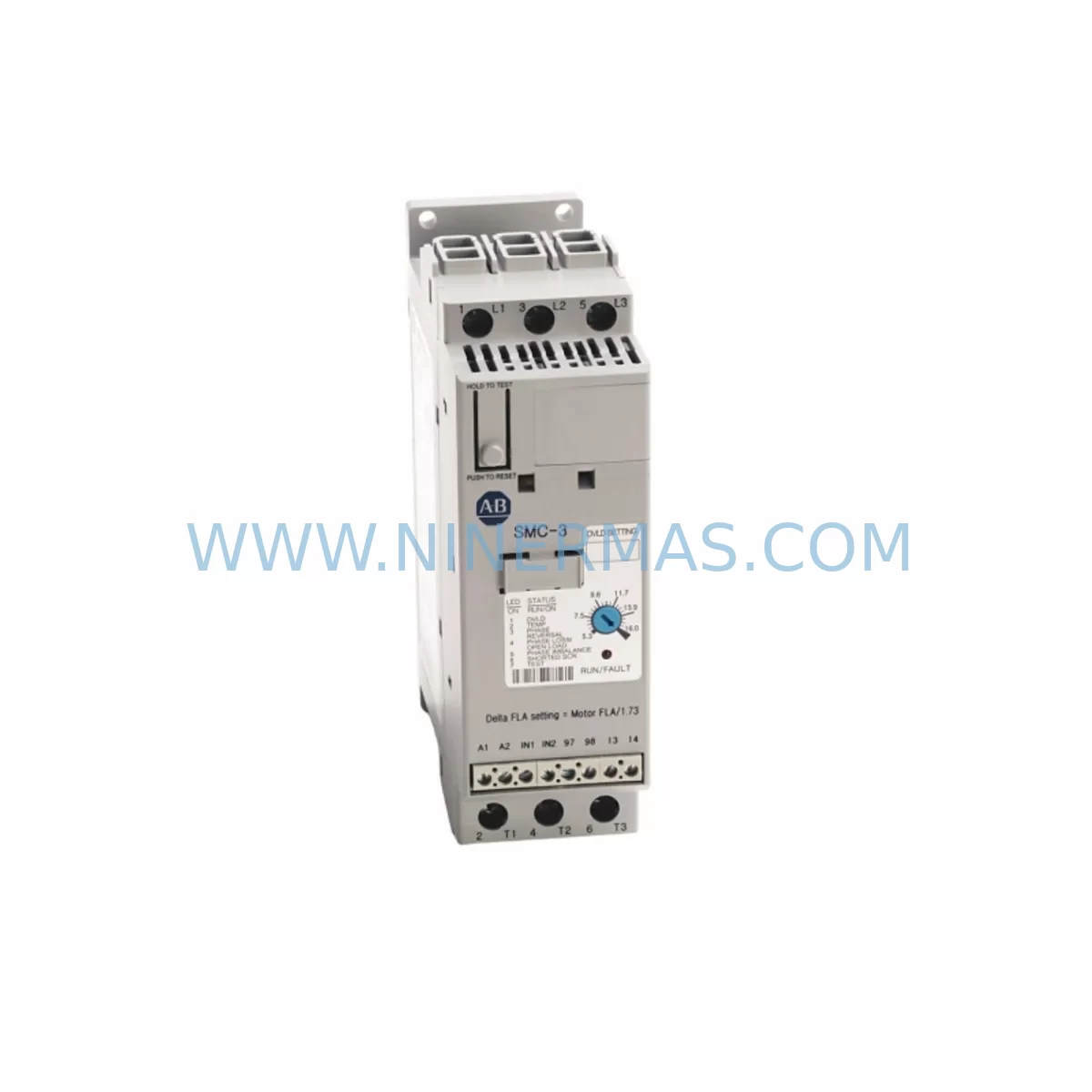

The Allen-Bradley 150-C25NBR is a 25A three-phase soft starter from the SMC-3 series, engineered by Rockwell Automation for demanding industrial environments where motor control reliability directly impacts process safety and operational continuity. Designed for critical control sites including petrochemical plants, power generation facilities, water treatment stations, mining operations, and continuous manufacturing lines, the 150-C25NBR delivers controlled motor acceleration and deceleration that eliminates mechanical shock, reduces inrush current, and protects both the driven load and the upstream power distribution system from the hazards of across-the-line starting.

In safety-critical applications, uncontrolled motor starts represent one of the most common causes of control cabinet failures, nuisance tripping, and unplanned downtime. The 150-C25NBR addresses this risk through its integrated solid-state thyristor control, which ramps voltage smoothly during start and stop sequences. This approach significantly reduces thermal stress on motor windings, mechanical wear on couplings and gearboxes, and voltage sag events that can destabilize adjacent instrumentation and control circuits sharing the same bus.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered motor control center (MCC) or control cabinet, the 150-C25NBR operates as part of a coordinated protection architecture. Its role begins at the point of motor energization, but its safety value extends across the entire cabinet when paired with complementary components from the Allen-Bradley and Rockwell Automation ecosystem.

Upstream of the soft starter, a properly rated Allen-Bradley 140M Motor Protection Circuit Breaker provides short-circuit and overload protection, ensuring that fault currents are interrupted before they can damage the 150-C25NBR’s thyristor stack or propagate into the control bus. For applications requiring IEC 60947-4-2 compliant coordination, the 140M series is the recommended upstream device for the SMC-3 family.

On the power supply side, the 1606-XLP100E switched-mode power supply from Rockwell Automation provides stable 24V DC control voltage to the soft starter’s control circuit and to associated safety relays and I/O modules. In environments with significant voltage fluctuation or harmonic distortion — common in heavy industrial sites — a stable SMPS prevents nuisance faults caused by control voltage dropout, which can trigger unintended motor stops in critical process loops.

For safety interlock circuits, the 440C-CR30 Guardmaster Safety Relay can be integrated with the 150-C25NBR’s enable input to enforce safe-state conditions during maintenance windows, emergency stops, or guard door openings. This configuration ensures that the soft starter cannot re-energize the motor until all safety conditions are confirmed, meeting the requirements of SIL 2 and PLd safety architectures common in petrochemical and pharmaceutical facilities.

Communication and diagnostics are handled through the 1734-AENT POINT I/O EtherNet/IP Adapter, which allows the soft starter’s run status, fault codes, and current feedback to be monitored in real time by a ControlLogix or CompactLogix PLC. When paired with a 1756-L72S GuardLogix Safety Controller, the system can implement programmatic interlocks that respond to motor fault conditions within milliseconds, preventing cascade failures in multi-motor process lines.

For motor branch circuit protection in high-density cabinet layouts, the 100-C23D10 IEC contactor is frequently used in bypass configurations alongside the 150-C25NBR. Once the motor reaches full speed, the bypass contactor closes to eliminate continuous thyristor conduction losses, improving thermal performance and extending the service life of the soft starter in high-cycle applications such as compressor stations and pump manifolds.

Overload protection is further reinforced by the 193-EC2PB Electronic Overload Relay, which provides precise thermal modeling of motor heating and cooling cycles. In dusty, humid, or high-ambient-temperature environments — such as cement plants, coastal pump stations, or tropical processing facilities — accurate thermal modeling prevents both nuisance trips and dangerous motor overheating that could lead to winding failure or fire risk.

For operator interface and local diagnostics, the 2711P-T7C4D8 PanelView Plus 7 terminal provides a graphical HMI that can display soft starter status, fault history, and motor current trends. This visibility is critical in unmanned substations and remote pump stations where early fault detection reduces the mean time to repair (MTTR) and prevents minor issues from escalating into full process shutdowns.

Finally, surge protection at the cabinet entry point — using a suitable Type 2 SPD rated for the site’s fault current level — protects the 150-C25NBR and all associated control components from lightning-induced transients and switching surges. In outdoor switchgear installations and coastal industrial sites, surge events are a leading cause of soft starter thyristor failure, making SPD coordination an essential element of any long-term reliability strategy.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process environments, the 150-C25NBR controls pump and compressor motors in hazardous area control panels. Its soft-start capability eliminates pressure hammer in pipeline systems and prevents mechanical seal damage during motor starts, reducing both maintenance costs and the risk of process fluid leaks that could create fire or explosion hazards.

Power Generation and Substation Auxiliaries: Cooling water pumps, forced-draft fans, and lube oil pumps in power plants require reliable, repeatable starting performance. The 150-C25NBR’s consistent voltage ramp characteristics ensure that auxiliary motor starts do not cause voltage dips that could affect protection relay operation or trip sensitive instrumentation on the same bus section.

Mining and Mineral Processing: Conveyor drives, crusher feeders, and slurry pump motors in mining operations are subject to high inertia loads and frequent start-stop cycles. The 150-C25NBR’s current-limiting start profile reduces mechanical shock on gearboxes and couplings, extending equipment life in environments where maintenance access is difficult and unplanned downtime is extremely costly.

Water and Wastewater Treatment: Municipal pump stations and treatment plant blower systems require soft starters that can operate reliably in humid, corrosive environments with minimal maintenance intervention. The 150-C25NBR’s sealed control electronics and robust thyristor design provide the long-term reliability needed for 24/7 unattended operation in these critical infrastructure applications.

Metallurgy and Steel Production: Rolling mill auxiliary drives, cooling system pumps, and furnace combustion air fans operate in high-temperature, high-vibration environments with significant electromagnetic interference from large power converters. The 150-C25NBR’s EMI-hardened design and solid-state construction make it suitable for these demanding conditions where electromechanical starters would require frequent contact replacement.

Port and Marine Applications: Crane hoist motors, ballast pump systems, and HVAC compressors on vessels and port equipment benefit from the 150-C25NBR’s ability to provide smooth, controlled starts even under variable load conditions. Its compact form factor and wide voltage tolerance make it suitable for shipboard electrical systems where space is limited and power quality may vary.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 150-C25NBR?
A: All 150-C25NBR units supplied by Ninermas carry a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported by our technical team with replacement or repair options to minimize your site downtime.

Q2: Is pre-shipment testing performed on each unit?
A: Yes. Every 150-C25NBR undergoes a full functional test before dispatch, including verification of control circuit operation, thyristor firing sequence, and protection function response. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 150-C25NBR compatible with existing SMC-3 series installations?
A: The 150-C25NBR is a direct form-fit-function replacement for other 25A-rated SMC-3 series soft starters. It is compatible with standard Allen-Bradley motor control center (MCC) bucket configurations and can be installed without modification to existing wiring or control circuit connections. For applications requiring higher current ratings, the 150-C37NBR (37A) and 150-C43NBR (43A) are available as uprated alternatives within the same SMC-3 platform.

Q4: Can long-term supply and reserved inventory be arranged?
A: Yes. Ninermas offers reserved inventory programs for customers with ongoing maintenance requirements or multi-site spare parts strategies. Long-term supply commitments help mitigate lead time risk for critical spare parts and ensure that replacement units are available when needed, supporting your site’s MTTR targets and planned maintenance schedules.
