6ES7522-1BL01-0AB0 | Siemens SIMATIC S7-1500 DQ 32x24V DC Output Module

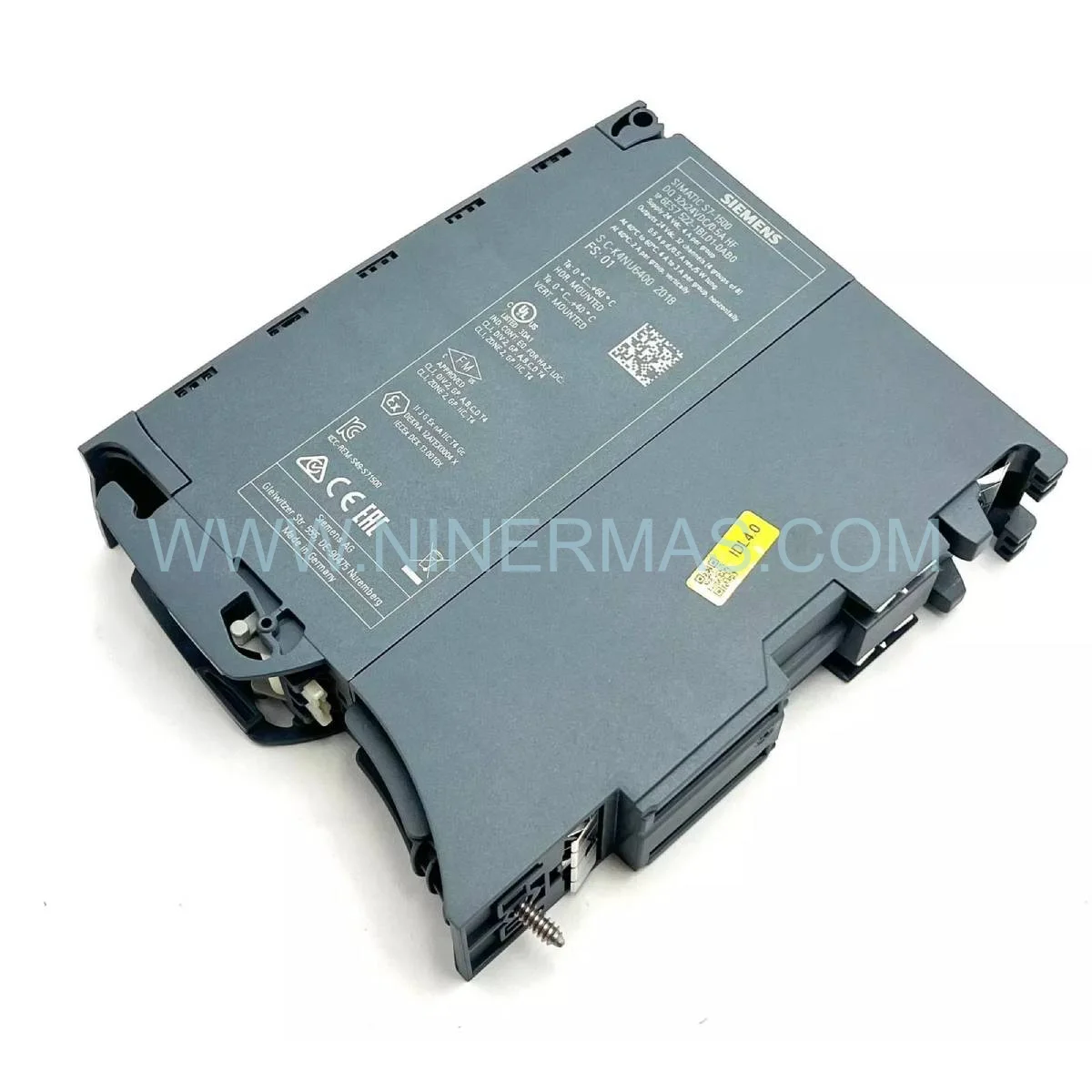

6ES7522-1BL01-0AB0 — Siemens SIMATIC S7-1500 Digital Output Module (SIL2-Rated, High-Feature)

As a procurement manager sourcing critical automation components, you need parts that are verified, traceable, and ready to deploy. The 6ES7522-1BL01-0AB0 is a factory-sealed, 100% Brand New and Factory Sealed digital output module engineered for the Siemens SIMATIC S7-1500 PLC System — one of the most widely deployed control platforms in global Industrial Automation. This module delivers 32 channels of 24V DC / 0.5A output with High-Feature (HF) diagnostics, making it a precision-grade component for demanding control environments.

Designed to address the reliability challenges faced in safety-critical installations, the 6ES7522-1BL01-0AB0 supports safety-oriented shutdown of load groups up to SIL2 (EN IEC 62061:2021) and Category 3 / PL d (EN ISO 13849-1:2015). Whether you are maintaining an existing PLC System or expanding a Control Module network, this Original New Spare Parts solution eliminates the risk of counterfeit components and unplanned downtime.

Backed by a 1-Year Warranty and fast global logistics, this module is the trusted choice for engineers and procurement teams across Oil & Gas, Power Generation, Automotive, and Chemical Processing industries. Contact us today for a competitive quote and same-day shipping confirmation.

Typical Application Scenarios

The 6ES7522-1BL01-0AB0 is deployed across a wide range of safety-sensitive and high-throughput industrial environments:

• ✅ Oil & Gas Facilities: Controls solenoid valves and actuators in hazardous zones where SIL2-rated shutdown capability is a regulatory requirement. Replaces aging DCS output cards with a modern, diagnostics-rich alternative.
• Power Plants & Utilities: Manages turbine control outputs and grid-switching actuators. Single-channel diagnostics enable rapid fault isolation without full system shutdown.
• ✅ Automotive Manufacturing: Drives conveyor actuators, robotic end-effectors, and press control outputs in high-cycle production lines. The switching cycle counter for connected actuators supports predictive maintenance programs.
• ✅ Chemical & Pharmaceutical Processing: Interfaces with dosing pumps and safety interlocks in batch processing systems. SIL2 compliance satisfies IEC 61511 functional safety requirements.
• ✅ Infrastructure & Building Automation: Integrates into HVAC control panels and access control systems requiring robust, multi-channel digital output capability.

Technical Specifications & Selection Guide

Selection Guide: The 6ES7522-1BL01-0AB0 is the HF (High-Feature) variant of the S7-1500 DQ 32x24V DC series. Choose this model when your application requires single-channel diagnostics, SIL2 safety shutdown, or actuator lifecycle monitoring. For standard applications without safety requirements, consider the BA (Basic) variant. Always verify front connector compatibility before ordering.

Core Features & Technical Advantages

• 32-Channel Precision Output: Delivers robust 24V DC / 0.5A per channel across 32 independently monitored outputs — ideal for high-density control panels in Industrial Automation environments.
• SIL2 / Category 3 Safety Shutdown: Supports safety-oriented de-energization of load groups, enabling integration into Safety Instrumented Systems (SIS) without additional relay hardware.
• Single-Channel Diagnostics: Wire-break, short-circuit, and overload faults are detected and reported at the individual channel level, dramatically reducing Mean Time to Repair (MTTR).
• Switching Cycle Counter: Built-in actuator lifecycle tracking enables data-driven predictive maintenance — a heavy-duty feature rarely found in standard output modules.
• Substitute Value Output: Configurable fail-safe output states ensure controlled process behavior during CPU communication loss.
• Seamless S7-1500 PLC System Integration: Plug-and-play compatibility with the SIMATIC S7-1500 backplane. Fully configurable via TIA Portal V15 and above.
• 100% Original and Brand New: Every unit is sourced directly from authorized channels, factory sealed, and verified against Siemens’ original part documentation — meeting E-E-A-T standards for industrial procurement.

Logistics & Professional Service

• ✅ 2-Day Express Shipping Available: Air freight options to major global hubs including Europe, Southeast Asia, Middle East, and the Americas. DHL / FedEx / UPS tracking provided.
• ✅ 1-Year Warranty: All units carry a 12-month warranty against manufacturing defects. DOA (Dead on Arrival) replacements processed within 48 hours.
• ✅ Full Documentation Package: Certificate of Origin, Packing List, Commercial Invoice, and Siemens Datasheet available upon request — essential for customs clearance and audit compliance.
• ✅ EOL & Legacy System Support: We specialize in sourcing discontinued and hard-to-find Siemens SIMATIC Spare Parts for legacy PLC System installations. Long-term supply agreements available.
• ✅ Pre-Sales Technical Consultation: Our engineering team can verify cross-compatibility, firmware requirements, and TIA Portal configuration parameters before your purchase.

FAQ — Frequently Asked Questions

Q1: Is the 6ES7522-1BL01-0AB0 in stock and what is the lead time?
A: Yes, the 6ES7522-1BL01-0AB0 is typically available from stock. Standard orders ship within 1-2 business days. For urgent requirements, same-day dispatch can be arranged for orders confirmed before 12:00 PM (UTC+8). Contact us for real-time inventory confirmation.

Q2: What is the price of the 6ES7522-1BL01-0AB0?
A: Pricing varies based on order quantity, destination, and shipping method. Volume discounts are available for orders of 5 units or more. Please submit an inquiry via sale@ninermas.com or use the contact form for a formal quotation within 2 business hours.

Q3: Can you provide the official Siemens Datasheet for the 6ES7522-1BL01-0AB0?
A: Yes. The official Siemens product datasheet, including technical specifications, wiring diagrams, and TIA Portal configuration notes, is available upon request. Email sale@ninermas.com with your inquiry reference number.

Q4: How can I verify that the 6ES7522-1BL01-0AB0 is 100% Original and Brand New?
A: Every unit we supply is 100% Original and Brand New, sourced from authorized distribution channels. We provide a Certificate of Origin (Germany), original Siemens packaging with intact factory seals, and full traceability documentation. Third-party inspection is welcome.

Q5: Is the 6ES7522-1BL01-0AB0 compatible with TIA Portal V16 and V17?
A: Yes. This Control Module is fully supported in TIA Portal V15.1 and all later versions including V16, V17, and V18. Hardware Support Package (HSP) updates may be required for the latest firmware revisions — our technical team can advise accordingly.

Q6: Do you support export to sanctioned or restricted regions?
A: All transactions are conducted in strict compliance with applicable export control regulations, including EU Dual-Use regulations and US EAR. End-user declarations may be required for certain destinations. Please consult with our compliance team prior to ordering.
