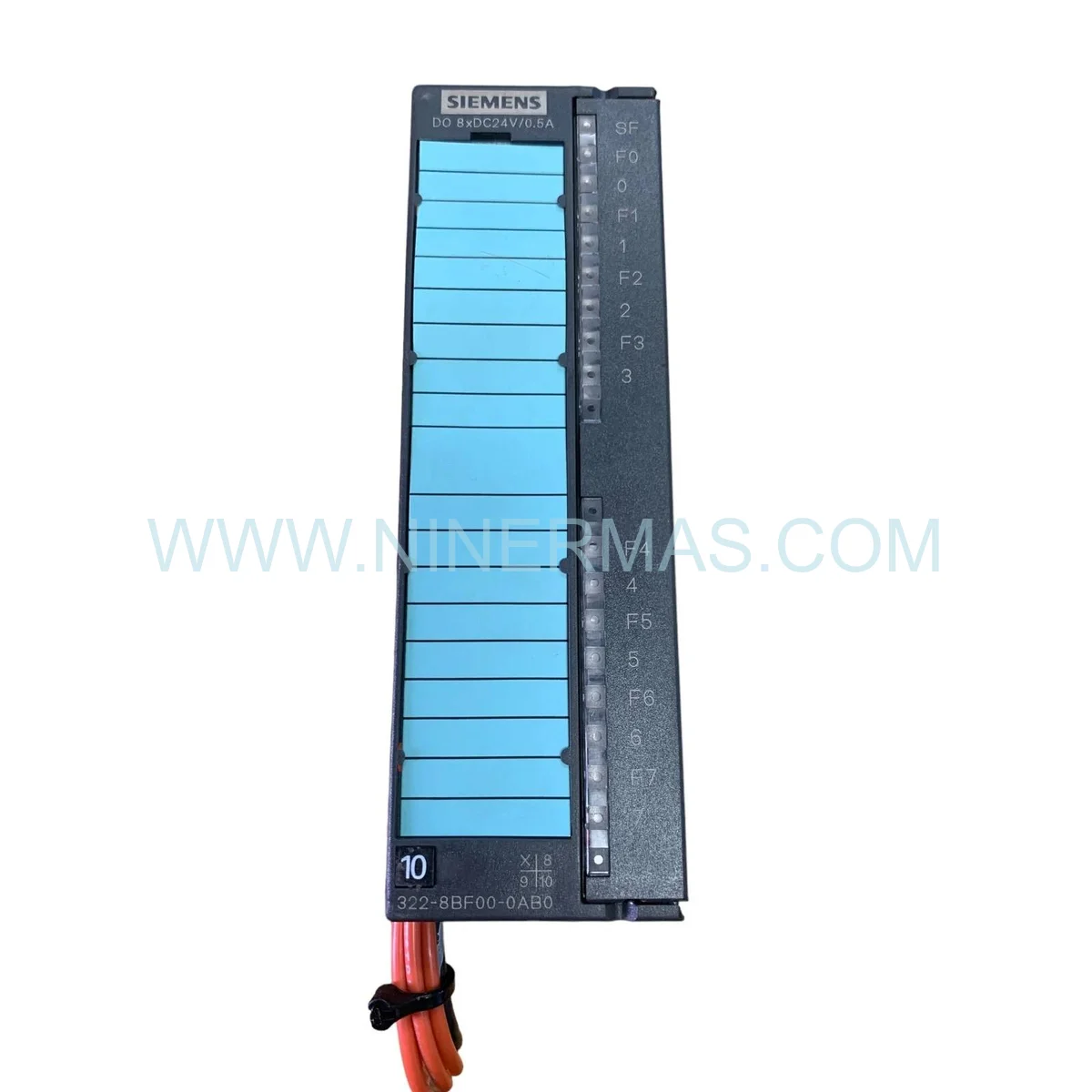

6ES7322-8BF00-0AB0 — Siemens SIMATIC S7-300 SM 322 High-Current Digital Output Module (Industrial-Grade, Original New)

As a procurement manager sourcing critical spare parts for continuous production lines, you need components that ship fast, arrive genuine, and install without surprises. The 6ES7322-8BF00-0AB0 is Siemens’ purpose-built 8-channel, 24 V DC / 2 A transistor output module for the SIMATIC S7-300 PLC System — and it is available here as a 100% Brand New and Factory Sealed Original Spare Part. This Control Module delivers twice the per-channel current of standard SM 322 variants, making it the definitive solution wherever heavy inductive loads, solenoid valves, or brake coils demand reliable high-current switching in Industrial Automation environments.

Downtime caused by an overloaded or failed output card is one of the most disruptive events on any plant floor. The 6ES7322-8BF00-0AB0 was engineered specifically to eliminate that risk: eight individually isolated channels, each rated at a continuous 2 A, with integrated electronic short-circuit protection and automatic restart — no manual intervention required after a fault clears. Whether you are maintaining a legacy S7-300 PLC System in a steel mill or expanding a packaging line, this Original New module slots directly into your existing rack without hardware or software reconfiguration.

We stock this module across EU and US warehouses, enabling 2-day dispatch to most global destinations. Every unit ships with full Siemens factory documentation and is covered by a 1-year warranty. Contact our team today for a competitive quote and confirmed lead time.

Typical Application Scenarios

✅ Oil & Gas Processing Plants — Controlling high-current solenoid valves on pipeline isolation systems where standard 0.5 A outputs repeatedly trip on inrush current. The 2 A rating handles coil loads without derating even at elevated ambient temperatures.

Power Plants & Utilities — Driving actuator coils and motorized valve positioners in turbine control panels. The isolated channel architecture prevents ground loops that can corrupt diagnostic data in sensitive PLC environments.

✅ Automotive & Robotics Assembly — Direct brake release and gripper solenoid control on KUKA and Fanuc robotic cells. The module’s — 100 Hz switching frequency and electronic trip-and-restart protect tooling from overcurrent damage during high-cycle operations.

✅ Crane & Material Handling — 24 V DC magnet and hoist brake control on Demag and Konecranes systems. Eight isolated channels allow mixed load types on a single module, simplifying panel wiring and reducing spare-part inventory.

✅ Packaging & Press Lines — Hydraulic valve coils and safety brake actuation on Schuler press lines. The module’s full-load capability at 60 °C ambient ensures reliable operation inside warm control cabinets without forced cooling.

Core Features & Technical Advantages

• Robust 2 A Per-Channel Rating — Continuous 2 A output per channel (8 A total module load) with no derating up to 60 °C; handles heavy inductive and resistive loads that exceed standard SM 322 module limits.
• 8 Individually Isolated Channels — True galvanic isolation between channels prevents cross-talk and ground faults, enabling safe mixed-load wiring in complex PLC System architectures.
• Precision Electronic Short-Circuit Protection — Automatic electronic trip with self-reset eliminates manual intervention after fault clearance, reducing Mean Time to Repair (MTTR) in Industrial Automation environments.
• Seamless TIA Portal & STEP 7 Compatibility — Fully supported in TIA Portal V18 and STEP 7 V5.7; direct drop-in replacement for earlier revisions (6ES7322-8BF00-0AA0) with zero reconfiguration.
• Heavy-Duty Industrial Construction — 40 — 125 — 120 mm compact form factor; 0.28 kg; rated 0-60 °C operating range; designed for 24/7 operation in harsh plant environments.
• 100% Original and Brand New — Sourced directly from authorized Siemens distribution channels; factory sealed with full traceability documentation to meet E-E-A-T procurement standards.

Technical Specifications & Selection Guide

Selection Guide: Choose the 6ES7322-8BF00-0AB0 when your application requires per-channel currents above 0.5 A (standard SM 322 limit). If load current per channel is — 0.5 A, consider the 6ES7322-1BF01-0AA0 for cost optimization. For migration to newer platforms, the ET 200SP DQ 8-24VDC/2A HF is the recommended upgrade path.

Logistics & Professional Service

• ✅ 2-Day Global Shipping — Stocked in EU and US warehouses; most orders dispatched within 24 hours of payment confirmation. Express air freight available for emergency shutdowns.
• ✅ 1-Year Warranty — Every 6ES7322-8BF00-0AB0 unit is covered by a 12-month warranty against manufacturing defects, backed by our technical support team.
• ✅ Full Documentation Package — Siemens factory datasheet, certificate of conformity, and country-of-origin documentation provided upon request to satisfy procurement compliance requirements.
• ✅ EOL & Legacy System Support — We specialize in sourcing discontinued and end-of-life (EOL) Siemens SIMATIC S7-300 Spare Parts, ensuring your legacy PLC System remains operational without costly platform migrations.
• ✅ Global Export Compliance — All shipments handled with full export documentation; experience shipping to 80+ countries including EU, Middle East, Southeast Asia, and the Americas.

FAQ — Frequently Asked Questions

Q1: What is the price of the 6ES7322-8BF00-0AB0, and do you offer volume discounts?
A: Pricing for the 6ES7322-8BF00-0AB0 varies based on order quantity and current market availability. We offer competitive tiered pricing for orders of 5+ units. Please contact sale@ninermas.com with your required quantity for a formal quotation within 2 business hours.

Q2: How quickly can the 6ES7322-8BF00-0AB0 be delivered to my facility?
A: Standard lead time is 1-2 business days from our EU/US stock locations. For urgent plant shutdowns, same-day dispatch is available for orders confirmed before 14:00 local warehouse time. DHL Express and FedEx Priority options are available for next-day delivery to most major industrial regions.

Q3: Is this module 100% Original and Brand New, or is it refurbished?
A: Every unit we supply is 100% Original and Brand New, sourced exclusively from authorized Siemens distribution channels. We do not sell refurbished, repaired, or counterfeit components. Factory seals are intact upon delivery, and a certificate of authenticity is available upon request.

Q4: Can you provide the official Siemens Datasheet for the 6ES7322-8BF00-0AB0?
A: Yes. The official Siemens product datasheet, hardware installation manual, and GSD file are available upon request. Contact our technical team at sale@ninermas.com and reference the part number 6ES7322-8BF00-0AB0 in your inquiry.

Q5: Is the 6ES7322-8BF00-0AB0 compatible with my existing S7-300 rack and front connector?
A: Yes. This module is a direct plug-in replacement for all earlier SM 322 high-current variants, including the 6ES7322-8BF00-0AA0. It uses the standard 20-pin front connector (6ES7392-1AJ00-0AA0) and requires no hardware or software changes in TIA Portal or STEP 7.

Q6: Do you support Industrial Automation projects requiring multiple Control Module types from the SIMATIC S7-300 family?
A: Absolutely. We maintain extensive inventory across the full SIMATIC S7-300 range — CPUs, analog I/O, digital I/O, and communication processors. We can consolidate multi-line BOM orders into a single shipment, reducing freight costs and simplifying your procurement process.
