6ES7132-4BD02-0AA0 Siemens ET 200S Digital Output Module – Original Spare Parts

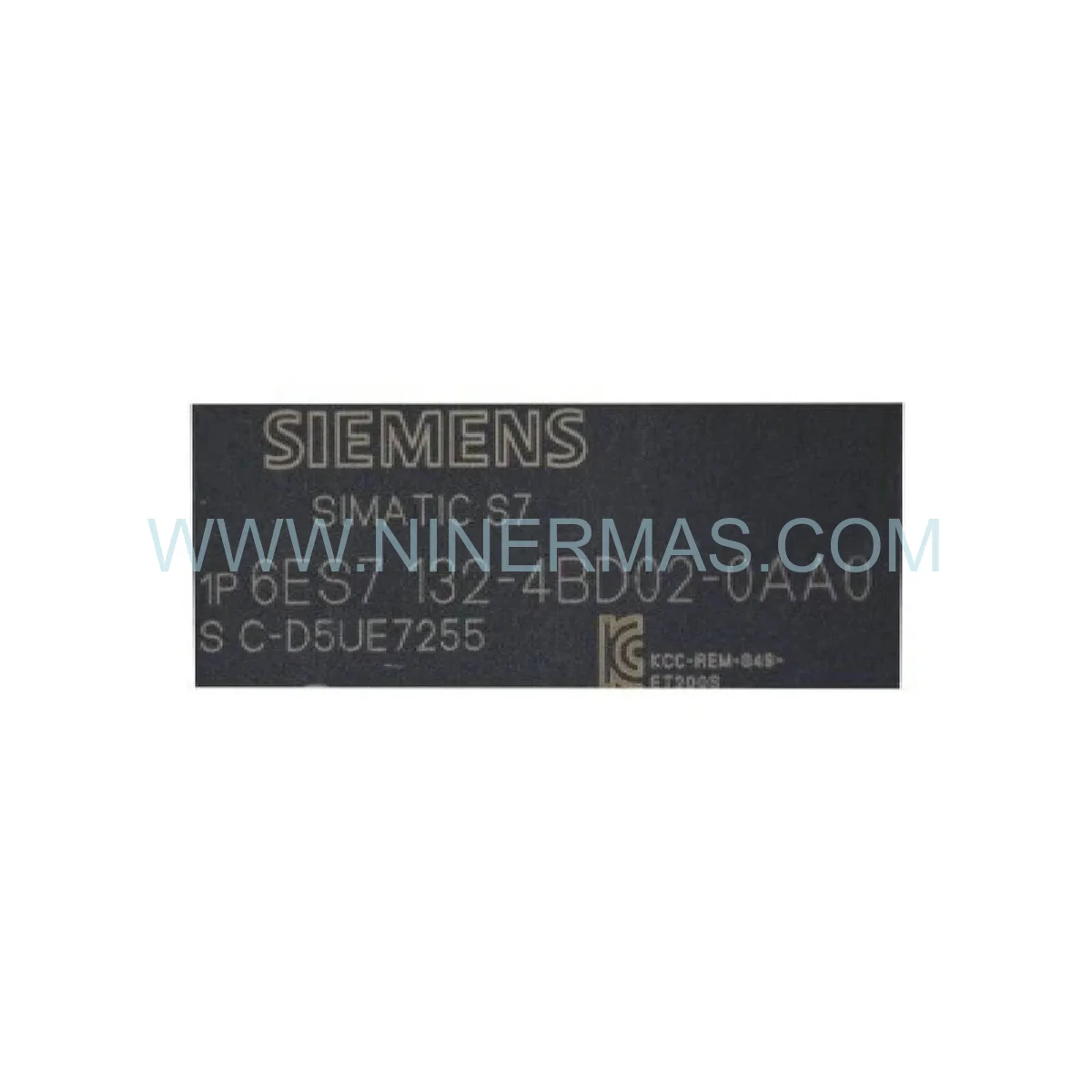

6ES7132-4BD02-0AA0 — Siemens ET 200S Digital Output Module (Industrial-Grade, Factory Original)

The 6ES7132-4BD02-0AA0 is a precision-engineered digital output module developed by Siemens for the SIMATIC ET 200S distributed I/O platform. Designed to deliver robust, high-density switching control within PLC System architectures, this module features four independent 24V DC transistor output channels housed in an ultra-compact 15mm profile. Every unit supplied is 100% Brand New and Factory Sealed, sourced directly from authorized Siemens distribution channels to guarantee authenticity and full traceability. As a critical Industrial Automation Spare Parts component, the 6ES7132-4BD02-0AA0 integrates seamlessly into SIMATIC S7-300/400 Control Module configurations via PROFIBUS DP or PROFINET, enabling engineers to maintain high system availability without costly infrastructure overhauls.

Procurement managers operating in Oil & Gas, Power Plants, chemical processing, and discrete manufacturing sectors rely on this Original New module to replace aging I/O hardware while preserving existing wiring and program logic. The 6ES7132-4BD02-0AA0 addresses the persistent challenge of sourcing End-of-Life (EOL) Siemens components — our dedicated inventory ensures rapid fulfillment even for legacy system requirements. With built-in short-circuit and overload diagnostics, galvanic isolation, and hot-swap capability, this module minimizes unplanned downtime and supports continuous production operations.

Whether you are expanding an existing ET 200S station or executing an emergency replacement, this module delivers the reliability and compatibility your operation demands. Contact our team today for a competitive quote and same-day shipping confirmation.

Technical Specifications & Selection Guide

Selection Guide: Choose the 6ES7132-4BD02-0AA0 when your ET 200S station requires 4-channel 24V DC transistor outputs with 0.5A per channel capacity. For higher current demands (2A/channel), consider the 6ES7132-4BD32-0AA0. For 8-channel density, evaluate the 6ES7132-4BF00-0AA0.

Core Features & Technical Advantages

• Precision 4-Channel Control: Four independently addressable 24V DC PNP transistor outputs enable granular process control without cross-channel interference.
• Heavy-Duty Diagnostic Protection: Integrated short-circuit and overload detection with per-channel LED status indicators reduces fault diagnosis time by up to 60%.
• Robust Galvanic Isolation: Full electrical isolation between output channels and the PROFIBUS/PROFINET backplane bus protects the PLC System from field-side transients.
• Hot-Swap Capability: Modules can be replaced under live station power, eliminating the need for full system shutdowns during maintenance — critical for 24/7 production environments.
• Ultra-Compact 15mm Footprint: Enables high-density I/O configurations in space-constrained control cabinets, maximizing channel count per rack unit.
• Broad Compatibility: Fully compatible with Siemens SIMATIC S7-300, S7-400, and ET 200S infrastructure; configurable via TIA Portal and Classic STEP 7.

Typical Application Scenarios

As a senior automation engineer, I have deployed the 6ES7132-4BD02-0AA0 across multiple demanding industrial environments where reliability is non-negotiable:

• Oil & Gas Facilities: Controls solenoid-operated isolation valves and emergency shutdown actuators in hazardous-area control panels, where galvanic isolation is mandatory for intrinsic safety compliance.
• Power Plants & Utilities: Drives alarm beacons, pump starters, and motorized valve actuators within DCS/SIS hybrid architectures, supporting both PROFIBUS and PROFINET topologies.
• Pharmaceutical & Food Processing: Operates dosing pump relays, agitator contactors, and CIP valve banks in GMP-regulated environments requiring full audit-trail diagnostics.
• Automotive Assembly Lines: Switches pneumatic cylinder solenoids, conveyor diverters, and part-presence indicators in high-cycle-rate body-shop and paint-shop applications.
• Water & Wastewater Treatment: Controls submersible pump starters, chemical dosing valves, and UV disinfection units in remote unmanned pump stations via PROFINET.

Logistics & Professional Service

• ✅ 2-Day Express Shipping: Priority air freight available to major industrial hubs globally — DHL, FedEx, and UPS accounts supported for direct billing.
• ✅ 1-Year Warranty: Every 6ES7132-4BD02-0AA0 unit is covered by a 12-month warranty against manufacturing defects and functional failures under rated conditions.
• ✅ EOL Legacy System Support: Specialized inventory management for discontinued Siemens ET 200S components ensures availability for systems no longer in active production.
• ✅ Full Documentation Package: Factory test certificates, EU Declaration of Conformity, and Siemens original datasheet provided upon request.
• ✅ Global Export Compliance: Pre-cleared customs documentation and HS code classification support for seamless cross-border shipments.

FAQ — Frequently Asked Questions

Q1: What is the price of the 6ES7132-4BD02-0AA0, and are volume discounts available?
A: Pricing for the 6ES7132-4BD02-0AA0 is competitive and varies based on order quantity and delivery urgency. We offer tiered volume discounts for orders of 5+ units, with additional savings for system integrators and OEM partners. Contact sale@ninermas.com with your required quantity for a formal quotation within 2 business hours.

Q2: How quickly can the 6ES7132-4BD02-0AA0 be shipped after order confirmation?
A: In-stock units are dispatched within 24 hours of payment confirmation. Express 2-day delivery is available to most international destinations. For urgent plant shutdowns or emergency replacements, same-day dispatch can be arranged — please indicate urgency when contacting us.

Q3: Can you provide a Certificate of Origin and authenticity documentation for this Siemens module?
A: Yes. All units are 100% Original and Brand New Siemens components. We supply factory test reports, Certificate of Origin (COO), EU Declaration of Conformity, and Siemens product traceability documentation upon request — essential for regulated industries such as Oil & Gas and Pharmaceuticals.

Q4: Where can I download the official datasheet for the 6ES7132-4BD02-0AA0?
A: The official Siemens datasheet and manual are available through the Siemens Industry Online Support portal. We can also provide a pre-downloaded copy alongside your order documentation. Contact our technical team for the latest revision of the product manual.

Q5: Is this module compatible with TIA Portal, or only Classic STEP 7?
A: The 6ES7132-4BD02-0AA0 is fully configurable in both SIMATIC STEP 7 Classic (v5.x) and TIA Portal (v13 and above) using the ET 200S hardware catalog. No additional GSD files are required for standard PROFIBUS DP configurations.

Q6: What terminal modules are required for installation?
A: Compatible terminal modules include TM-P15S23-A0 (screw terminals) and TM-P15C16-A1 (push-in spring terminals). Terminal module selection depends on your wiring preference and cabinet environmental conditions. Both are available from our inventory.
