4NIC-Casic 4NIC-DC325/G Service-Ready Spare Part

4NIC-Casic 4NIC-DC325/G Service-Ready Spare Part for Industrial Maintenance

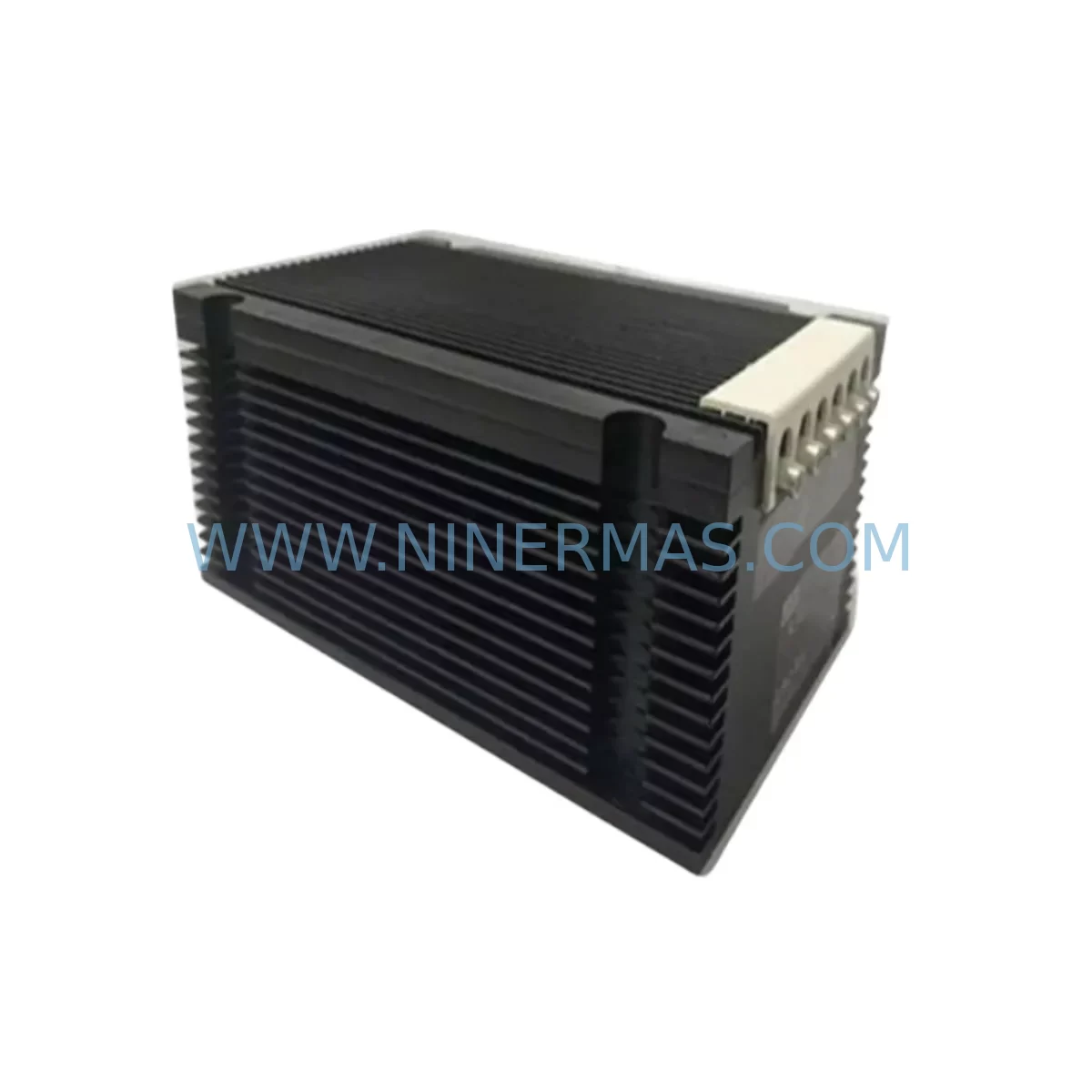

The 4NIC-Casic 4NIC-DC325/G is a ruggedized DC-DC converter module engineered for continuous operation in demanding industrial environments. As a service-ready spare part, it is stocked and tested to support rapid replacement in control cabinets, PLC power rails, and distributed automation systems where unplanned downtime carries significant operational cost. Whether you are managing a scheduled annual overhaul, responding to an emergency shutdown, or building a proactive spare parts inventory for a legacy automation system, the 4NIC-DC325/G delivers the electrical stability and form-factor compatibility required to restore production with minimal disruption.

Sourced directly from 4NIC-Casic’s industrial power division, this module is designed to withstand wide-temperature operation, high-vibration mounting conditions, and the EMI-dense environments typical of heavy manufacturing, process control, and railway signalling installations. Its ruggedized construction makes it a preferred replacement for aging DC converter modules in systems where sourcing original-specification components is critical to maintaining CE, UL, or SIL compliance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 4NIC-DC325/G fails or reaches end-of-service life, experienced maintenance engineers know that the DC converter is rarely the only component under stress. A systematic inspection of the surrounding power distribution and control architecture is essential to prevent repeat failures and ensure a clean return to service.

Begin by auditing the input power feed to the converter. Check the upstream 24 VDC or 48 VDC bus fuses — typically Phoenix Contact or Weidmüller blade fuse terminal blocks — for signs of thermal discolouration or intermittent contact. A degraded fuse holder can cause voltage sag that accelerates converter wear even after a new 4NIC-DC325/G is installed.

Next, inspect the output wiring and terminal blocks. Loose or corroded connections on WAGO 281 or Phoenix Contact PTFIX distribution terminals are a common root cause of load-side instability. Torque all terminals to specification and verify conductor cross-sections match the load current profile of the 4NIC-DC325/G’s rated output.

For systems where the converter feeds a Siemens S7-300 or S7-400 PLC backplane, confirm that the backplane power supply module — such as a Siemens PS 307 or PS 405 — is within its rated load envelope after the DC converter replacement. Overloaded backplane supplies are a frequent secondary failure mode in aging control cabinets.

If the 4NIC-DC325/G powers I/O expansion racks or remote I/O nodes, verify the signal integrity of any PROFIBUS DP or PROFINET communication cables in the vicinity. Power interruptions can corrupt bus termination resistor settings; re-validate network topology after restoration. Similarly, check signal isolators — such as Phoenix Contact MACX or Pepperl+Fuchs KFD series — that condition 4–20 mA analogue loops fed from the same DC rail, as transient overvoltage during converter failure can degrade isolation barriers.

For control cabinets incorporating safety relays — for example Pilz PNOZ or Schmersal SRB series — confirm that the safety relay’s supply voltage is within tolerance after the new converter is commissioned. Safety relays are sensitive to supply ripple and may require a manual reset or self-test cycle before the safety circuit re-enables machine motion.

Finally, if the cabinet includes an HMI panel such as a Siemens TP700 Comfort or Weintek MT series, power-cycle the HMI after converter replacement and verify that all communication links to the PLC are re-established cleanly. Log the replacement event in your CMMS with the 4NIC-DC325/G serial number, installation date, and measured output voltage at commissioning — this data is invaluable for future predictive maintenance scheduling.

Site Replacement Workflow

Step 1 — Isolate and de-energise. Follow your site LOTO (Lockout/Tagout) procedure. Confirm zero voltage on the input terminals of the existing DC converter using a calibrated multimeter before proceeding.

Step 2 — Document the existing installation. Photograph wiring, label all conductors, and record the output voltage set-point if the 4NIC-DC325/G has an adjustable trim. This is especially important when replacing a unit that has been in service for several years, as field adjustments may not be reflected in the original drawings.

Step 3 — Remove the failed unit. Disconnect input and output terminals in sequence. If DIN rail mounted, release the rail clip and slide the module clear. Retain the failed unit for failure analysis if required by your maintenance protocol.

Step 4 — Install the replacement 4NIC-DC325/G. Verify the replacement unit’s label matches the original SKU — specifically confirm the /G ruggedized suffix, as the standard 4NIC-DC325 (without /G) has a narrower operating temperature range and may not meet site environmental specifications. Reconnect terminals in reverse order of removal.

Step 5 — Commission and verify. Re-energise under controlled conditions. Measure output voltage and ripple with an oscilloscope or precision multimeter. Confirm all downstream loads — PLC racks, I/O modules, HMI, and communication modules — power up correctly and without fault codes.

Step 6 — Update maintenance records. Record the replacement in your asset management system. Schedule the next inspection interval based on the manufacturer’s recommended service life and your site’s duty cycle. The 4NIC-DC325/G carries a 12-month warranty from date of dispatch; retain the delivery documentation as proof of purchase.

Spare Parts Support FAQ

Q1: Is the 4NIC-DC325/G a direct drop-in replacement for the standard 4NIC-DC325?
Yes, the /G suffix denotes the ruggedized variant with an extended operating temperature range (-40°C to +85°C). It is electrically and mechanically compatible with the standard 4NIC-DC325 mounting footprint and terminal layout, making it a direct upgrade replacement. Always verify input voltage range and output voltage set-point against your site drawings before installation.

Q2: What is the warranty coverage and how are units tested before shipment?
All 4NIC-DC325/G units supplied by NINERMAS carry a 12-month warranty from the date of dispatch. Each unit undergoes functional load testing — including output voltage verification, ripple measurement, and protection circuit activation — prior to packaging. A test report is available upon request for quality-critical installations.

Q3: Can you support long-term or blanket purchase orders for this SKU?
Yes. NINERMAS specialises in long-term spare parts supply for industrial automation components, including legacy and end-of-life SKUs. We can hold allocated stock under a blanket purchase agreement to protect your maintenance programme against supply chain disruption. Contact our team to discuss lead times, minimum order quantities, and consignment stock arrangements.

Q4: How do I confirm compatibility if my system uses a different DC bus voltage?
The 4NIC-DC325/G supports a wide input voltage range. To confirm compatibility with your specific DC bus architecture, provide your input voltage, required output voltage, and maximum load current to our technical team. We will cross-reference against the 4NIC-Casic datasheet and advise on any output trim adjustment required before installation.
