1SDA067768R1 ABB TMAX XT2S 160 MA 80 3P MCCB | Original Spare Parts

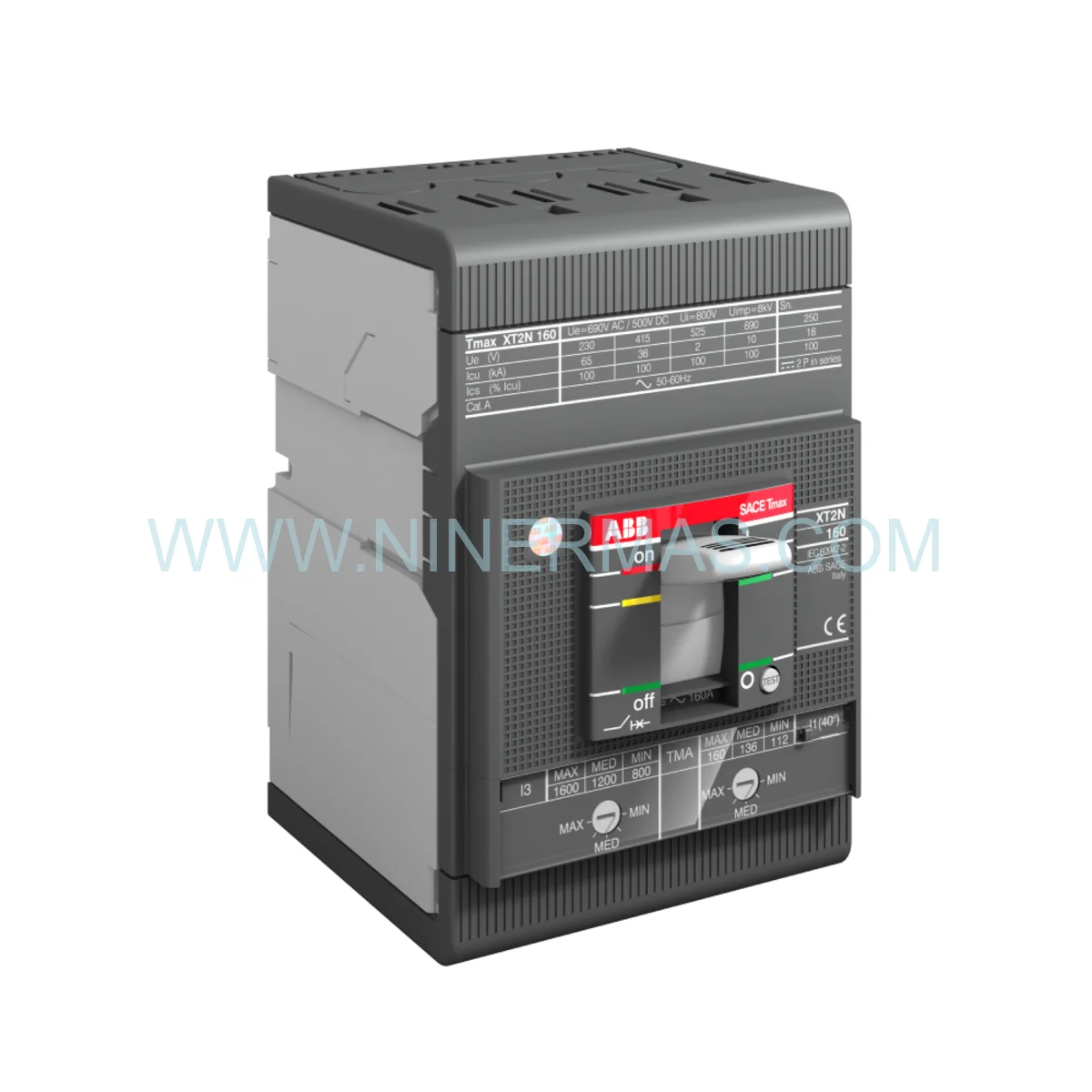

1SDA067768R1 — ABB TMAX XT2S 160 MA 80 3-Pole MCCB | Factory-Sealed Industrial Spare Part

Sourced directly from ABB’s authorized supply chain, the 1SDA067768R1 is a heavy-duty molded case circuit breaker belonging to the renowned TMAX XT2S series. This 3-pole unit is rated at 160A with an MA 80 thermal-magnetic adjustable trip unit, delivering precision overcurrent and short-circuit protection for demanding industrial power distribution environments. Every unit of 1SDA067768R1 shipped from our warehouse is verified 100% Brand New and Factory Sealed, backed by full ABB traceability documentation.

Designed to address the most critical challenges in industrial automation and electrical infrastructure, this Original New spare part integrates seamlessly into ABB PLC System panels, motor control centers, and DCS/SIS power distribution boards. Procurement managers and site specialists across Oil & Gas, Power Plants, and heavy manufacturing rely on this component to maintain uptime and comply with IEC 60947-2 safety standards.

Whether you are replacing an end-of-life unit or stocking critical spares, our team ensures fast global delivery with full quality assurance. Contact us today for a competitive quote.

Technical Specifications & Selection Guide

Selection Tip: The MA 80 trip unit allows thermal adjustment from 0.7 to 1.0 In (112A 160A). For motor-heavy loads with high inrush currents, set the thermal dial toward the upper range. For feeder protection with stable loads, the lower range provides tighter overload response.

Core Features & Technical Advantages

• Robust Breaking Performance: 50kA Icu at 400V ensures reliable fault clearance in high-energy industrial networks — no nuisance tripping, no arc flash escalation.
• Precision Adjustable Trip Unit: The MA 80 thermal-magnetic mechanism allows field calibration to match exact load profiles, reducing false trips and protecting sensitive equipment.
• Heavy-Duty 3-Pole Construction: Compact XT2 frame with front-accessible terminals (up to 95mm² / AWG 3/0) simplifies panel wiring and reduces installation time.
• Wide Temperature Tolerance: Rated from -25°C to +70°C, this Control Module performs reliably in both arctic field installations and high-ambient industrial enclosures.
• Full Accessory Ecosystem: Compatible with ABB auxiliary contacts, shunt trips, undervoltage releases, and motor operators — all field-installable without special tooling.
• Certified Compliance: Meets IEC 60947-2 and UL 489, satisfying global project specifications and insurance requirements for Industrial Automation systems.

Typical Application Scenarios

As a senior engineer evaluating circuit protection for critical infrastructure, the 1SDA067768R1 addresses real-world pain points across multiple sectors:

• Oil & Gas Facilities: Offshore platforms and onshore refineries demand circuit breakers that withstand vibration, humidity, and corrosive atmospheres. The TMAX XT2S robust enclosure and wide temperature range make it the preferred choice for wellhead control panels and process skid distribution boards.
• Power Plants & Substations: In thermal and renewable power generation, precise fault isolation is non-negotiable. This MCCB’s 50kA breaking capacity protects auxiliary power systems, excitation panels, and battery charger circuits without cascading failures.
• Automotive & Heavy Manufacturing: Motor control centers driving CNC machines, robotic welding lines, and conveyor systems require adjustable thermal protection. The MA 80 trip unit accommodates varying motor starting profiles across production shifts.
• Data Centers & Critical Infrastructure: UPS distribution panels and server room PDUs benefit from the XT2S’s compact footprint and high breaking capacity, ensuring uptime SLAs are maintained even during fault events.
• Marine & Offshore Installations: Shipboard electrical systems operating under IEC 60092 requirements can integrate this breaker into main switchboards and emergency distribution panels with confidence.

Logistics & Professional Service

• ✅ 2-Day Express Shipping Available: Urgent project timelines are supported with priority air freight to major global hubs. Standard sea freight options available for bulk orders.
• ✅ 1-Year Warranty: Every 1SDA067768R1 unit is covered by a 12-month warranty against manufacturing defects, with rapid replacement support.
• ✅ EOL & Legacy System Support: We specialize in sourcing discontinued and hard-to-find ABB Spare Parts for aging PLC System and DCS installations — keeping your plant running without costly full-system upgrades.
• ✅ Full Documentation Package: Factory test certificates, country of origin declarations, and ABB datasheets provided upon request to satisfy project QA requirements.
• ✅ Global Export Compliance: All shipments are processed with proper HS codes and export documentation for smooth customs clearance worldwide.

FAQ — Frequently Asked Questions

Q1: What is the price of the 1SDA067768R1 and are volume discounts available?
A: Our listed price reflects current market conditions for genuine ABB Original New stock. For orders of 5+ units, we offer tiered volume discounts. Contact sale@ninermas.com with your required quantity and project timeline for a customized quotation. Prices are subject to availability and exchange rate fluctuations.

Q2: What is the lead time for the 1SDA067768R1?
A: In-stock units ship within 1-2 business days. For larger quantities or special configurations, lead time is typically 5-10 business days. Expedited air freight can reduce international transit to 3-5 days for most destinations.

Q3: Can you provide a Certificate of Origin and factory documentation?
A: Yes. As an authorized distributor of ABB Industrial Automation components, we provide full traceability documentation including Certificate of Origin (Sweden), factory test reports, and conformity declarations. All documents are available in digital format prior to shipment.

Q4: Is the 1SDA067768R1 compatible with existing TMAX XT accessory kits?
A: Fully compatible. The XT2S frame accepts the complete range of ABB TMAX XT accessories including auxiliary contacts (1NO+1NC), shunt trip coils (24-415V AC/DC), undervoltage releases, and rotary handle operators. Specify your accessory requirements when ordering.

Q5: How do I verify this is a genuine ABB product and not a counterfeit?
A: Every unit is sourced through verified ABB supply channels and includes original ABB packaging with holographic labels and batch traceability codes. We provide purchase documentation and are happy to facilitate ABB factory verification upon request.

Q6: Can this MCCB replace older ABB SACE Isomax or Tmax T series breakers?
A: In many cases, yes — with appropriate adapter plates. Our technical team can advise on dimensional compatibility and electrical equivalency for legacy system retrofits. This is a common requirement for EOL spare parts replacement in aging Control Module panels.
