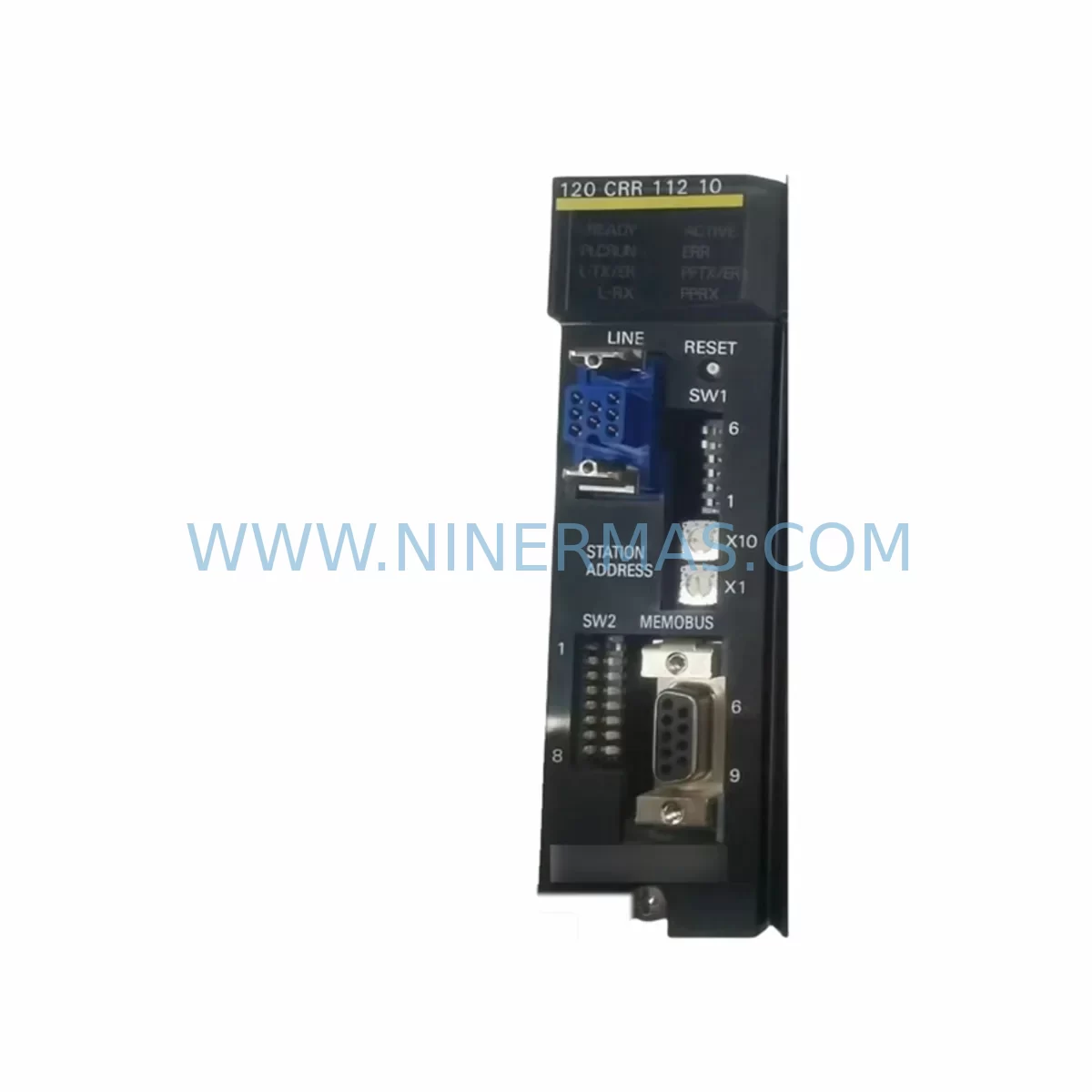

Yaskawa JAMSC-120CRR11210 Retrofit-Compatible I/O Module for Legacy Systems

Yaskawa JAMSC-120CRR11210 Retrofit-Compatible I/O Module for Legacy Systems

The Yaskawa JAMSC-120CRR11210 is a critical I/O module designed for the CP-9200SH MEMOBUS control platform — a series widely deployed across manufacturing lines, process automation cells, and motion control cabinets throughout the 1990s and 2000s. As original equipment reaches end-of-life and Yaskawa discontinues support for legacy CP-9200SH components, plant engineers and maintenance teams face increasing pressure to source verified replacement modules that maintain full backward compatibility without requiring a complete system overhaul.

NINERMAS supplies the JAMSC-120CRR11210 as a tested, retrofit-ready replacement module. Each unit undergoes pre-shipment functional verification to confirm signal integrity, terminal continuity, and backplane communication before dispatch. A 12-month warranty is included with every shipment, providing documented assurance for procurement teams and site engineers managing long-lifecycle automation assets.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the JAMSC-120CRR11210 within an active CP-9200SH control system requires a structured approach that accounts for the full scope of the control cabinet architecture. The CP-9200SH platform typically operates within a rack assembly that may include the JAMSC-120AAI03 analog input module, JAMSC-120DAO83 analog output module, JAMSC-120DI04 digital input module, and JAMSC-120DO04 digital output module — all sharing the same backplane bus and module addressing scheme. Before removing the JAMSC-120CRR11210, engineers should document the existing DIP switch address configuration and record all terminal wiring assignments from the original installation drawings.

Power supply capacity is a key pre-replacement check. The CP-9200SH rack draws regulated DC power from a dedicated power supply module such as the JAMSC-120PWR01 or equivalent. Confirm that the existing power supply can sustain the full rack load after module replacement, particularly if additional I/O expansion modules are being added during the same maintenance window. Insufficient power headroom is a common cause of intermittent faults following retrofit work.

Communication continuity must also be verified. The CP-9200SH communicates with upstream SCADA systems, HMI panels, and distributed I/O nodes via MEMOBUS protocol — a Yaskawa implementation of Modbus RTU. If the control network includes a Yaskawa MP2300 or MP2600 machine controller acting as the MEMOBUS master, the replacement module’s station address must match the original register map exactly. Any deviation will cause the master controller to report a communication fault and may trigger an emergency stop on connected servo drives or inverter units.

For sites where the CP-9200SH interfaces with a Yaskawa VS-616G5 or CIMR-series inverter via MEMOBUS link, the I/O module replacement must be completed without altering the inverter’s parameter settings or communication timeout values. Coordinate with the drive commissioning engineer to confirm that the inverter’s run/stop command source and frequency reference source remain mapped to the correct MEMOBUS register addresses after the module swap.

HMI screen validation is another mandatory step. Operator panels connected to the CP-9200SH — whether legacy Yaskawa OP series terminals or third-party HMI units — reference specific data registers for status display and alarm annunciation. After replacing the JAMSC-120CRR11210, cycle through all HMI screens to confirm that I/O status indicators, alarm bits, and process value displays are reading correctly from the updated module. Any screen that references a register address previously mapped to the replaced module should be re-verified against the live system.

Where the retrofit scope extends beyond a single module replacement to include rack expansion or backplane reconfiguration, consider the physical installation space available within the control cabinet. The CP-9200SH base unit and expansion racks have fixed slot counts; adding modules beyond the rack capacity requires an additional expansion rack and a rack interconnect cable. Plan cabinet layout changes in advance to avoid on-site fabrication delays during the maintenance window.

Downtime Control During System Migration

Minimizing production downtime during a CP-9200SH module replacement begins with thorough pre-work completed before the maintenance window opens. A complete backup of the CP-9200SH program — including ladder logic, register data, and communication parameters — should be saved to a programming device using the Yaskawa MEMOSOFT or equivalent programming software. This backup protects the original control logic in the event that the replacement module requires re-initialization or that a configuration error is introduced during commissioning.

The physical replacement of the JAMSC-120CRR11210 is a hot-swap-capable operation on some CP-9200SH rack configurations, but this must be confirmed against the specific system documentation before attempting live removal. In most field installations, a controlled shutdown of the affected control zone is the safest approach. Isolate the relevant I/O circuits at the terminal block level, remove the module from the rack slot, insert the replacement unit, and restore wiring connections before powering the rack back on.

After power restoration, monitor the CP-9200SH CPU module’s diagnostic LEDs and the programming terminal for any fault codes. Common post-replacement faults include module address conflicts — resolved by adjusting the DIP switch settings on the new module — and I/O mapping errors caused by wiring transposition at the terminal block. A structured I/O force test, conducted from the programming terminal with the machine in a safe state, confirms that each input and output channel is responding correctly before returning the system to automatic operation.

For multi-zone production lines where a single CP-9200SH rack controls multiple machine sections, coordinate the replacement schedule with production planning to align the maintenance window with a natural production break. This approach eliminates the need for emergency shutdowns and allows the commissioning team adequate time to complete all verification steps without time pressure. Documented pre-shipment testing of the JAMSC-120CRR11210 reduces on-site commissioning risk by confirming module functionality before the unit reaches the plant floor.

Retrofit Support FAQ

Q: Is the JAMSC-120CRR11210 a direct drop-in replacement for the original module?
A: Yes. The JAMSC-120CRR11210 is designed as a direct slot-compatible replacement for the original Yaskawa CP-9200SH installation. Terminal wiring, backplane interface, and module addressing are identical to the original specification. Confirm DIP switch address settings match the original configuration before power-on.

Q: What pre-shipment testing is performed on each unit?
A: Every JAMSC-120CRR11210 supplied by NINERMAS undergoes functional verification prior to dispatch. Testing covers terminal continuity, backplane communication signal integrity, and output channel operation. A test record is available upon request for quality documentation purposes.

Q: What is the warranty coverage and what does it include?
A: All units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. NINERMAS provides replacement or repair support within the warranty period. Contact sale@ninermas.com for warranty claims.

Q: Can NINERMAS confirm stock availability and lead time before I place an order?
A: Yes. Contact our team directly at sale@ninermas.com or +0086 187 5021 5667 to confirm current inventory status, lead time, and quantity availability. We maintain stock of CP-9200SH series modules to support urgent replacement and planned maintenance schedules.
