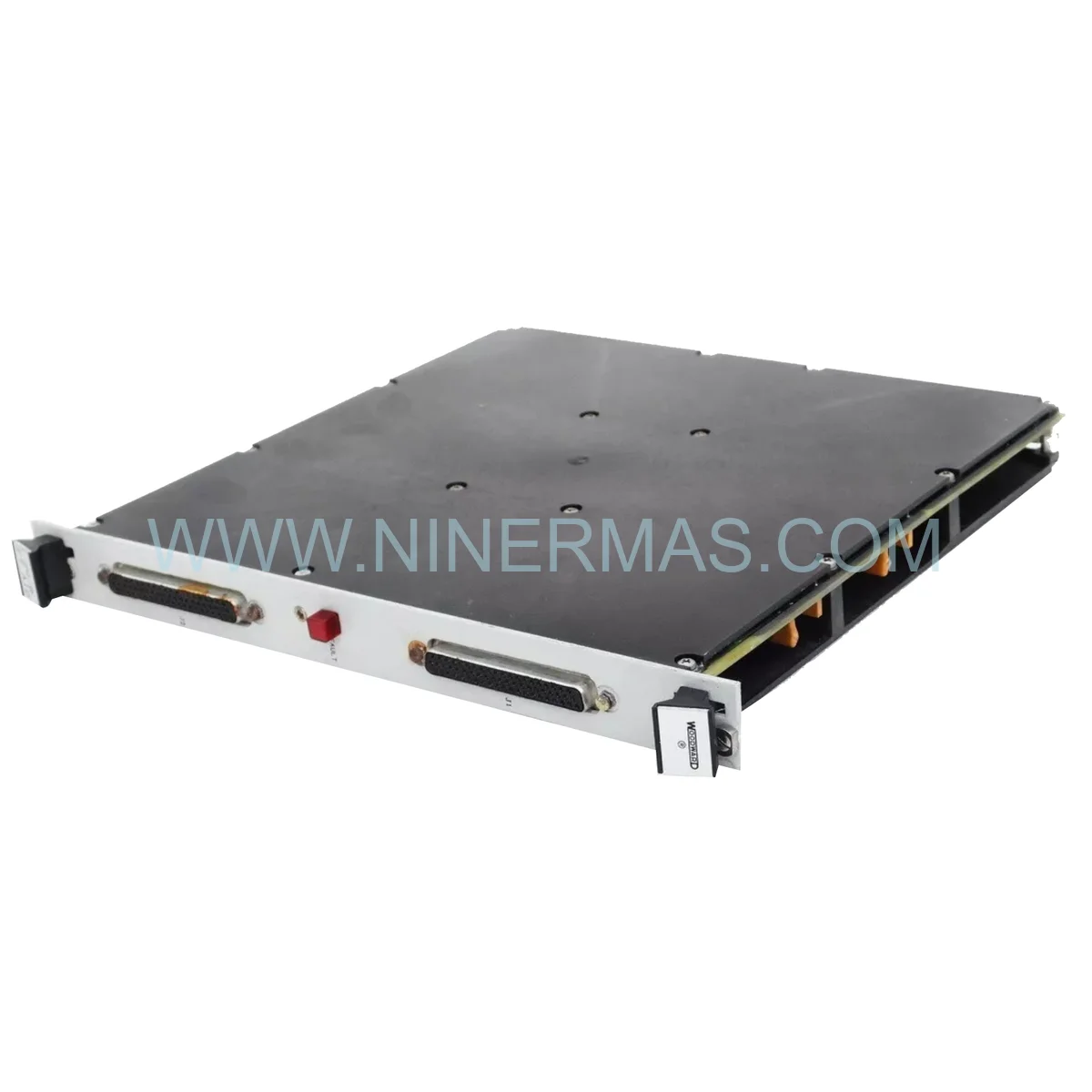

Woodward 5466-315 TMR Analog Combo I/O Module — New & Original

Woodward 5466-315 | Reliable Automation Component for Mission-Critical Systems

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing turbine control infrastructure, the Woodward 5466-315 stands as a cornerstone of system availability in Triple Modular Redundant (TMR) architectures. This high-density analog combo I/O module directly addresses the challenge of maintaining continuous uptime in power generation and process automation environments — where even a brief signal interruption can cascade into costly production halts. The Woodward 5466-315 consolidates multi-channel analog inputs and outputs into a single backplane-integrated unit, reducing inter-module dependencies and simplifying fault isolation during live operations.

Deployed across gas turbine enclosures, offshore platforms, and cogeneration facilities, this module demonstrates exceptional resilience under thermal cycling, mechanical vibration, and electromagnetic interference. Installation teams should note that proper backplane seating and torque-controlled fastening are critical to maintaining signal integrity across all analog channels — particularly in high-vibration environments where connector micro-movement can introduce measurement drift over time.

For maintenance planners operating under reliability-centered maintenance (RCM) frameworks, stocking the 5466-315 as a certified spare is not optional — it is a strategic imperative. With many legacy MicroNet TMR platforms still active in the field, sourcing a verified original module before a failure event is the most cost-effective insurance against extended mean-time-to-repair (MTTR).

Key Operational Features

Triple Modular Redundancy (TMR): Three-channel voting logic masks single-channel faults without process interruption — the foundation of High Availability in turbine control.
High-Density Analog I/O: Combines multiple input and output channels in one module, enabling Process Optimization through reduced wiring and cabinet space.
Seamless Integration: Native backplane compatibility with MicroNet TMR CPU platforms ensures zero-configuration System Integration into existing control architectures.
Precision Signal Conditioning: 12-bit to 16-bit ADC/DAC resolution supports thermocouples, RTDs, and 4-20 mA transmitters with built-in isolation — no external barriers required.
Wide Operating Range: Rated from -40°C to +70°C, sustaining Operational Excellence in the harshest industrial thermal environments.
Compliance & Safety: CE, UL, and IEC 61508 SIL-rated — meeting the regulatory baseline for safety-critical Automation Components in certified installations.

Maintenance & Performance Benchmarks

The 5466-315 is engineered to adapt across diverse industrial network architectures — from small-scale skid-mounted turbine controllers to enterprise-grade distributed control systems (DCS) spanning multiple process units. In small installations, the module’s self-contained signal conditioning eliminates the need for auxiliary I/O racks, while in large-scale networks, its deterministic backplane communication latency ensures synchronization with CPU voting cycles without introducing jitter.

Diagnostic LED indicators provide real-time channel-level status, enabling field technicians to isolate faults to the specific input or output path without removing the module from service. Built-in self-test (BIST) routines execute at power-up and during scheduled maintenance windows, generating fault logs compatible with MicroNet diagnostic software. This capability directly supports predictive maintenance strategies by trending channel degradation before it reaches the fault threshold — a critical advantage in Mission-Critical applications where unplanned downtime carries six-figure hourly costs.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every Woodward 5466-315 unit dispatched from our inventory is shipped in Original Factory Packaging with full traceability documentation, including batch records and inspection certificates. For in-stock orders, same-day dispatch is available on confirmed payment before the daily cut-off, with DHL Express, FedEx International Priority, and UPS Worldwide Expedited options to cover all major industrial regions.

As a specialist supplier of EOL (End-of-Life) and legacy automation modules, we maintain dedicated buffer stock of the 5466-315 to support plants operating extended MicroNet TMR lifecycles beyond OEM support windows. Our global sourcing network ensures continuity of supply even when standard distribution channels are depleted — a critical capability for operators who cannot afford to retrofit an entire control system due to a single unavailable I/O module.

Engineering Support & FAQ

Q1: What are the installation steps for replacing a 5466-315 in a live TMR system?
A: In a healthy TMR configuration, the 5466-315 supports hot-swap replacement. Power down the affected channel leg, unseat the module, insert the replacement, and allow the TMR voting logic to re-synchronize — typically within 30 seconds. Always verify channel diagnostics via MicroNet software before returning the leg to active voting.

Q2: Which firmware versions are compatible with the 5466-315?
A: The module is compatible with MicroNet TMR firmware versions 4.x and above. For installations running firmware 3.x, a compatibility patch may be required — contact our engineering team with your CPU5200 firmware revision for a specific compatibility matrix.

Q3: How does the warranty claim process work?
A: Submit a warranty claim via sale@ninermas.com with your order reference, module serial number, and a brief fault description. Our team will issue a Return Merchandise Authorization (RMA) within 24 business hours, with advance replacement shipping available for critical downtime situations.

Q4: Can the 5466-315 interface with third-party DCS platforms beyond MicroNet?
A: The module is natively designed for MicroNet TMR backplane communication. Integration with third-party DCS platforms requires a gateway or marshalling panel — our application engineers can advise on validated interface solutions for your specific architecture.

Q5: What documentation is included with each unit?
A: Each shipment includes the Woodward factory test report, declaration of conformity, and installation reference guide. Full technical manuals are available upon request for registered customers.

Q6: Is calibration required after installation?
A: The 5466-315 ships pre-calibrated to factory specifications. A field verification procedure using the MicroNet calibration utility is recommended after installation to confirm channel accuracy within your specific loop configuration.
