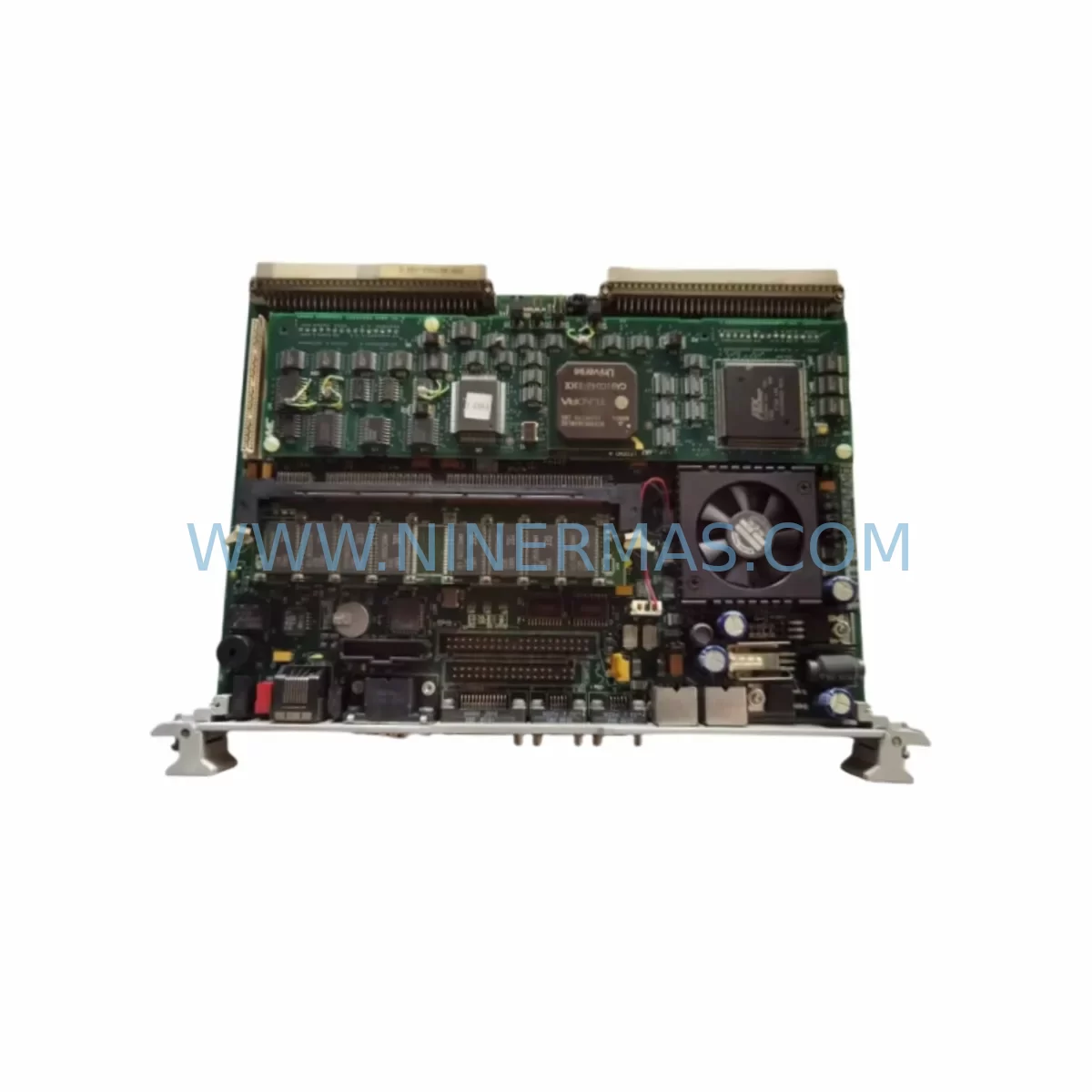

VMIC R91133022C7 SH01.1C Retrofit-Compatible Safety I/O Module

VMIC R91133022C7 SH01.1C Retrofit-Compatible Safety I/O Module for Legacy VME Systems

The VMIC R91133022C7 SH01.1C-SE-ENS-EN1-NNN-S2-S-NN-FW is a ruggedized safety control module engineered for demanding industrial environments where reliability, signal integrity, and long-term spare parts availability are non-negotiable. Designed for seamless integration into existing VME-based control architectures, this module supports legacy system modernization without requiring a full platform migration. Whether you are managing a scheduled turnaround, responding to an unplanned failure, or executing a phased control system upgrade, the R91133022C7 delivers the compatibility and performance required to maintain production continuity.

VMIC’s SH01 series has long been a trusted platform in process and discrete manufacturing environments, particularly in applications involving safety-rated I/O, harsh-environment signal conditioning, and distributed control across multi-rack VME backplanes. The R91133022C7 variant — configured as SH01.1C-SE-ENS-EN1-NNN-S2-S-NN-FW — incorporates enhanced noise immunity, ruggedized terminal interfaces, and firmware-level compatibility with a broad range of legacy VMIC controller families, making it a preferred choice for retrofit engineers managing aging control infrastructure.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the VMIC R91133022C7 into an existing control system requires a structured pre-installation review to avoid configuration mismatches and unplanned downtime. The following workflow reflects best practices for SH01-series module replacements in live or recently decommissioned VME racks.

Power Budget Verification: Before installing the R91133022C7, confirm that the existing VME power supply — typically a VMIC PS-xx series or equivalent third-party VME PSU — has sufficient headroom on the +5 VDC and +12 VDC rails. Safety I/O modules with active ENS front-ends draw marginally higher current than standard discrete I/O modules. If the rack is already near capacity, consider redistributing modules or upgrading to a higher-capacity backplane power supply before proceeding.

Backplane and Rack Compatibility: The R91133022C7 uses the standard VME P1/P2 connector layout and is compatible with VMIC 6U VME backplanes, including the VMIC VMIVME-7698 and similar multi-slot chassis. When replacing a failed module in a populated rack, verify that adjacent modules — such as VMIC VMIVME-2536 discrete I/O boards, VMIC VMIVME-3122 analog input modules, or VMIC VMIVME-5565 reflective memory nodes — are not affected by the slot reassignment. Backplane signal integrity should be confirmed with a bus analyzer if the rack has been in service for more than five years.

Module Address and Program Compatibility: The SH01.1C module address is set via onboard jumpers or DIP switches and must match the address map defined in the host controller’s I/O configuration. If the original module used a specific base address, replicate that setting exactly before powering up. Failure to do so will result in the PLC or DCS failing to recognize the module, triggering a fault condition. For systems running on GE Fanuc Series 90-70 or Siemens S7-400 platforms with VME expansion, the I/O map must be verified in the respective programming environment — GE Proficy Machine Edition or Siemens STEP 7 — before the replacement module is brought online.

Terminal Wiring and Field Connections: The SH01.1C front panel uses a ruggedized terminal block interface. Before disconnecting field wiring from the failed module, photograph or document all terminal assignments. Cross-reference against the original loop drawings to confirm signal polarity, shielding continuity, and ground references. For safety-rated inputs connected to emergency stop circuits, interlock relays, or safety PLCs such as the Pilz PNOZ or Rockwell Allen-Bradley GuardLogix, verify that the replacement module’s input thresholds and response times meet the original SIL rating requirements.

Communication Link Restoration: The EN1 Ethernet port on the R91133022C7 supports VMIC’s legacy network protocol. If the system uses a VMIC reflective memory network — for example, nodes built around the VMIC VMIVME-5565 or VMIC VMIVME-5579 — confirm that the replacement module’s MAC address and network node ID are correctly registered in the network configuration tool. For systems that have migrated partially to Modbus TCP or PROFINET, a protocol gateway such as the HMS Anybus X-gateway may be required to bridge the legacy VMIC network segment to the modern plant network.

HMI Screen Validation: After the module is installed and the controller program is reloaded, validate all HMI screens that reference I/O points mapped to the R91133022C7. Systems running on Wonderware InTouch, Ignition SCADA, or legacy Intellution iFIX should be checked for tag binding errors, especially if the replacement module introduced any address offset changes. Confirm that alarm setpoints, analog scaling factors, and interlock logic are functioning as expected before returning the system to automatic mode.

Downtime Control During System Migration

Minimizing production interruption during a VME module replacement requires advance preparation and a disciplined execution sequence. The following approach is recommended for SH01-series retrofits in operating facilities.

Pre-Shutdown Preparation: Before the maintenance window opens, stage the replacement R91133022C7 module alongside all required tools: a VME extractor tool, a calibrated torque driver for terminal screws, a laptop loaded with the current PLC/DCS program backup, and the module’s factory test certificate. Confirm that the spare module has passed pre-shipment functional testing — all units supplied by NINERMAS are bench-tested prior to dispatch — and that the firmware revision matches the system’s requirements.

Program Backup and Logic Preservation: Upload and archive the current controller program before initiating any hardware change. For GE Fanuc, Siemens, or Rockwell platforms, store the backup on an isolated engineering workstation, not on the plant network. If the system uses a VMIC VMIVME-7750 single-board computer as the VME host, ensure the onboard flash memory backup is current. This protects against accidental program loss if the controller loses power during the module swap.

Hot-Swap Considerations: Standard VME backplanes do not support live insertion. The affected rack must be powered down before removing or installing the R91133022C7. If the rack supplies I/O to a running process, coordinate with the control room to place the affected loops in manual mode and confirm that all safety interlocks remain active through redundant paths before de-energizing the rack. For systems with redundant I/O architectures, the standby channel should be verified as healthy before the primary channel is taken offline.

Post-Installation Verification: After installation, power up the rack and confirm that the controller recognizes the new module without fault codes. Perform a point-by-point I/O check against the loop drawings, verifying both digital and analog signal paths. For safety-rated circuits, a full proof test in accordance with the applicable IEC 61511 or IEC 62061 procedure should be completed before the system is returned to automatic operation. Document the replacement in the site’s maintenance management system, including the module serial number, firmware version, and test results.

Retrofit Support FAQ

Q1: Is the VMIC R91133022C7 SH01.1C-SE-ENS-EN1-NNN-S2-S-NN-FW a direct drop-in replacement for earlier SH01 variants?
In most cases, yes — the SH01.1C is backward-compatible with earlier SH01.1x variants at the backplane and terminal level. However, firmware revisions and ENS front-end configuration may differ. We recommend confirming the host controller’s firmware compatibility before installation. Our technical team can assist with cross-reference verification prior to shipment.

Q2: What pre-shipment testing is performed on this module?
Every VMIC R91133022C7 unit supplied by NINERMAS undergoes a functional bench test covering power-on self-test, I/O channel verification, communication port handshake, and firmware integrity check. A test certificate is available upon request. Units are shipped in anti-static packaging with physical inspection documentation.

Q3: What is the warranty coverage and what does it include?
All modules carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. The warranty does not cover damage resulting from incorrect installation, overvoltage, or environmental conditions outside the module’s rated specifications. Warranty claims are processed directly through NINERMAS with a target response time of two business days.

Q4: Can NINERMAS support long-term supply commitments for this module?
Yes. NINERMAS maintains stock programs for long-lifecycle industrial components, including VMIC SH01-series modules. For facilities managing multi-year maintenance contracts or spare parts kitting programs, we can provide volume pricing, reserved inventory agreements, and scheduled delivery terms. Contact our sales team to discuss your site’s specific requirements.
