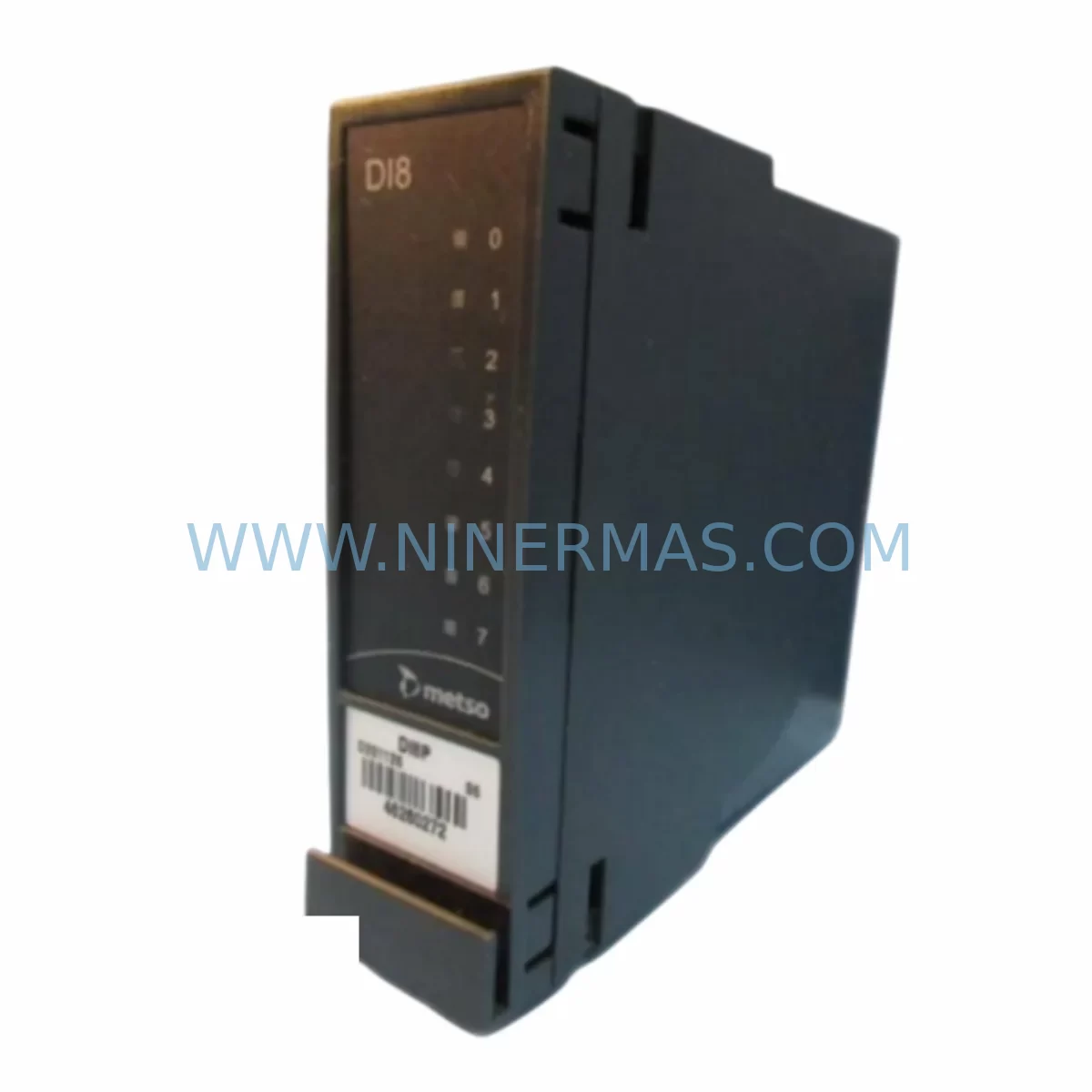

VALMET DI8P D201126L Retrofit-Compatible Digital Input Module

VALMET DI8P D201126L Retrofit-Compatible Digital Input Module for Legacy Systems

The VALMET DI8P D201126L is an 8-channel ruggedized digital input module designed for demanding industrial process control environments. Originally deployed across pulp and paper, power generation, and chemical processing plants running VALMET DNA (formerly Neles Controls / Damatic) distributed control systems, this module has become a critical spare part for facilities managing aging DCS infrastructure. As VALMET continues to evolve its control platform toward the DNA Next generation, the DI8P D201126L remains an essential retrofit component for plants that cannot yet justify a full system migration but require reliable I/O continuity to sustain production uptime.

For maintenance engineers and procurement teams managing legacy VALMET DNA systems, sourcing a verified replacement DI8P D201126L is often the fastest path to restoring a faulted I/O rack without triggering a full control system overhaul. NINERMAS maintains ready stock of this module with a 12-month warranty, pre-shipment functional testing, and full traceability documentation to support your site’s spare parts program.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When a VALMET DNA system experiences an I/O fault traced to a failed DI8P D201126L, the retrofit path is typically straightforward — but it requires careful pre-installation verification across several system layers to avoid extended downtime or secondary faults.

Power Supply Capacity: Before installing the replacement DI8P D201126L, confirm that the I/O rack’s power supply module — typically a VALMET PSU unit such as the VALMET D201100 Power Supply Module — has sufficient headroom to support the restored channel load. A degraded or undersized power supply can cause intermittent faults even after a successful module swap. Check the rack’s total current draw against the PSU’s rated output.

Terminal Wiring and Field Connections: The DI8P D201126L uses a standard VALMET field terminal block. Before removing the faulted module, photograph or document all field wiring connections. The terminal block on the D201126L is typically removable, allowing the wiring harness to be transferred directly to the replacement module without re-termination — significantly reducing installation time and the risk of wiring errors. Verify signal polarity for each of the 8 input channels, particularly for 2-wire proximity sensors or dry-contact field devices.

Backplane Interface and Rack Slot Assignment: The DI8P D201126L occupies a dedicated slot in the VALMET DNA I/O rack. Confirm the physical slot address matches the configuration defined in the DNA Engineering Tool. If the rack also houses modules such as the VALMET DO8P Digital Output Module, VALMET AI8 Analog Input Module, or VALMET AO4 Analog Output Module, ensure that slot addressing has not shifted due to prior rack modifications. Incorrect slot assignment will cause the DNA controller to fail to recognize the new module.

Module Address and DNA Configuration: In VALMET DNA systems, each I/O module is addressed through the system’s configuration database. After physical installation, use the VALMET DNA Engineering Tool to verify that the module address, I/O tag assignments, and signal scaling parameters are correctly mapped to the replacement DI8P D201126L. If the original module’s configuration file is intact, the replacement process is largely plug-and-play at the software level. However, if the DNA database has been modified since the original commissioning, a full I/O tag audit is recommended before returning the loop to automatic control.

HMI Display and Alarm Verification: Once the replacement module is online, verify that all 8 digital input channels are correctly reflected on the plant’s HMI — whether running on a VALMET DNA Operator Station or a third-party SCADA system connected via OPC. Check that field device status, alarm limits, and interlock logic are functioning as expected. Pay particular attention to any safety interlocks or permissive signals routed through the DI8P channels, as these are often critical to process startup sequences.

Communication Link Integrity: The DI8P D201126L communicates with the VALMET DNA controller via the rack’s internal I/O bus. After installation, confirm that the DNA system’s diagnostic display shows the module as online with no communication errors. If the plant also uses a VALMET DNA Field Controller or a VALMET AC800M-compatible gateway for protocol bridging to Modbus or PROFIBUS field devices, verify that the I/O bus communication path remains stable after the module replacement.

Installation Space and Mechanical Fit: The DI8P D201126L is a standard-width VALMET DNA I/O module. Confirm that the target rack slot is unobstructed and that adjacent modules — such as a VALMET DI16 16-channel digital input module or a VALMET communication interface module — have not been repositioned in a way that would prevent proper seating of the replacement unit. Inspect the rack’s backplane connector for corrosion or mechanical damage before insertion.

On-Site Commissioning and Functional Test: After installation, perform a channel-by-channel functional test by actuating each field device connected to the DI8P D201126L and confirming the correct state change is registered in the DNA system. For critical process loops, coordinate the commissioning test with the plant’s operations team to ensure that any temporary process deviations during testing are managed safely. NINERMAS recommends retaining the replaced module for a minimum of 30 days as a contingency spare while the replacement unit is validated in service.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing a failed DI8P D201126L in an operating VALMET DNA system. The following approach is recommended to protect program logic, maintain field control continuity, and reduce retrofit risk:

Pre-Replacement Backup: Before any physical work begins, export a full backup of the VALMET DNA configuration database using the DNA Engineering Tool. This backup captures all I/O tag definitions, controller logic, alarm configurations, and HMI display bindings associated with the DI8P D201126L’s channels. If the replacement module requires any configuration changes, the backup provides a verified restore point.

Hot-Swap vs. Cold-Swap Planning: Determine whether the DI8P D201126L can be replaced under power (hot-swap) or whether the I/O rack must be de-energized. In most VALMET DNA installations, I/O module replacement requires the rack to be powered down, which means the field devices connected to the module will lose their input signals during the swap. Coordinate with the operations team to place affected control loops in manual mode before de-energizing the rack, and ensure that any safety interlocks dependent on the DI8P channels are bypassed or managed according to the plant’s management of change (MOC) procedure.

Staged Restoration: After installing the replacement DI8P D201126L and restoring rack power, bring the affected control loops back to automatic mode one at a time, verifying each channel’s signal integrity before proceeding to the next. This staged approach allows the commissioning team to identify and resolve any wiring or configuration issues without disrupting the entire process area simultaneously.

Spare Parts Inventory Strategy: To reduce future downtime risk, NINERMAS recommends maintaining at least one additional DI8P D201126L as an on-site cold spare, particularly for plants with multiple DNA I/O racks. Given the module’s age and the increasing difficulty of sourcing verified VALMET DNA spare parts through OEM channels, establishing a long-term supply agreement with a specialist distributor ensures that replacement units are available within days rather than weeks when the next failure occurs.

Retrofit Support FAQ

Q1: Is the VALMET DI8P D201126L a direct replacement for the original module in my DNA rack?
A: Yes. The DI8P D201126L is a slot-compatible replacement for the original VALMET DNA digital input module of the same part number. No rack modifications or adapter plates are required. Confirm the slot address in your DNA Engineering Tool configuration before installation to ensure correct I/O tag mapping.

Q2: What pre-shipment testing does NINERMAS perform on the DI8P D201126L?
A: Every DI8P D201126L shipped by NINERMAS undergoes functional testing to verify channel integrity, backplane connector condition, and power consumption within specification. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can the DI8P D201126L be used in a VALMET DNA system that has been partially upgraded to DNA Next hardware?
A: In most cases, yes — VALMET DNA systems that have undergone partial upgrades typically retain legacy I/O racks running original DNA modules alongside newer hardware. The DI8P D201126L will continue to function in its original rack slot as long as the DNA controller and I/O bus configuration remain compatible. Consult your VALMET DNA system documentation or contact NINERMAS for application-specific guidance.

Q4: What is the lead time and stock availability for the DI8P D201126L?
A: NINERMAS maintains stock of the VALMET DI8P D201126L for immediate shipment. Standard lead time for in-stock units is 3–7 business days depending on destination. For urgent requirements, expedited shipping is available. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current availability and arrange shipment.
