TMEIC ARND-3119 Retrofit-Compatible Top Board for Legacy Systems

TMEIC ARND-3119 Retrofit-Compatible Top Board for Legacy Systems

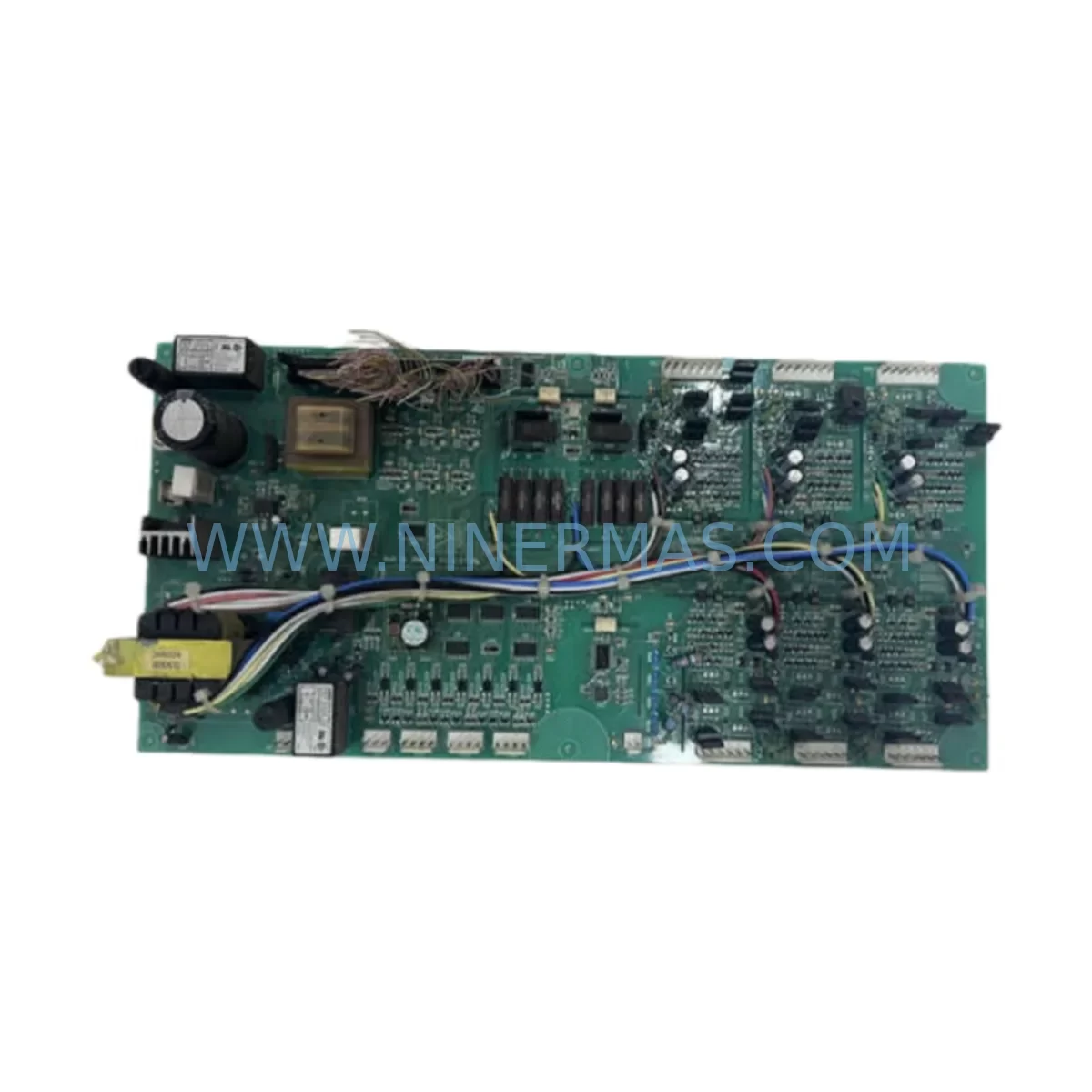

The TMEIC ARND-3119 is a retrofit-compatible top board master module designed for the ARND series control platform. As industrial facilities face increasing pressure to modernize aging automation infrastructure without full system overhauls, the ARND-3119 provides a reliable, drop-in upgrade path for legacy TMEIC-controlled production lines. Whether you are replacing a failed unit, extending the service life of an existing control cabinet, or migrating from an end-of-life configuration, the ARND-3119 is engineered to minimize disruption and maximize compatibility with your existing hardware and software environment.

NINERMAS maintains verified stock of the ARND-3119 with pre-shipment functional testing, ensuring every unit leaves our facility ready for field installation. Each module is backed by a 12-month warranty, giving your engineering and maintenance teams the confidence to proceed with retrofit projects on schedule.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the ARND-3119 top board master in an operational facility requires careful pre-engineering to avoid unplanned downtime and configuration errors. The top board master sits at the heart of the ARND series rack architecture, coordinating communication between the CPU module, I/O modules, and any expansion racks connected via the backplane. Before initiating a replacement, your engineering team should conduct a full audit of the existing rack configuration, documenting every installed module by slot position and address.

In a typical ARND series control cabinet, the ARND-3119 works alongside a range of companion modules. Digital input and output modules — such as ARND-series DI and DO cards — must retain their existing slot assignments and wiring terminal connections after the top board is replaced. Any change to module addressing during the swap can cause the CPU to misread I/O states, leading to process faults or safety interlock trips. Similarly, analog I/O modules handling 4–20 mA or thermocouple signals require signal range verification after the new top board is initialized.

The power supply module feeding the rack must be assessed for available headroom. If the existing ARND-series power supply unit is already operating near capacity due to accumulated I/O expansion over the years, the retrofit is an appropriate moment to evaluate whether a higher-capacity PSU module should be installed in parallel with the ARND-3119 replacement. Undersized power delivery is a common root cause of intermittent faults in retrofitted systems.

Communication continuity is another critical planning element. If the ARND-3119 is part of a network that includes a TOSLINE-S20 or similar TMEIC proprietary communication module, the network node address and baud rate settings stored in the legacy top board must be documented and replicated exactly on the replacement unit. Failure to match these parameters will result in communication loss between the PLC rack and upstream SCADA systems or HMI panels. Where the control system interfaces with a GOT series HMI or equivalent operator panel, screen tag addresses linked to the top board’s I/O map should be verified against the new module’s configuration before returning the system to automatic mode.

For facilities running multi-rack configurations, the ARND-3119 top board master may also govern communication with remote I/O racks connected via expansion cables or fiber-optic links. Each remote rack’s communication module — including any ARND-series remote I/O adapter — must be confirmed as compatible with the replacement top board’s firmware revision. In some legacy installations, a programming cable connection to the CPU module (using the appropriate TMEIC programming cable for the ARND platform) is required to re-establish the rack configuration table after the top board is swapped.

Signal isolators installed between field instruments and the I/O modules should also be checked during the retrofit window. Aging isolators can introduce signal drift that was previously masked by the legacy top board’s calibration offsets. Replacing the ARND-3119 is an efficient opportunity to audit and replace any suspect signal conditioning components without adding a separate maintenance window.

Downtime Control During System Migration

Minimizing production downtime during an ARND-3119 replacement requires a structured migration plan developed well in advance of the scheduled maintenance window. The first priority is a complete backup of all PLC program logic stored in the CPU module. This includes ladder logic, function block diagrams, data tables, and any motion control parameters if the ARND platform is integrated with a drive system. Program backups should be stored on at least two independent media — typically a laptop running the TMEIC engineering software and a USB or CF card backup — before any hardware is disturbed.

The second priority is terminal wiring documentation. Even though the ARND-3119 top board itself does not carry field wiring directly, the act of removing and reseating the module in the rack can disturb adjacent modules and their terminal connections. A photographic record of all wiring in the control cabinet, combined with the existing wiring diagram, provides the fastest reference for verifying connection integrity after the swap.

Where process conditions allow, a cold-swap procedure — with the rack fully de-energized — is the safest approach for replacing the ARND-3119. After the new module is seated and the rack is re-energized, the system should be brought up in manual mode first, with each I/O channel verified against the process before automatic control is re-enabled. Communication links to SCADA, HMI, and any peer PLC systems should be confirmed active before handing control back to the operations team.

For facilities where even brief shutdowns carry significant production cost, a parallel commissioning approach can be considered: the replacement ARND-3119 is pre-configured and tested on a bench rack using the backed-up program, then swapped into the live cabinet during a planned short outage. This approach compresses the live outage window to the physical swap and communication verification steps only, typically achievable within a single shift.

NINERMAS supports customers through the retrofit process with pre-shipment functional testing on every ARND-3119 unit, reducing the risk of receiving a defective module and extending the outage unnecessarily. Our 12-month warranty covers the replacement module from the date of shipment, providing ongoing protection through the post-retrofit stabilization period.

Retrofit Support FAQ

Q1: Is the ARND-3119 a direct drop-in replacement for the existing top board master in my ARND series rack?
The ARND-3119 is designed as a direct replacement for the same part number in ARND series racks. However, customers should verify the firmware revision of the replacement unit against the existing system requirements, particularly in installations where the CPU module or communication modules have been updated since the original installation. NINERMAS can provide the firmware version of the unit in stock upon request before shipment.

Q2: What commissioning steps are required after installing the ARND-3119?
After physical installation, the following steps are typically required: (1) verify module address settings match the legacy configuration; (2) confirm I/O channel mapping in the CPU program is intact; (3) re-establish communication links to HMI panels, SCADA systems, and any peer controllers; (4) perform a channel-by-channel I/O verification in manual mode before returning to automatic control. Your TMEIC engineering documentation or system integrator should be consulted for system-specific commissioning procedures.

Q3: How does NINERMAS verify the ARND-3119 before shipment, and what warranty is provided?
Every ARND-3119 unit shipped by NINERMAS undergoes a full functional test prior to dispatch. Units are verified for backplane communication integrity, power consumption within specification, and module initialization behavior. Each unit is covered by a 12-month warranty from the date of shipment. In the event of a warranty claim, NINERMAS will arrange replacement or repair in accordance with our standard warranty terms. Contact sale@ninermas.com for warranty support.

Q4: Can NINERMAS supply other ARND series modules needed for a broader retrofit project?
Yes. NINERMAS maintains inventory of a range of TMEIC ARND series components to support complete retrofit and upgrade projects. If your project requires additional I/O modules, power supply modules, communication modules, or other rack components alongside the ARND-3119, please contact our sales team with your full bill of materials. We can advise on availability, lead times, and compatibility for your specific system configuration.
