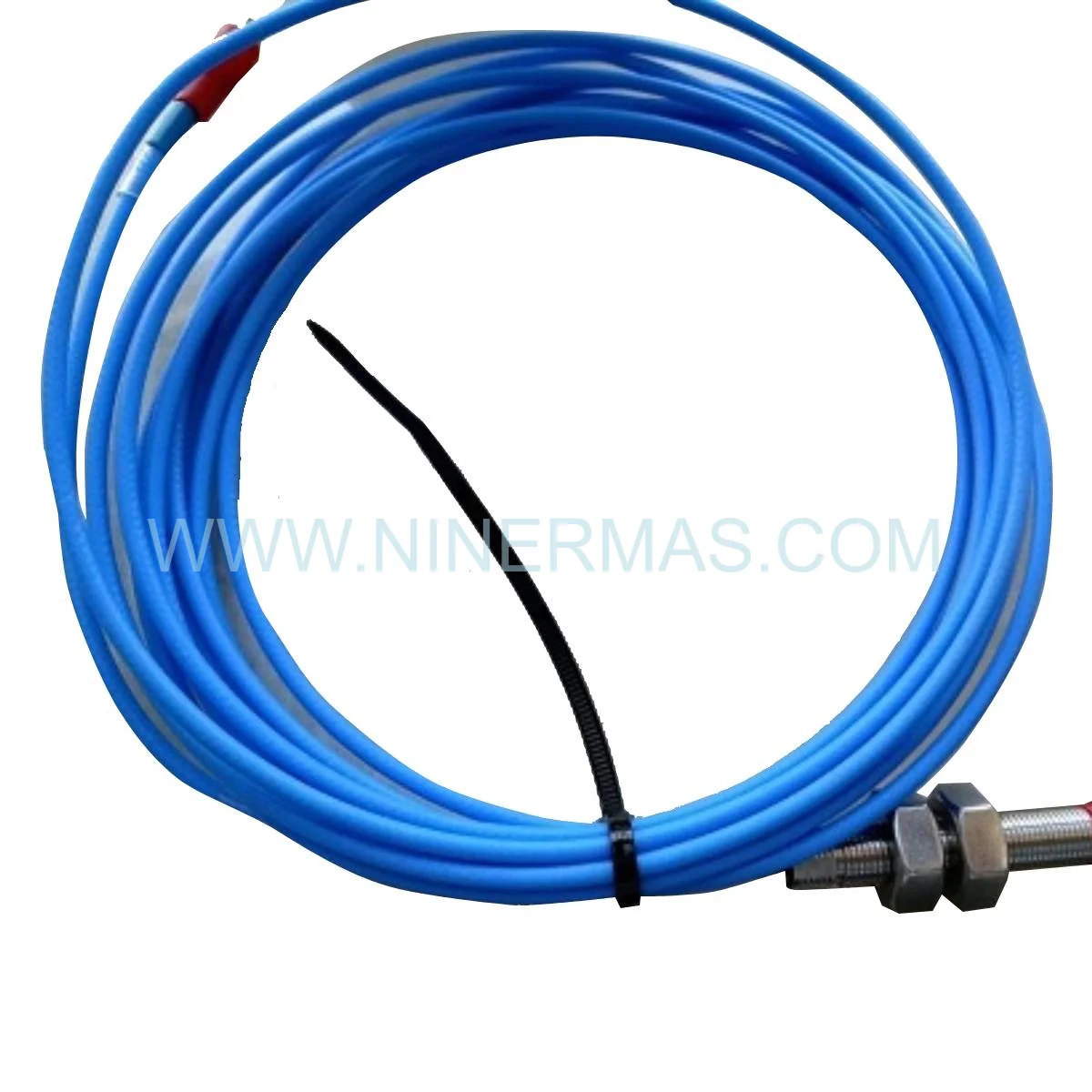

TM0181-085-00 Probe Extension Cable (8.5m) — PREDICTECH Industrial-Grade Signal Extension

The TM0181-085-00 is a precision-engineered 8.5-meter probe extension cable manufactured by PREDICTECH, purpose-built for extending proximity probe installations in demanding vibration monitoring environments. Supplied as 100% Brand New and Factory Sealed, this Original Spare Part integrates seamlessly into PLC System architectures and DCS-based condition monitoring platforms where signal fidelity over extended cable runs is non-negotiable. The TM0181-085-00 maintains the critical low-capacitance characteristics required to preserve the -8V/mm sensitivity of eddy current proximity probes across the full 8.5-meter span.

Procurement managers and site specialists sourcing replacement or expansion cables for rotating machinery protection systems will find this cable fully compatible with Bently Nevada proximitor systems, EPRO monitors, and other industry-standard Industrial Automation platforms. Whether you are retrofitting a compressor train, extending an existing PLC System sensor loop, or commissioning a new turbine monitoring rack, the TM0181-085-00 delivers the electrical performance and mechanical durability demanded by Oil & Gas, Power Generation, and Petrochemical operations. All units are verified as Original New and ship with factory test documentation.

With Fast Global Shipping, a 1-Year Warranty, and dedicated technical support for End-of-Life (EOL) legacy systems, this Control Module-compatible cable is the reliable choice for engineers who cannot afford measurement uncertainty in critical machinery protection loops. Contact our team today for pricing, lead time, and datasheet requests.

Technical Specifications & Selection Guide

Selection Note: Total combined cable length (probe cable + extension) must not exceed 9 m for 8 mm probes or 12 m for 11 mm probes to maintain system linearity. For runs beyond these limits, consult our engineering team for buffered output solutions.

Core Features & Technical Advantages

• Precision Signal Integrity: Low-capacitance PTFE construction preserves the -8V/mm sensitivity of eddy current proximity probes — no recalibration required after installation.
• Robust EMI/RFI Rejection: Heavy-duty 95% braided copper shield eliminates interference from VFDs, welders, and RF transmitters common in Industrial Automation environments.
• Wide Thermal Tolerance: Rated -40°C to +105°C continuous — performs reliably from Arctic outdoor installations to steam-heated enclosures without derating.
• Chemical Resistance: PTFE insulation withstands oils, solvents, and process chemicals encountered in Oil & Gas and Petrochemical facilities.
• Flame-Retardant Jacket: Meets industrial safety standards for cable penetrations through fire-rated barriers in classified hazardous areas.
• Universal Compatibility: Electrically compatible with Bently Nevada, EPRO, and all industry-standard -24V excitation proximitor systems — a true drop-in Control Module extension solution.

Typical Application Scenarios

✅ Oil & Gas — Compressor Train Monitoring: Rotating equipment in upstream and midstream facilities demands uninterrupted vibration data. The TM0181-085-00 extends proximity probe loops from compressor pedestals to remote monitoring racks without introducing noise that could trigger false shutdowns in Safety Instrumented Systems (SIS).

Power Plants — Steam & Gas Turbine Protection: Turbine hall cable trays often span 15-30 meters between sensor and monitor. This cable’s matched impedance design eliminates reflections that distort orbit plots and Bode diagrams, giving reliability engineers the clean waveform data needed for predictive maintenance decisions.

✅ Petrochemical — Reactor Agitator & Pump Monitoring: Hazardous area installations require cables that maintain performance in chemically aggressive atmospheres. The PTFE-insulated TM0181-085-00 resists hydrocarbon exposure while its flame-retardant jacket satisfies Division 1 / Zone 1 cable penetration requirements.

✅ Marine & Offshore — Propulsion System Vibration: Salt spray, humidity, and wide temperature swings challenge standard cables. The heavy-duty construction of this Spare Part ensures continuous signal quality in offshore platform machinery rooms where replacement logistics are costly and time-consuming.

✅ Heavy Industry — EOL System Upgrades: Many plants still operate legacy DCS and PLC System platforms with non-standard cable lengths. As an Original New component, this cable supports EOL legacy system continuity without forcing a full platform upgrade.

Logistics & Professional Service

• ✅ 2-Day Express Shipping Available: Stocked units ship within 24-48 hours via DHL, FedEx, or UPS to minimize your plant downtime.
• ✅ Fast Global Shipping: We serve customers across North America, Europe, Southeast Asia, and the Middle East with full export documentation.
• ✅ 1-Year Warranty: Every TM0181-085-00 is covered against manufacturing defects, with replacement and return freight included.
• ✅ Factory Test Certificate Included: Each cable ships with documentation confirming continuity, insulation resistance (>100 MΩ), and capacitance verification.
• ✅ EOL Legacy System Support: Our engineers assist with integration into discontinued DCS, SIS, and PLC System platforms where OEM support is no longer available.
• ✅ Dedicated Technical Support: Pre-sales engineering consultation available for cable length calculations, connector selection, and system compatibility verification.

FAQ — Frequently Asked Questions

Q1: What is the price of the TM0181-085-00, and do you offer volume discounts?
A: Pricing for the TM0181-085-00 is competitive and reflects its Original New, factory-sealed condition. Volume discounts are available for orders of 5 units or more. Contact sale@ninermas.com with your quantity and delivery requirements for a formal quotation. We also accommodate blanket purchase orders for MRO procurement programs.

Q2: What is the lead time for the TM0181-085-00?
A: In-stock units ship within 1-2 business days. For larger quantities or special connector configurations, lead time is typically 5-10 business days. Expedited processing is available for emergency plant shutdowns — contact us with your urgency level and we will prioritize accordingly.

Q3: Can you provide a Datasheet or Certificate of Conformance for the TM0181-085-00?
A: Yes. The official PREDICTECH datasheet and factory test certificate are available upon request. Email sale@ninermas.com with your company name and application details. For regulated industries (nuclear, aerospace), a full material traceability report can be arranged.

Q4: Is this cable compatible with Bently Nevada proximitor systems?
A: Absolutely. The TM0181-085-00 is electrically compatible with Bently Nevada 3300, 3500, and 7200 series proximitor systems, as well as EPRO PR6423 and equivalent -24V excitation monitors. No system recalibration is required when replacing a like-length cable.

Q5: How should the cable shield be grounded to avoid noise issues?
A: Ground the shield at the proximitor/monitor end only. Grounding both ends creates a ground loop that injects 50/60 Hz noise into the millivolt-level proximity probe signal — a common cause of spurious vibration alarms in Industrial Automation systems.

Q6: Is the TM0181-085-00 suitable for use in hazardous classified areas?
A: The flame-retardant PVC jacket meets requirements for cable penetrations through fire-rated barriers in Division 1 and Zone 1 classified areas. Verify local authority having jurisdiction (AHJ) requirements before installation in ATEX or NEC-classified zones.
