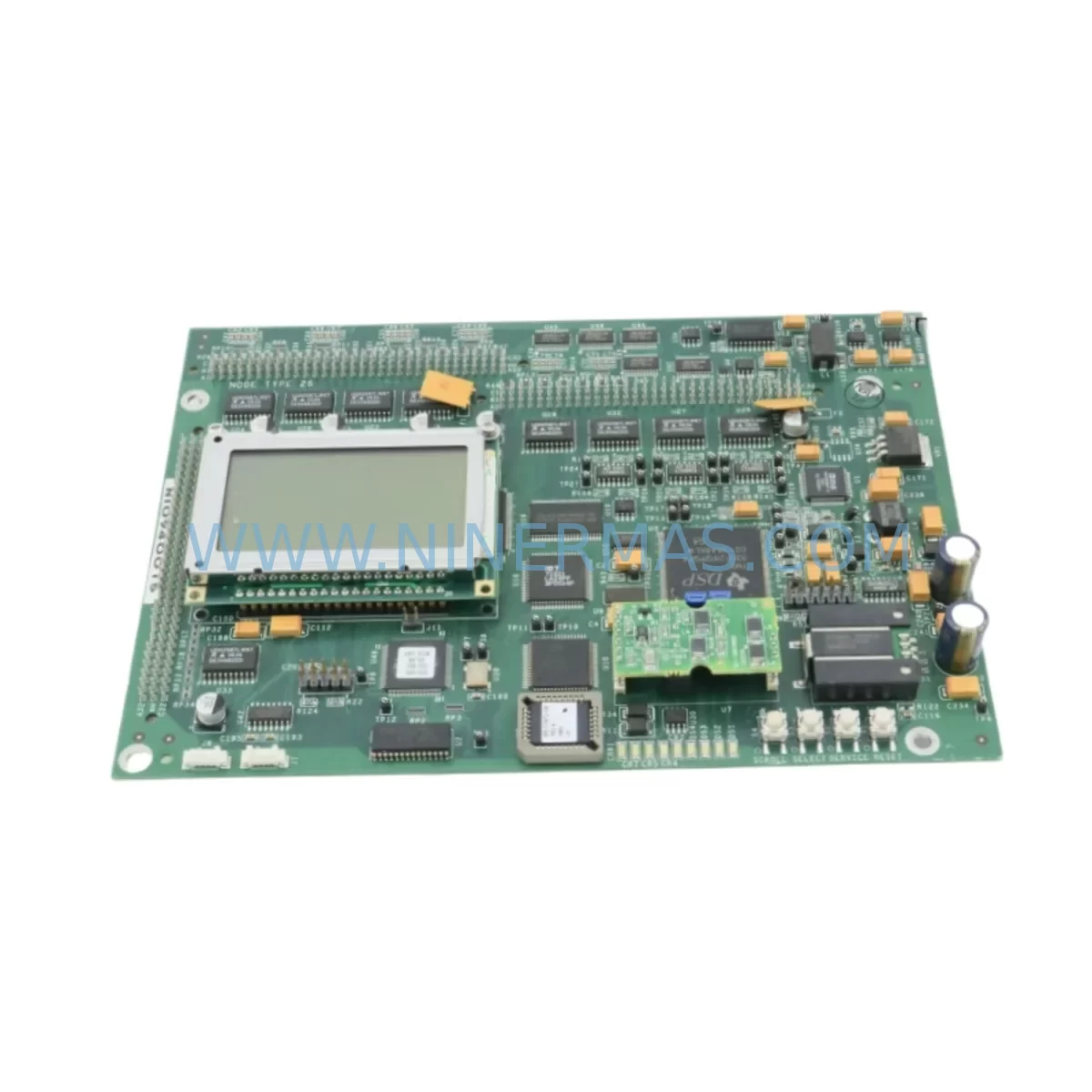

TDK TAS-MAIN-REV-4-10 Safety-Reliable CPU for Critical Sites

TDK TAS-MAIN-REV-4-10 Safety-Reliable CPU Module for Critical Control Sites

The TDK TAS-MAIN-REV-4-10 is a ruggedized central processing unit module engineered for deployment in safety-critical industrial control environments where uninterrupted operation is non-negotiable. Designed to meet the demanding requirements of continuous production facilities, critical interlock systems, and high-load control cabinets, this CPU module delivers consistent, deterministic processing performance even under conditions of elevated electromagnetic interference, mechanical vibration, thermal stress, and exposure to dust or moisture. Its robust architecture directly addresses the most common causes of control system failure in hazardous and demanding industrial sites, including signal drift, power fluctuation, communication anomalies, surge impact, and unplanned downtime.

The TAS-MAIN-REV-4-10 revision integrates enhanced firmware stability and improved bus communication integrity, making it a preferred replacement and upgrade solution for aging control platforms in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical processes, port logistics systems, and continuous manufacturing lines. NINERMAS maintains reserved inventory of this module to support rapid spare parts deployment, minimizing mean time to repair (MTTR) and protecting production continuity at critical sites.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Deploying the TDK TAS-MAIN-REV-4-10 as the central processing backbone of a safety control cabinet requires a holistic approach to risk reduction across power, communication, I/O, and protection layers. In high-criticality installations, the CPU module does not operate in isolation — its reliability is directly dependent on the integrity of every component within the same control enclosure.

On the power supply side, pairing the TAS-MAIN-REV-4-10 with a redundant industrial DC power supply — such as a TDK-Lambda DPP series 24VDC rail-mount unit — ensures that voltage fluctuations and momentary power interruptions do not propagate to the processor bus. An industrial UPS module installed upstream of the control cabinet provides ride-through capability during grid disturbances, protecting the CPU from abrupt power loss that could corrupt active program states or trigger spurious safety trips.

For I/O integrity, the TAS-MAIN-REV-4-10 interfaces directly with TAS-series digital input modules and TAS-series analog output modules mounted on the same TAS backplane. These modules share the same conformal-coated, vibration-resistant construction and are designed to maintain signal accuracy within ±0.1% across the full operating temperature range. In environments with high electromagnetic interference — such as those adjacent to variable frequency drives, large motor starters, or arc furnaces — the use of shielded I/O termination panels and DIN-rail-mounted surge protection devices on each field signal line is strongly recommended to prevent signal drift and false triggering.

Communication reliability is equally critical. The TAS-MAIN-REV-4-10 supports the TAS proprietary backplane communication protocol, and when integrated with a TAS communication interface module (such as a Modbus TCP or PROFIBUS DP gateway card), it enables seamless data exchange with supervisory SCADA systems and distributed control networks. Fiber optic media converters installed at the cabinet boundary eliminate ground loop interference on long-distance communication runs, further reducing the risk of communication anomalies that could mask process alarms or delay safety responses.

At the protection layer, safety relay modules mounted within the same cabinet provide hardwired interlock backup for critical shutdown functions, ensuring that even in the event of a CPU fault, the physical safety circuit remains intact. Surge protection devices rated for the local lightning and switching transient environment should be installed on all incoming power and signal cables. Together, these components — the TAS-MAIN-REV-4-10 CPU, redundant power supplies, TAS I/O modules, communication gateways, fiber converters, safety relays, and surge protectors — form a layered defense against the most common causes of control system failure in demanding industrial sites.

Critical Industrial Safety Applications

The TDK TAS-MAIN-REV-4-10 is deployed across a broad range of safety-critical industrial applications where control system reliability directly impacts personnel safety, environmental protection, and production continuity.

In petrochemical and refinery plants, this CPU module serves as the processing core for emergency shutdown systems (ESD) and burner management systems (BMS), where deterministic scan times and fail-safe behavior are mandatory. Its high EMI immunity and conformal-coated PCB make it suitable for installation in classified hazardous areas when housed in appropriate enclosures.

In power generation facilities — including thermal, hydro, and combined-cycle plants — the TAS-MAIN-REV-4-10 manages turbine protection logic, generator interlock sequences, and auxiliary system control. Its redundancy support capability allows hot-standby configurations that eliminate single points of failure in generator protection circuits.

In mining and mineral processing operations, where vibration, dust ingress, and wide temperature swings are constant challenges, the ruggedized construction of the TAS-MAIN-REV-4-10 ensures sustained operation of conveyor interlock systems, crusher protection circuits, and ventilation safety controls without requiring frequent maintenance interventions.

In water and wastewater treatment facilities, the module controls pump sequencing, chemical dosing interlocks, and overflow protection systems. Its moisture-resistant design and wide humidity tolerance make it reliable in the damp, chemically aggressive environments typical of treatment plant control rooms.

In metallurgical and steel production plants, the TAS-MAIN-REV-4-10 manages furnace temperature control loops, rolling mill interlock sequences, and cooling system protection — applications where a control interruption can result in significant equipment damage and safety incidents. Its surge suppression capability protects against the high-energy transients generated by large induction furnaces and electric arc equipment.

In port and maritime logistics systems, including crane control and ship-to-shore loading equipment, the module’s vibration resistance and wide operating temperature range support reliable operation in exposed, mechanically demanding environments.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the TDK TAS-MAIN-REV-4-10?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified functions within the warranty period, NINERMAS will provide a replacement or repair at no additional cost. The warranty period begins from the date of shipment and applies to units that have been installed and operated within the specified environmental and electrical parameters.

Q2: What pre-shipment testing is performed on each TAS-MAIN-REV-4-10 unit?
Every TDK TAS-MAIN-REV-4-10 module undergoes a comprehensive pre-shipment test protocol that includes power-on functional verification, bus communication integrity testing, I/O interface validation, and a burn-in cycle to screen for early-life component failures. Test records are maintained for traceability. Only units that pass all test criteria are released for shipment, ensuring that customers receive a fully verified, field-ready spare part.

Q3: Is the TAS-MAIN-REV-4-10 compatible with existing TAS-series control system installations?
Yes. The TAS-MAIN-REV-4-10 (REV.4.10) is designed as a direct replacement for earlier TAS-MAIN revisions within the same TAS control platform family. It maintains backward compatibility with TAS-series backplanes, I/O modules, and communication interface cards. Before installation, it is recommended to verify the firmware revision requirements of your specific system configuration and consult the original system documentation to confirm compatibility with your installed base.

Q4: How does NINERMAS support long-term spare parts supply for the TAS-MAIN-REV-4-10?
NINERMAS maintains a reserved inventory program for the TDK TAS-MAIN-REV-4-10 and other critical industrial automation spare parts. This program is designed to mitigate the risk of extended lead times and supply chain disruptions that are common for legacy and safety-critical control system components. Customers with ongoing maintenance requirements can discuss long-term supply agreements and reserved stock arrangements directly with our sales team to ensure predictable availability and minimize unplanned downtime risk at their facilities.
