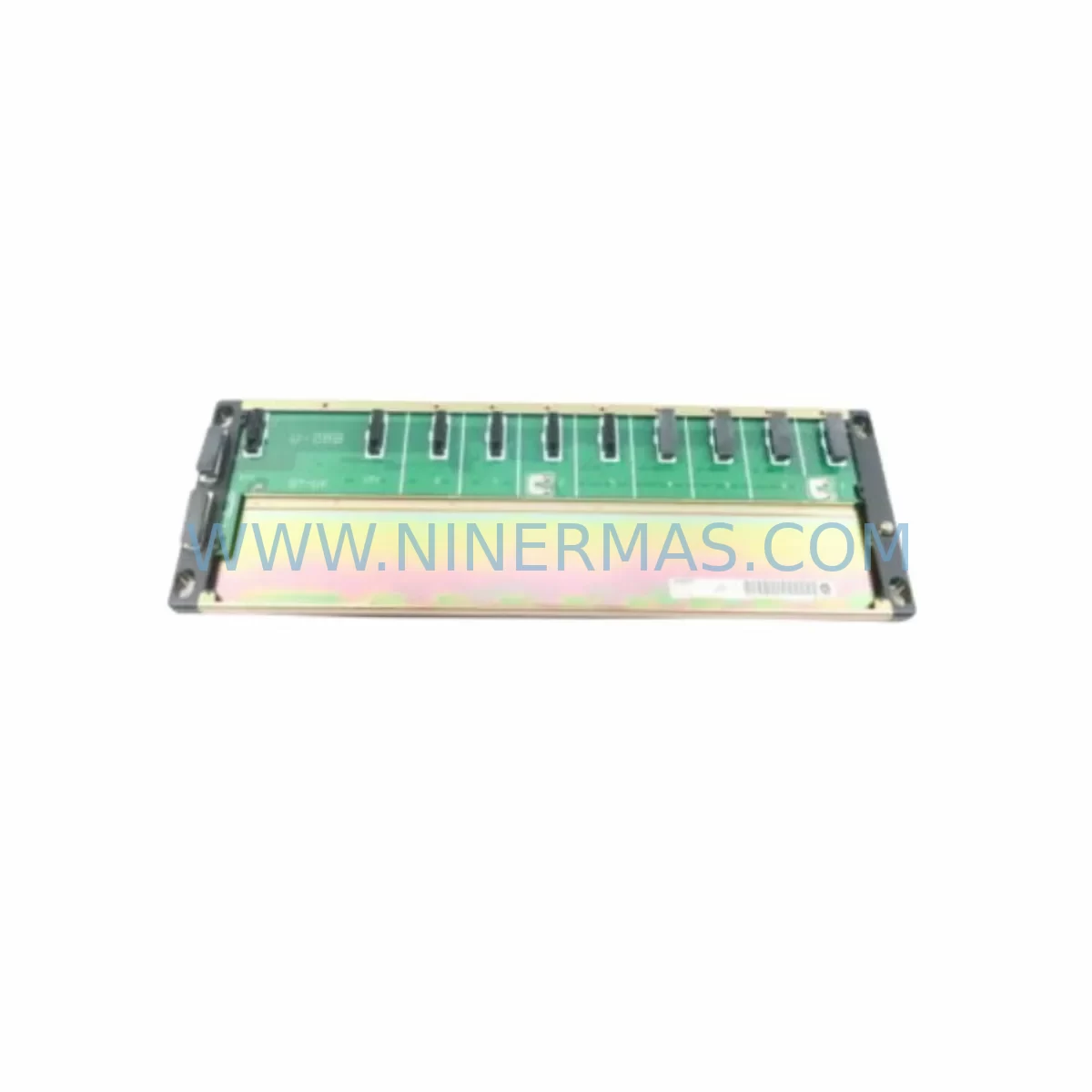

The SIEMENS U-08B is an original 8-slot base unit designed for use within the SIMATIC S5 series programmable logic controller (PLC) platform. As a critical structural and electrical backbone component, the U-08B provides the physical mounting and backplane bus connectivity for up to 8 I/O or function modules within a SIMATIC S5 control cabinet assembly. For maintenance engineers managing aging automation infrastructure, securing a verified, service-ready U-08B spare is essential to minimizing unplanned downtime and sustaining production continuity.

At NINERMAS, every U-08B unit is sourced as an original SIEMENS component, subject to pre-shipment inspection and functional verification before dispatch. With a 12-month warranty and long-term supply commitment, the U-08B available through NINERMAS is engineered to meet the demands of industrial maintenance teams operating in process manufacturing, automotive assembly, utilities, and discrete production environments.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the SIEMENS U-08B base unit in a SIMATIC S5 rack assembly, a thorough inspection of the surrounding control cabinet components is strongly recommended. The U-08B serves as the physical and electrical foundation for all modules installed within the rack — any degradation in the base unit’s bus connectors, slot contacts, or mounting integrity can cascade into intermittent faults across multiple I/O channels and communication paths.

Maintenance engineers should begin by verifying the condition of the SIMATIC S5 CPU module (such as the CPU 944 or CPU 945) seated in the rack, as backplane bus errors frequently manifest as CPU fault codes before the base unit itself is identified as the root cause. Alongside the CPU, the PS 951 or PS 955 power supply module should be inspected for output voltage stability — a degraded power supply can accelerate wear on base unit bus contacts and cause erratic module behavior.

Digital and analog I/O modules installed in the U-08B slots — including common types such as the 6ES5 430 digital input module and 6ES5 470 analog output module — should be reseated and tested after base unit replacement to confirm signal integrity across all channels. Loose or corroded slot contacts are a frequent source of intermittent I/O faults in aging S5 racks.

For systems with inter-rack communication, the IM 306 or IM 314 interface module connecting expansion racks should be inspected alongside the U-08B replacement. A faulty base unit in a central rack can disrupt the entire expansion bus, causing downstream racks to drop offline. Communication modules such as the CP 523 or CP 525 should also be verified for correct addressing and cable termination after any rack-level maintenance.

Procurement engineers building annual maintenance kits for SIMATIC S5 installations should consider stocking the U-08B alongside terminal block assemblies, 24VDC fuse holders, and signal isolators appropriate for the I/O voltage levels in use. For facilities running mixed S5 and S7 environments, cross-referencing spare parts lists to include SIMATIC S7-300 rail and bus connector assemblies ensures that maintenance teams are equipped for both legacy and current-generation PLC platforms without procurement gaps.

HMI panels connected to the S5 system — such as SIEMENS OP7 or OP17 operator panels — should be checked for communication continuity after U-08B replacement, particularly in installations where the HMI communicates via the PLC’s MPI or serial interface routed through the rack. Relay output modules and protection relays wired to the I/O slots should also be functionally tested to confirm that control outputs are correctly restored following the base unit swap.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the existing U-08B, document all module positions, wiring labels, and slot assignments. Photograph the rack layout and record any active fault codes displayed on the CPU or HMI. Confirm that the replacement U-08B matches the original in slot count and bus type.

Step 2 — Safe Isolation: De-energize the control cabinet following site lockout/tagout (LOTO) procedures. Discharge any residual bus voltage and allow capacitors in the power supply module to fully discharge before handling the base unit.

Step 3 — Module Extraction: Remove all I/O, communication, and function modules from the existing U-08B in sequence, storing them in anti-static packaging. Label each module with its original slot position to ensure correct reinstallation.

Step 4 — Base Unit Removal and Installation: Unbolt or unclip the existing U-08B from the mounting rail. Install the replacement U-08B, ensuring secure mechanical engagement with the DIN rail or panel mount points. Verify that all bus connector pins are undamaged before reseating modules.

Step 5 — Module Reinstallation and Power-Up: Reinstall all modules in their original slot positions. Reconnect all field wiring and communication cables. Re-energize the cabinet and monitor the CPU for fault-free startup. Verify I/O signal status via the HMI or programming device before returning the system to production.

Step 6 — Post-Replacement Documentation: Record the replacement date, new unit serial number, and any observations in the site maintenance log. Update the spare parts inventory to reflect the consumed U-08B and initiate replenishment procurement to maintain buffer stock.

Spare Parts Support FAQ

Q1: Is the SIEMENS U-08B still available as a new original spare?
The SIMATIC S5 series has been discontinued by SIEMENS, but original U-08B units remain available through specialist industrial spare parts suppliers such as NINERMAS. All units supplied by NINERMAS are original SIEMENS components, not third-party replicas, and are subject to pre-shipment functional inspection. Long-term supply availability is maintained to support facilities operating legacy S5 systems through extended service life programs.

Q2: How is compatibility with my existing SIMATIC S5 rack confirmed before shipment?
Compatibility is verified based on the SKU, series designation, and slot configuration. The U-08B is designed for the SIMATIC S5 backplane bus standard and is compatible with the full range of S5 I/O, communication, and function modules. If your installation uses a non-standard rack configuration or mixed-generation modules, the NINERMAS technical team can assist with compatibility confirmation prior to order placement.

Q3: What does the 12-month warranty cover for the U-08B?
The 12-month warranty covers manufacturing defects, bus connector integrity, and functional performance under normal industrial operating conditions. Units that exhibit failure within the warranty period are eligible for replacement or credit. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling on site. NINERMAS provides pre-shipment test documentation upon request to support warranty claims and incoming inspection processes.

Q4: What is the recommended spare parts inventory strategy for SIMATIC S5 base units?
For facilities with multiple S5 racks in operation, maintaining a minimum of one U-08B per rack type in on-site buffer stock is recommended. Given the discontinued status of the S5 platform, procurement lead times from the open market can be unpredictable. Establishing a standing supply agreement with NINERMAS ensures priority access to verified stock and reduces the risk of extended downtime caused by spare parts shortages during critical production periods.
