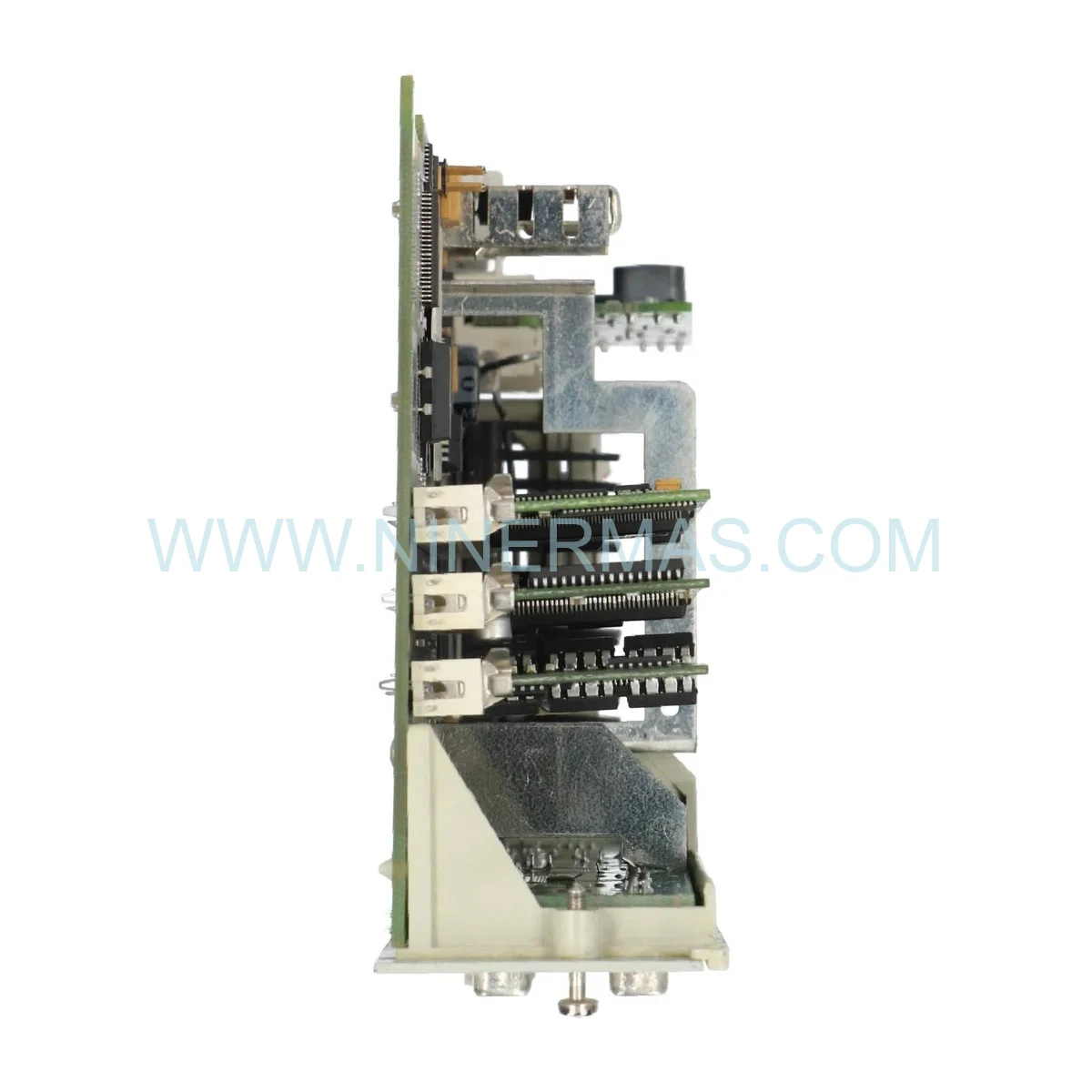

Siemens SINUMERIK 840D NCU 573.3 6FC5357-0BB23-0AE0 — New & Original

Siemens SINUMERIK 840D NCU 573.3 6FC5357-0BB23-0AE0 | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing high-throughput CNC environments, the 6FC5357-0BB23-0AE0 stands as a cornerstone of system availability. As the central processing backbone of the SINUMERIK 840D platform, this NCU 573.3 orchestrates real-time interpolation, axis coordination, and PLC execution simultaneously — directly reducing unplanned downtime and elevating Operational Excellence across multi-machine cells. Its deterministic cycle time ensures that mission-critical machining sequences execute without deviation, a non-negotiable requirement in aerospace, automotive, and precision mold manufacturing.

Engineered for harsh shop-floor conditions, the 6FC5357-0BB23-0AE0 operates reliably within a 0°C to +55°C ambient range under IP20 protection, with rack-mount integration that simplifies cabinet thermal management. During installation, engineers should verify 24V DC supply stability (ripple 5%), confirm PROFIBUS DP termination resistors at both ends of the segment, and validate PROFINET IO device naming prior to first power-on. Firmware version alignment between the NCU and connected MMC/PCU components is critical to avoid initialization faults — always cross-reference the Siemens Compatibility Matrix before commissioning.

For maintenance planners and procurement teams, stocking the 6FC5357-0BB23-0AE0 as a certified spare is a strategic imperative. SINUMERIK 840D NCU units are long-lifecycle components, yet their end-of-production status makes global sourcing increasingly competitive. Securing an original, factory-packaged unit now eliminates the risk of extended lead times during an emergency replacement scenario — where every hour of spindle downtime translates directly to production loss.

Key Operational Features

High-Availability Architecture: Supports hot-standby configurations and rapid NCK restart for minimal recovery time after fault events.
Seamless System Integration: Native PROFIBUS DP and PROFINET IO interfaces enable direct connection to distributed I/O modules, servo drives, and HMI panels without additional gateways.
Redundant Communication Paths: Dual-port Ethernet supports simultaneous engineering access and production network traffic, preserving Operational Excellence during live diagnostics.
Scalable Axis Count: Configurable for up to 31 axes/spindles, accommodating everything from 3-axis milling centers to complex 5-axis simultaneous machining cells.
Integrated PLC Engine: Onboard SIMATIC S7-300 compatible PLC eliminates the need for a separate controller, reducing panel footprint and simplifying System Integration.
Extended Memory for Complex Programs: Large DRAM and SRAM allocation supports high-density part programs, tool compensation tables, and user cycles without performance degradation.

Maintenance & Performance Benchmarks

The NCU 573.3 is purpose-built to anchor industrial network architectures of varying scale. In small-cell deployments (1-5 machines), it functions as a standalone controller with direct PROFIBUS DP connectivity to drives and I/O. In mid-scale environments (5-20 machines), it integrates into a PROFINET ring topology, leveraging Media Redundancy Protocol (MRP) to maintain network continuity even during a single cable or switch failure — a key enabler of Process Optimization at the plant level.

For large-scale, multi-cell manufacturing lines, the 6FC5357-0BB23-0AE0 participates in hierarchical automation architectures where it communicates upstream to MES/SCADA systems via OPC-UA or standard Ethernet TCP/IP. Its deterministic real-time kernel maintains interpolation cycle times as low as 1ms, ensuring that high-speed contouring accuracy is preserved regardless of network load. Preventive maintenance benchmarks recommend a full diagnostic scan every 12 months, including battery voltage check (onboard CMOS backup), fan bearing inspection, and PROFIBUS segment impedance measurement.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 6FC5357-0BB23-0AE0 unit dispatched by our team ships in its original Siemens factory packaging, complete with protective anti-static foam, original labels, and traceability documentation. For urgent production recovery scenarios, same-day dispatch is available for in-stock units when orders are confirmed before the daily cut-off — contact our team to verify real-time availability.

We maintain a global sourcing network specifically designed to support EOL (End-of-Life) and legacy Siemens SINUMERIK components. Whether you are managing a planned upgrade, building a critical spare inventory, or responding to an emergency breakdown, our logistics infrastructure supports express air freight to all major industrial regions including Europe, North America, Southeast Asia, and the Middle East. All shipments include commercial invoice, packing list, and optional third-party inspection reports upon request.

Engineering Support & FAQ

Q1: What are the key steps for replacing an NCU 573.3 on a live SINUMERIK 840D system?
A: Begin by performing a full system backup via the SINUMERIK Operate service menu (NC data, PLC program, drive parameters). Power down the cabinet, swap the 6FC5357-0BB23-0AE0 unit, restore the backup via CF card or network share, and verify axis referencing and safety function acknowledgment before resuming production. Always document the firmware version of the outgoing unit before removal.

Q2: Which firmware versions are compatible with the 6FC5357-0BB23-0AE0?
A: The NCU 573.3 supports SINUMERIK software versions from SW 2.6 onward. For optimal stability and access to current safety function packages (SLP, SOS, SLS), SW 4.7 SP3 or later is recommended. Confirm compatibility with your MMC/PCU and drive firmware using the official Siemens Compatibility Navigator tool.

Q3: Can this NCU operate in a Safety Integrated (SI) configuration?
A: Yes. The 6FC5357-0BB23-0AE0 fully supports SINUMERIK Safety Integrated functions including Safe Operating Stop (SOS), Safely-Limited Speed (SLS), and Safe Brake Control (SBC) when paired with compatible SINAMICS S120 drive modules. SI commissioning requires a certified safety acceptance test per IEC 62061 / ISO 13849.

Q4: How do I initiate a warranty claim for this unit?
A: Contact our technical support team at sale@ninermas.com with your order reference, unit serial number, and a description of the fault symptom. Our team will issue an RMA authorization within 24 business hours. Units confirmed defective under normal operating conditions are replaced or repaired at no charge within the 1-year warranty period.

Q5: Is the onboard CMOS battery field-replaceable?
A: Yes. The CMOS backup battery (3V lithium, type CR2032 or equivalent) is accessible without full unit disassembly. Siemens recommends replacement every 3-5 years or when the low-battery alarm appears in the NCK diagnostic buffer. Always replace with the machine powered on to avoid SRAM data loss.

Q6: What I/O expansion options are compatible with this control unit?
A: The 6FC5357-0BB23-0AE0 supports distributed I/O expansion via PROFIBUS DP-connected ET 200M/ET 200S stations and PROFINET IO-connected ET 200SP modules. Machine-side I/O can also be connected via the MCI board extension for high-speed digital inputs used in tool breakage detection and skip functions.
