Siemens RW3045-1AB14 Retrofit-Compatible Soft Starter for Legacy Systems

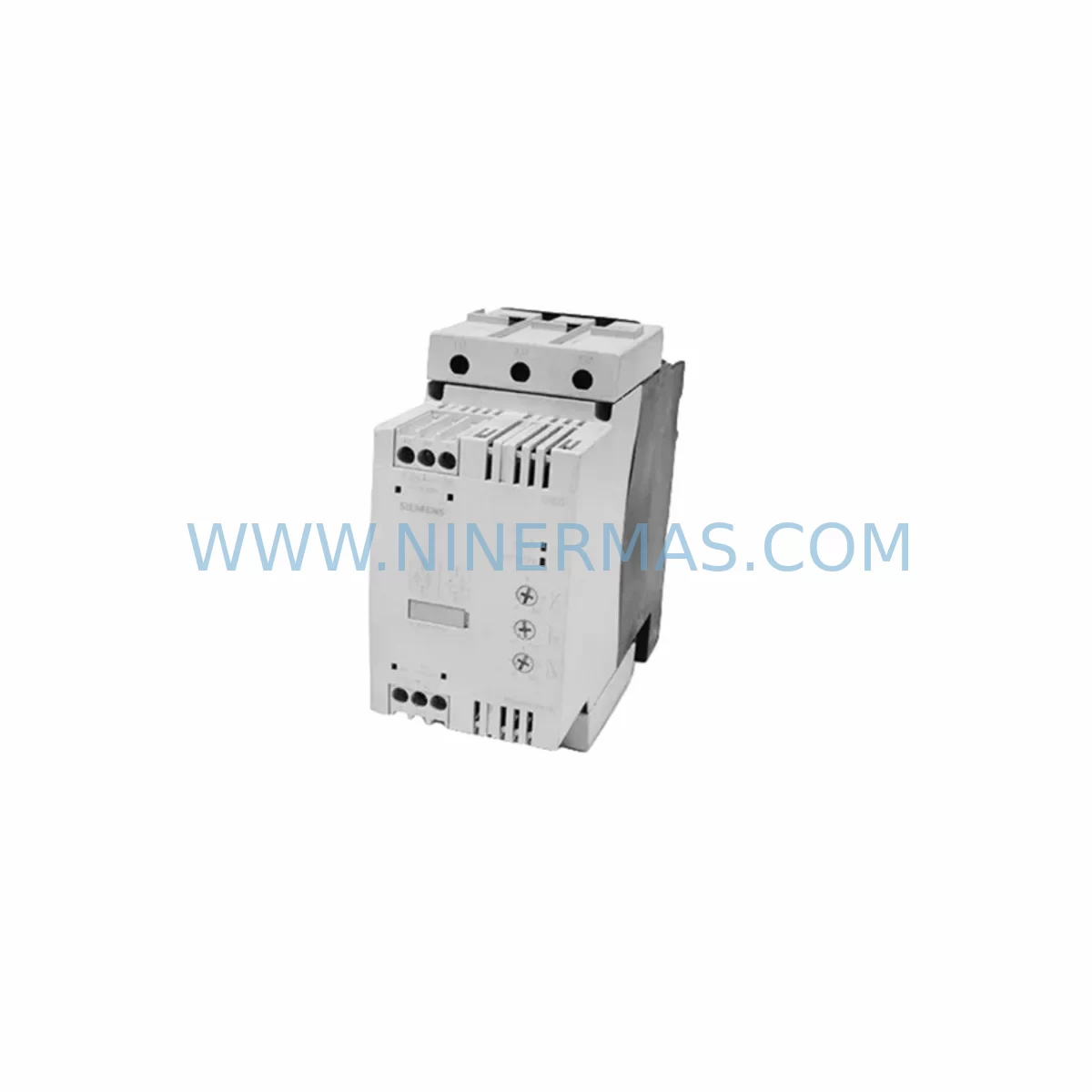

The Siemens RW3045-1AB14 is a retrofit-compatible soft starter module designed for seamless integration into existing SIRIUS control architectures and legacy automation panels. As industrial facilities face increasing pressure to extend the operational life of aging motor control centers, the RW3045-1AB14 provides a reliable, drop-in compatible solution that eliminates the need for full panel redesign. Whether you are replacing a discontinued soft starter, upgrading a legacy motor control cabinet, or migrating from an older SIRIUS 3RW30 or 3RW40 series platform, this module delivers the electrical and mechanical compatibility required for a smooth, low-risk retrofit.

NINERMAS maintains verified stock of the RW3045-1AB14 with full pre-shipment functional testing, ensuring every unit shipped meets original Siemens performance specifications. Each unit is covered by a 12-month warranty from the date of delivery, supporting your maintenance planning and spare parts lifecycle programs.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting a legacy motor control system around the Siemens RW3045-1AB14 requires careful pre-engineering to ensure electrical compatibility, physical fit, and program continuity. The first step is confirming that the existing control cabinet has sufficient space for the module’s physical dimensions and that the DIN rail or panel mounting arrangement matches the original SIRIUS soft starter footprint. In most 3RW30-era installations, the RW3045-1AB14 slots directly into the existing mounting position without requiring new backplate drilling or busbar modification.

Terminal wiring is a critical checkpoint. Engineers should map the existing L1/L2/L3 power input terminals and T1/T2/T3 motor output terminals against the RW3045-1AB14 wiring diagram before disconnecting the legacy unit. Control circuit wiring — including the enable input, fault relay output, and bypass contactor interlock — must be verified against the new module’s terminal assignment. In many legacy panels, a Siemens 3RT2 contactor or 3RV2 motor circuit breaker is installed upstream of the soft starter; these components are typically fully compatible and do not require replacement during the retrofit.

For systems operating on PROFIBUS DP networks, the RW3045-1AB14 supports standard PROFIBUS addressing. Engineers should confirm the module’s DP node address matches the address previously assigned to the legacy unit in the Siemens S7-300 or S7-400 PLC hardware configuration. If the control program was developed in STEP 7 or TIA Portal, the GSD file for the replacement module should be validated against the existing hardware catalog entry to avoid communication faults at startup. In installations where a Siemens ET 200S or ET 200M distributed I/O rack provides the control interface, the soft starter’s digital I/O signals — run command, fault reset, and status feedback — should be re-verified at the I/O module level before commissioning.

Power supply capacity is another key consideration. The control voltage supply — typically 24 VDC from a Siemens SITOP PSU100S or equivalent regulated power supply — must be confirmed to have sufficient current headroom to support the RW3045-1AB14’s control circuit draw alongside other panel loads. If the existing SITOP unit is operating near capacity, this is an appropriate time to evaluate a higher-rated replacement or add a secondary supply rail.

Where HMI visualization is involved, operators using a Siemens SIMATIC HMI TP700 or similar panel should verify that soft starter status tags — motor current, fault codes, and run/stop state — are correctly mapped to the new module’s data interface. Tag address changes between the legacy and replacement module should be documented and updated in the HMI project before go-live. Signal isolators may be required in installations where analog feedback signals from the soft starter are routed through third-party monitoring systems or legacy SCADA platforms.

For installations involving Siemens SIRIUS 3RA6 compact starters or combination motor starters in adjacent panel positions, the retrofit of the RW3045-1AB14 should be coordinated with a review of the overall motor protection scheme to ensure that overload relay settings and short-circuit protection coordination remain valid after the module swap.

Downtime Control During System Migration

Minimizing production downtime during a soft starter retrofit is a primary concern for maintenance teams operating continuous or semi-continuous processes. The RW3045-1AB14 retrofit can typically be completed within a planned maintenance window of two to four hours when pre-engineering work has been completed in advance. The following approach is recommended to protect program logic, maintain field control continuity, and reduce retrofit risk.

Pre-Shutdown Preparation: Before the maintenance window begins, photograph all existing terminal wiring, record all parameter settings from the legacy soft starter (ramp-up time, ramp-down time, current limit, bypass delay), and confirm that a tested RW3045-1AB14 unit is on-site. Verify that the upstream 3RV2 motor circuit breaker is accessible and can be locked out safely. If the system uses a PROFIBUS DP connection, note the existing node address and confirm the replacement module’s address switch setting before installation.

During the Swap: Isolate the motor circuit at the upstream breaker and apply lockout/tagout. Disconnect and label all control and power terminals before removing the legacy unit. Install the RW3045-1AB14, reconnect terminals in sequence (power first, then control), and verify torque on all screw terminals. Re-enter all parameter settings before energizing. For PROFIBUS-connected installations, confirm the DP LED status on the module before issuing a run command from the PLC.

Post-Commissioning Verification: Perform a no-load test run to confirm motor direction and soft start ramp behavior. Monitor motor current during the first loaded start to verify that the current limit setting is appropriate for the connected load. Confirm that the fault relay output and bypass contactor operate correctly at the end of the ramp-up period. Update maintenance records with the new module’s serial number, installation date, and parameter settings to support future lifecycle management.

By following this structured approach, most retrofit teams can complete the RW3045-1AB14 installation with zero unplanned downtime and full restoration of motor control functionality within the planned window.
