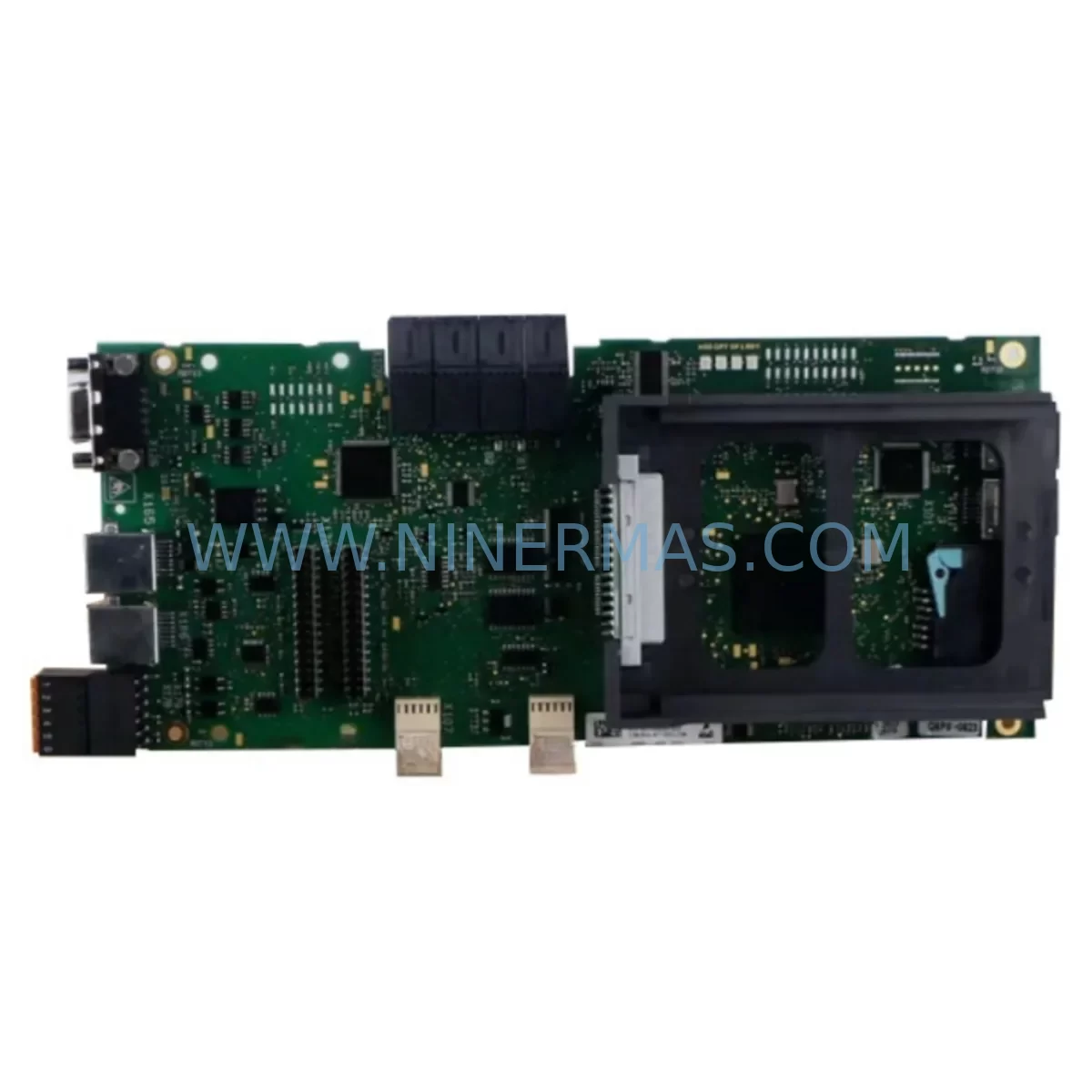

The SIEMENS C98043-A7100-L204CUD is a retrofit-compatible DC drive control board designed for seamless integration into legacy SIMOREG DC Master drive systems, particularly as a direct replacement for the discontinued 6RY1803-0AA25-0AA1 series. For facilities running aging production lines built around Siemens SIMOREG 6RA70 or 6RA24 platforms, this module provides a proven upgrade path that preserves existing wiring infrastructure, terminal layouts, and control logic — minimizing engineering rework and unplanned downtime.

At NINERMAS, we specialize in sourcing, testing, and supplying hard-to-find industrial control components for retrofit and modernization projects. The C98043-A7100-L204CUD is fully tested prior to shipment, backed by a 12-month warranty, and supported by our technical team for installation and commissioning guidance.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the C98043-A7100-L204CUD into an existing SIMOREG-based control system requires careful pre-engineering. Before initiating the swap, engineers should audit the control cabinet for available 24 VDC power supply headroom — particularly if the cabinet also powers auxiliary devices such as SITOP PSU100S or similar Siemens power supply modules. Overloaded auxiliary rails are a common cause of post-retrofit instability.

Terminal wiring should be documented and photographed before disconnection. The C98043-A7100-L204CUD shares the same terminal designation convention as the original 6RY1803 board, but field technicians should verify signal assignments against the original drive schematic, especially for analog speed reference inputs (X174), digital I/O terminals, and enable/inhibit signal chains. Where signal isolation is required between the PLC output card and the drive input, a signal isolator or analog isolator module may be inserted to prevent ground loop interference.

For systems using PROFIBUS DP communication between a Siemens S7-300 or S7-400 PLC and the SIMOREG drive, the existing PROFIBUS node address stored in the drive must be re-entered after board replacement. Technicians should also verify the GSD file version loaded in the PLC’s hardware configuration (STEP 7 or TIA Portal) matches the drive’s firmware. In multi-drive lines where several SIMOREG units share a single PROFIBUS segment, replacing one board without updating the network configuration can cause bus faults across adjacent drives.

Where the legacy system includes a SIMOREG CUD1 or CUD2 technology board in addition to the main control board, the technology board should be inspected and retained if functional — it carries application-specific logic that is not replicated on the C98043-A7100-L204CUD itself. Similarly, if the drive cabinet includes a C98043-A7002 pulse encoder board for closed-loop speed feedback, its wiring and encoder supply voltage should be verified independently of the main board swap.

For older production lines where the SIMOREG drive interfaces with a legacy SIMATIC S5 PLC via hardwired I/O rather than fieldbus, the retrofit scope may also include replacing aging S5 digital output modules or analog output cards that generate the speed setpoint signal. In these cases, coordinating the drive board replacement with a parallel I/O module refresh reduces the number of separate maintenance windows required.

If the existing control cabinet uses a SIMOREG 6RA7031 or 6RA7075 power section, the C98043-A7100-L204CUD control board is designed to interface directly with these power stacks. Engineers should confirm the power section’s thyristor firing board and current feedback circuitry are in serviceable condition before completing the retrofit, as a faulty power section will mask the performance of a new control board during commissioning.

Finally, installation space should be confirmed before ordering. The C98043-A7100-L204CUD occupies the same physical footprint as the original 6RY1803 board, but technicians should verify that no aftermarket cable management additions or cabinet modifications have reduced the available clearance around the backplane connector area.

Downtime Control During System Migration

Minimizing production downtime is the primary concern for any retrofit involving a critical DC drive in a continuous process line. The recommended approach for replacing the C98043-A7100-L204CUD in a live production environment is a pre-staged swap: the replacement board is received, inspected, and pre-configured offline before the maintenance window begins.

Prior to the planned outage, the existing drive’s full parameter set should be uploaded using Siemens DriveMonitor or the STARTER commissioning tool and saved to a secure backup location. This parameter file can be downloaded directly to the new board during commissioning, eliminating the need to manually re-enter hundreds of drive parameters under time pressure. Where the drive is connected to an OP1S operator panel or PMU, the panel’s parameter copy function can serve as a secondary backup method.

During the swap itself, the control cabinet should be de-energized at the main isolator, and LOTO (Lockout/Tagout) procedures applied before any board removal. The C98043-A7100-L204CUD can typically be removed and replaced within 30–60 minutes by a trained technician familiar with SIMOREG hardware. After installation, the backed-up parameter set is restored, PROFIBUS address is confirmed, and the drive is powered up in a no-load test condition before reconnecting the motor.

For lines where even a brief stop is operationally sensitive, a shadow commissioning approach can be used: the new board is installed in a parallel test rig or spare drive chassis and fully commissioned against a motor load simulator before the production swap. This approach is particularly valuable when the original drive’s parameter history is incomplete or when the application involves complex closed-loop tension or position control that requires careful tuning verification.

NINERMAS provides pre-shipment functional testing for all C98043-A7100-L204CUD units, with a test report included in the shipment. This reduces on-site commissioning risk and supports faster return-to-production after the board swap.

Retrofit Support FAQ

Q1: Is the C98043-A7100-L204CUD a direct replacement for the 6RY1803-0AA25-0AA1?
Yes. The C98043-A7100-L204CUD is the correct retrofit-compatible control board for SIMOREG DC Master drives previously equipped with the 6RY1803-0AA25-0AA1. Terminal layouts, backplane connectors, and parameter structures are compatible. Minor firmware differences may require a parameter review during commissioning, which our technical team can support.

Q2: What commissioning steps are required after installation?
After physical installation, restore the backed-up parameter set via DriveMonitor or STARTER. Verify the PROFIBUS node address, re-link the OP1S or PMU panel if used, and perform a no-load power-up test before reconnecting the motor. Confirm analog I/O signal levels and digital I/O enable chain continuity before running under load. Our team can provide a commissioning checklist on request.

Q3: How is the unit tested before shipment?
Every C98043-A7100-L204CUD supplied by NINERMAS undergoes functional testing on a compatible SIMOREG test platform prior to shipment. A test report confirming power-up, communication, and I/O functionality is included with each unit. Units are packaged in anti-static protective packaging for safe transport.

Q4: What warranty and after-sales support does NINERMAS provide?
All units are covered by a 12-month warranty from the date of shipment. Warranty covers manufacturing defects and functional failures under normal operating conditions. NINERMAS also maintains stock of related SIMOREG components to support ongoing spare parts requirements for your production line. Contact our team at sale@ninermas.com or +0086 187 5021 5667 for availability and lead time confirmation.
