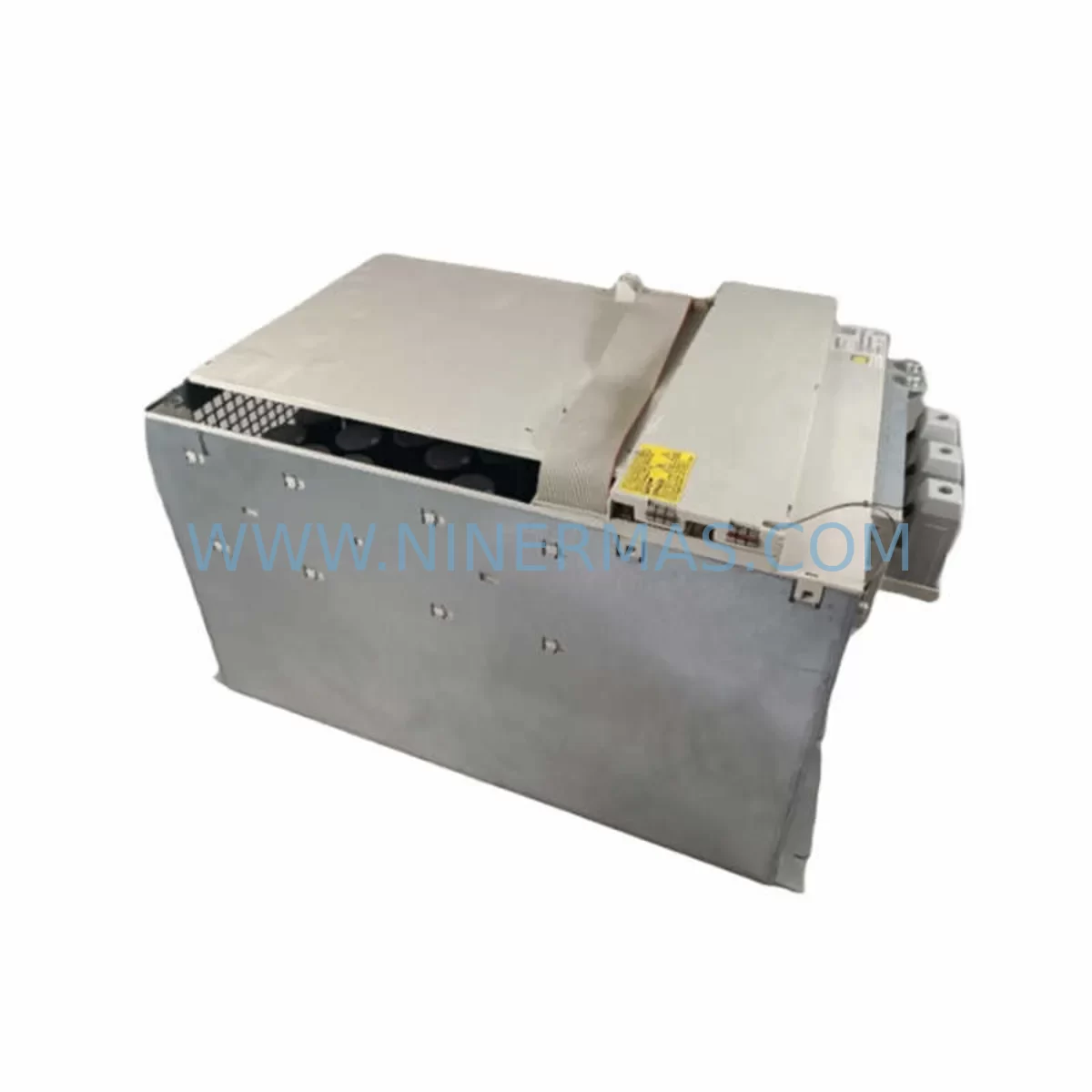

Siemens 6SN1123-1AA01-0FA1 Retrofit Drive Power Module

Siemens 6SN1123-1AA01-0FA1 Retrofit Drive Power Module: Legacy SIMODRIVE 611 System Compatibility & Smooth Upgrade

The Siemens 6SN1123-1AA01-0FA1 is a ruggedized drive power module designed for the SIMODRIVE 611 series — one of Siemens’ most widely deployed servo drive platforms in discrete manufacturing, machine tool, and process automation environments. As the SIMODRIVE 611 platform approaches end-of-life and spare parts availability tightens, the 6SN1123-1AA01-0FA1 remains a critical component for engineers managing legacy CNC lines, transfer machines, and multi-axis servo systems that cannot be immediately replaced with newer SINAMICS S120 or SINAMICS G120 platforms.

This module serves as a direct retrofit-compatible replacement for aging or failed power supply units within existing SIMODRIVE 611 drive cabinets. It is engineered to maintain electrical and mechanical compatibility with the original backplane interface, terminal wiring layout, and DC bus architecture of the SIMODRIVE 611 rack system, minimizing the scope of hardware changes required during a planned or emergency replacement.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the 6SN1123-1AA01-0FA1, engineers must account for the full scope of the SIMODRIVE 611 drive cabinet architecture. The power module interfaces directly with the DC bus rail shared across all axis modules in the rack — including the 6SN1118 series axis control modules and 6SN1122 series motor modules. Before replacement, it is essential to verify that the incoming AC supply voltage, phase sequence, and grounding scheme match the module’s rated input specifications.

Terminal wiring must be carefully documented prior to removal. The 6SN1123-1AA01-0FA1 connects to the main contactor circuit, the DC bus capacitor bank, and the drive enable relay chain. Any deviation in terminal assignment between the old and replacement unit — particularly on the X9 and X181 connectors — can result in drive fault states or failure to enable. Engineers should cross-reference the original wiring diagram against the replacement module’s terminal layout before energizing.

The SIMODRIVE 611 rack typically houses a mix of components: the 6SN1145 series monitoring modules, 6SN1162 series filter modules, and 6SN1111 series power supply units may all be present in the same cabinet. During a power module swap, it is advisable to inspect the condition of adjacent components — particularly the DC bus capacitors and the internal fan assembly — as these are common failure points in aging SIMODRIVE 611 installations.

For systems controlled by a SINUMERIK 840D sl or SINUMERIK 810D CNC controller, the drive configuration data stored in the NCU must be verified after module replacement. Drive object parameters, axis assignments, and encoder interface settings (typically managed via the 6SN1114 series encoder evaluation modules) should be backed up before the swap and restored or re-commissioned afterward. If the system uses a SIMATIC S7-300 or S7-400 PLC for sequencing, the PLC program logic controlling the drive enable chain should be reviewed to ensure compatibility with the replacement module’s ready signal behavior.

Communication links via PROFIBUS-DP between the NCU and the drive modules should be verified post-installation. In multi-axis systems, the PROFIBUS address assignment and drive bus termination resistors must remain intact. If the retrofit is part of a broader migration toward PROFINET-based communication, the 6SN1123-1AA01-0FA1 can continue to serve as the power infeed stage while axis modules are progressively upgraded to SINAMICS S120 CU320-2 PN control units.

I/O expansion requirements should also be assessed during retrofit planning. If the existing system relies on 6SN1114 series digital I/O modules for safety interlocks or machine sequencing, their wiring and signal levels must be confirmed compatible with the replacement power module’s enable and fault output signals. Signal isolators may be required if mixed voltage levels (24 VDC vs. 48 VDC) are present in the cabinet.

Installation space confirmation is a practical but often overlooked step. The 6SN1123-1AA01-0FA1 occupies a defined slot width within the SIMODRIVE 611 rack. If adjacent modules have been repositioned or if the rack has been modified, physical clearance for the replacement module — including cable routing and connector access — must be verified before the unit is shipped to site.

Downtime Control During System Migration

Minimizing production downtime during a SIMODRIVE 611 power module replacement requires a structured pre-outage preparation process. Before the planned maintenance window, the following steps should be completed: full backup of the SINUMERIK NCU drive data (using SINUMERIK Operate or SIMATIC STEP 7 toolchain), photographic documentation of all terminal wiring, and confirmation of the replacement module’s availability and pre-tested status.

The 6SN1123-1AA01-0FA1 supplied by NINERMAS is pre-shipment tested under load conditions to verify DC bus output stability, enable signal response, and fault relay behavior. This pre-testing step significantly reduces the risk of commissioning failures during the maintenance window, allowing engineers to focus on mechanical installation and parameter verification rather than troubleshooting a potentially defective replacement unit.

During the swap, the DC bus must be fully discharged before any connectors are removed. Residual voltage on the bus capacitors can persist for several minutes after power-off — a lockout/tagout procedure must be followed. Once the replacement module is installed and wired, a controlled power-up sequence should be performed: first enabling the infeed module alone to verify DC bus voltage, then enabling axis modules one at a time to confirm drive-ready status before returning the machine to automatic operation.

For systems where continuous production is critical, a parallel commissioning approach can be used: the replacement module is pre-configured and tested on a bench setup mirroring the target machine’s drive parameters, then swapped in during a short planned outage. This approach, combined with a pre-tested spare unit from NINERMAS’s stocked inventory, can reduce total downtime to under two hours for a single-axis power module replacement.

Original PLC and CNC program logic is preserved throughout this process — no software changes are required for a like-for-like power module replacement. HMI screens on SINUMERIK Operate or legacy OP panels remain unchanged, and the machine’s production recipes and tool offset tables are unaffected.

Retrofit Support FAQ

Q1: Is the 6SN1123-1AA01-0FA1 a direct replacement for the original Siemens unit?
Yes. The 6SN1123-1AA01-0FA1 supplied by NINERMAS is a genuine or functionally equivalent replacement unit that maintains full mechanical and electrical compatibility with the original SIMODRIVE 611 rack installation. No hardware modifications to the rack, backplane, or DC bus are required for a standard like-for-like swap.

Q2: What commissioning steps are required after installation?
After mechanical installation and terminal wiring, verify DC bus voltage at the bus rail test points, confirm drive enable signal continuity, and perform a controlled axis enable sequence via the SINUMERIK NCU. If drive parameters were backed up prior to removal, restore them via the NCU commissioning tool. No full re-parameterization is required for a direct replacement.

Q3: Has the unit been tested before shipment?
Yes. All 6SN1123-1AA01-0FA1 units supplied by NINERMAS undergo pre-shipment functional testing, including DC bus output verification, enable signal response, and fault relay behavior. Test documentation is available upon request. Each unit is covered by a 12-month warranty from the date of shipment.

Q4: What is the lead time and stock availability?
NINERMAS maintains stocked inventory of the 6SN1123-1AA01-0FA1 to support urgent replacement requirements. Standard lead time for in-stock units is 3–7 business days for international shipment. For long-term supply commitments or bulk orders supporting multi-site retrofit programs, contact our sales team to discuss stock reservation and fixed lead time agreements.
