Siemens 6SN1118-0DK23-0AA1 Retrofit Drive Control Module

Siemens 6SN1118-0DK23-0AA1 Retrofit Drive Control Module: Legacy System Compatible Upgrade

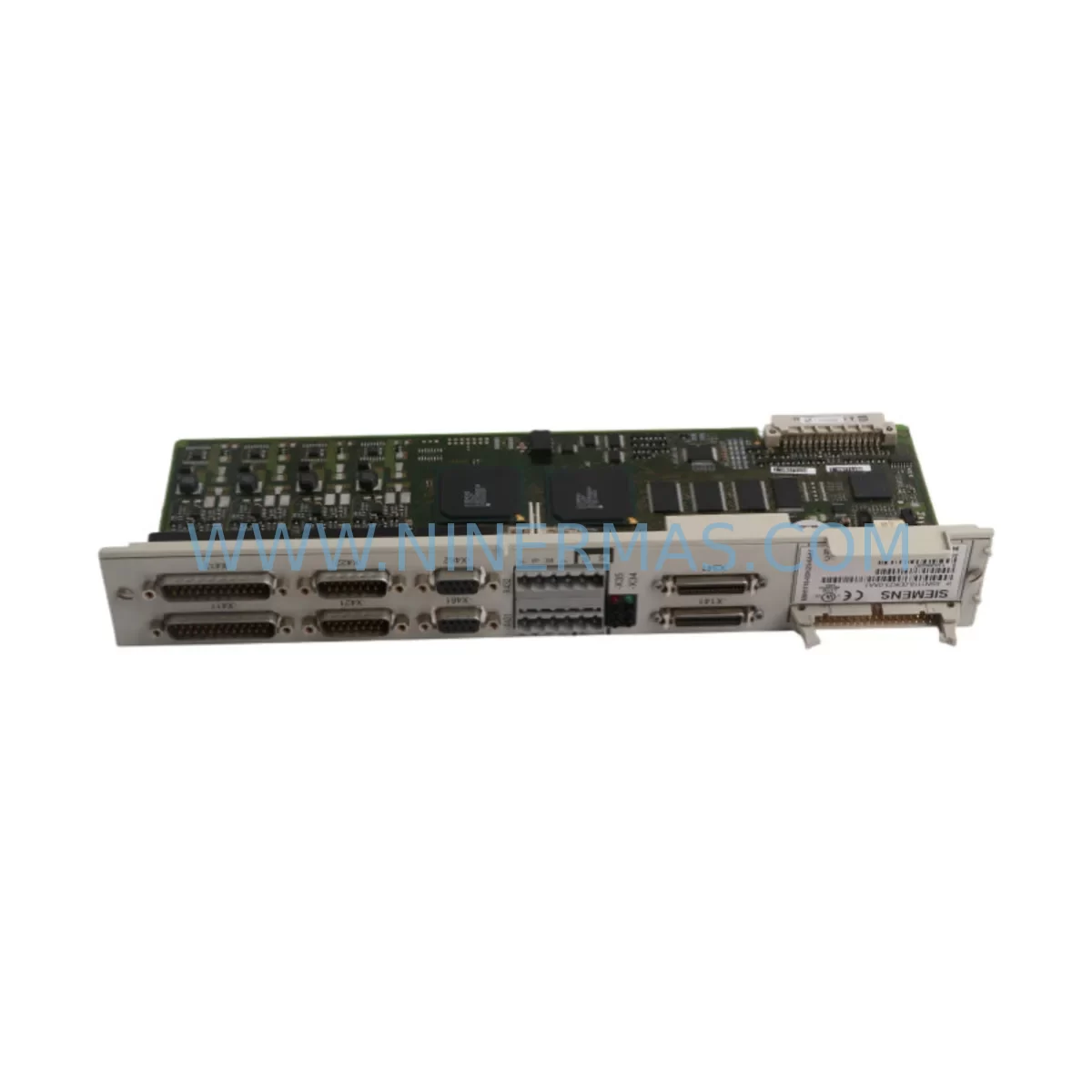

The Siemens 6SN1118-0DK23-0AA1 is a drive control module designed for the SIMODRIVE 611 platform, widely deployed across CNC machining centers, milling lines, and automated production equipment built during the 1990s and early 2000s. As Siemens has progressively phased out legacy SIMODRIVE 611 components, sourcing a verified replacement for the 6SN1118-0DK23-0AA1 has become a critical challenge for maintenance engineers managing aging control cabinets. This module serves as a direct retrofit-compatible solution for facilities that cannot justify a full drive system overhaul but require reliable, tested hardware to restore or sustain production continuity.

The 6SN1118-0DK23-0AA1 functions as the digital control interface within the SIMODRIVE 611 drive system, coordinating axis positioning, speed regulation, and current loop feedback between the NC controller and the power module. It is typically paired with power supply modules such as the 6SN1146 series and interfaces with SINUMERIK 840D, 810D, or 802D controllers via the drive bus. Engineers replacing this module must verify the firmware revision compatibility with the existing NCK software version to avoid axis parameter mismatches during commissioning.

Before installation, confirm the following: DC bus voltage rating and power module slot assignment on the drive rack; terminal block wiring layout for enable signals, ready outputs, and speed setpoint inputs; PROFIBUS DP node address if the axis is configured for fieldbus communication; and the existing motor encoder feedback type — whether TTL incremental, EnDat absolute, or resolver-based — since the 6SN1118-0DK23-0AA1 supports specific encoder variants that must match the connected servo motor.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the 6SN1118-0DK23-0AA1 into an existing SIMODRIVE 611 rack requires a structured approach to avoid unplanned downtime. Begin by documenting the current drive configuration using the SIMODRIVE Start-up Tool or by exporting axis machine data from the SINUMERIK 840D NCK. This backup is essential — it preserves spindle and feed axis parameters, position controller gains, and encoder offset values that would otherwise require manual re-entry after module swap.

The physical installation involves removing the existing control module from the drive rack, noting the slot position and any jumper settings for axis address assignment. The 6SN1118-0DK23-0AA1 slots into the same backplane connector used by the original module, sharing the DC bus and drive bus infrastructure. Adjacent modules in the rack — including the 6SN1123 power module, 6SN1145 infeed/regenerative unit, and any 6SN1118 single-axis or double-axis variants on neighboring slots — remain undisturbed during the swap, provided the rack is properly de-energized and the DC bus capacitors are fully discharged before work begins.

For systems where the SINUMERIK 840D communicates with peripheral I/O via a PROFIBUS DP network, verify that the drive node address on the replacement module matches the original configuration. Address conflicts will prevent the NCK from establishing communication with the axis during startup. If the plant also uses ET 200S distributed I/O or IM 153 interface modules for remote terminal connections, these remain unaffected by the drive module replacement but should be confirmed online after the axis is re-enabled.

In control cabinets where space is constrained, confirm the physical clearance around the SIMODRIVE 611 rack before ordering. The 6SN1118-0DK23-0AA1 occupies a standard single-slot width within the rack. If the cabinet also houses a SIMATIC S7-300 or S7-400 PLC for sequence logic, a CP 343-1 or CP 443-1 Ethernet communication processor, or a TP 177 / OP 177 operator panel for local HMI, none of these components require reconfiguration as part of the drive module retrofit — though HMI screen axis status displays should be verified post-commissioning to confirm correct speed and position feedback values are being reported.

Where the legacy system includes a 6FC5 series SINUMERIK compact unit or an older 840C controller, a direct module swap may not be sufficient — a drive parameter migration using the SINUMERIK migration tool or a manual re-parameterization session will be required. In these cases, having a pre-tested 6SN1118-0DK23-0AA1 on hand significantly reduces the window between fault detection and production resumption.

Downtime Control During System Migration

Minimizing production interruption during a SIMODRIVE 611 drive module replacement depends on preparation quality. The most effective approach is to complete all pre-work — parameter backup, spare module verification, wiring documentation, and tool staging — before the maintenance window begins. A pre-tested 6SN1118-0DK23-0AA1 that has been verified on a test bench eliminates the risk of receiving a faulty unit and discovering the problem only after the machine is disassembled.

During the swap, the original program logic stored in the SINUMERIK NCK is not affected by the drive module replacement. PLC ladder logic in the integrated SIMATIC S7 module, part program libraries, and tool offset tables remain intact. The primary risk area is axis machine data — specifically encoder type selection, motor model number, and current controller parameters — which must match the replacement module’s firmware expectations. Using the SIMODRIVE Start-up Tool to restore a previously saved axis dataset reduces commissioning time from several hours to under thirty minutes in most cases.

After the module is seated and the cabinet is re-energized, perform a controlled axis reference point approach before releasing the machine to production. Monitor the drive ready signal, check for any F or A alarms on the SINUMERIK HMI, and verify that the position actual value matches the expected home position. If the system uses a Renishaw probe or tool length measurement cycle, run a verification cycle before the first production part. These steps collectively protect the original program logic, maintain field control continuity, and reduce retrofit risk to an acceptable level for most production environments.

Retrofit Support FAQ

Q: Is the 6SN1118-0DK23-0AA1 a direct replacement for other 6SN1118 variants?
A: The 6SN1118-0DK23-0AA1 is compatible with specific SIMODRIVE 611 rack configurations. Compatibility depends on the axis count, encoder type, and firmware version of the existing system. We recommend confirming the full drive rack layout and NCK software version before ordering to ensure a direct fit.

Q: What commissioning steps are required after installation?
A: After physical installation, restore the axis machine data backup using the SIMODRIVE Start-up Tool. Verify encoder feedback, confirm PROFIBUS node address if applicable, perform a reference point run, and check for active alarms on the SINUMERIK HMI. Full commissioning typically takes 20–60 minutes with a prepared dataset.

Q: Does the module ship with pre-shipment testing completed?
A: Yes. Every 6SN1118-0DK23-0AA1 unit is functionally tested before dispatch. Testing covers power-on initialization, drive bus communication, and encoder interface verification. A test report is available upon request.

Q: What warranty coverage is provided?
A: All units carry a 12-month warranty from the date of shipment. Warranty covers manufacturing defects and functional failures under normal operating conditions. Our team provides technical support throughout the warranty period to assist with installation and commissioning queries.

—
