Siemens 6SL3760-0HF00-0AA1 Retrofit Chopper Module

Siemens 6SL3760-0HF00-0AA1 Retrofit Chopper Module: Legacy System Compatible Upgrade

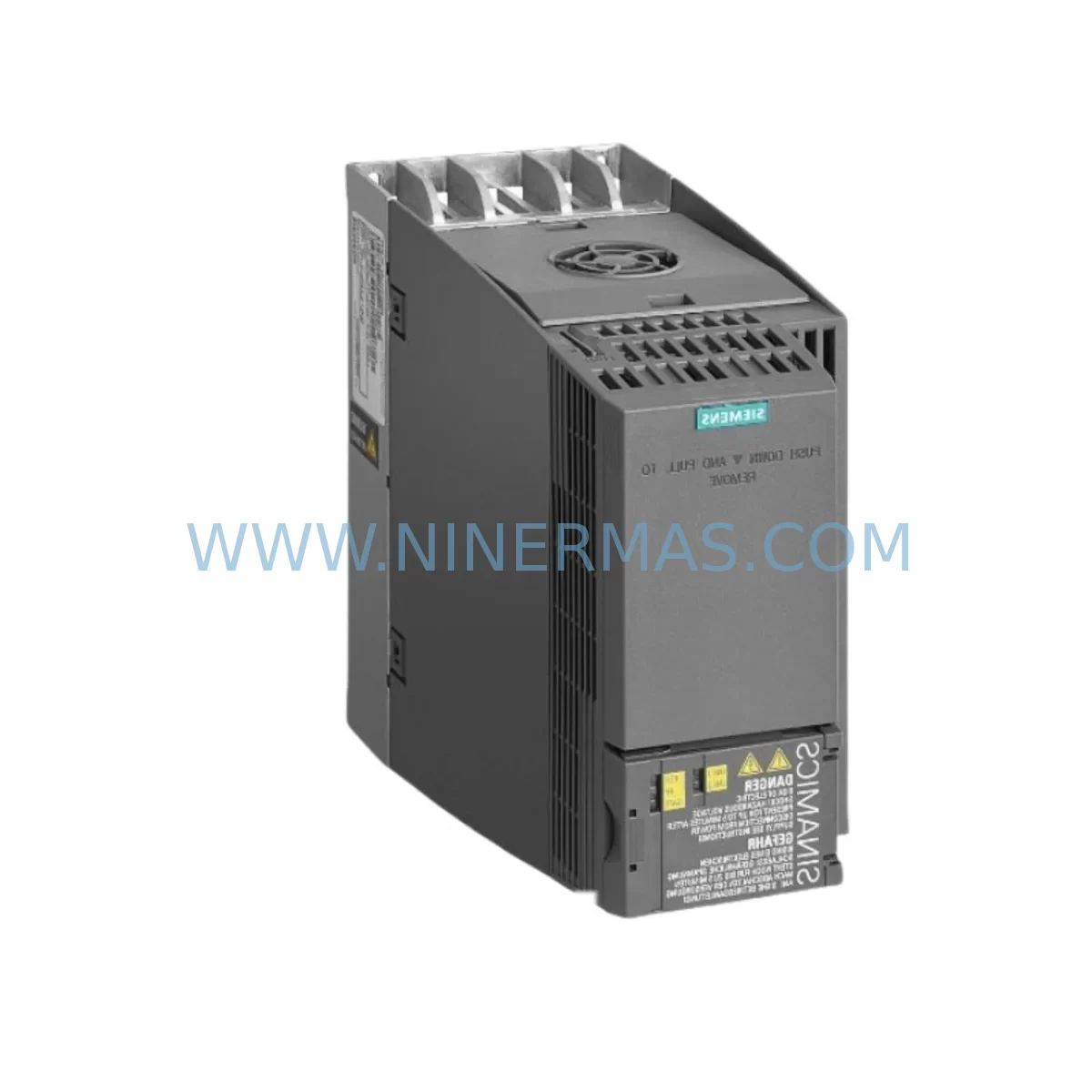

The Siemens 6SL3760-0HF00-0AA1 is a ruggedized chopper (braking) module designed for integration within the SINAMICS drive platform. As legacy automation lines age and OEM support for older drive configurations becomes increasingly limited, the 6SL3760-0HF00-0AA1 serves as a critical retrofit and replacement component for engineers tasked with modernizing existing control cabinets without full system overhauls.

At NINERMAS, we specialize in sourcing, testing, and supplying discontinued and hard-to-find Siemens drive components. The 6SL3760-0HF00-0AA1 is stocked and pre-tested to ensure drop-in compatibility with existing SINAMICS S120 infrastructure, minimizing engineering rework and reducing planned downtime during system migration.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the 6SL3760-0HF00-0AA1 into an existing production line, a structured retrofit plan is essential to protect program logic, preserve I/O mapping, and maintain control continuity. The following considerations apply to most SINAMICS-based retrofit scenarios:

Power Supply Verification: Before installation, confirm that the existing Siemens SINAMICS S120 Line Module (Active Line Module or Basic Line Module) provides sufficient DC bus capacity to support the chopper module alongside existing Motor Modules. Undersized line modules are a common cause of retrofit failures in multi-axis configurations.

Terminal Wiring and Braking Resistor Adaptation: The 6SL3760-0HF00-0AA1 connects to an external braking resistor. Verify that the existing resistor’s resistance value and power rating are within the module’s specified range. If the legacy system used a different braking module variant, terminal assignments may differ — always cross-reference the original wiring diagram against the current module’s terminal layout before energizing.

Backplane and Rack Compatibility: In booksize configurations, the chopper module occupies a dedicated slot on the shared DC bus rail. Confirm available physical space within the control cabinet and that the DC bus bar connectors align with the existing SINAMICS S120 booksize chassis. In some older installations, the chassis may require a spacer or adapter bracket.

DRIVE-CLiQ Topology and Module Addressing: After physical installation, the CU320-2 Control Unit or CU310-2 will automatically detect the new module via DRIVE-CLiQ. However, if the module address has changed relative to the original configuration, the drive project in STARTER or TIA Portal Startdrive must be updated to reflect the new topology. Failure to update the topology map can result in fault codes and prevent drive enable.

Program and Parameter Compatibility: Existing drive parameters stored on the Control Unit’s CompactFlash card or within the TIA Portal project should be reviewed. Key parameters related to braking ramp times, chopper threshold voltage (p1240), and braking resistor thermal model (p0290) must be verified and adjusted if the replacement module has different rated characteristics than the original unit.

HMI Screen and Alarm Mapping: If the system includes a Siemens SIMATIC HMI panel (such as a TP700 Comfort or KTP900 Basic), verify that any drive fault or status tags linked to the braking module are still correctly mapped after the retrofit. Alarm descriptions referencing the old module type may need to be updated in the HMI project to avoid operator confusion during commissioning.

Communication Link Integrity: In systems using PROFINET or PROFIBUS for drive communication, confirm that the network configuration in the PLC project (typically a Siemens SIMATIC S7-300, S7-400, or S7-1500) still correctly references the drive’s GSD or GSDML device file. A module swap can sometimes trigger a hardware mismatch warning in the PLC’s hardware configuration if the firmware version of the new module differs from the original.

I/O Expansion and Signal Isolation: In retrofit projects where additional I/O is required alongside the chopper module replacement, consider whether existing SIMATIC ET 200SP or ET 200M distributed I/O stations need to be reconfigured. Signal isolators may be required if analog feedback signals from the braking resistor temperature sensor are routed through legacy signal conditioning equipment.

Installation Space and Cabinet Layout: Confirm that the replacement module’s physical dimensions match the available slot width in the cabinet. In older SINAMICS installations, cabinet layouts were sometimes customized, and a direct replacement may require minor cable management adjustments to maintain adequate airflow and meet IP protection requirements.

Programming Cable and Commissioning Tools: Ensure that a SINAMICS programming cable (USB to DRIVE-CLiQ or standard Ethernet) is available on-site for commissioning. STARTER software or TIA Portal with the Startdrive add-in is required to perform a full function test and upload the final parameter set after installation.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any legacy system retrofit. For the 6SL3760-0HF00-0AA1 replacement, the following approach is recommended to protect production continuity:

Pre-Staging and Bench Testing: All units supplied by NINERMAS are tested prior to shipment. However, we recommend performing a bench-level power-on test before scheduling the maintenance window. This confirms the module powers up correctly and communicates via DRIVE-CLiQ before it is installed in the live system.

Parameter Backup: Before removing the existing module, perform a full parameter backup of the drive system using STARTER or TIA Portal Startdrive. Save the backup to both the engineering PC and the CompactFlash card on the Control Unit. This ensures that if commissioning of the new module encounters unexpected issues, the original configuration can be restored quickly.

Planned Maintenance Window: For a straightforward like-for-like replacement of the 6SL3760-0HF00-0AA1, experienced engineers typically complete the physical swap, DRIVE-CLiQ re-detection, parameter verification, and function test within a 2–4 hour maintenance window. More complex scenarios involving firmware updates or topology changes may require additional time.

Fallback Plan: Retain the original module on-site until the replacement has been fully commissioned and validated under production load conditions. This provides a fallback option if an unexpected compatibility issue is identified during the first production run after retrofit.

Post-Retrofit Monitoring: After returning the system to production, monitor the drive’s fault log and the braking resistor temperature for the first 24–48 hours of operation. This confirms that the chopper module is operating within its thermal limits and that the braking ramp parameters are correctly tuned for the application load profile.

Retrofit Support FAQ

Q1: Is the 6SL3760-0HF00-0AA1 a direct drop-in replacement for other SINAMICS S120 chopper modules?
In most cases, yes — provided the DC bus voltage rating, braking resistor specifications, and physical slot dimensions are compatible with your existing installation. NINERMAS recommends sharing your existing module’s nameplate data and cabinet layout for a compatibility verification before ordering.

Q2: How is the unit tested before shipment?
All 6SL3760-0HF00-0AA1 units are powered on and functionally tested at our facility prior to dispatch. Test records are available upon request. Each unit is shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q3: What wiring changes are required when replacing an older braking module with the 6SL3760-0HF00-0AA1?
Wiring requirements depend on the specific legacy module being replaced. In most SINAMICS S120 booksize retrofits, the DC bus bar connection and braking resistor terminals are standardized. However, if the original installation used a different module variant or a third-party braking unit, terminal mapping must be verified against the 6SL3760-0HF00-0AA1 wiring diagram before connection.

Q4: Do you maintain stock of the 6SL3760-0HF00-0AA1 for urgent replacement needs?
Yes. NINERMAS maintains inventory of the 6SL3760-0HF00-0AA1 to support urgent breakdown and planned maintenance scenarios. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock availability and lead time for your location.
