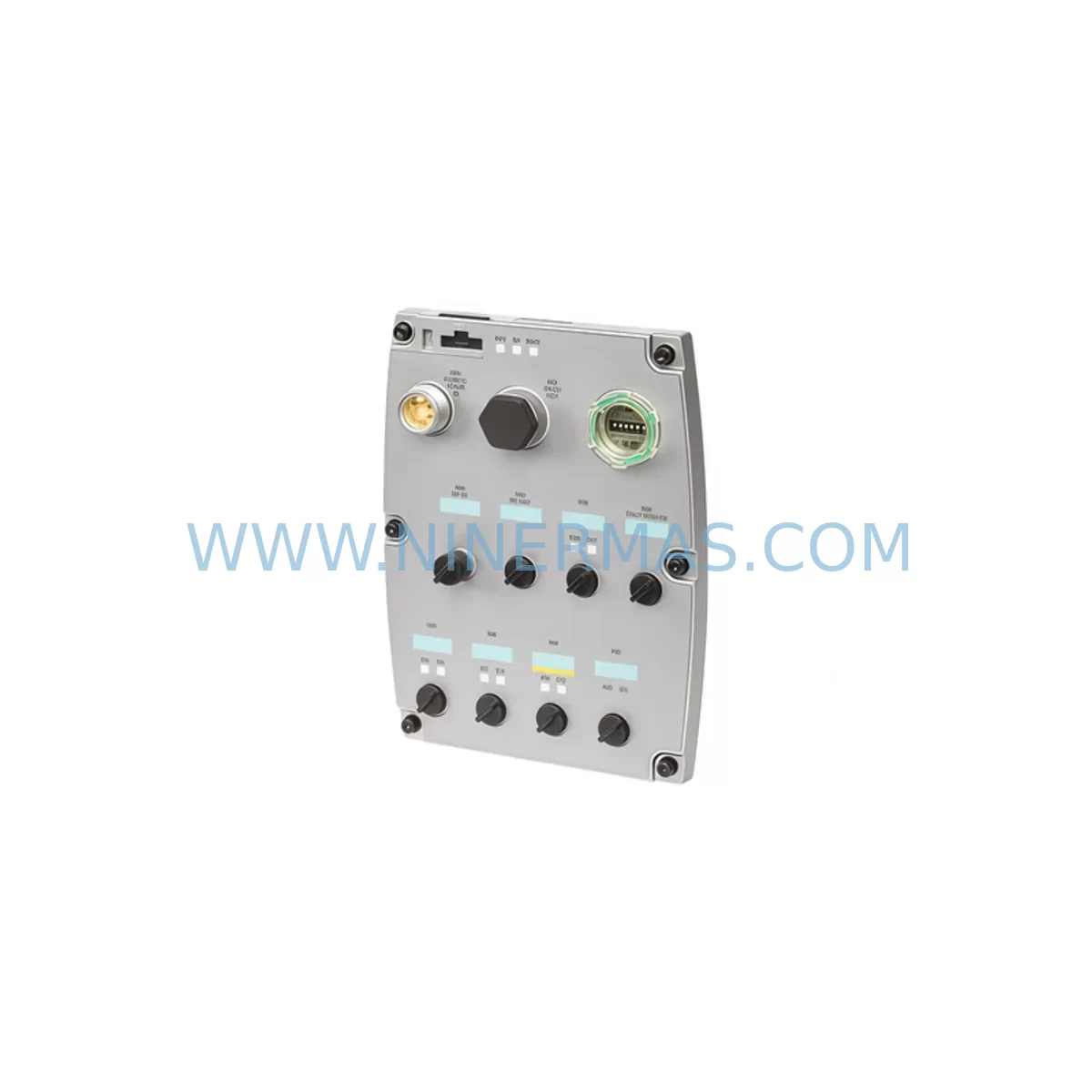

The Siemens 6SL3544-0FA20-1PA0 is a ruggedized safety module designed for integration within the SINAMICS drive family, engineered to operate reliably in harsh industrial environments where vibration, temperature extremes, and electromagnetic interference are constant operational challenges. For maintenance engineers managing aging automation systems, this module represents a critical line item on any spare parts list — its failure can trigger immediate production line shutdowns, making rapid, verified replacement availability a non-negotiable requirement for continuous operation.

At NINERMAS, we supply the 6SL3544-0FA20-1PA0 as a service-ready original spare part, pre-tested before shipment and backed by a 12-month warranty. Whether you are responding to an emergency breakdown, executing a planned annual overhaul, or building a strategic buffer stock for a multi-line facility, our inventory is maintained to support fast dispatch and long-term supply continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6SL3544-0FA20-1PA0 safety module is flagged for replacement during a routine control cabinet inspection or following a drive fault event, experienced maintenance engineers know that the module itself is rarely the only component requiring attention. A thorough site assessment should extend to the surrounding electrical circuit and system architecture to prevent repeat failures and ensure the replacement holds under production load.

Begin by verifying the SINAMICS S120 Control Unit (such as the CU320-2 DP or CU320-2 PN) for firmware integrity and parameter consistency — a corrupted parameter set can stress safety modules prematurely. Check the SINAMICS Power Module PM340 or PM240-2 for signs of thermal stress, capacitor aging, or DC bus irregularities that may have contributed to the original module fault. Inspect the 24 VDC SITOP power supply feeding the control section; voltage ripple or transient spikes are a common but overlooked root cause of safety module degradation in harsh environments.

Review the Safe Torque Off (STO) wiring terminals and associated safety relay outputs — terminal corrosion, loose crimps, or undersized conductors in the STO circuit can cause intermittent faults that are misdiagnosed as module failures. If the system uses a PROFIBUS DP or PROFINET communication module (such as the CBE20 or CBC10), verify cable shielding continuity and connector integrity, as communication errors under load can trigger spurious safety shutdowns.

For systems with SINAMICS Sensor Modules SMC20, SME20, or SME25 handling encoder feedback, confirm that encoder signal quality is within specification — degraded feedback signals increase the computational load on the safety module and accelerate wear. Inspect terminal blocks and I/O expansion modules within the same cabinet section for signs of heat damage or insulation breakdown. Where signal isolators are used between the PLC and drive system, verify isolation resistance and output signal accuracy.

Finally, review the SINAMICS Braking Module or external braking resistor condition if the application involves frequent deceleration cycles — excessive regenerative energy can stress the DC bus and indirectly impact safety module longevity. Documenting all findings in the maintenance log and updating the spare parts inventory accordingly ensures that the next inspection cycle begins with a complete picture of system health.

Site Replacement Workflow

Replacing the 6SL3544-0FA20-1PA0 on-site follows a structured sequence designed to minimize downtime and eliminate compatibility risks. Before beginning, confirm that the replacement unit’s hardware revision matches or is backward-compatible with the installed SINAMICS firmware version — Siemens periodically updates hardware revisions, and mismatches can prevent the drive from commissioning correctly after replacement.

Isolate the drive system from mains power and discharge the DC bus fully before opening the cabinet. Remove the faulty safety module by releasing the locking mechanism and disconnecting the ribbon or plug-in connectors carefully to avoid pin damage. Install the 6SL3544-0FA20-1PA0 replacement, ensuring all connectors are fully seated and the module is secured in its slot. Restore power and use STARTER or TIA Portal with SINAMICS Startdrive to upload the saved parameter set and perform a function test of all safety functions, including STO acknowledgment and fault reset sequences.

For legacy systems where the original parameter backup is unavailable, NINERMAS technical support can assist with parameter reconstruction based on drive nameplate data and application type. This service is particularly valuable for older SINAMICS installations where the original commissioning engineer is no longer available and documentation is incomplete. Proactive replacement of the 6SL3544-0FA20-1PA0 during scheduled maintenance windows — rather than waiting for in-service failure — is the most effective strategy for eliminating unplanned downtime on production-critical drive systems.
