Siemens 6SL3210-1SE17-7AA0 Service-Ready Spare Part

Siemens 6SL3210-1SE17-7AA0 Service-Ready Spare Part: Fast Replacement & Downtime Risk Control

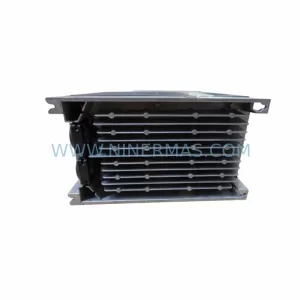

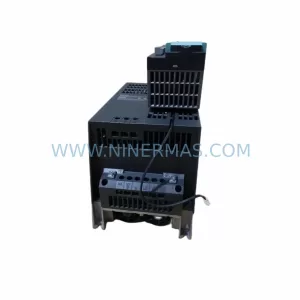

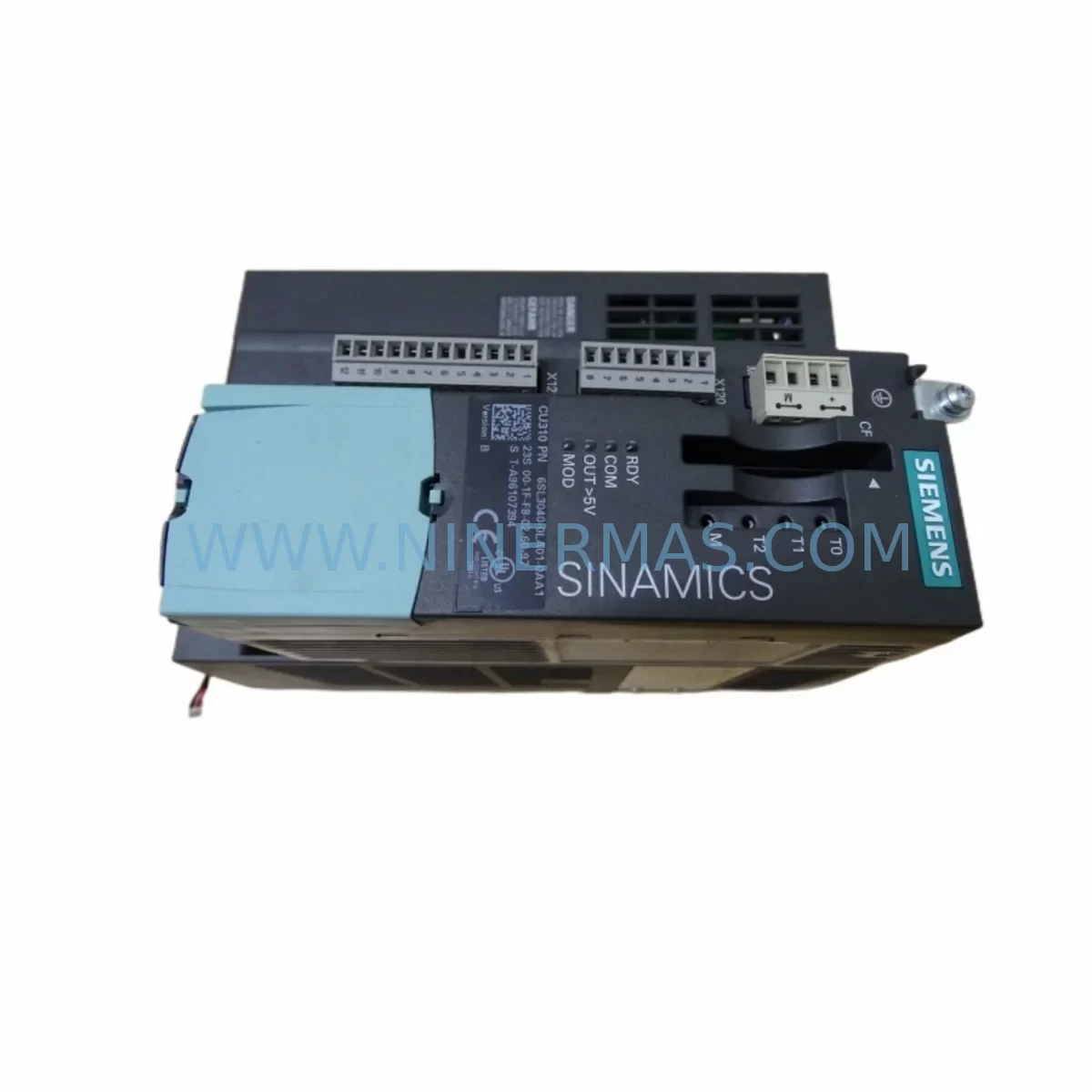

The Siemens 6SL3210-1SE17-7AA0 is a single-axis motor module belonging to the SINAMICS S120 booksize series, designed for high-performance servo and vector drive applications in industrial automation environments. As a service-ready spare part sourced and verified by NINERMAS, this unit is prepared for immediate deployment in maintenance scenarios where minimizing production downtime is the top priority.

Whether you are managing a scheduled annual overhaul, responding to an unplanned drive fault, or building a strategic spare parts inventory for a multi-axis CNC or robotic production line, the 6SL3210-1SE17-7AA0 represents a critical line-replaceable unit (LRU) that maintenance engineers and procurement teams must keep on hand. Its rated output current of 7.7 A (at 380–480 V AC input) makes it suitable for axis drives in the lower power range of the S120 platform, commonly found in packaging machinery, textile equipment, material handling conveyors, and precision machining centers.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6SL3210-1SE17-7AA0 motor module fails or is flagged during a routine control cabinet inspection, the fault rarely exists in isolation. Experienced maintenance engineers understand that a drive module fault can cascade from or trigger issues in adjacent components within the same S120 drive train. A thorough replacement workflow should therefore include inspection and, where necessary, proactive replacement of the following associated components:

The SINAMICS S120 Active Line Module (e.g., 6SL3130-series) supplies the DC bus voltage shared by all motor modules in the booksize cabinet. If the 6SL3210-1SE17-7AA0 failed due to DC bus overvoltage or undervoltage, the Line Module’s braking chopper, pre-charge circuit, and capacitor bank should be evaluated before reinstalling a new axis module. Similarly, the SINAMICS S120 Control Unit CU320-2 DP or CU320-2 PN manages all DRIVE-CLiQ topology and firmware parameters — a corrupted drive object or firmware mismatch on the CU320-2 can prevent the replacement motor module from commissioning correctly, so firmware version alignment must be confirmed prior to startup.

The DRIVE-CLiQ hub module (DMC20 or DME20) distributes DRIVE-CLiQ signals across the booksize cabinet. A faulty hub can cause intermittent axis faults that mimic motor module failures — inspect and test the hub before condemning the axis module. The Voltage Sensing Module (VSM10), if present in the cabinet, should also be checked for proper signal output, as it feeds grid voltage data to the Line Module and indirectly affects motor module protection thresholds.

On the motor side, the SMC20 Sensor Module Cabinet-Mounted or SME20/SME25 encoder evaluation module connected to the motor encoder should be inspected for wiring integrity and encoder signal quality. A degraded encoder signal can cause the motor module to trip on speed deviation or position error faults, leading to misdiagnosis of the module itself. Ensure the power cable and motor connector (typically a Siemens MOTION-CONNECT 500 or 800 series cable) shows no signs of insulation breakdown, connector corrosion, or phase imbalance.

Within the control cabinet, verify the condition of the 24 V DC SITOP power supply that powers the control electronics of the S120 system. An unstable 24 V rail — even within tolerance — can cause random drive faults and module resets. The terminal block assemblies and PE bonding conductors on the booksize mounting rail should be torque-checked, as loose PE connections are a common root cause of EMC-related drive faults in high-frequency switching environments. If the cabinet includes a Braking Module (6SL3100-series) and external braking resistor, inspect the resistor for thermal damage and the chopper transistor for short-circuit conditions before restoring the DC bus.

For multi-axis systems, it is best practice to maintain at least one spare 6SL3210-1SE17-7AA0 per production line, alongside spares for the most common S120 booksize motor modules in adjacent power ratings (such as the 6SL3210-1SE21-0AA0 for 10 A axes and the 6SL3210-1SE14-5AA0 for 4.5 A axes), ensuring that a single component failure does not halt an entire production cell.

Site Replacement Workflow

Step 1 – Fault Isolation: Record all active and historical fault codes from the CU320-2 via STARTER or TIA Portal Startdrive before powering down. Document the DRIVE-CLiQ topology and the drive object configuration of the failed axis. This data is essential for recommissioning the replacement module without full re-parameterization.

Step 2 – Safe Isolation: Follow LOTO (Lockout/Tagout) procedures. Discharge the DC bus capacitors fully (minimum 5 minutes after power-off, verify with a calibrated DC voltmeter at the DC bus terminals). The 6SL3210-1SE17-7AA0 booksize module can be removed by disconnecting the DRIVE-CLiQ cable, the DC bus bar connectors, the motor power connector, and the 24 V control supply connector in sequence.

Step 3 – Module Swap: Install the replacement 6SL3210-1SE17-7AA0. Reconnect all connectors in reverse order. Ensure the booksize module is firmly seated on the mounting rail and that the DC bus bar connections are torqued to specification. The DRIVE-CLiQ interface will automatically identify the new module’s electronic nameplate (MLFB) upon power-up.

Step 4 – Recommissioning: Power up the system. The CU320-2 will detect the new module via DRIVE-CLiQ and may prompt a topology confirmation. Accept the new topology and verify that the drive object parameters (motor data, encoder configuration, control mode) are correctly loaded from the non-volatile memory of the Control Unit. Perform a no-load test run before reconnecting the mechanical load.

Step 5 – Functional Verification: Run the axis through its full speed and torque range under controlled conditions. Monitor current, temperature, and encoder feedback via the diagnostic screen of the HMI panel (e.g., SIMATIC HMI TP700 or TP1200 Comfort) or via TIA Portal online diagnostics. Confirm no fault codes are active before returning the machine to production.

This structured replacement workflow reduces mean time to repair (MTTR) and eliminates the risk of secondary damage caused by improper reinstallation — a key concern when replacing precision servo drive components in live production environments.

Spare Parts Support FAQ

Q1: Is the 6SL3210-1SE17-7AA0 supplied by NINERMAS an original Siemens component?
Yes. NINERMAS supplies only original OEM components. Each 6SL3210-1SE17-7AA0 unit is sourced from authorized distribution channels and undergoes pre-shipment inspection including visual verification of the Siemens holographic label, MLFB code confirmation, and functional power-on testing where applicable. A 12-month warranty is provided from the date of shipment.

Q2: How do I confirm compatibility with my existing SINAMICS S120 system before ordering?
Compatibility depends on your DC bus voltage configuration, the rated current of the connected motor, and the firmware version running on your CU320-2 Control Unit. The 6SL3210-1SE17-7AA0 is rated for 7.7 A output and is compatible with all standard S120 booksize Line Modules operating at 380–480 V AC input. Share your system’s order number, firmware version, and motor nameplate data with our technical team at sale@ninermas.com for a compatibility confirmation before purchase.

Q3: What is NINERMAS’s lead time and long-term supply capability for this part?
The 6SL3210-1SE17-7AA0 is maintained in stock at our warehouse and ships within 3 business days of order confirmation. For customers managing aging S120 systems or planning multi-year maintenance contracts, NINERMAS offers long-term supply agreements and reserved inventory programs to ensure continuity of supply even as Siemens transitions product lines. Contact us to discuss volume pricing and dedicated stock allocation.

Q4: What testing and packaging standards apply before shipment?
Every unit undergoes a pre-shipment checklist that includes: original packaging integrity check, label and MLFB verification, visual inspection for transport damage, and where feasible, a power-on functional test. Units are packed in anti-static ESD-safe packaging with foam cushioning for international freight. A test report and packing list are included with each shipment. All units are covered by a 12-month warranty against manufacturing defects.
