SIEMENS 6SL3210-1PE34-8CL0 Service-Ready Spare Part

SIEMENS 6SL3210-1PE34-8CL0 Service-Ready Spare Part for Industrial Maintenance

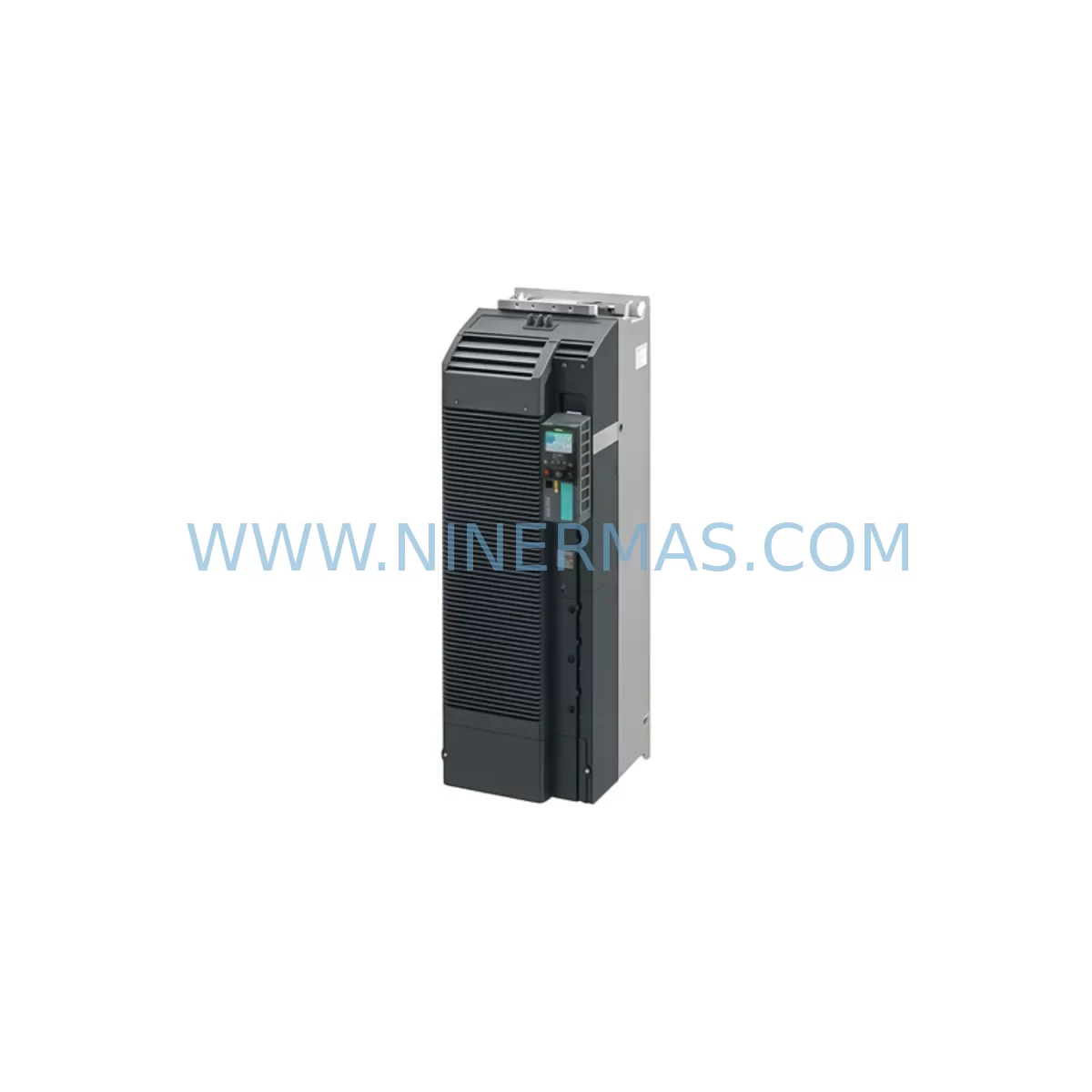

The SIEMENS 6SL3210-1PE34-8CL0 is a ruggedized motor module from the SINAMICS S120 booksize series, engineered for demanding industrial environments where uptime is non-negotiable. As a service-ready spare part stocked by NINERMAS, this unit is tested, verified, and ready for immediate deployment to minimize production downtime and restore drive system operation with confidence.

Whether you are managing a scheduled annual overhaul, responding to an emergency drive fault, or building a strategic spare parts inventory for a critical production line, the 6SL3210-1PE34-8CL0 delivers the compatibility, reliability, and long-term supply assurance that maintenance and procurement engineers demand. NINERMAS provides a 12-month warranty on all spare parts, with pre-shipment functional testing and full documentation support.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 6SL3210-1PE34-8CL0 motor module in a SINAMICS S120 drive cabinet, a thorough maintenance inspection of the surrounding components is essential to prevent repeat failures and ensure system stability. Maintenance engineers should treat this replacement as an opportunity for a comprehensive cabinet audit.

Begin by inspecting the SINAMICS S120 Active Line Module (ALM) — typically a 6SL3130 or 6SL3135 series unit — which supplies the DC link voltage to the motor module. A degraded ALM can cause recurring overcurrent or DC link faults on a newly installed motor module. Simultaneously, verify the condition of the DRIVE-CLiQ hub module (DMC20 or DME20), as communication errors on the DRIVE-CLiQ network are a common root cause of drive faults that are misdiagnosed as motor module failures.

The CU320-2 Control Unit firmware version should be confirmed compatible with the replacement module. Mismatched firmware between the control unit and motor module is a known source of commissioning delays. Check the Braking Module (6SL3100 series) and its braking resistor for signs of thermal stress, particularly in applications with frequent regenerative braking cycles.

On the power supply side, inspect the 24 V DC SITOP power supply feeding the control electronics. A marginal 24 V supply can cause intermittent control faults that are difficult to trace. Review the terminal block assemblies and PE bus bars within the drive cabinet for loose connections, corrosion, or signs of arcing — these are frequently overlooked during reactive maintenance but are a leading cause of nuisance trips.

For I/O and signal integrity, verify the SMC30 Sensor Module Cabinet-Mounted or equivalent encoder feedback module is functioning correctly, as encoder signal loss will immediately fault the new motor module. If the system uses PROFIBUS DP or PROFINET communication, confirm that the network termination resistors and cable shielding are intact. In older S120 installations, the CBC10 Communication Board may also warrant inspection.

Procurement engineers building a strategic spare parts inventory for S120-based production lines should consider stocking the 6SL3040-1MA01-0AA0 SINAMICS S120 Control Unit CU320-2 DP, 6SL3130 series Active Line Modules, and 6SL3100 series Braking Modules alongside the 6SL3210-1PE34-8CL0 to ensure full drive system recovery capability without extended lead times.

Site Replacement Workflow

Replacing the 6SL3210-1PE34-8CL0 on-site follows a structured procedure to minimize downtime and avoid secondary damage. Before beginning, isolate the drive cabinet from mains supply and allow the DC link capacitors to fully discharge — confirm with a calibrated DC voltmeter that the DC link is below 50 V before touching any internal components.

Disconnect the DRIVE-CLiQ cables, motor power cables (U2, V2, W2), and DC link bus bars (P600/N600) from the existing module. Document all cable routing and connector positions with photographs before removal. Remove the module from the booksize mounting rail by releasing the locking mechanism and sliding it clear of the adjacent modules.

Install the replacement 6SL3210-1PE34-8CL0 by reversing the removal sequence. Torque all bus bar connections to the manufacturer’s specified values — under-torqued connections are a primary cause of contact resistance heating and premature failure. Reconnect DRIVE-CLiQ cables in the original topology and restore 24 V DC control power before applying mains voltage.

On first power-up, the CU320-2 will detect the new motor module via DRIVE-CLiQ and may prompt a topology confirmation. Accept the new topology and perform a motor identification run if the motor data has not been previously saved to the control unit’s non-volatile memory. Verify all drive parameters — particularly current limits, speed limits, and safety function configurations — before returning the drive to production service.

This systematic approach reduces mean time to repair (MTTR), eliminates the risk of parameter loss, and ensures the replacement module operates within its design envelope from the first production cycle.

Spare Parts Support FAQ

Q1: Is the 6SL3210-1PE34-8CL0 compatible with all SINAMICS S120 booksize configurations?
The 6SL3210-1PE34-8CL0 is designed for the SINAMICS S120 booksize drive line-up and is compatible with standard S120 booksize infrastructure including shared DC link bus bars and DRIVE-CLiQ communication. Compatibility with specific system configurations should be verified against the installed CU320-2 firmware version and the existing drive topology. NINERMAS technical support can assist with compatibility confirmation prior to order.

Q2: What pre-shipment testing does NINERMAS perform on this spare part?
Every 6SL3210-1PE34-8CL0 unit dispatched by NINERMAS undergoes functional verification testing before shipment. This includes power-on self-test, DRIVE-CLiQ communication check, and visual inspection for physical damage. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: How quickly can NINERMAS supply the 6SL3210-1PE34-8CL0 for emergency breakdown situations?
NINERMAS maintains strategic stock of high-demand SINAMICS S120 spare parts to support emergency breakdown recovery. Express shipping options are available for urgent requirements. Contact sale@ninermas.com or call +0086 187 5021 5667 to confirm current stock availability and lead time for your specific situation.

Q4: Can NINERMAS provide long-term supply assurance for the 6SL3210-1PE34-8CL0 to support aging S120 installations?
Yes. NINERMAS specializes in long-term spare parts supply for industrial automation systems, including legacy and end-of-life SINAMICS S120 configurations. We source original OEM parts and maintain supplier relationships to support extended system lifecycles. Blanket purchase orders and scheduled delivery programs are available for customers managing multi-site or long-term maintenance contracts.
