Siemens 6SL3130-7TE21-6AA4 Service-Ready Spare Part

Siemens 6SL3130-7TE21-6AA4 Service-Ready Spare Part: Downtime Control for Industrial Maintenance

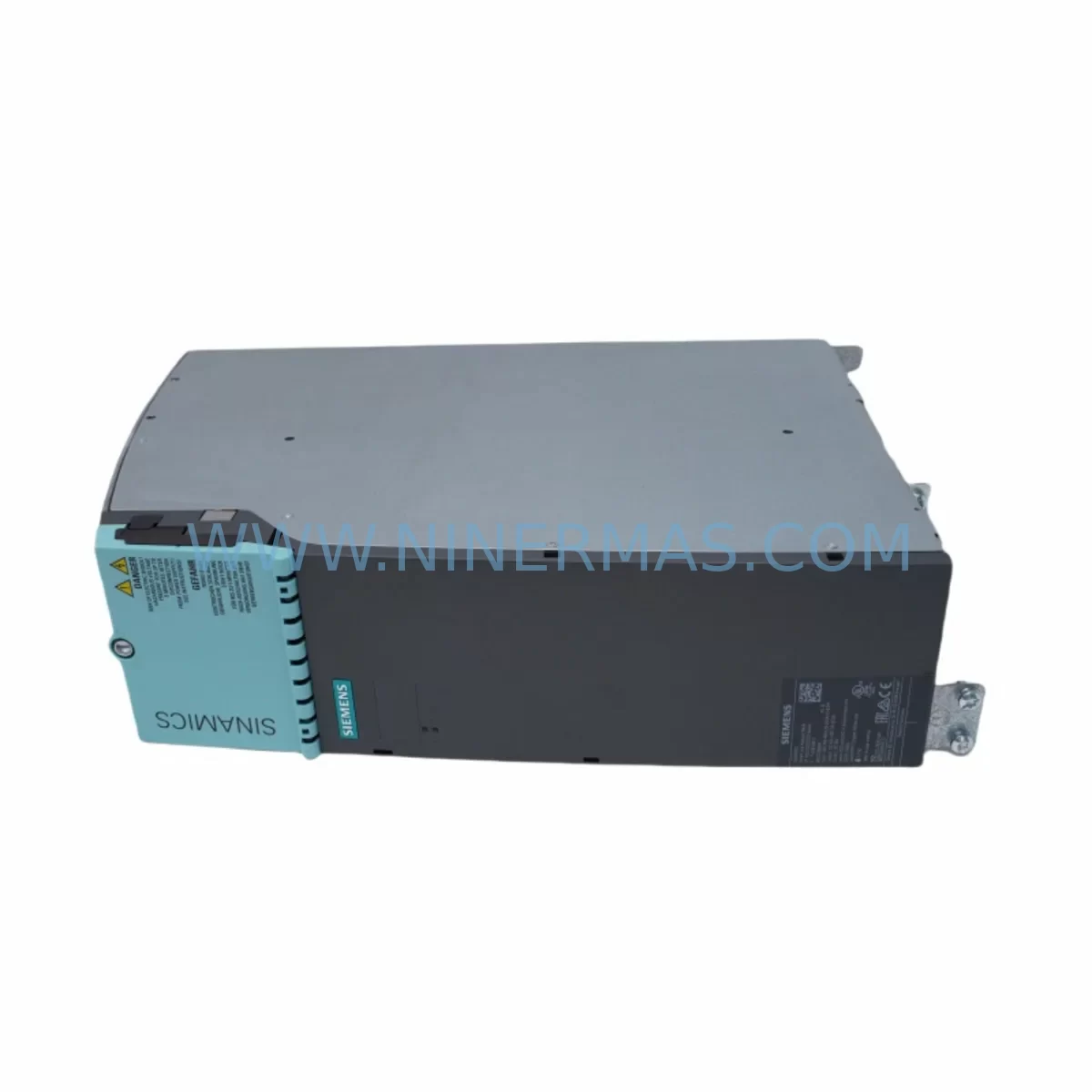

The Siemens 6SL3130-7TE21-6AA4 is a ruggedized Active Line Module (ALM) designed for the SINAMICS S120 drive system, engineered to operate reliably in harsh industrial environments where temperature extremes, vibration, and contamination are constant challenges. For maintenance engineers managing continuous production lines, motion control cabinets, or multi-axis servo systems, having a verified, service-ready replacement unit of the 6SL3130-7TE21-6AA4 on hand is a critical element of any proactive spare parts strategy.

This module serves as the front-end power interface for SINAMICS S120 booksize drive systems, providing regulated DC bus voltage to connected Motor Modules. Its ruggedized design makes it particularly suited for steel mills, mining conveyors, offshore platforms, chemical processing plants, and other demanding industrial environments where standard components would fail prematurely. When this unit fails or shows signs of degradation — such as DC bus undervoltage faults, excessive ripple, or thermal shutdown events — rapid replacement with a pre-tested spare is the fastest path to restoring production.

At NINERMAS, every 6SL3130-7TE21-6AA4 unit is sourced from verified supply channels, inspected prior to dispatch, and backed by a 12-month warranty. We support procurement engineers and maintenance teams with long-term supply continuity, ensuring this critical component remains available even as Siemens transitions product lifecycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 6SL3130-7TE21-6AA4 Active Line Module is rarely an isolated task. In a SINAMICS S120 booksize drive cabinet, this module sits at the heart of the DC bus architecture, and its failure or replacement creates a natural checkpoint for inspecting the entire power and control chain.

Maintenance engineers should begin by verifying the condition of the SINAMICS S120 Motor Modules (such as the 6SL3120 series) connected downstream on the DC bus. A failing ALM often causes transient overvoltage or undervoltage events that stress Motor Module capacitors and IGBTs. Simultaneously, inspect the CU320-2 DP or CU320-2 PN Control Unit — the DRIVE-CLiQ topology must be re-validated after any ALM swap to ensure all axis assignments and encoder feedback paths are intact.

The DRIVE-CLiQ cables connecting the ALM to the Control Unit and downstream Motor Modules should be inspected for connector wear, shielding integrity, and secure seating. These cables are a common source of intermittent faults that mimic ALM failures. Alongside this, check the 24 V DC SITOP power supply (e.g., SITOP PSU100S or PSU300S series) that powers the control electronics — an unstable 24 V rail can cause false ALM fault codes and premature shutdowns.

For cabinet-level inspection, review the line reactor or input choke (e.g., 6SL3000-0BE21-6AA0) installed upstream of the ALM. This component protects the ALM from line-side harmonics and transients; a degraded reactor increases stress on the ALM’s input rectifier bridge. Also inspect the braking resistor or Braking Module (6SL3100 series) if regenerative braking is not used — excessive braking energy without a properly functioning braking circuit can cause DC bus overvoltage faults that are incorrectly attributed to the ALM.

From a signal and I/O perspective, verify the terminal block wiring on the Control Unit’s X122/X132 digital I/O connectors. Loose or corroded terminals on enable signals, ready outputs, or fault acknowledgment lines can prevent the replacement ALM from initializing correctly. If the system uses PROFIBUS DP or PROFINET communication, confirm that the network address settings and GSD/GSDML device descriptions are correctly configured for the new module.

Procurement engineers building annual maintenance kits for SINAMICS S120 installations should consider stocking the 6SL3130-7TE21-6AA4 alongside complementary spares: a CU320-2 Control Unit, at least one Motor Module matching the highest-power axis, a set of DRIVE-CLiQ cables, a SITOP 24 V power supply, and the appropriate line reactor. This kit approach ensures that a single cabinet failure event does not cascade into a multi-week procurement delay.

Site Replacement Workflow

When replacing the 6SL3130-7TE21-6AA4 on-site, begin by safely de-energizing the drive cabinet and discharging the DC bus — allow a minimum of 5 minutes after power-off before opening the cabinet, as the DC bus capacitors retain hazardous voltage. Verify zero voltage on the DC bus terminals using a calibrated multimeter before proceeding.

Disconnect the DRIVE-CLiQ cable from the ALM’s X200 port, the line-side AC input terminals (U1/V1/W1), and the DC bus output connections (C/D terminals). Note the physical position of all cable connections with photographs before removal — this is especially important in multi-module booksize assemblies where cable routing can be complex.

Install the replacement 6SL3130-7TE21-6AA4 into the booksize chassis, ensuring the module clicks firmly into the shared DC bus bar connectors. Reconnect all terminals in reverse order of removal. Before powering up, use the STARTER or SINAMICS Startdrive commissioning software to verify that the Control Unit recognizes the new ALM via DRIVE-CLiQ and that the component list (topology) matches the expected configuration. Update the firmware of the replacement module if required to match the system’s existing firmware version — mismatched firmware between the ALM and Control Unit is a common cause of post-replacement faults.

Perform a controlled power-up sequence: energize the 24 V control supply first, confirm no fault codes on the Control Unit, then close the main contactor to apply AC line voltage. Monitor the DC bus voltage ramp-up and verify it stabilizes within the expected range before enabling the Motor Modules. Document the replacement in the maintenance log, including the serial number of the removed unit and the replacement unit, the date, and the technician’s name.

This systematic approach minimizes the risk of repeat failures, ensures system compatibility, and reduces total downtime from fault detection to full production restoration — often to under four hours for experienced maintenance teams with a pre-stocked spare.

Spare Parts Support FAQ

Q1: Is the 6SL3130-7TE21-6AA4 compatible with all SINAMICS S120 booksize configurations?
The 6SL3130-7TE21-6AA4 is designed for SINAMICS S120 booksize drive systems operating on 380–480 V AC supply networks. It is compatible with CU320-2 series Control Units and standard S120 booksize Motor Modules. However, compatibility must always be verified against the specific system’s power rating, DC bus configuration, and firmware version. Contact our technical team with your full system configuration for pre-purchase compatibility confirmation.

Q2: What testing is performed before shipment?
Every 6SL3130-7TE21-6AA4 unit dispatched by NINERMAS undergoes a pre-shipment inspection covering visual integrity, connector condition, and functional verification where test equipment is available. Units are packed in anti-static, shock-protected packaging to prevent transit damage. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and verified functional failures under normal operating conditions.

Q3: Can NINERMAS support long-term supply of this part as it approaches end-of-life?
Yes. NINERMAS specializes in maintaining stock of industrial automation spare parts, including components that Siemens has discontinued or placed on limited availability. We work with procurement engineers to establish blanket order agreements and reserved stock arrangements for critical spares like the 6SL3130-7TE21-6AA4, ensuring supply continuity for the full operational life of your installed SINAMICS S120 systems.

Q4: What is the recommended spare parts inventory strategy for SINAMICS S120 drive systems?
For production-critical SINAMICS S120 installations, we recommend maintaining at minimum one Active Line Module (6SL3130 series), one Motor Module per critical axis, a CU320-2 Control Unit, and a set of DRIVE-CLiQ cables as on-site cold spares. For high-availability environments, a warm spare strategy — where a pre-configured and firmware-matched spare cabinet is maintained — is the gold standard. NINERMAS can assist with spare parts audits and stocking recommendations tailored to your specific drive system inventory.

—
