Siemens 6SL3130-1TE31-0AA0 SINAMICS S120 Motor Module | New & Original

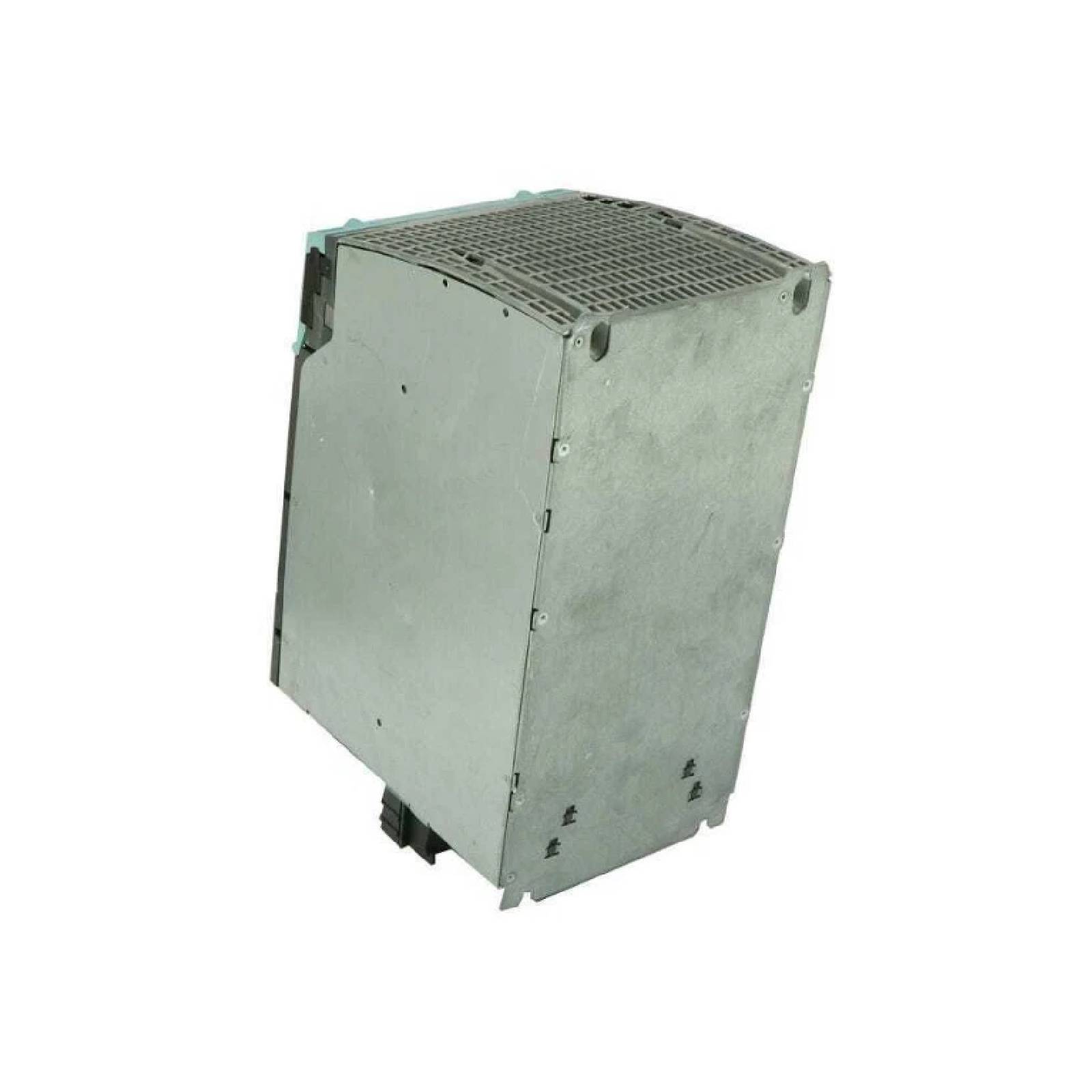

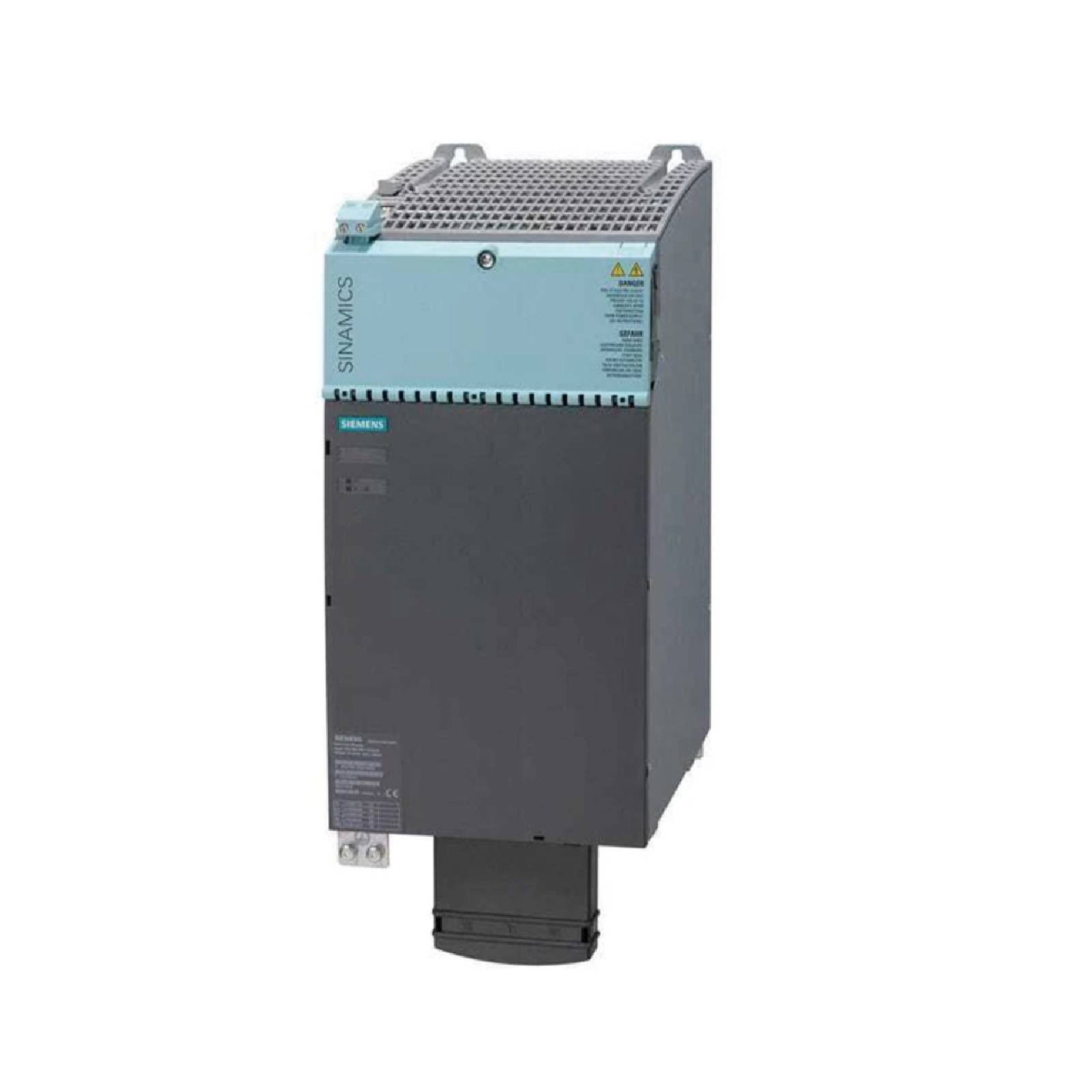

Siemens SINAMICS S120 Single Motor Module 6SL3130-1TE31-0AA0 | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing mission-critical production assets, the 6SL3130-1TE31-0AA0 represents a cornerstone of system availability in high-demand drive architectures. Deployed within the SINAMICS S120 booksize format, this Single Motor Module delivers 31 kW of continuous output power at 400V AC, enabling seamless integration into multi-axis servo and vector control topologies. Its role in sustaining operational excellence cannot be overstated — when a drive axis fails, every minute of downtime translates directly into production loss. Having the 6SL3130-1TE31-0AA0 pre-staged as a verified spare eliminates that risk entirely.

Engineered to withstand the rigors of industrial environments, this module operates reliably across an ambient temperature range of -10°C to +50°C with IP20 ingress protection. Installation demands attention to DC bus connector torque specifications and proper shielding of motor cables to suppress EMI. The booksize form factor allows tool-free DIN rail mounting, and the module slots directly into existing SINAMICS S120 cabinet configurations without mechanical modification — a critical advantage during emergency swap-outs under time pressure.

For maintenance planners and reliability engineers, stocking the 6SL3130-1TE31-0AA0 as a critical spare is a standard practice in facilities where SINAMICS S120 drives govern high-cycle or continuous-duty axes. Its proven track record across automotive, packaging, and process industries makes it an indispensable automation component in any proactive maintenance strategy.

Key Operational Features

31 kW Rated Output Power — Sustains high-torque, high-speed axis demands in continuous duty cycles
63A Continuous Current Rating — Supports demanding motor loads without thermal derating under normal conditions
Redundancy-Ready Architecture — Booksize modular design enables rapid hot-swap replacement to maximize system uptime
High Availability via PROFIBUS & PROFINET — Dual communication protocol support ensures seamless integration into existing automation networks
SIL 2 Integrated Safety Functions — Safe Torque Off (STO) and Safe Stop 1 (SS1) reduce risk without external safety relays
SINAMICS STARTER & TIA Portal Compatible — Streamlines commissioning, parameter migration, and firmware management across system generations

Maintenance & Performance Benchmarks

The 6SL3130-1TE31-0AA0 is architected to adapt across a broad spectrum of industrial network configurations. In small-scale installations, it operates as a standalone single-axis drive module controlled by a CU320-2 Control Unit via DRIVE-CLiQ. In mid-scale architectures, multiple motor modules share a common DC bus supplied by an Active Line Module, enabling energy exchange between braking and motoring axes — a configuration that measurably reduces energy consumption and improves overall system efficiency.

For large-scale, multi-drive installations typical in automotive body shops or continuous casting lines, the module integrates into centralized cabinet systems with shared cooling infrastructure. Its diagnostic interface provides real-time telemetry on DC link voltage, output current, thermal load, and fault history — data that feeds directly into predictive maintenance platforms and SCADA systems. Mean Time Between Failures (MTBF) data from field deployments consistently positions this module among the most reliable automation components in the SINAMICS S120 portfolio, supporting process optimization goals across industries.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every unit of the 6SL3130-1TE31-0AA0 dispatched from our facility is shipped in Original Factory Packaging with intact Siemens holographic labels and full traceability documentation. For facilities facing unplanned downtime, we offer same-day dispatch on in-stock units when orders are confirmed before the daily cut-off — minimizing the gap between fault detection and drive restoration.

As a globally oriented supplier of industrial automation components, we maintain dedicated inventory buffers for EOL (End-of-Life) and legacy SINAMICS S120 modules — ensuring that facilities running older system generations are not left without sourcing options. Our logistics network covers express freight to North America, Europe, Southeast Asia, and the Middle East, with full customs documentation support for cross-border shipments. System integration timelines are protected; your production schedule stays on track.

Engineering Support & FAQ

Q1: What are the step-by-step installation requirements for the 6SL3130-1TE31-0AA0?
A: Mount the module on a standard booksize DIN rail within the SINAMICS S120 cabinet. Connect the DC bus bars with specified torque (refer to Siemens installation manual A5E03264273). Wire motor output terminals U2/V2/W2 with shielded cable, grounding the shield at both ends. Connect DRIVE-CLiQ cable to the Control Unit. Power up and run the SINAMICS STARTER auto-configuration wizard to detect the module and assign drive objects.

Q2: Which firmware versions are compatible with this motor module?
A: The 6SL3130-1TE31-0AA0 is compatible with SINAMICS S120 firmware V4.7 SP9 and above. For TIA Portal integration, firmware V5.1 or later is recommended to access full diagnostic and safety parameter sets. Always verify firmware alignment between the Control Unit and Motor Module before commissioning.

Q3: Can this module replace an older 6SL3130-series variant without reconfiguration?
A: In most cases, yes — provided the power rating and DC bus voltage match. Parameter sets can be exported from the existing drive via STARTER or TIA Portal and imported into the replacement unit. Minor parameter adjustments may be required for motor data adaptation.

Q4: How does the warranty claim process work?
A: All units carry a 12-month warranty from the date of invoice. To initiate a claim, contact our technical support team with the unit serial number, fault description, and diagnostic log export (if available). We process RMA requests within 2 business days and offer advance replacement for critical production environments upon request.

Q5: Is the module suitable for high-cycle duty applications such as press lines or injection molding?
A: Yes. The 6SL3130-1TE31-0AA0 is rated for high-cycle duty with appropriate thermal management. Ensure adequate cabinet ventilation or activate the liquid-cooling option for ambient temperatures above 40°C or duty cycles exceeding 80%. Monitor thermal load via parameter r0037 in real time.

Q6: What documentation is included with the shipment?
A: Each unit ships with the Siemens product datasheet, CE declaration of conformity, and our quality inspection certificate. Full SINAMICS S120 system manuals are available for download from the Siemens Industry Online Support portal using the module’s MLFB number.
