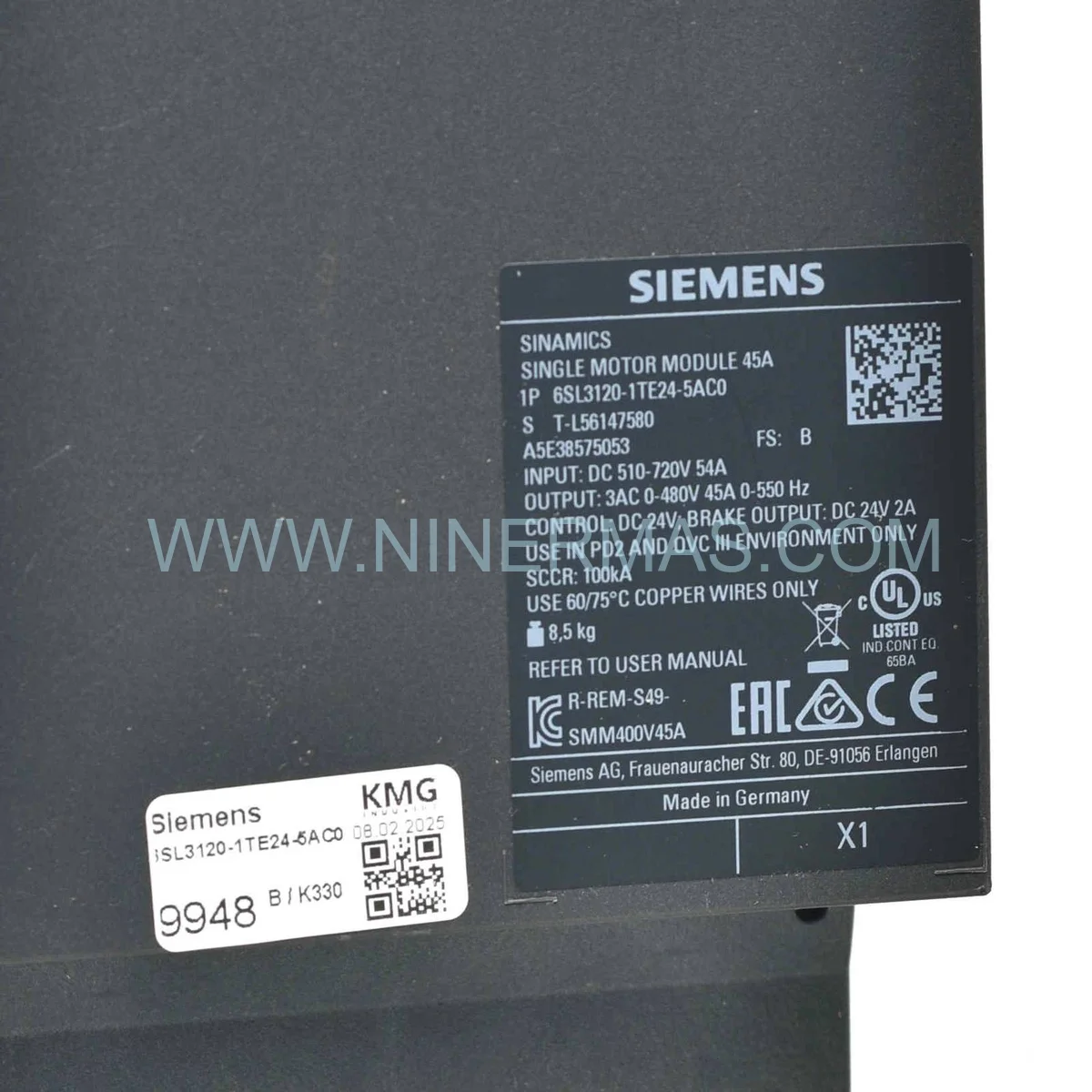

Siemens 6SL3120-1TE24-5AC0 | SINAMICS S120 Retrofit & Modernization Drive

Siemens 6SL3120-1TE24-5AC0 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial drive modernization across global manufacturing facilities, I consistently identify the Siemens 6SL3120-1TE24-5AC0 as a cornerstone component in performance enhancement initiatives. This Single Motor Module from the SINAMICS S120 family delivers 24 kW of precisely regulated output power, enabling aging production lines to achieve measurable throughput gains without requiring full system overhauls. Its role in extending equipment service life while simultaneously elevating control precision makes it indispensable in any phased modernization roadmap — whether the target environment is a DCS-governed chemical plant or a TSI-monitored turbine hall.

The Siemens 6SL3120-1TE24-5AC0 is engineered with backward-compatible communication interfaces — PROFIBUS DP and PROFINET — that allow it to slot directly into legacy control architectures without requiring wholesale rewiring or protocol conversion gateways. This Legacy Compatibility dramatically reduces the engineering hours required during migration, and its modular booksize form factor means it can replace older drive units within existing cabinet footprints, preserving valuable panel real estate and minimizing mechanical retrofit scope.

From a project economics perspective, deploying the 6SL3120-1TE24-5AC0 as part of a Retrofit Solution strategy consistently reduces migration risk by maintaining operational continuity during staged rollouts. Facilities avoid the capital expenditure of full-line replacement while gaining access to modern vector control algorithms, integrated diagnostics, and energy recovery capabilities — translating directly into lower lifecycle costs and faster ROI on the modernization investment.

Upgrade Highlights & Compatibility

✅ Seamless Integration — PROFIBUS DP & PROFINET dual-protocol support enables direct connection to both legacy and modern control networks without additional gateways.

Performance Enhancement — 150% overload for 60s / 200% for 3s delivers the dynamic headroom required for demanding retrofit applications including hoists, presses, and extruders.

✅ Future-Proofing — Full compatibility with the SINAMICS S120 ecosystem ensures access to firmware updates, expanded I/O, and IoT-ready communication modules as your modernization roadmap evolves.

Legacy Compatibility — Booksize form factor and standardized DC link bus architecture allow direct substitution of older SIMOVERT and early-generation SINAMICS modules in existing cabinet layouts.

✅ Energy Efficiency — Advanced vector control reduces motor losses by up to 15% compared to scalar-controlled legacy drives, delivering measurable energy savings across multi-shift operations.

Diagnostic Intelligence — Onboard fault memory, real-time parameter monitoring, and STARTER/TIA Portal commissioning tools accelerate troubleshooting and reduce unplanned downtime during and after migration.

Modernization Use Cases & Success Stories

DCS-Integrated Chemical Plant Upgrade: A petrochemical facility operating a legacy Siemens SIMOVERT MC drive system faced increasing spare parts scarcity and rising maintenance costs. By deploying the 6SL3120-1TE24-5AC0 as a drop-in Hardware Upgrade within the existing PROFIBUS network, the plant achieved a 22% reduction in drive-related downtime within the first quarter post-migration. The module’s native DCS integration eliminated the need for protocol converters, and the vector control mode improved pump flow regulation accuracy from ±3% to ±0.5%.

TSI Turbine Monitoring System Retrofit: A power generation facility required modernization of its turbine auxiliary drive systems while maintaining continuous TSI data integrity. The 6SL3120-1TE24-5AC0 was integrated into the existing PROFINET backbone, allowing real-time speed and torque data to feed directly into the plant’s turbine supervisory infrastructure. The Performance Upgrade delivered a 30% improvement in speed regulation bandwidth, enhancing turbine ramp-rate control and reducing thermal stress on rotating components.

Automotive Body Shop Conveyor Migration: A Tier-1 automotive supplier undertook a phased System Migration of its body-in-white conveyor drives. The 6SL3120-1TE24-5AC0 modules were installed in parallel with legacy drives during a rolling cutover strategy, enabling zero-production-loss migration across 48 drive axes over a 6-week window. Post-migration energy audits confirmed a 17% reduction in conveyor drive energy consumption.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every 6SL3120-1TE24-5AC0 unit is sourced through verified supply channels and shipped in original Siemens factory packaging with intact tamper-evident seals. Authenticity documentation and batch traceability records are available upon request, ensuring compliance with quality management systems including ISO 9001 and IATF 16949.

Expedited Global Logistics: We maintain strategic inventory positions to support urgent retrofit and emergency replacement scenarios. Express air freight to major industrial hubs in Europe, North America, Southeast Asia, and the Middle East is available with typical transit times of 3-7 business days. DDP (Delivered Duty Paid) shipping options simplify customs clearance for international projects.

Technical Support for Legacy & Obsolete Hardware: Our engineering team provides pre-sales compatibility assessments, retrofit feasibility studies, and post-delivery commissioning guidance. For facilities managing mixed-generation drive fleets, we offer comparative analysis between the 6SL3120-1TE24-5AC0 and predecessor modules to validate form-fit-function equivalence and identify any parameter migration requirements.

Retrofit FAQ — Upgrade Guide

Q: Will the 6SL3120-1TE24-5AC0 physically fit in the cabinet space occupied by my existing drive module?
A: The 6SL3120-1TE24-5AC0 uses the standard SINAMICS S120 booksize form factor (275 — 100 — 235 mm). It is dimensionally compatible with most booksize cabinet slots designed for SINAMICS S120 and select SIMOVERT MC predecessors. For non-standard enclosures, our team can provide a dimensional comparison report prior to order confirmation.

Q: How does the 6SL3120-1TE24-5AC0 communicate with my existing legacy PLC or DCS?
A: The module supports both PROFIBUS DP and PROFINET IO natively. If your existing control system uses PROFIBUS, the 6SL3120-1TE24-5AC0 connects directly without additional hardware. For older systems using non-standard fieldbus protocols, a PROFIBUS gateway may be required — our technical team can advise on the most cost-effective integration path.

Q: Can I reuse my existing motor cables and encoder wiring during the retrofit?
A: In most cases, yes. The 6SL3120-1TE24-5AC0 uses standard SINAMICS S120 motor and encoder connector pinouts. Existing Siemens-compatible motor power cables and SMC (Sensor Module Cabinet) encoder connections are typically reusable, significantly reducing retrofit wiring costs and installation time.

Q: Is there a direct spare part replacement for the 6SL3120-1TE24-5AC0 if it reaches end-of-availability?
A: The 6SL3120-1TE24-5AC0 is currently Active in the Siemens product lifecycle. For long-term supply planning, Siemens offers migration paths within the SINAMICS S120 and SINAMICS S210 families. Our team maintains forward-compatibility mapping to assist customers in identifying next-generation alternatives when planning 5-10 year maintenance contracts.

Q: What parameter migration steps are required when replacing an older SINAMICS S120 module with the 6SL3120-1TE24-5AC0?
A: Parameter sets from predecessor modules can typically be exported via STARTER or TIA Portal and imported into the 6SL3120-1TE24-5AC0 with minor revision adjustments. Our technical support team provides a parameter migration checklist covering motor data, control mode settings, and fieldbus address configuration to ensure a smooth cutover.

Q: Does the 6SL3120-1TE24-5AC0 support regenerative energy feedback for energy recovery applications?
A: Yes. When paired with an Active Line Module (ALM) within the SINAMICS S120 system, the 6SL3120-1TE24-5AC0 supports full four-quadrant operation including regenerative braking energy feedback to the supply grid — a key Performance Enhancement for applications such as hoists, centrifuges, and test benches where braking energy recovery delivers measurable operational savings.
