Siemens 6SL3120-1TE13-0AA4 Safety-Reliable Motor Module

Siemens 6SL3120-1TE13-0AA4 Safety-Reliable Motor Module for Critical Control Sites

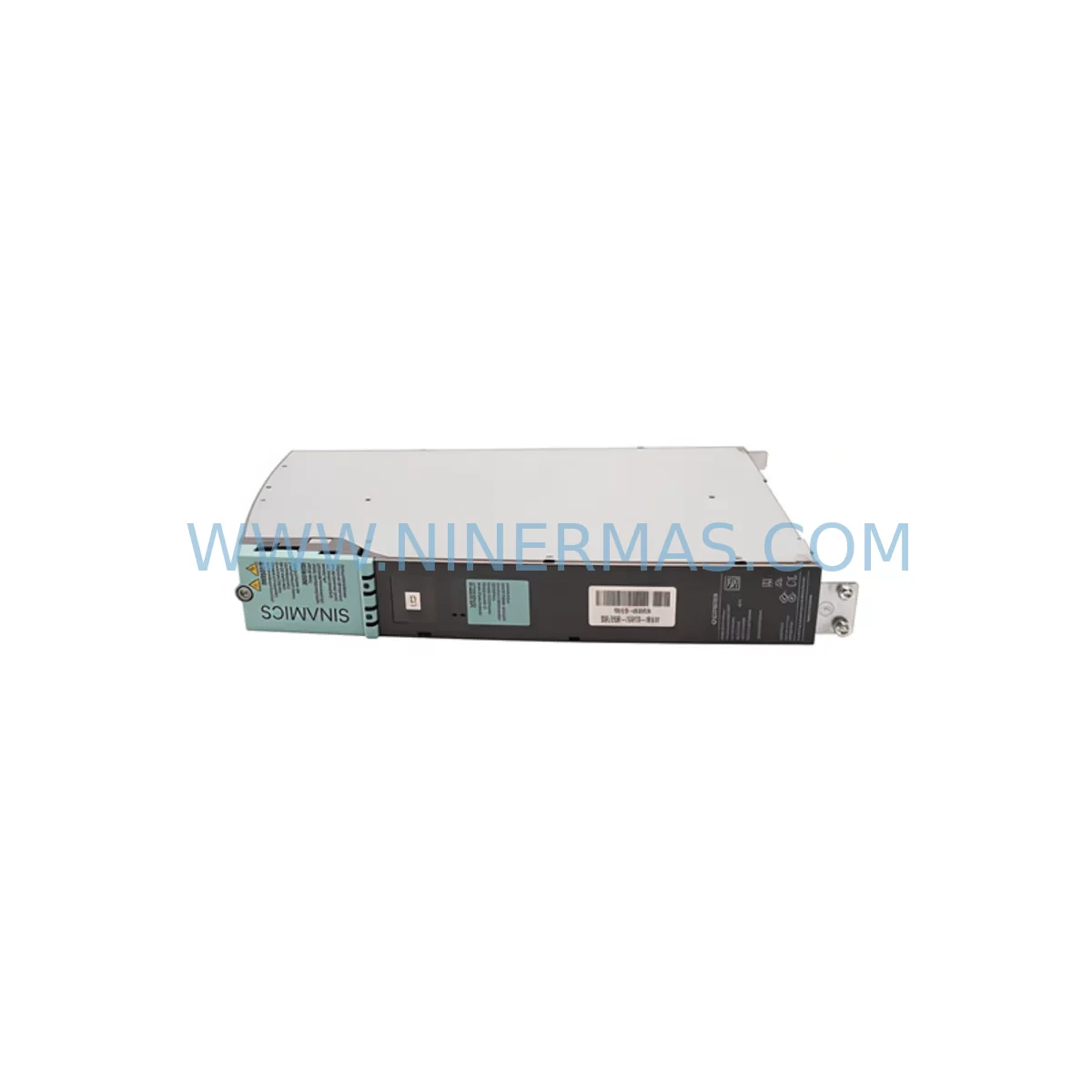

The Siemens 6SL3120-1TE13-0AA4 is a Single Motor Module within the SINAMICS S120 booksize drive system, engineered for safety-critical and continuous industrial production environments. Rated at 3 A output current, this compact booksize module delivers precise, reliable motor control in demanding applications where control interruption, signal drift, or unplanned downtime carry serious operational and safety consequences. Whether deployed in petrochemical processing lines, power generation auxiliaries, mining conveyors, water treatment facilities, or metallurgical rolling mills, the 6SL3120-1TE13-0AA4 is built to sustain safe, uninterrupted operation under the harshest field conditions.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a modern industrial control cabinet serving a critical production line, the 6SL3120-1TE13-0AA4 Single Motor Module operates as part of a tightly integrated SINAMICS S120 drive system. It connects directly to the Siemens 6SL3040-1MA01-0AA0 Control Unit CU320-2 DP via DRIVE-CLiQ, enabling real-time closed-loop vector control with minimal latency. The shared DC bus architecture means this module draws regulated DC power from a common Siemens 6SL3130-6TE21-6AA3 Active Line Module, which actively suppresses voltage fluctuations and power surges that would otherwise cause nuisance trips or motor damage in facilities with unstable grid supplies.

To protect the entire drive train from upstream power anomalies, the cabinet typically incorporates a Siemens 6EP1333-3BA00 SITOP PSU100S 24 V DC power supply for control-circuit power, ensuring that even during mains disturbances the control logic, safety relays, and communication nodes remain energized. Surge protection is further reinforced by Siemens 5SD7 series surge protective devices installed at the cabinet entry point, guarding against lightning-induced transients and switching surges that are common in outdoor substations and heavy industrial plants.

The 6SL3120-1TE13-0AA4 supports Siemens Safety Integrated functions — including Safe Torque Off (STO) and Safe Stop 1 (SS1) — which interface directly with the plant’s safety PLC, such as a Siemens S7-1500F Fail-Safe CPU, via PROFINET or PROFIBUS. This eliminates the need for external safety contactors in many applications, reducing wiring complexity and potential failure points in the safety circuit. For applications requiring additional interlocking, a Siemens 3SK1 Safety Relay can be integrated into the same cabinet to manage emergency stop loops and door interlock monitoring.

In high electromagnetic interference (EMI) environments — such as those near large variable frequency drives, arc furnaces, or high-frequency welding equipment — the module’s compliance with EN 61800-3 Category C2 ensures signal integrity on the DRIVE-CLiQ communication link. Pairing the module with a Siemens 6SL3000-0BE23-6AA0 line filter further attenuates conducted emissions, protecting adjacent instrumentation and preventing false trips in sensitive measurement loops. For dusty or humid environments where the cabinet must be sealed, proper thermal management using Siemens SINAMICS S120 booksize cold-plate variants or external heat exchangers ensures the module operates within its rated thermal envelope without derating.

Critical Industrial Safety Applications

The Siemens 6SL3120-1TE13-0AA4 is deployed across a wide range of safety-critical and continuous-process industries where motor control reliability is non-negotiable:

Petrochemical & Refining: In pump and compressor drive systems within hazardous zones, the module’s STO function enables safe de-energization without mechanical braking, reducing ignition risk. Its robust EMC performance prevents spurious trips caused by high-power switching in adjacent motor control centers.

Electric Power Generation & Transmission: Used in auxiliary drive systems for cooling fans, feed pumps, and valve actuators in thermal and hydroelectric power plants. The module’s stable DC bus operation ensures continuous auxiliary service even during grid disturbances, supporting plant availability and grid stability obligations.

Mining & Mineral Processing: Deployed on conveyor belt drives, crusher auxiliaries, and slurry pump systems where dust ingress, vibration, and wide ambient temperature swings are constant challenges. The module’s vibration-rated design and wide storage temperature range support reliable operation and long-term spare parts storage in remote mine sites.

Water & Wastewater Treatment: Controls submersible pump drives and aeration blower systems in municipal and industrial water treatment plants. Reliable motor control prevents overflow events and process upsets that carry regulatory and environmental consequences.

Metallurgy & Steel Rolling: Integrated into rolling mill auxiliary drives and cooling bed conveyors where precise speed control and rapid response to safety interlocks are essential. The module’s fast STO response time supports emergency stop requirements without mechanical shock to the mill structure.

Port & Marine Logistics: Used in crane hoist and travel drive systems in port terminals and shipboard machinery, where reliable motor control under variable load and marine humidity conditions is critical for cargo safety and vessel operations.

Safety and Quality FAQ

Q1: What warranty does the 6SL3120-1TE13-0AA4 carry?
Every unit supplied by NINERMAS COMPANY LIMITED carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Our warranty support includes technical diagnosis assistance and replacement coordination to minimize your downtime.

Q2: What pre-shipment testing is performed on each unit?
All units undergo outgoing quality inspection prior to dispatch, including visual inspection, packaging integrity verification, and functional parameter checks where applicable. Units sourced from authorized distribution channels are accompanied by original manufacturer documentation confirming production test compliance.

Q3: Is the 6SL3120-1TE13-0AA4 compatible with existing SINAMICS S120 booksize installations?
Yes. The 6SL3120-1TE13-0AA4 is fully compatible with the SINAMICS S120 booksize system architecture, including shared DC bus configurations, DRIVE-CLiQ topology, and Safety Integrated functions. It can replace a failed module in an existing installation without requiring changes to the Control Unit firmware, provided the firmware version supports the module generation. Our technical team can advise on compatibility for your specific system configuration.
