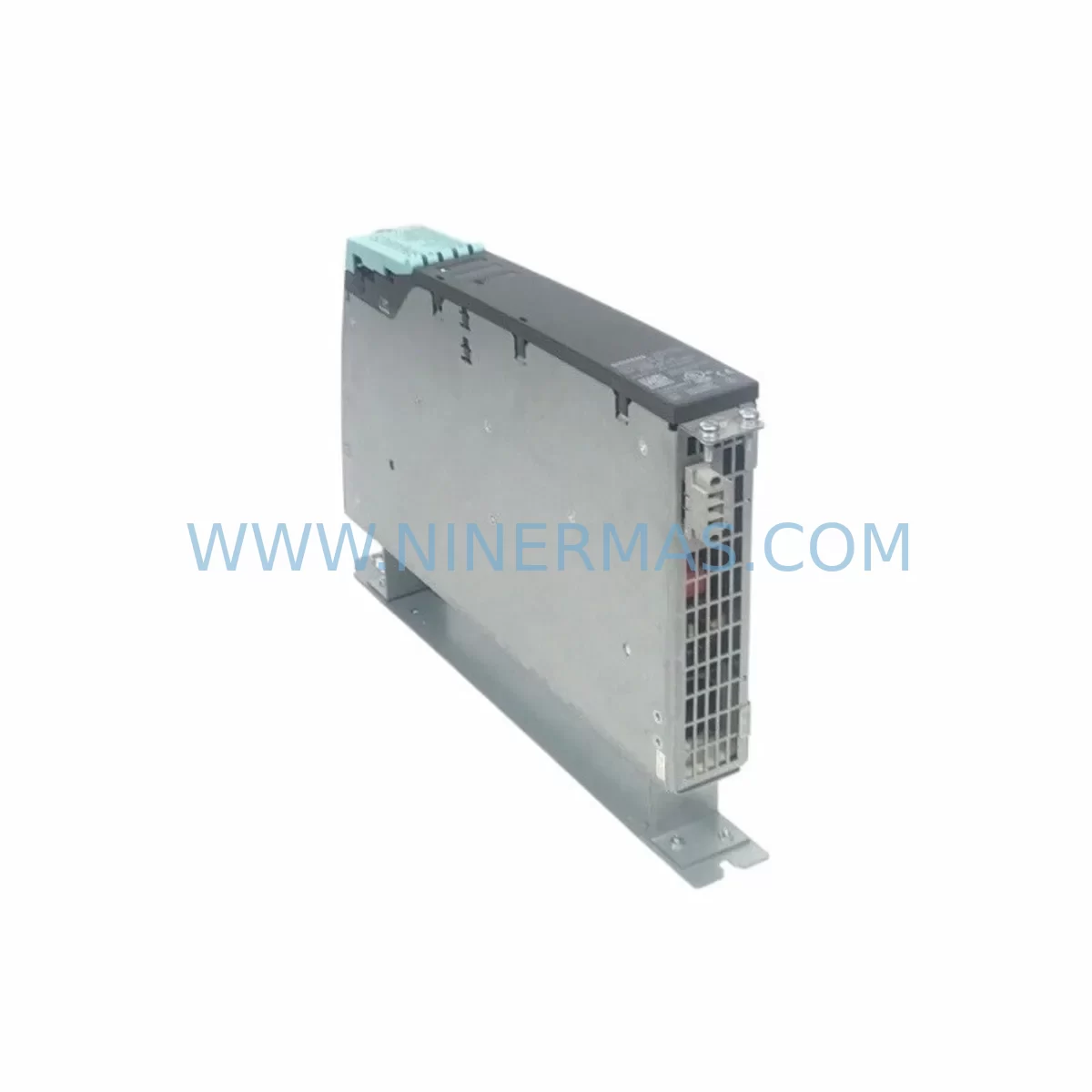

The Siemens 6SL3100-1DE22-0AA1 is an Active Interface Module (AIM) designed for the SINAMICS S120 drive system. It serves as a critical line-side component that enables active front-end operation, providing clean power conditioning, harmonic mitigation, and bidirectional energy flow between the supply network and the drive system. In industrial maintenance environments — from daily inspections and fault isolation to emergency replacements and annual overhauls — this module plays a central role in ensuring continuous, safe, and efficient drive operation.

For maintenance engineers managing aging drive cabinets or planning spare parts inventory, the 6SL3100-1DE22-0AA1 represents a high-priority stocking item. Its failure can result in immediate production stoppage, making rapid availability and verified compatibility essential for any serious maintenance strategy.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 6SL3100-1DE22-0AA1, a thorough maintenance inspection of the surrounding drive cabinet is strongly recommended. The Active Interface Module does not operate in isolation — it is tightly integrated with upstream power supply components and downstream drive modules through the DRIVE-CLiQ communication architecture.

Begin by inspecting the SINAMICS S120 Line Module (such as the 6SL3130 series Active Line Module) that works in conjunction with this AIM. A degraded Line Module can cause recurring faults even after the AIM is replaced. Next, verify the condition of the SINAMICS S120 Motor Module (e.g., 6SL3120 series Single Motor Module or Double Motor Module), as voltage irregularities from a failing AIM may have stressed the motor-side power electronics.

Check all DRIVE-CLiQ cables (6FX series) connecting the AIM to the Control Unit (CU320-2 or CU310-2) and downstream modules. Damaged or loose DRIVE-CLiQ connectors are a common source of communication faults that can be misdiagnosed as module failure. The SINAMICS S120 Control Unit firmware version should also be verified for compatibility with the replacement AIM.

Inspect the 24 VDC power supply feeding the control electronics — Siemens SITOP PSU series (e.g., SITOP PSU100S or SITOP modular) are commonly used in S120 cabinets. A fluctuating 24 V rail can cause intermittent faults across multiple modules simultaneously. Alongside this, check the terminal blocks and wiring harnesses on the line-side input, particularly the PE (protective earth) connections and EMC shielding clamps.

For cabinets operating in high-dust or high-humidity environments, inspect and if necessary replace the cabinet fan units and filter mats (e.g., Siemens 6SL3362 series fan/capacitor units). Overheating due to blocked airflow is a leading cause of premature AIM failure. Additionally, review the status of any installed line reactors or dV/dt filters on the supply side, as these protect the AIM from voltage spikes and harmonic disturbances from the grid.

If the system includes a Braking Module (6SL3100-1BE series) or external braking resistor, verify its condition as well — a faulty braking circuit can generate voltage transients that damage the AIM. Finally, confirm that the PROFIBUS DP or PROFINET communication module (if installed) is functioning correctly, as loss of fieldbus communication during a drive fault can complicate fault diagnosis and delay recovery.

Site Replacement Workflow

Replacing the 6SL3100-1DE22-0AA1 on-site follows a structured procedure to minimize downtime and ensure system compatibility. Before beginning, confirm that the replacement module carries the same order number and hardware revision as the original, or verify via the Siemens compatibility matrix that the revision is interchangeable.

Step 1 — Safe Isolation: De-energize the drive cabinet following LOTO (Lockout/Tagout) procedures. Wait for the DC bus discharge indicator to confirm safe voltage levels before opening the cabinet.

Step 2 — Documentation: Photograph or record all DRIVE-CLiQ cable connections, power wiring, and PE bonding points before disconnection. This is critical for multi-axis S120 systems where cable routing can be complex.

Step 3 — Module Removal: Disconnect DRIVE-CLiQ cables, AC line input terminals, and any auxiliary connections. Release the module from its booksize mounting rail and remove carefully.

Step 4 — Replacement Installation: Mount the new 6SL3100-1DE22-0AA1, reconnect all cables per documentation, and verify torque specifications on power terminals to prevent loose connections under vibration.

Step 5 — Commissioning Verification: Power up the system and use STARTER or TIA Portal to verify that the Control Unit recognizes the new AIM via DRIVE-CLiQ. Check for any fault codes (F-codes or A-codes) and clear them after confirming normal operation. Run a no-load test before resuming production.

This structured approach reduces mean time to repair (MTTR) and prevents secondary damage caused by rushed or incomplete replacement procedures. Maintaining a pre-configured spare with the correct firmware snapshot further accelerates recovery in critical production environments.

Spare Parts Support FAQ

Q1: Does the 6SL3100-1DE22-0AA1 come with a warranty?
Yes. All units supplied by NINERMAS come with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional testing before shipment to ensure it meets Siemens specifications.

Q2: How do I verify compatibility with my existing SINAMICS S120 system?
Compatibility is determined by the hardware revision of your existing AIM and the firmware version of your Control Unit (CU320-2 / CU310-2). Provide your existing module’s order number and hardware revision (found on the nameplate) when ordering, and our technical team will confirm interchangeability before shipment.

Q3: Can NINERMAS support long-term supply for this spare part?
Yes. NINERMAS maintains stable inventory of SINAMICS S120 components including the 6SL3100-1DE22-0AA1 and related modules. We support long-term procurement contracts for maintenance teams requiring guaranteed availability across multi-year maintenance cycles.

Q4: What should I check if the replacement module triggers a fault after installation?
First verify all DRIVE-CLiQ connections are fully seated and undamaged. Check that the 24 VDC supply is within tolerance. Use STARTER or TIA Portal to read active fault codes — F07801 or F07802 typically indicate DRIVE-CLiQ topology mismatches. Confirm the Control Unit firmware is compatible with the replacement AIM hardware revision. If faults persist, contact our technical support team with the fault code list for remote diagnosis assistance.
