Siemens 6SL3100-0BE31-2AB0 Safety-Reliable Active Interface Module

Siemens 6SL3100-0BE31-2AB0 Safety-Reliable Active Interface Module for Critical Control Sites

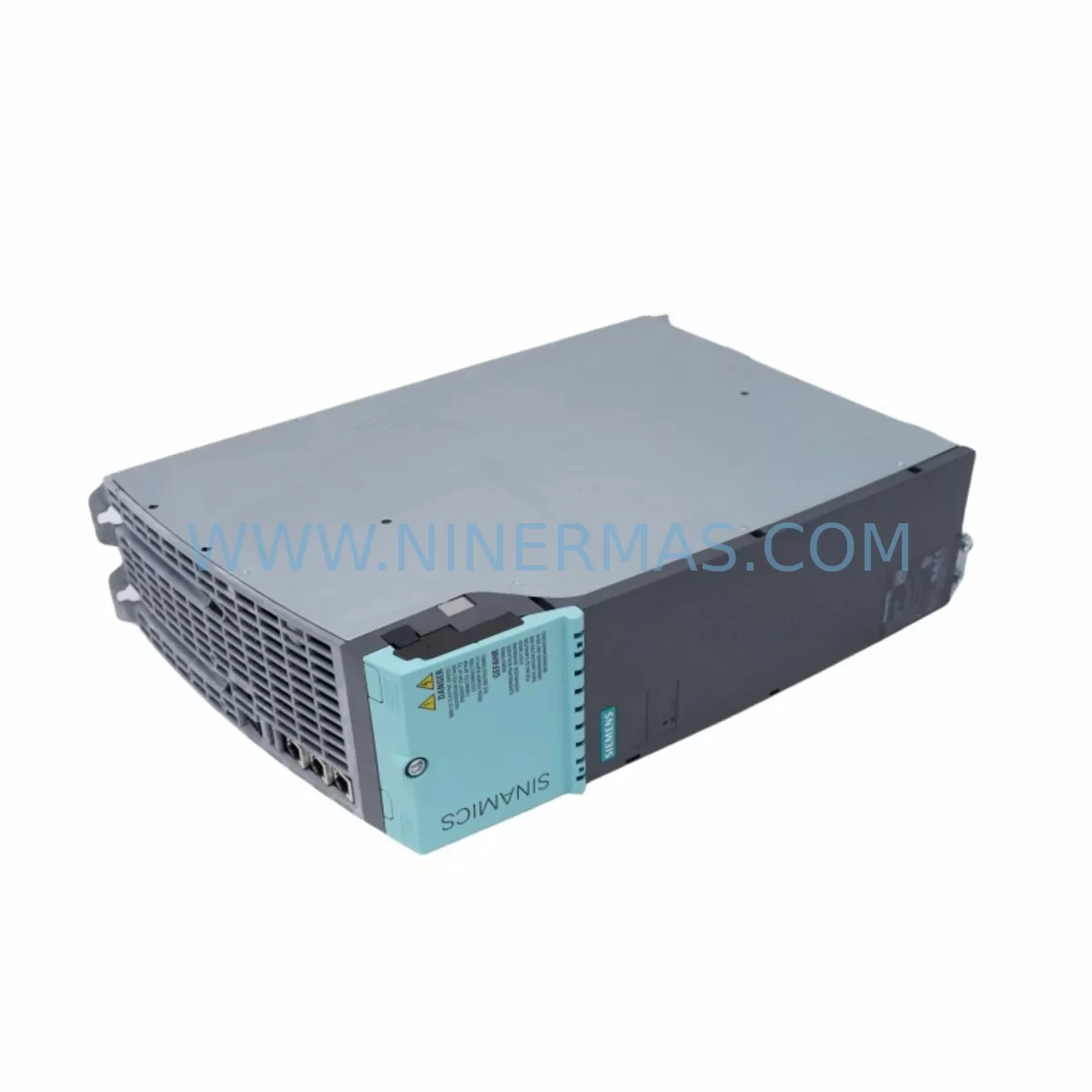

The Siemens 6SL3100-0BE31-2AB0 is a Booksize-format Active Interface Module (AIM) designed for the SINAMICS S120 drive system. It serves as the critical front-end harmonic mitigation and power conditioning component between the supply network and the Active Line Module (ALM), ensuring that drive systems operating in continuous production environments, critical interlock circuits, and heavy-duty control cabinets maintain stable, interference-free power quality. For industrial sites where unplanned downtime carries severe operational and safety consequences — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical lines, port cranes, and marine propulsion systems — the 6SL3100-0BE31-2AB0 delivers the network-side protection that keeps drive trains running without compromise.

Sourced directly from verified supply channels and pre-shipment tested before dispatch, every unit supplied by NINERMAS carries a 12-month warranty, giving procurement and maintenance engineers confidence in both quality and long-term availability.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a fully integrated SINAMICS S120 drive cabinet, the 6SL3100-0BE31-2AB0 Active Interface Module is the first line of defense against network-side disturbances. It works in tandem with the SINAMICS S120 Active Line Module (6SL3130-series) to deliver a regenerative, low-harmonic power front-end — a combination that is essential in facilities where multiple large drives share a common bus and mutual interference is a persistent risk.

Upstream of the AIM, a properly rated line reactor or input choke (such as those in the Siemens 4EP series) further attenuates voltage spikes and protects the module from grid-borne transients common in heavy industrial environments. On the DC bus side, the SINAMICS S120 Double Motor Module or Single Motor Module (6SL3120-series) distributes conditioned power to individual servo or vector axes, ensuring that signal drift and torque ripple are minimized even under rapid load changes.

For cabinet-level safety interlock integrity, the SINAMICS S120 Control Unit CU320-2 DP or CU320-2 PN provides centralized drive coordination via PROFIBUS or PROFINET, enabling safe torque off (STO) and safe stop (SS1/SS2) functions across all connected axes without requiring external safety relays in many configurations. The Drive-CLiQ hub module (DMC20 or DME20) extends the Drive-CLiQ topology within the cabinet, reducing wiring complexity and the associated risk of loose connections that can cause intermittent faults in high-vibration environments.

Power supply stability for the control section is maintained by the SITOP PSU100S or SITOP PSU8600 series 24 V DC power supplies, which provide buffered, regulated voltage to PLCs, safety relays, and I/O modules even during brief mains interruptions — a critical feature in continuous process plants where a control power dropout can trigger a full emergency shutdown sequence. Surge protection devices from the Siemens 5SD7 series installed at the cabinet entry point provide an additional layer of protection against lightning-induced transients and switching surges on long cable runs.

For applications requiring functional safety certification, the SINAMICS S120 Safety Integrated option — activated via the CU320-2 and compatible Motor Modules — delivers SIL 2 / PLd-rated safe motion functions without external safety hardware, reducing cabinet complexity and potential failure points. Complementing this, SIMOTICS servo motors with integrated encoder systems provide closed-loop position and speed feedback that the S120 system uses to detect and respond to mechanical anomalies before they escalate into safety events.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous cracking, distillation, and compressor drive applications, the 6SL3100-0BE31-2AB0 ensures that the drive front-end remains stable despite the high harmonic content generated by multiple large variable-speed drives operating simultaneously on a shared MV/LV transformer. Active harmonic mitigation prevents transformer overheating and protects sensitive instrumentation from conducted interference.

Power Generation and Substation Auxiliary Drives: Boiler feed pump drives, induced draft fan drives, and cooling water pump systems in thermal power plants demand uninterrupted operation. The AIM’s active filtering capability maintains power quality within the limits required by grid codes, while its robust design tolerates the elevated ambient temperatures and vibration levels typical of turbine hall environments.

Mining Hoist and Conveyor Systems: Underground and surface mining operations subject drive cabinets to extreme dust ingress, humidity cycling, and mechanical shock. Installed within a sealed IP54 or IP65 enclosure, the 6SL3100-0BE31-2AB0 provides the network-side conditioning that prevents nuisance trips on long-wall shearer drives, skip hoist systems, and overland conveyor drives where a single unplanned stop can halt an entire production shift.

Water and Wastewater Treatment: Pump and blower drives in water treatment facilities operate in chemically aggressive, high-humidity environments. The AIM’s EMC compliance ensures that drive harmonics do not interfere with the SCADA and telemetry systems that monitor process safety parameters, while its compatibility with the S120 safety functions supports the safe isolation of drives during maintenance without full system de-energization.

Metallurgical Rolling Mills and Furnace Drives: High-power rolling mill main drives and furnace roller table drives generate significant harmonic disturbances. The active interface module’s real-time harmonic compensation capability protects the supply network and adjacent equipment, reducing the risk of false trips on protection relays and ensuring that the mill’s production rhythm is not interrupted by power quality events.

Port Cranes and Ship-to-Shore Equipment: Container crane drives and ship-to-shore gantry systems operate under highly dynamic load cycles with frequent regenerative braking. The 6SL3100-0BE31-2AB0, paired with an Active Line Module, enables energy recovery to the grid during lowering operations, reducing operating costs while maintaining the power quality required by port authority grid connection agreements.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the 6SL3100-0BE31-2AB0?
Every unit is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes pre-shipment functional testing to verify operational integrity. If a unit fails within the warranty period under normal operating conditions, NINERMAS will arrange replacement or repair support. Contact sale@ninermas.com for warranty claims.

Q2: How is compatibility with my existing SINAMICS S120 system verified?
The 6SL3100-0BE31-2AB0 is designed specifically for the SINAMICS S120 Booksize platform and is compatible with the corresponding Active Line Module variants in the 6SL3130 series. Compatibility is determined by matching the AIM’s rated current to the ALM’s input current requirement. Our technical team can assist with system configuration verification — provide your existing ALM part number and cabinet layout when enquiring.

Q3: Is long-term spare parts availability guaranteed for this SKU?
NINERMAS maintains stock of critical SINAMICS S120 components including the 6SL3100-0BE31-2AB0 to support customers with long lifecycle industrial installations. We understand that drive system spare parts must remain available for 10–20 year plant lifespans. Enquire about stock levels and lead times at sale@ninermas.com or +0086 187 5021 5667.

Q4: What pre-shipment testing is performed on each unit?
Each 6SL3100-0BE31-2AB0 unit is inspected for physical integrity, connector condition, and firmware version prior to packaging. Functional power-on testing is performed where test bench infrastructure permits. Units that do not pass inspection are quarantined and not dispatched. Test records are available upon request for quality-critical procurement processes.
