SIEMENS 6SE7090-0XX85-1DA0 Safety-Reliable Drive Control Board

SIEMENS 6SE7090-0XX85-1DA0 Safety-Reliable Drive Control Board for Critical Control Sites

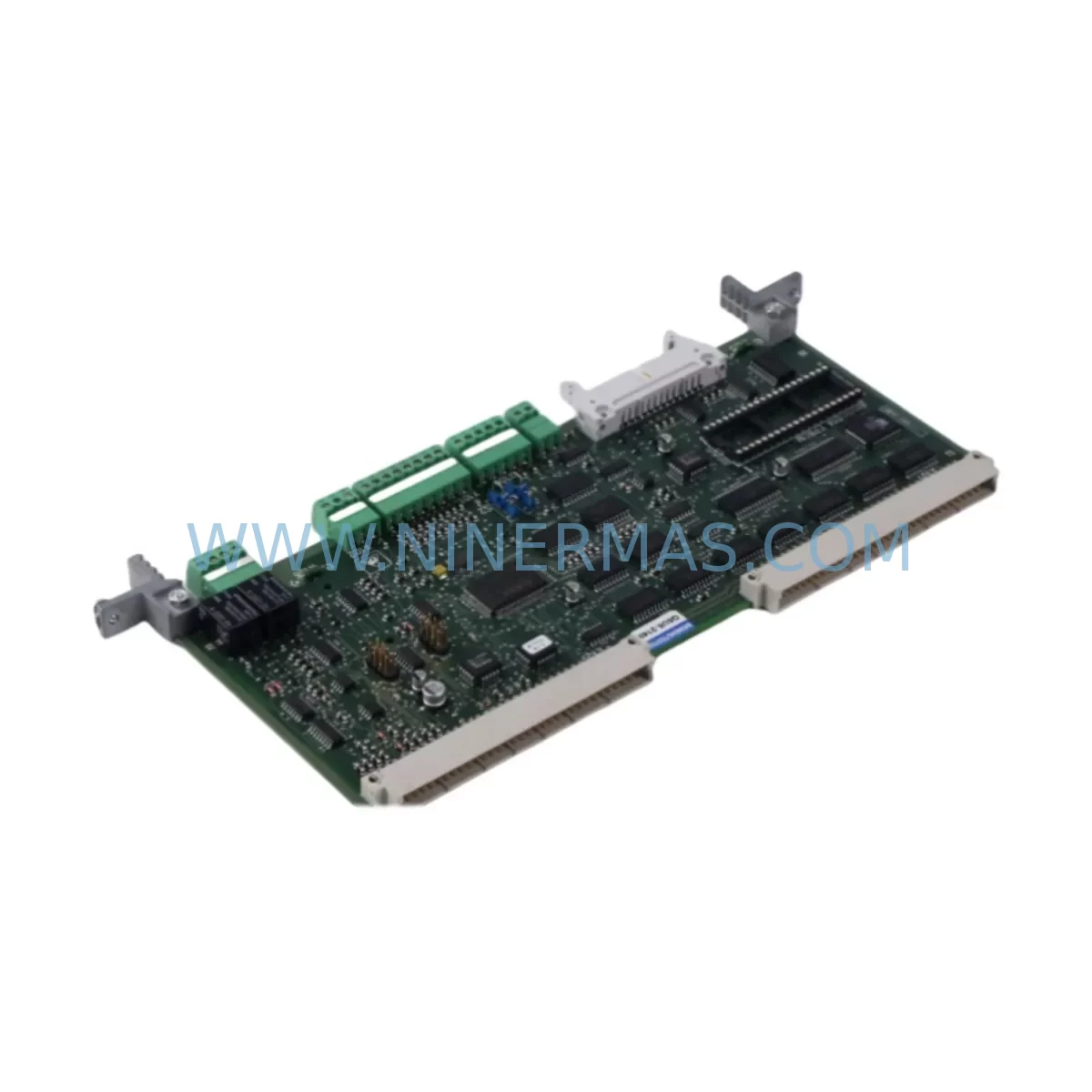

The SIEMENS 6SE7090-0XX85-1DA0 (C98043-A1680-L1) is a precision-engineered drive control board designed for the SIMOVERT MASTERDRIVES series — one of Siemens’ most trusted variable frequency drive platforms deployed across critical industrial environments worldwide. In continuous production facilities, power generation plants, petrochemical processing units, and heavy metallurgical operations, the integrity of the drive control board is not merely a performance concern — it is a safety imperative. This board governs the core logic of motor speed regulation, torque control, and protective shutdown sequences, making it a foundational component in any safety-critical control cabinet.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered industrial control cabinet, no single component operates in isolation. The 6SE7090-0XX85-1DA0 control board interfaces directly with the SIMOVERT MASTERDRIVES power section, and its reliable operation depends on — and contributes to — a layered system of protection components. When deploying or replacing this board in a critical control loop, the following associated components should be evaluated as part of a comprehensive risk reduction strategy:

The SIEMENS C98043-A1603 pulse encoder evaluation board works in tandem with the control board to provide closed-loop speed feedback, ensuring that any deviation from the setpoint is detected and corrected before it escalates into a process fault. In high-inertia applications such as mine hoists or rolling mill drives, this feedback integrity is non-negotiable.

On the power supply side, the SIEMENS 6SE7090-0XX84-0KA0 power supply board provides the regulated 24 VDC logic voltage that the control board requires. A degraded or unstable power supply board is one of the most common root causes of unexplained control board faults and nuisance trips. Replacing both simultaneously during a planned maintenance window eliminates this hidden risk factor.

For communication-intensive applications — particularly those integrated into PROFIBUS DP networks — the SIEMENS CBP2 communication board (6SE7090-0XX84-2FK0) handles the fieldbus interface layer. Signal integrity between the CBP2 and the main control board is critical in distributed control architectures where a communication timeout can trigger an emergency stop across multiple drive axes simultaneously.

Surge and transient protection is equally important. In facilities with frequent switching of large inductive loads — such as transformer tap changers, large contactors, or motor starters — the SIEMENS 6SE7090-0XX84-0AB0 snubber and filter board provides the first line of defense against voltage spikes that could corrupt the control board’s microprocessor or damage its gate driver circuits.

For applications in dusty, humid, or chemically aggressive environments — common in cement plants, water treatment facilities, and offshore platforms — the SIEMENS SIMOVERT MASTERDRIVES conformal coating option and associated IP54 door-mounted filter mats should be specified alongside the control board replacement to maintain the enclosure’s environmental protection rating.

In safety interlock circuits, the SIEMENS 3TK2845 safety relay is frequently used in conjunction with SIMOVERT MASTERDRIVES to implement STO (Safe Torque Off) and SS1 (Safe Stop 1) functions per IEC 62061 and ISO 13849-1. Ensuring that the new control board’s STO input terminals are correctly wired and tested after replacement is a mandatory step in any safety-validated restart procedure.

Finally, for facilities maintaining a strategic spare parts inventory, pairing the 6SE7090-0XX85-1DA0 with a SIEMENS 6SE7090-0XX84-0FF5 fan and airflow assembly ensures that thermal management — another leading cause of control board premature failure — is addressed holistically. Overtemperature events that go undetected due to a failed fan are a well-documented cause of drive control board damage in high-ambient-temperature installations.

Critical Industrial Safety Applications

The SIEMENS 6SE7090-0XX85-1DA0 / C98043-A1680-L1 control board has been deployed across some of the most demanding industrial environments globally:

Petrochemical & Refinery Plants: In continuous process environments where an unplanned drive trip can trigger a cascade of safety system activations, this control board’s deterministic fault response and robust EMC design make it a preferred choice for compressor drives, pump drives, and agitator control systems operating in ATEX-adjacent control rooms.

Power Generation & Utilities: Coal-fired, gas turbine, and hydroelectric facilities rely on SIMOVERT MASTERDRIVES for boiler feed pump drives, induced draft fan drives, and cooling water pump systems. The control board’s ability to maintain stable operation during grid disturbances — including voltage sags and frequency deviations — is critical to plant availability.

Mining & Mineral Processing: Conveyor belt drives, crusher drives, and hoist systems in underground and open-pit mining operations subject drive electronics to extreme vibration, dust ingress, and wide temperature swings. The 6SE7090-0XX85-1DA0’s industrial-grade construction and Siemens’ proven MASTERDRIVES architecture provide the reliability margins required for these safety-critical material handling applications.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities operate 24/7 with minimal tolerance for unplanned downtime. Variable speed pump drives controlled by SIMOVERT MASTERDRIVES reduce water hammer risk, extend pump seal life, and enable precise flow control — all dependent on the integrity of the control board.

Metallurgy & Steel Production: Rolling mill main drives, ladle turret drives, and continuous casting machine drives represent some of the highest-power, highest-consequence applications for SIMOVERT MASTERDRIVES technology. In these environments, a control board failure during a casting sequence can result in significant product loss and potential safety incidents.

Port & Marine Applications: Ship-to-shore crane drives, bulk material handling systems, and vessel propulsion control systems in port environments demand drive electronics that can withstand salt-laden air, high humidity, and the mechanical shock loads associated with heavy lifting operations.

Safety and Quality FAQ

Q1: What warranty is provided with the SIEMENS 6SE7090-0XX85-1DA0 / C98043-A1680-L1?
All units supplied by NINERMAS carry a 12-month warranty from the date of delivery. This covers manufacturing defects and functional failures under normal operating conditions. Our warranty process is straightforward: contact us at sale@ninermas.com with your order reference and fault description, and we will arrange replacement or repair without delay.

Q2: What outgoing quality checks are performed before shipment?
Every 6SE7090-0XX85-1DA0 unit undergoes a full functional test on a compatible SIMOVERT MASTERDRIVES test rig prior to dispatch. We verify power-up behavior, communication interface integrity, fault relay outputs, and key analog/digital I/O channels. A test report is available upon request for quality-critical procurement processes.

Q3: Is this board compatible with all SIMOVERT MASTERDRIVES variants?
The C98043-A1680-L1 board is specifically designed for the SIMOVERT MASTERDRIVES VC and MC series drives within the applicable power range. Compatibility depends on the drive’s firmware version and hardware revision. Our technical team can verify compatibility against your drive’s nameplate data — please provide the full drive type designation when enquiring.

Q4: Can NINERMAS guarantee long-term supply for this part?
Yes. NINERMAS maintains a dedicated inventory of SIMOVERT MASTERDRIVES spare parts, including the 6SE7090-0XX85-1DA0 / C98043-A1680-L1, to support customers with aging drive fleets where OEM supply has been discontinued or lead times are unacceptably long. We actively source and quality-screen surplus stock to ensure continuity of supply for critical spare parts programs. Contact us at sale@ninermas.com or +0086 187 5021 5667 to discuss your inventory requirements.
