Siemens 6SE7090-0XX84-0BC0 Safety-Reliable SCB1 Control Board

Siemens 6SE7090-0XX84-0BC0 Safety-Reliable SCB1 Control Board for Critical Industrial Sites

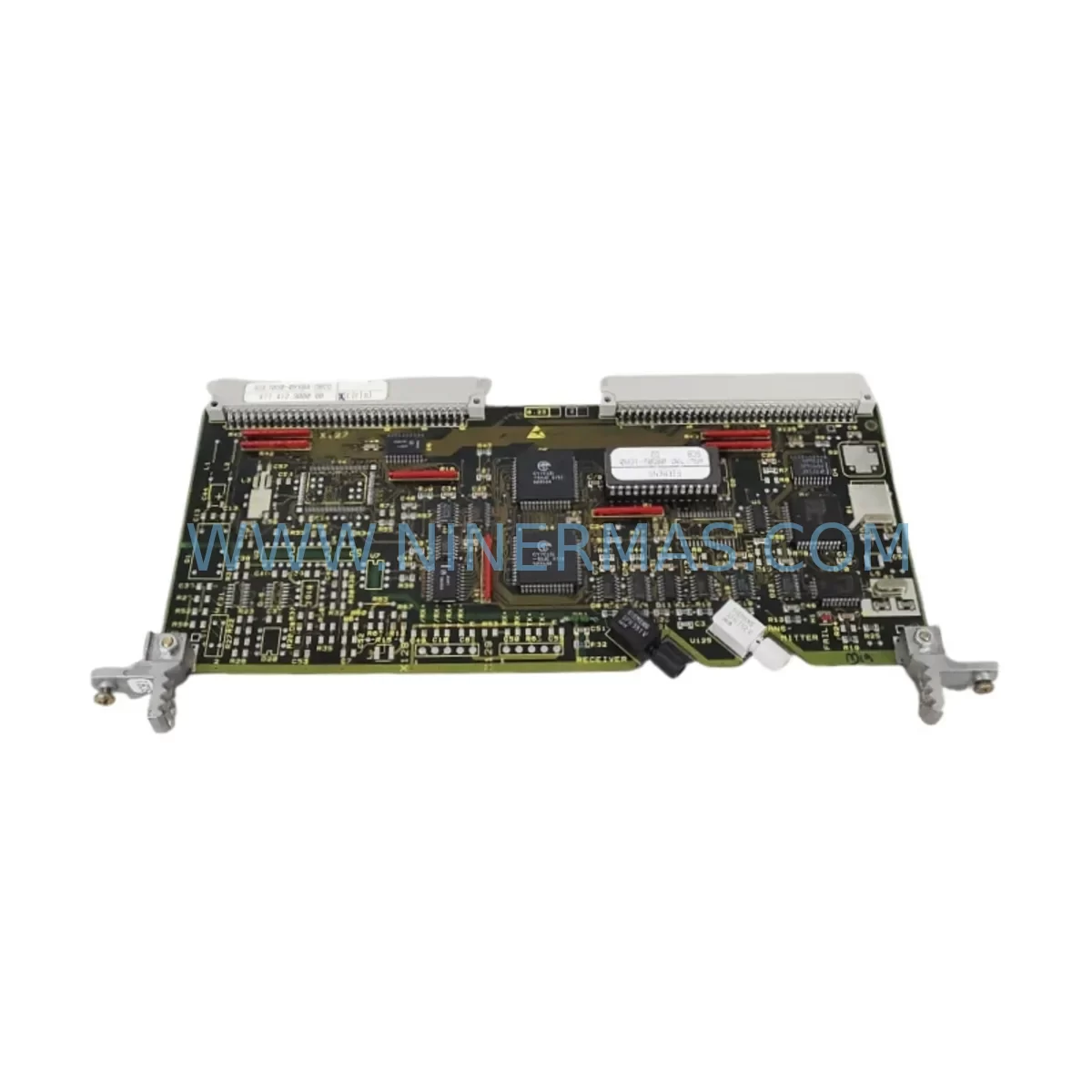

The Siemens 6SE7090-0XX84-0BC0 is a Serial Communication Board (SCB1) engineered for the SIMOVERT MASTERDRIVES series — one of Siemens’ most widely deployed variable-speed drive platforms in safety-critical industrial environments. This communication interface module enables reliable serial data exchange between the drive controller and higher-level automation systems, making it an essential component in continuous production lines, critical interlock circuits, and high-demand control cabinets where signal integrity and communication stability are non-negotiable.

Designed to operate in demanding industrial conditions including high electromagnetic interference (EMI), voltage fluctuations, vibration, and temperature extremes, the 6SE7090-0XX84-0BC0 SCB1 board delivers consistent performance across petrochemical plants, power generation facilities, metallurgical operations, and automated manufacturing environments. Every unit supplied by NINERMAS undergoes pre-shipment functional testing and is backed by a 12-month warranty, ensuring that replacement and retrofit projects proceed without unplanned downtime risk.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In safety-critical control cabinets, a single point of communication failure can cascade into process shutdowns, equipment damage, or hazardous conditions. The Siemens 6SE7090-0XX84-0BC0 SCB1 board addresses this risk by providing a dedicated, isolated serial communication channel that separates drive control data from the main power bus — reducing the probability of signal corruption caused by surge events or ground loops.

When integrated into a MASTERDRIVES control unit such as the 6SE7090-0XX84-0AB0 CU (Control Unit) board, the SCB1 enables bidirectional parameter exchange and real-time status monitoring without interrupting the drive’s primary control loop. This architecture is particularly valuable in applications where the drive must continue operating even during brief communication anomalies, as the SCB1 maintains the last valid command state until communication is restored.

For cabinets operating in high-EMI zones — such as those adjacent to large transformer banks or arc furnace control systems — the SCB1 board works in conjunction with the 6SE7090-0XX84-0FF5 CUVC (Vector Control Unit) to maintain stable closed-loop speed and torque control. The CUVC’s onboard diagnostics continuously monitor for communication timeouts, and the SCB1’s isolated interface prevents EMI-induced false triggers that could cause unintended drive trips or speed deviations.

Power supply stability is equally critical. The 6SE7090-0XX84-0KA0 Terminal Board (TB) provides the auxiliary voltage distribution within the MASTERDRIVES chassis, and its reliable operation directly supports the SCB1’s communication integrity. In environments with frequent voltage dips — common in heavy industrial facilities with large motor starts — the TB’s buffered outputs ensure the SCB1 remains powered through transient events, preventing communication resets that could disrupt process interlocks.

For extended drive systems requiring multi-axis coordination, the 6SE7090-0XX84-0FJ0 SLB (Serial Link Board) complements the SCB1 by enabling peer-to-peer communication between multiple MASTERDRIVES units on the same production line. Together, these boards form a robust communication backbone that supports synchronized motion control in applications such as rolling mills, winding machines, and multi-pump stations.

Additional protection is provided by the 6SE7090-0XX84-0AD1 ADB (Analog-Digital Board), which handles analog setpoint inputs and digital I/O signals. In safety interlock circuits, the ADB works alongside the SCB1 to ensure that both analog process signals and serial command data are processed consistently — eliminating the risk of conflicting control inputs that could cause erratic drive behavior.

For complete drive system redundancy, NINERMAS also maintains stock of related MASTERDRIVES power modules including the 6SE7031 series and 6SE7038 series inverter units, as well as 6SE7021 series compact drive units. Having these components available as reserved spare parts alongside the 6SE7090-0XX84-0BC0 SCB1 board significantly reduces mean time to repair (MTTR) when drive system faults occur in critical production environments.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process environments such as crude distillation units, compressor trains, and pump stations, the 6SE7090-0XX84-0BC0 SCB1 board enables reliable serial communication between MASTERDRIVES frequency converters and DCS (Distributed Control Systems). Its ability to maintain communication integrity under high-temperature and high-humidity conditions makes it suitable for outdoor drive enclosures and classified hazardous area control rooms.

Power Generation and Utilities: Coal-fired, gas turbine, and hydroelectric power plants rely on variable-speed drives for boiler feed pumps, cooling water systems, and auxiliary equipment. The SCB1 board’s serial interface supports remote parameter adjustment and fault logging — capabilities that are essential for predictive maintenance programs and regulatory compliance in power utility environments.

Metallurgical and Steel Production: Rolling mills, continuous casting lines, and electric arc furnace auxiliaries operate in extreme EMI environments generated by high-current bus systems. The SCB1 board’s isolated communication interface prevents EMI-induced data corruption, ensuring that speed references and torque limits are transmitted accurately to the drive — a critical requirement for maintaining product quality and preventing mechanical overloads.

Mining and Mineral Processing: Conveyor drives, crusher motors, and slurry pump systems in underground and surface mining operations require communication boards that can withstand dust, moisture, and vibration. The 6SE7090-0XX84-0BC0 SCB1 board, installed within the sealed MASTERDRIVES enclosure, provides the communication reliability needed for remote monitoring of drive status in locations where manual inspection is infrequent.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use variable-speed drives for pump control, aeration blowers, and filtration systems. The SCB1 board enables integration with SCADA systems via serial protocols, supporting automated flow control and energy optimization while maintaining the communication reliability required for 24/7 unattended operation.

Port and Marine Applications: Ship-to-shore cranes, bulk material handling systems, and vessel propulsion drives operate in corrosive salt-air environments with significant vibration loads. The SCB1 board’s robust construction and sealed mounting within the MASTERDRIVES chassis provides the communication stability needed for safe load handling and precise positioning in these demanding applications.

Safety and Quality FAQ

Q1: What warranty does the Siemens 6SE7090-0XX84-0BC0 SCB1 board carry?
All units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions consistent with the SIMOVERT MASTERDRIVES application environment. Warranty claims are supported by our technical team with replacement dispatch prioritized for critical production sites.

Q2: What pre-shipment testing is performed on the 6SE7090-0XX84-0BC0?
Each unit undergoes a full functional verification test prior to dispatch. Testing includes communication interface continuity checks, power supply rail verification, and where applicable, live communication protocol testing using MASTERDRIVES-compatible test equipment. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 6SE7090-0XX84-0BC0 compatible with all SIMOVERT MASTERDRIVES variants?
The SCB1 board is designed for use with SIMOVERT MASTERDRIVES MC (Motion Control), VC (Vector Control), and FC (Frequency Control) variants that feature the standard option slot on the CU (Control Unit) board. Compatibility should be verified against the specific drive firmware version and hardware revision. NINERMAS technical support can assist with compatibility confirmation prior to order placement.

Q4: Can NINERMAS guarantee long-term supply of the 6SE7090-0XX84-0BC0 for ongoing maintenance programs?
Yes. NINERMAS maintains reserved inventory of the 6SE7090-0XX84-0BC0 SCB1 board and related MASTERDRIVES components to support long-term spare parts programs. We offer supply commitment agreements for customers with ongoing maintenance requirements, ensuring predictable lead times and reducing the risk of production disruption caused by component obsolescence or market shortages.
