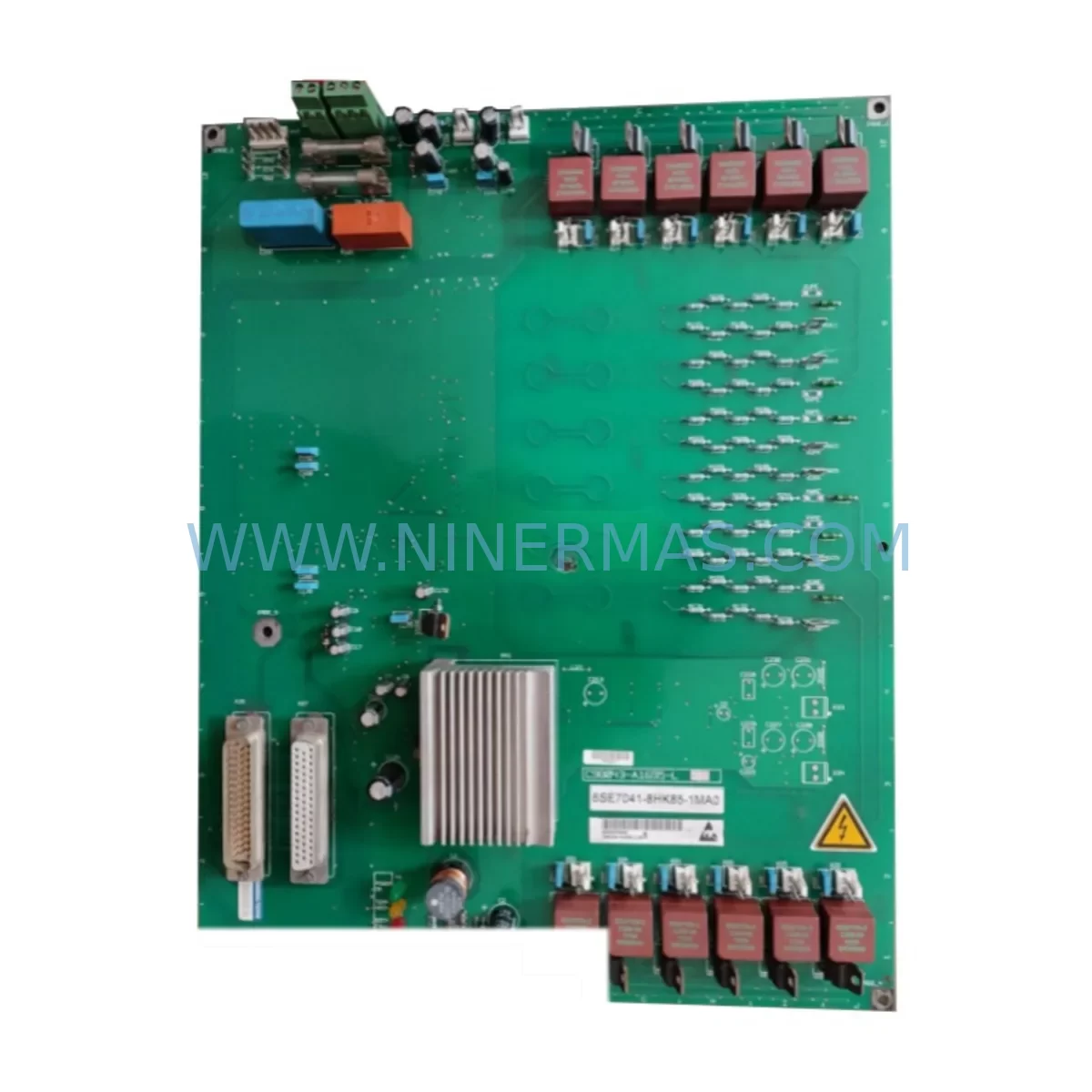

The Siemens 6SE7041-8HK85-1MA0 (board reference C98043-A1695-L43) is a high-power AC drive module from the SIMOVERT MASTERDRIVES MC/VC series, designed for demanding industrial motion control applications. As this platform approaches end-of-life and spare parts become increasingly scarce, NINERMAS maintains verified stock of this unit to support customers engaged in legacy system maintenance, production line retrofits, and controlled migration projects. Whether you are replacing a failed drive in an existing cabinet or planning a phased upgrade of your automation infrastructure, this unit provides a reliable, tested solution with a 12-month warranty.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a MASTERDRIVES unit in a live production environment requires careful pre-planning across multiple system layers. Before removing the existing drive, engineers should document the full parameter set using DriveMonitor or SIMOVIS software and back up the data to a PC or MMC memory card. This ensures that motor data, ramp times, torque limits, and closed-loop control settings can be restored to the replacement unit without re-commissioning from scratch.

On the hardware side, verify that the existing DC-link busbar and pre-charge circuit are rated for the current unit’s power class. In multi-drive cabinet installations, the 6SE7041-8HK85-1MA0 typically shares a common DC bus with other MASTERDRIVES inverter modules — confirm that the rectifier/regenerative unit (such as a 6SE70 series AFE or basic rectifier) can sustain the combined load after the swap. Check the CU (Control Unit) board — commonly the CU3 or CU-MC — for firmware compatibility with the replacement power section.

Terminal wiring must be verified against the original schematic. The X9 motor terminal block, PE bonding, and shielding connections should be inspected and re-torqued. If the installation uses an SBP (Speed/Position Board) or T400 technology board for coordinated axis control, confirm that the option board seating and ribbon cable connections are intact after the module exchange. For systems using CBP2 PROFIBUS communication, re-assign the PROFIBUS node address via DIP switch or parameter P918 and verify the GSD file version matches the master PLC configuration — typically a SIMATIC S7-300 or S7-400 CPU with a CP 342-5 or integrated DP interface.

Where the original system used analog speed references via the X102 I/O terminal strip, confirm signal scaling (0–10 V or 4–20 mA) and re-verify the reference channel assignment in the parameter set. If the retrofit involves migrating from an older 6SE70 compact unit to this chassis-type module, additional attention is needed for the cooling duct interface, fan supply voltage (230 VAC or 24 VDC depending on frame size), and the door interlock wiring. Installations that include a Brake Chopper (6SE7090-0XX84-0KA0) or external braking resistor must confirm the chopper threshold voltage is correctly parameterized to avoid DC-link overvoltage trips during deceleration.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any MASTERDRIVES replacement project. NINERMAS recommends a structured swap procedure: begin with a full parameter backup, followed by a controlled shutdown sequence that allows the DC bus to discharge safely (typically 5 minutes after mains isolation, confirmed by the DC-link voltage indicator). Label all control wiring before disconnection and photograph the terminal layout for reference during reinstallation.

Where production schedules cannot tolerate extended outages, consider staging the replacement during a planned maintenance window. If the system controls a critical process — such as a winder, extruder, or pump — coordinate with the process control team to ensure that the SIMATIC S7 PLC program logic includes a safe fallback state during drive absence. After physical installation of the 6SE7041-8HK85-1MA0, restore the parameter set, perform a no-load motor identification run (P115 = 2 or equivalent), and verify speed feedback from the encoder or tachometer before reconnecting the mechanical load. Final acceptance should include a ramp test at 10%, 50%, and 100% load to confirm torque response and thermal behavior before returning the line to full production.

NINERMAS ships all units with pre-delivery functional testing completed. Each drive is powered up, basic I/O verified, and communication interface checked before dispatch, reducing the risk of DOA units and shortening on-site commissioning time. All units are packed in anti-static, shock-protected packaging suitable for international freight.

Retrofit Support FAQ

Q1: Is the 6SE7041-8HK85-1MA0 a direct drop-in replacement for my existing MASTERDRIVES unit?
In most cases, yes — provided the frame size, power rating, and DC-link voltage class match your existing installation. The C98043-A1695-L43 board reference identifies the specific power section variant. Always cross-reference the nameplate data of the unit being replaced and confirm the CU board and option board compatibility before ordering.

Q2: Can I reuse my existing parameter set from the failed drive?
Yes, if the parameter set was previously backed up via DriveMonitor, SIMOVIS, or an MMC card. If no backup exists, NINERMAS can assist with parameter reconstruction based on motor nameplate data and application type. A motor identification run will be required after installation to optimize current controller settings.

Q3: What communication protocols does this unit support, and will it work with my existing PLC?
The 6SE7041-8HK85-1MA0 supports PROFIBUS-DP (via CBP2 option board) and USS protocol via the serial interface. It is compatible with SIMATIC S7-300, S7-400, and third-party PROFIBUS masters. Confirm the GSD file version and DP cycle time settings in your PLC configuration to ensure seamless integration.

Q4: What does the 12-month warranty cover, and what is your stock availability?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions, from the date of shipment. NINERMAS maintains in-house stock of this unit and can confirm availability and lead time upon inquiry. Units are dispatched with a test report and are eligible for return within 30 days if found to be incompatible with your application.
