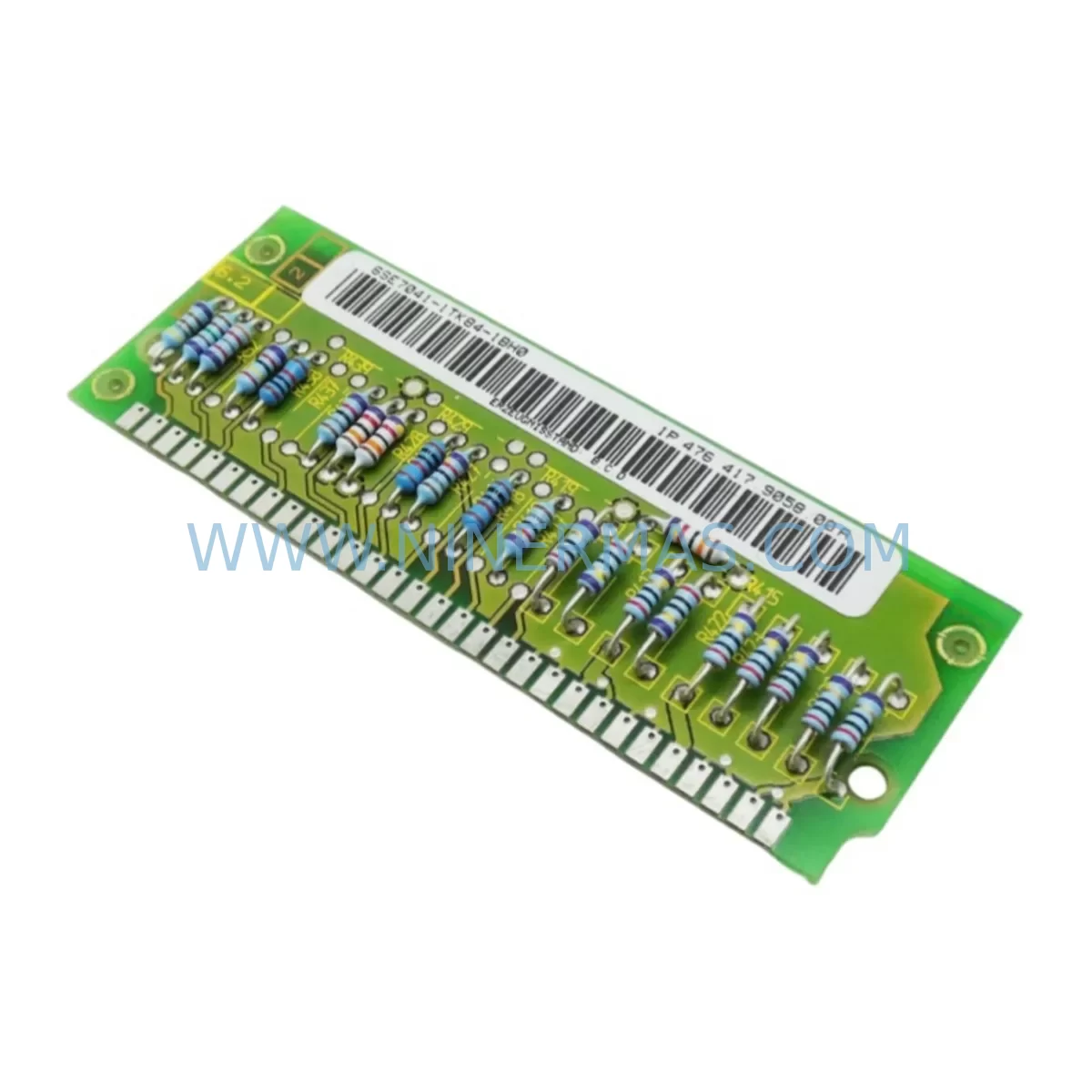

Siemens 6SE7041-1TK84-1BH0 Service-Ready Spare Part

Siemens 6SE7041-1TK84-1BH0 Service-Ready Spare Part for Industrial Maintenance

The Siemens 6SE7041-1TK84-1BH0 is a high-power AC drive unit from the SIMOVERT MASTERDRIVES Vector Control series — a platform widely deployed across heavy industrial environments including steel mills, paper machines, mining conveyors, water treatment facilities, and large-scale HVAC systems. When this unit fails or reaches end-of-service life, unplanned downtime can cascade across entire production lines. Sourcing a verified, service-ready replacement is the fastest path to restoring operation without compromising system integrity.

NINERMAS maintains stock of the 6SE7041-1TK84-1BH0 as part of a long-term spare parts program designed for maintenance engineers and procurement teams managing aging MASTERDRIVES installations. Every unit is inspected, function-tested, and shipped with a 12-month warranty — giving your team the confidence to plan replacements proactively rather than reactively.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 6SE7041-1TK84-1BH0 is rarely an isolated task. In a properly managed maintenance cycle, the drive replacement is the trigger for a broader cabinet inspection. Maintenance engineers should treat this event as an opportunity to audit the entire power and control chain.

Start with the input line reactor (e.g., Siemens 4EP3 series) and input fuses or circuit breakers upstream of the drive — these components absorb surge stress and are often degraded by the same fault event that damaged the drive. Verify the DC bus pre-charge resistor and braking resistor unit (if fitted) for signs of thermal damage or open-circuit failure.

On the control side, inspect the CUVC or CUMC control board seated in the drive chassis. These boards carry the vector control firmware and encoder interface logic; a corrupted firmware or failed EEPROM can cause the replacement drive to behave erratically even when the power section is healthy. If the site uses CBP2 PROFIBUS communication boards or SCI serial interface modules, confirm their firmware versions are compatible with the replacement unit before commissioning.

For I/O integrity, check the terminal block wiring on the CU board — particularly the analog speed reference inputs (X101/X102), digital enable signals, and fault relay outputs. Loose or corroded terminals are a leading cause of nuisance trips after a drive swap. If the system uses signal isolators between the PLC and the drive’s analog inputs, verify isolation barrier integrity with a loop calibrator.

At the PLC level — whether a Siemens S7-300, S7-400, or third-party DCS — confirm that the drive’s PROFIBUS node address and telegram type (e.g., PPO Type 3 or 4) are correctly configured in the hardware configuration tool before going live. A mismatch here will prevent the drive from accepting speed setpoints from the controller.

Finally, inspect the 24 VDC auxiliary power supply feeding the control electronics, the UPS module (if present) for battery health, and any surge protection devices (SPDs) on the incoming supply. These are frequently overlooked but are critical to long-term drive reliability. Documenting all findings in your CMMS after the replacement ensures the next maintenance interval starts with accurate baseline data.

Site Replacement Workflow

Step 1 — Isolation & Lockout/Tagout: De-energize the drive via the main isolator and apply LOTO. Wait a minimum of 5 minutes for DC bus capacitors to discharge below 50 V before opening the cabinet door. Verify with a calibrated DC voltmeter across the DC bus terminals.

Step 2 — Parameter Backup: If the existing drive is still partially functional, use the STARTER commissioning tool or the PMU operator panel to upload and save the parameter set (P0010 factory reset is NOT required if parameters are backed up). Store the backup file with the equipment record.

Step 3 — Mechanical Removal: Disconnect all power cables (U1/V1/W1 input; U2/V2/W2 motor output), DC bus links, control wiring harnesses, and the fiber-optic CUVC interface cable. Label every connector before removal. Note torque values for power terminals (typically 10–25 Nm depending on cable size).

Step 4 — Unit Installation: Mount the 6SE7041-1TK84-1BH0 replacement unit in the cabinet frame. Reconnect all cables in reverse order. Torque all power terminals to specification. Verify cooling air path is unobstructed.

Step 5 — Parameter Restore & Commissioning: Download the saved parameter set to the new unit. Verify motor data (P0300–P0311), ramp times (P1120/P1121), and protection settings (P0610 overcurrent, P0290 overtemperature response). Run a no-load test before reconnecting the mechanical load.

Step 6 — Functional Test & Handover: Perform a full-speed ramp test under load. Confirm PROFIBUS communication status (green LED on CBP2), check fault history (r0947), and log the replacement in the site maintenance record. Total planned downtime for a prepared team: 4–8 hours.

Spare Parts Support FAQ

Q1: Is the 6SE7041-1TK84-1BH0 still available as a new original unit, or is it a refurbished spare?
NINERMAS supplies original OEM units sourced through authorized industrial channels. All units undergo incoming inspection and functional verification. Where new stock is available, it is offered as new; where the unit is from verified surplus, it is clearly identified. Every unit — regardless of source classification — carries a 12-month warranty covering defects in materials and workmanship.

Q2: How do I confirm compatibility with my existing MASTERDRIVES installation before ordering?
Provide your existing drive’s nameplate data (full part number, rated voltage, rated current, firmware version if visible) and your motor nameplate data (kW, RPM, cos φ). NINERMAS technical support will cross-reference against the 6SE7041-1TK84-1BH0 specification sheet and confirm fit before shipment. For PROFIBUS-connected systems, also share your GSD file version.

Q3: What pre-shipment testing is performed on each unit?
Each 6SE7041-1TK84-1BH0 unit is powered up on a test bench, DC bus voltage is verified, gate driver signals are checked on all IGBT phases, and a no-load output voltage balance test is performed across U2/V2/W2. Units that fail any test parameter are quarantined and not shipped. A test report is available upon request for critical infrastructure projects.

Q4: Can NINERMAS support long-term supply agreements for this SKU?
Yes. For customers managing fleets of MASTERDRIVES installations — particularly in industries where this platform will remain in service for 5–10+ more years — NINERMAS offers long-term supply agreements with reserved stock allocation, priority lead times, and fixed pricing tiers. Contact our team to discuss a spare parts program tailored to your annual maintenance budget and installed base size.
