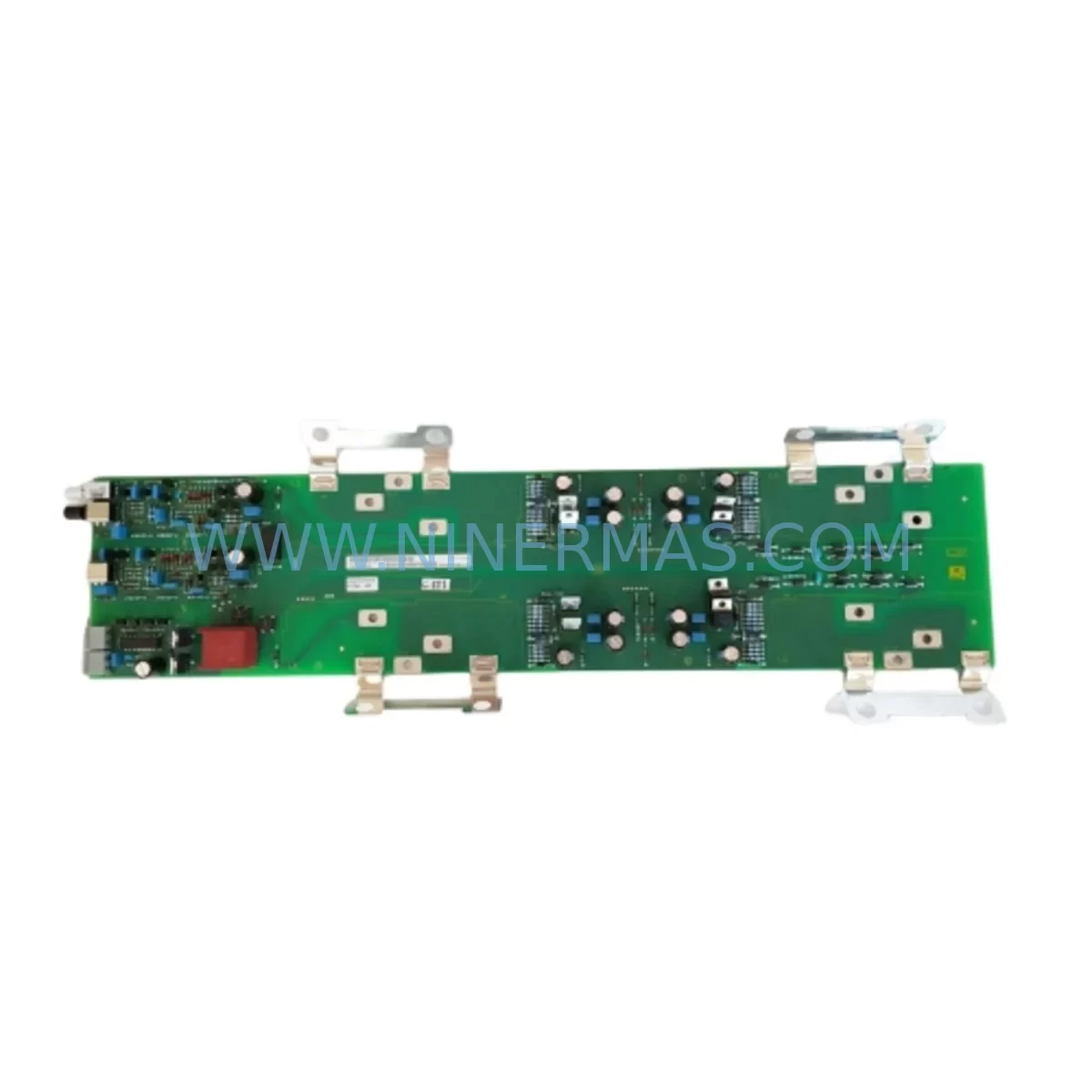

The Siemens 6SE7036-5GK84-1JC2 is a high-power AC frequency inverter belonging to the SIMOVERT MASTERDRIVES 6SE70 series — one of Siemens’ most widely deployed variable-speed drive platforms in heavy industrial environments. Designed for demanding motor control applications including conveyors, compressors, pumps, fans, hoists, and rolling mills, this unit delivers robust vector control performance with integrated safety and communication capabilities.

For maintenance engineers managing aging automation infrastructure, sourcing a verified replacement for the 6SE7036-5GK84-1JC2 is a critical step in minimizing unplanned downtime. NINERMAS maintains ready stock of this model, fully tested prior to shipment and backed by a 12-month warranty, ensuring your production line can be restored quickly and reliably.

Whether you are executing a planned annual overhaul, responding to an emergency drive fault, or building a strategic spare parts inventory for a multi-drive control cabinet, the 6SE7036-5GK84-1JC2 represents a direct, original-spec solution that eliminates compatibility risk and reduces commissioning time on site.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 6SE7036-5GK84-1JC2 in a MASTERDRIVES 6SE70 cabinet, a thorough site inspection of the surrounding electrical circuit is essential to prevent repeat failures and ensure long-term system stability. Maintenance engineers should treat this replacement as an opportunity to audit the full drive system, not just the inverter unit itself.

Begin by inspecting the DC bus capacitor bank and internal cooling fans — both are wear items in high-power 6SE70 units and should be replaced proactively if the drive has been in service for more than five years. Check the input line reactor (e.g., 4EP3 series) and output du/dt filter for signs of overheating or insulation degradation, as these protect both the drive and the connected motor from voltage spikes.

On the control side, verify the integrity of the PROFIBUS-DP communication module (such as the 6SE7090-0XX84-0FF5 or equivalent option board) and confirm that the parameter set stored in the PMU operator panel or external memory card is current and backed up before powering down. A corrupted or missing parameter set is one of the most common causes of extended commissioning time during emergency replacements.

Inspect all 24 VDC control power supply rails feeding the drive’s control electronics — units such as the Siemens SITOP PSU100S or equivalent DIN-rail power supplies should be load-tested to confirm stable output under full control load. Simultaneously, check the terminal block wiring on the X100/X101 control terminals for loose connections, corrosion, or insulation wear, particularly in high-vibration or high-humidity environments.

For drives integrated into a SIMATIC S7 PLC or SIMATIC TDC control system, confirm that the drive’s PROFIBUS node address and baud rate settings are correctly restored after replacement, and validate communication with the PLC CPU (e.g., CPU 315-2DP or CPU 417) before resuming production. If the system uses SIMOTION D or a higher-level motion controller, re-synchronization of the drive’s speed reference and torque limits will be required.

Additionally, inspect the motor feedback encoder cable and encoder module (HTL/TTL interface) for continuity and shielding integrity — encoder signal degradation is a frequent root cause of vector control instability that is often misdiagnosed as a drive fault. Check the motor thermistor (PTC/KTY84) connection at the drive’s temperature monitoring input to ensure thermal protection remains active after reinstallation.

For cabinet-level maintenance, review the condition of the main contactor (e.g., 3RT series), input fuses (3NA or NH type, rated for the drive’s input current), and the EMC line filter upstream of the drive. These components are frequently overlooked during drive replacements but are critical to both drive longevity and EMC compliance in CE-marked installations.

Finally, if the installation includes a braking chopper and external braking resistor (common in hoist and crane applications using the 6SE70 series), verify the resistor’s thermal condition and the chopper’s switching threshold before returning the system to service. A failed braking resistor can cause DC bus overvoltage faults within minutes of restart under regenerative load conditions.

Site Replacement Workflow

Step 1 — Pre-Replacement Preparation: Back up all drive parameters using the PMU panel, DriveMonitor, or STARTER software. Document the existing PROFIBUS node address, motor data set, and any application-specific function blocks. Photograph all control terminal wiring before disconnection.

Step 2 — Safe Isolation: Isolate the drive from the main supply using the upstream isolator or circuit breaker. Wait a minimum of 5 minutes after power-off before opening the cabinet door — the DC bus capacitors in high-power 6SE70 units retain dangerous charge levels. Verify DC bus voltage is below 50 V using a calibrated multimeter before touching internal components.

Step 3 — Mechanical Removal: Disconnect all power cables (U1/V1/W1 input, U2/V2/W2 output), control terminal wiring, PROFIBUS connector, and encoder feedback cable. Label all cables before removal. Unbolt the drive chassis from the cabinet mounting frame and remove carefully — the 6SE7036-5GK84-1JC2 is a high-power unit and will require two-person handling or a lifting aid.

Step 4 — Installation of Replacement Unit: Mount the replacement 6SE7036-5GK84-1JC2 in the same position. Reconnect all power and control cables in reverse order of removal. Verify torque values on all power terminals per Siemens installation guidelines. Restore the PROFIBUS connector and encoder feedback cable with correct shielding termination.

Step 5 — Parameter Restore and Commissioning: Restore the backed-up parameter set via PMU or STARTER. Confirm motor data (rated voltage, current, frequency, speed, power) matches the connected motor nameplate. Perform a no-load test run before reconnecting the mechanical load. Validate PROFIBUS communication with the PLC and confirm all I/O signals are correctly mapped.

Step 6 — Return to Service: Conduct a supervised loaded test run at reduced speed before returning to full production speed. Monitor drive temperature, output current, and DC bus voltage during the first 30 minutes of operation. Document the replacement in the site maintenance log with date, technician name, and new unit serial number.

Spare Parts Support FAQ

Q1: Is the 6SE7036-5GK84-1JC2 still available as a new original spare part?
A: The SIMOVERT MASTERDRIVES 6SE70 series has reached end-of-production, but original-spec service units remain available through specialist industrial spare parts suppliers. NINERMAS maintains verified stock of the 6SE7036-5GK84-1JC2, fully tested before shipment and covered by a 12-month warranty. We recommend securing a minimum of one spare unit per critical drive position to protect against extended lead times.

Q2: How do I confirm compatibility before ordering?
A: Compatibility is confirmed by matching the full SKU (6SE7036-5GK84-1JC2), input voltage class, power rating, and control option board configuration of your existing unit. If you have access to the drive’s nameplate or the original project documentation, share these details with our technical team at sale@ninermas.com for pre-order verification. We can also cross-reference against the installed PROFIBUS option board and encoder interface to confirm a direct drop-in replacement.

Q3: What testing is performed before shipment?
A: Every 6SE7036-5GK84-1JC2 unit dispatched by NINERMAS undergoes functional power-on testing, DC bus charge/discharge verification, and control terminal continuity checks. Units are inspected for physical damage, capacitor condition, and fan operation before packaging. A test report is available upon request. All units are shipped with ESD-safe packaging and are covered by our 12-month warranty from the date of delivery.

Q4: Can NINERMAS support long-term supply agreements for this model?
A: Yes. For customers managing fleets of MASTERDRIVES 6SE70 installations — particularly in industries such as steel, cement, mining, paper, and water treatment — NINERMAS offers long-term spare parts supply agreements with reserved stock, priority dispatch, and fixed pricing. Contact sale@ninermas.com or call +0086 187 5021 5667 to discuss a customized spare parts program for your site.
