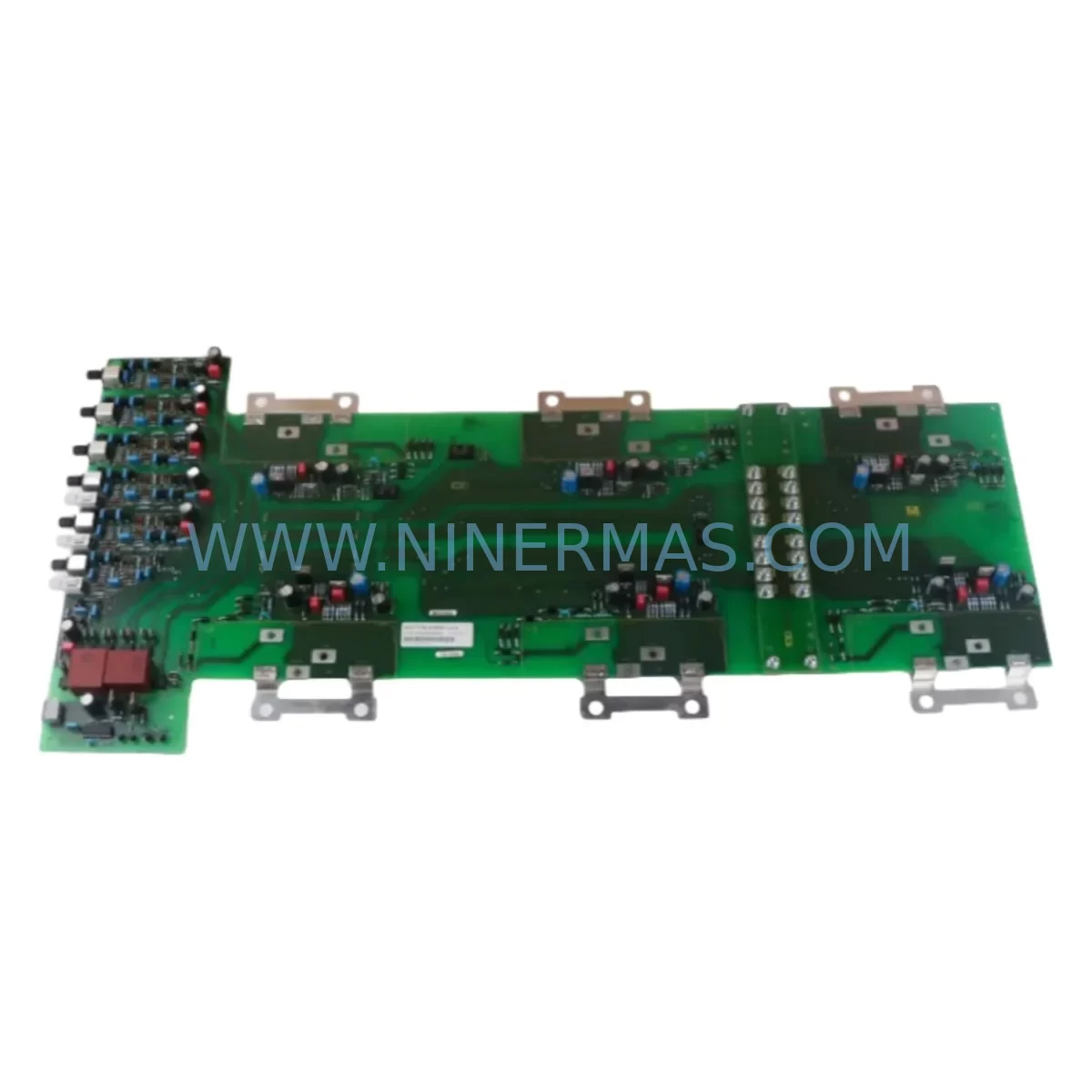

SIEMENS 6SE7034-5HK84-1JC2 Retrofit-Compatible AC Drive

SIEMENS 6SE7034-5HK84-1JC2 Retrofit-Compatible AC Drive: Legacy System Compatibility & Smooth Upgrade

The SIEMENS 6SE7034-5HK84-1JC2 is a high-power AC variable frequency drive from the SIEMENS MASTERDRIVES MC (Motion Control) series, designed for demanding industrial motion applications including heavy-duty conveyors, hoists, extruders, and multi-axis coordinated drive systems. As legacy MASTERDRIVES installations approach end-of-life and original spare parts become increasingly scarce, the 6SE7034-5HK84-1JC2 remains one of the most sought-after retrofit-compatible units for engineers tasked with keeping aging production lines operational without a full system overhaul.

NINERMAS COMPANY LIMITED maintains verified stock of the 6SE7034-5HK84-1JC2, fully tested prior to shipment and backed by a 12-month warranty. Each unit undergoes functional verification covering DC bus voltage, gate driver integrity, IGBT switching performance, and control board communication before dispatch.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a 6SE7034-5HK84-1JC2 in an active production environment requires careful pre-planning across multiple system layers. Before the unit is physically swapped, engineers should extract and archive the full parameter set using DriveMonitor connected via the RS232 port on the PMU (Parameterization Unit) or through the PROFIBUS-DP interface. This parameter backup is critical — it captures motor data, ramp times, torque limits, speed setpoints, and all application-specific tuning values that would otherwise need to be re-entered manually.

On the power supply side, confirm that the existing 6SE7034-5HK84-1JC2 installation is fed from a compatible DC link or AC infeed module. In multi-drive cabinet configurations, the MASTERDRIVES series commonly shares a common DC bus supplied by a 6SE7034 or 6SE7036 Active Front End (AFE) rectifier unit. Any change in drive power rating or firmware version can affect DC bus loading calculations, so the infeed capacity must be re-verified. If the cabinet also houses a 6SN1145 or 6SN1146 SIMODRIVE power module for auxiliary axes, ensure that the shared DC bus voltage remains within tolerance after the retrofit unit is energized.

Terminal wiring is another critical checkpoint. The 6SE7034-5HK84-1JC2 uses a defined terminal block layout for analog inputs (speed reference, torque reference), digital inputs (enable, fault reset, direction), and relay outputs (ready, fault, running). When migrating from an older variant such as the 6SE7034-5HK60, verify that the terminal designations have not shifted between hardware revisions. Shielded cable routing and PE bonding must comply with EMC requirements — particularly important in environments where a SIMATIC S7-300 or S7-400 PLC is communicating over PROFIBUS-DP in the same cabinet.

For sites where the original control system used a SIMATIC S5-115U or S5-135U PLC with a CP5431 PROFIBUS master, the migration to a 6SE7034-5HK84-1JC2 may also require updating the GSD file in the network configuration tool and re-assigning the DP slave address via the drive’s DIP switch or PMU menu. If the HMI is a SIMATIC OP17 or TP270 panel with existing drive status screens, verify that the PLC data block addresses feeding those screens remain consistent after the drive replacement — a mismatch here can cause misleading fault displays or incorrect speed readbacks on the operator panel.

In systems where I/O expansion is needed alongside the drive retrofit, a 6ES7321 digital input module or 6ES7322 digital output module in the S7-300 rack can be used to handle additional interlock signals without modifying the drive’s onboard terminal wiring. Similarly, if analog signal isolation is required between the drive’s speed reference output and a legacy DCS, a signal isolator or repeater module should be inserted to prevent ground loop interference that can cause erratic speed control.

Where the original installation included a 6SE7090-0XX84-0AB0 CUMC control board or a 6SE7090-0XX84-0FF0 option board for encoder feedback, confirm that the replacement 6SE7034-5HK84-1JC2 unit carries the same option board configuration. Encoder feedback wiring (HTL or TTL, 5V or 24V) must be verified against the motor’s encoder specification to ensure closed-loop speed regulation is maintained after the swap.

Downtime Control During System Migration

Minimizing production downtime during a MASTERDRIVES retrofit begins with preparation, not execution. The most effective approach is to complete all pre-work — parameter backup, wiring documentation, spare parts staging, and commissioning tool setup — before the planned maintenance window begins. For a 6SE7034-5HK84-1JC2 replacement in a running production line, a realistic target for the physical swap and re-commissioning is 4–8 hours, assuming no unexpected wiring discrepancies or firmware incompatibilities are encountered.

To protect the original program logic, always retain a copy of the archived parameter set on a laptop running DriveMonitor or STARTER, and keep a second backup on removable media stored separately from the control cabinet. If the drive communicates with a SIMATIC S7 PLC via PROFIBUS-DP, the PLC program itself does not need to be modified for a like-for-like drive replacement — only the drive’s internal parameters need to be restored. This significantly reduces the risk of introducing software errors during the changeover.

For sites where continuous process control is critical, consider a staged approach: install and pre-parameterize the replacement 6SE7034-5HK84-1JC2 on a test bench using the archived parameter file before the maintenance window. Verify motor rotation direction, ramp behavior, and fault response in a no-load condition. This pre-validation step can reduce on-site commissioning time by 50% or more and gives the maintenance team confidence that the unit will perform correctly when connected to the live motor and load.

After installation, perform a controlled startup sequence: energize the DC bus first, confirm no fault codes on the PMU display, then enable the drive via the PROFIBUS command word from the PLC. Monitor DC bus voltage, output current, and motor speed feedback during the first run cycle. Log all values and compare against the pre-retrofit baseline to confirm the system has been restored to its original operating condition. NINERMAS provides a pre-shipment functional test report with each 6SE7034-5HK84-1JC2 unit to support this verification process.

Retrofit Support FAQ

Q1: Is the 6SE7034-5HK84-1JC2 a direct drop-in replacement for the 6SE7034-5HK84-1AA0 or 6SE7034-5HK84-1BC0?
The 6SE7034-5HK84-1JC2 shares the same power rating and chassis format as these variants, but the suffix codes indicate differences in option board configuration (e.g., communication boards, encoder interfaces, or braking chopper options). Before ordering, confirm which option boards are installed in your existing unit and verify that the 1JC2 variant carries the same configuration. NINERMAS can assist with cross-reference verification prior to shipment.

Q2: Can I reuse my existing parameter set from the old drive?
Yes, in most cases. If the replacement unit is the same hardware revision and carries identical option boards, the parameter set archived from the original drive can be uploaded directly via DriveMonitor. However, always perform a P060 factory reset on the new unit before uploading the parameter file to clear any residual factory defaults that could conflict with your application settings. After upload, verify motor data parameters (P100–P115) and encoder feedback settings before enabling the drive.

Q3: What commissioning checks are required after installation?
After physical installation and parameter restore, verify: (1) DC bus voltage within specification, (2) PROFIBUS-DP communication established and DP address confirmed, (3) analog input signals (speed/torque reference) reading correctly at the drive terminals, (4) digital input/output signals responding correctly to PLC commands, (5) motor rotation direction correct, (6) ramp-up and ramp-down times matching the original application profile. NINERMAS provides a pre-shipment test report documenting the unit’s functional status before dispatch.

Q4: What warranty and stock availability does NINERMAS offer for the 6SE7034-5HK84-1JC2?
NINERMAS COMPANY LIMITED offers a 12-month warranty on all 6SE7034-5HK84-1JC2 units, covering manufacturing defects and functional failures under normal operating conditions. Each unit is functionally tested prior to shipment. We maintain active inventory of this model to support urgent retrofit and breakdown replacement requirements. For stock confirmation and lead time, contact our technical sales team directly.
