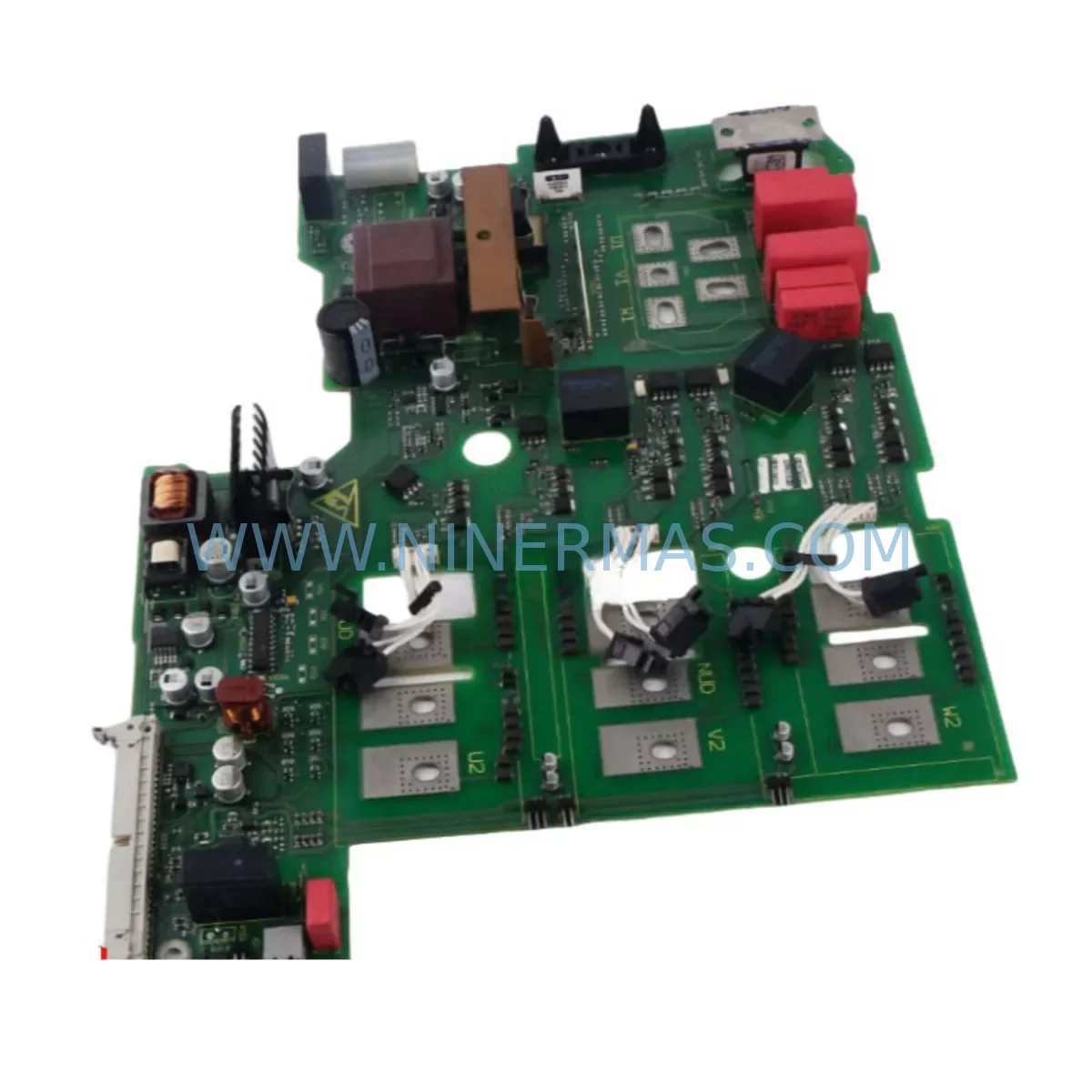

Siemens 6SE7027-2ED84-1HF5 Retrofit-Compatible Control Unit for Legacy Systems

Siemens 6SE7027-2ED84-1HF5 Retrofit-Compatible Control Unit for Legacy Systems

The Siemens 6SE7027-2ED84-1HF5 is a ruggedized control unit from the SIMOVERT MASTERDRIVES series, engineered for demanding industrial environments where vibration, temperature extremes, and continuous-duty cycles are the norm. As legacy MASTERDRIVES installations approach end-of-life or face discontinued spare parts availability, the 6SE7027-2ED84-1HF5 serves as a proven retrofit-compatible replacement that preserves existing control architecture while restoring full drive functionality — without requiring a complete system overhaul.

For maintenance engineers and procurement teams managing aging automation infrastructure, sourcing a verified replacement for the 6SE7027-2ED84-1HF5 is often the critical path item in a planned or emergency retrofit. NINERMAS maintains in-stock inventory of this unit with a 12-month warranty, supporting both scheduled maintenance windows and unplanned downtime recovery scenarios.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 6SE7027-2ED84-1HF5 within an operational production line requires careful pre-planning across multiple system layers. Before the unit is physically swapped, engineers should conduct a full parameter backup using DriveMonitor or the STARTER commissioning software, capturing the complete P-list from the outgoing control unit. This backup is essential for restoring motor data, ramp times, torque limits, and application-specific setpoints to the replacement unit without re-commissioning from scratch.

On the hardware side, the 6SE7027-2ED84-1HF5 interfaces with the MASTERDRIVES power section via a standardized backplane connector. Engineers should verify that the existing power section — typically a 6SE7027-2ED61 or equivalent chassis unit — is mechanically and electrically compatible. Terminal wiring for the control section, including analog inputs (0–10 V / 4–20 mA), digital I/O terminals, and the 24 V DC auxiliary supply, should be documented and photographed before disconnection.

Communication continuity is a frequent concern during MASTERDRIVES retrofits. If the existing system uses PROFIBUS-DP via a CB15 or CBP2 communication board, the board itself is typically retained and transferred to the replacement control unit — eliminating the need to reconfigure the PLC-side GSD file or re-address the drive node. For systems using USS protocol over RS-485, the baud rate and station address parameters must be re-entered manually if the parameter backup cannot be fully restored.

I/O expansion modules such as the SCI1 or SCI2 (Serial Communication Interface) boards, which provide additional analog and digital I/O channels in MASTERDRIVES applications, should be inspected for firmware compatibility with the replacement control unit. Similarly, if the installation includes a T400 technology board for position control or winding applications, the technology software version must be verified against the replacement unit’s firmware baseline.

HMI integration is another checkpoint. Operator panels such as the OP1S (operator panel with parameter memory) connected to the control unit’s serial port should be tested post-swap to confirm that parameter upload/download functions correctly. In systems where the drive is supervised by a SIMATIC S7-300 or S7-400 PLC via PROFIBUS, the PLC program’s drive function blocks (e.g., FB41 CONT_C or drive-specific SFBs) do not require modification — provided the drive’s PROFIBUS address and telegram type remain unchanged.

For control cabinet installations, physical space confirmation is straightforward: the 6SE7027-2ED84-1HF5 occupies the same chassis footprint as predecessor variants, so no cabinet modification is required. However, engineers should confirm that cabinet ventilation and cooling airflow remain adequate, particularly in retrofit scenarios where the surrounding equipment layout may have changed since the original installation.

Where the retrofit involves migrating from an older 6SE70 MASTERDRIVES MC (Motion Control) variant to the Vector Control platform, additional attention is required for encoder feedback wiring. The SBP (Sensor Board Pulse) or SBM2 encoder interface board connections must be verified against the motor encoder specification — particularly for HTL vs. TTL signal levels and maximum pulse frequency.

Downtime Control During System Migration

Minimizing production downtime during a MASTERDRIVES control unit replacement is achievable with disciplined pre-staging and a structured swap procedure. The recommended approach is to pre-configure the replacement 6SE7027-2ED84-1HF5 offline — loading the parameter backup, setting the PROFIBUS node address, and verifying basic motor data — before the scheduled maintenance window begins. This reduces the in-situ commissioning time to functional verification only.

During the swap window, the sequence should follow: isolate and lock out the drive, discharge DC bus capacitors (minimum 5-minute wait after power-off), disconnect the control unit from the backplane, install the replacement unit, restore communication board and I/O wiring, and power up in a controlled sequence. The first power-up should be performed with the motor disconnected where possible, allowing parameter verification and fault code review before load is applied.

For critical continuous-process applications — such as pump drives, compressor controls, or conveyor systems — where even brief interruptions are costly, a hot-standby spare strategy is advisable. Maintaining a pre-configured 6SE7027-2ED84-1HF5 on the shelf, with parameters already loaded and verified, reduces mean time to repair (MTTR) to under 30 minutes in most cases. NINERMAS supports this strategy through its spare parts lifecycle program, offering long-term stock commitments for high-priority SKUs.

After the replacement unit is energized and communication with the PLC is confirmed, a structured test sequence should cover: jog operation at low speed, ramp-up to nominal speed under no-load, verification of all digital input/output states against the PLC I/O map, and confirmation of PROFIBUS cyclic data exchange. Only after this sequence is complete should the drive be returned to automatic control mode and production resumed.

Throughout the migration, original program logic in the PLC does not require modification — the drive’s behavior from the PLC perspective is identical to the outgoing unit, provided parameter restoration was successful. This is a key advantage of like-for-like replacement within the MASTERDRIVES platform, as opposed to cross-platform migrations that require PLC program changes, HMI screen updates, and extended validation periods.

Retrofit Support FAQ

Q1: Is the 6SE7027-2ED84-1HF5 a direct replacement for the 6SE7027-2ED84-1HF3?
A: In most applications, yes. The 1HF5 and 1HF3 suffix variants share the same power rating and backplane interface. However, firmware revision differences may affect parameter compatibility. We recommend performing a full P-list backup from the outgoing unit and restoring it to the replacement after confirming firmware alignment. Our technical team can advise on firmware matching prior to shipment.

Q2: Can I reuse my existing PROFIBUS communication board (CB15 / CBP2) with the replacement unit?
A: Yes. The CB15 and CBP2 boards are designed to be transferred between MASTERDRIVES control units. The PROFIBUS node address and baud rate settings are stored on the communication board itself, so no PLC-side reconfiguration is required. Ensure the board is handled with ESD precautions during transfer.

Q3: What pre-shipment testing does NINERMAS perform on the 6SE7027-2ED84-1HF5?
A: Each unit undergoes functional power-on testing and basic parameter verification before dispatch. Units are inspected for physical integrity, connector condition, and firmware operability. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q4: What is the lead time and stock availability?
A: NINERMAS maintains in-stock inventory of the 6SE7027-2ED84-1HF5 to support both planned maintenance and emergency replacement scenarios. Standard dispatch is within 2–5 business days. For long-term spare parts programs or bulk procurement commitments, contact our sales team to discuss stock reservation and priority allocation.
