Siemens 6SE7022-6TP50-Z Service-Ready Spare Part

Siemens 6SE7022-6TP50-Z Service-Ready Spare Part: Minimizing Downtime with Reliable MASTERDRIVES Replacement

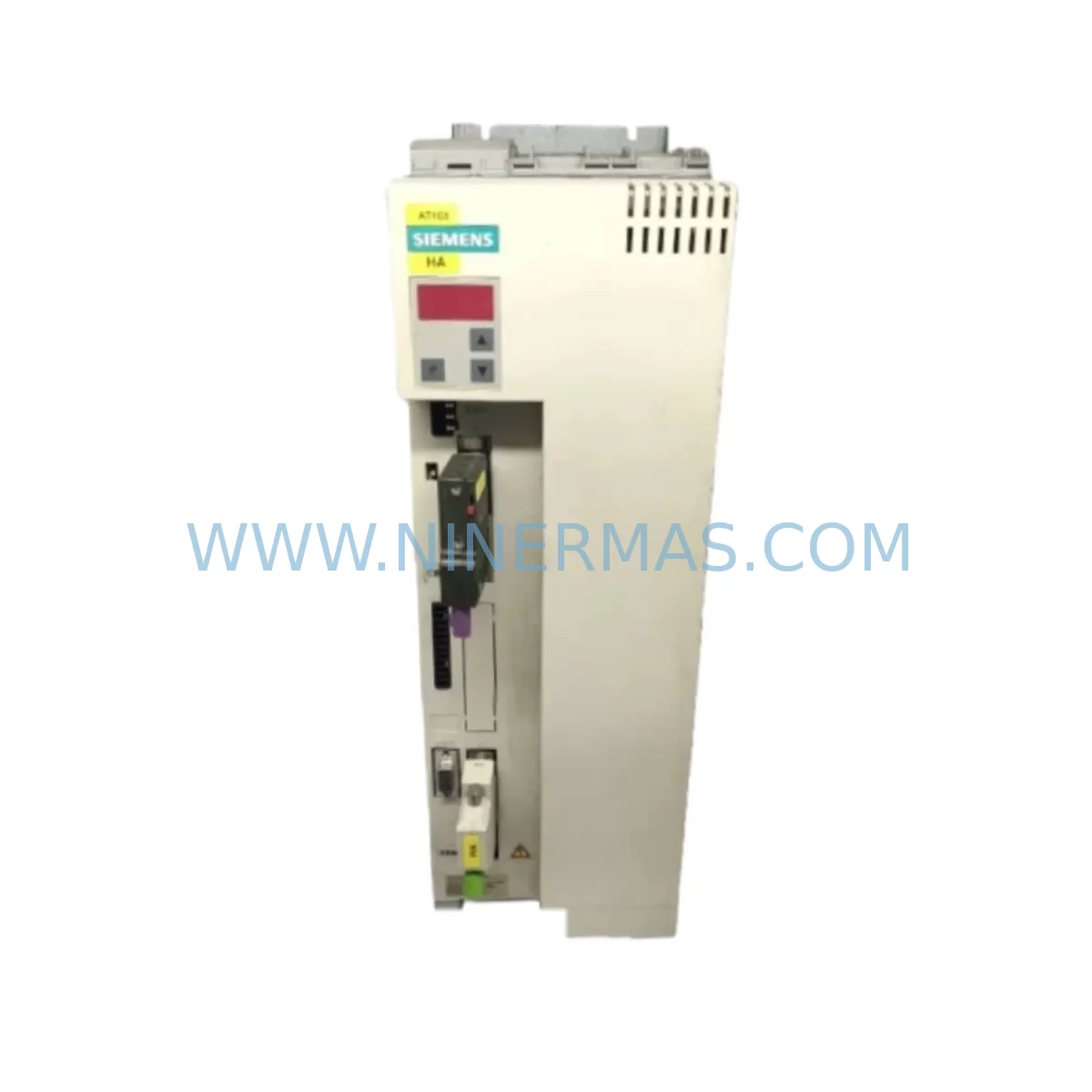

The Siemens 6SE7022-6TP50-Z is a critical AC drive component within the SIMOVERT MASTERDRIVES series, widely deployed across industrial automation environments including CNC machining centers, conveyor systems, pump and fan control panels, and heavy-duty process lines. When this unit fails or reaches end-of-service life, every hour of unplanned downtime translates directly into production loss. NINERMAS COMPANY LIMITED maintains verified stock of the 6SE7022-6TP50-Z to support maintenance engineers and procurement teams who require fast, reliable, and compatibility-confirmed spare part sourcing.

This spare part is sourced as an original Siemens unit, tested prior to dispatch, and backed by a 12-month warranty. Whether you are executing a planned annual overhaul, responding to an emergency drive fault, or building a strategic spare parts inventory for aging MASTERDRIVES installations, the 6SE7022-6TP50-Z is available for immediate quotation and rapid international shipment from NINERMAS.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 6SE7022-6TP50-Z in a MASTERDRIVES control cabinet is rarely an isolated task. Experienced maintenance engineers understand that a drive fault often signals stress across adjacent components in the same electrical circuit. Before returning the system to full production, a thorough inspection of the following components is strongly recommended:

Power Supply and DC Bus: Verify the 6SE7024-0TP50-Z or equivalent DC bus supply module for voltage ripple and capacitor health. Aging electrolytic capacitors in the DC link are a leading cause of recurring drive faults and should be proactively replaced during any major drive swap.

Control Board and Firmware: The 6SE7090-0XX84-0AB0 CUVC control board (or the CUMC variant for motion control applications) should be inspected for firmware version compatibility and parameter backup integrity. After installing a replacement 6SE7022-6TP50-Z, always restore drive parameters from a verified backup using the 6SE7090-0XX84-2FK0 MMC memory card or equivalent parameter storage device.

I/O and Signal Wiring: Inspect all analog input/output terminals (0–10 V, 4–20 mA) and digital I/O connections on the control terminal strip. Loose or corroded terminals are a common source of intermittent faults that are misdiagnosed as drive failures. Check the 6SE7090-0XX84-0FF5 technology board if process control functions are active.

PROFIBUS Communication Module: If the drive is integrated into a PROFIBUS DP network, inspect the 6SE7090-0XX84-0BD0 CBP2 communication board for secure seating and cable termination. A loose PROFIBUS connector can cause the replacement drive to fault immediately upon network initialization.

Braking Resistor and Chopper: For applications with regenerative loads (hoists, centrifuges, winding machines), verify the external braking resistor and the internal braking chopper circuit. An undersized or degraded braking resistor will cause DC bus overvoltage faults on the new drive within the first operating cycle.

Input Line Reactor and EMC Filter: The input line reactor (e.g., 4EP3600-8US series) and EMC line filter should be checked for continuity and insulation integrity. These components protect the drive from line-side voltage transients and harmonic disturbances — their condition directly affects the service life of the replacement unit.

Output Motor Cable and Motor Insulation: Before energizing the replacement drive, perform an insulation resistance test (Megger test) on the motor cable and motor windings. A degraded motor or cable with compromised insulation will immediately stress the new IGBT output stage of the 6SE7022-6TP50-Z.

Relay Outputs and Contactor Interface: Inspect the auxiliary relay outputs and any upstream main contactors or soft-starters in the drive circuit. Worn contactor contacts cause voltage dips during startup that can trigger undervoltage faults on the new drive.

Procurement engineers building a strategic spare parts kit for MASTERDRIVES installations should also consider stocking the 6SE7090-0XX84-0KA1 fan replacement kit and the 6SE7090-0XX84-0HA0 snubber capacitor set, both of which are high-wear consumables with predictable replacement intervals.

Site Replacement Workflow

Replacing the 6SE7022-6TP50-Z on-site follows a structured procedure designed to minimize total downtime and ensure system compatibility from the first power-on:

Step 1 — Pre-Replacement Documentation: Before de-energizing the existing drive, upload all drive parameters to an MMC card or laptop via the STARTER commissioning tool. Record the current fault history, operating hours, and any active technology function configurations. This data is essential for rapid recommissioning of the replacement unit.

Step 2 — Safe Isolation: Isolate the drive from the main supply using the upstream circuit breaker or isolator. Verify zero voltage on the DC bus terminals using a calibrated multimeter — MASTERDRIVES DC bus capacitors retain dangerous charge for several minutes after power-off. Follow your site’s lockout/tagout (LOTO) procedure without exception.

Step 3 — Mechanical Removal and Installation: Disconnect all power cables (L1/L2/L3 input, U/V/W motor output), control terminal wiring, and communication cables in a labeled and documented sequence. Install the replacement 6SE7022-6TP50-Z into the same mounting position, torque all power terminals to the specified values (refer to the Siemens MASTERDRIVES operating instructions, document number A5E00297992), and reconnect all wiring in reverse order.

Step 4 — Parameter Restore and Commissioning: Restore the saved parameter set to the replacement drive. Verify motor data (rated voltage, current, frequency, speed, power factor) and encoder feedback settings if applicable. Perform a no-load test run before reconnecting the mechanical load.

Step 5 — Load Test and Handover: Run the drive under partial load, then full load, monitoring output current, DC bus voltage, heatsink temperature, and fault register. Document the successful commissioning and update the site maintenance record with the new unit’s serial number and installation date.

This structured approach eliminates the most common causes of repeat failures after spare part replacement and ensures the replacement 6SE7022-6TP50-Z delivers its full rated service life.

Spare Parts Support FAQ

Q1: Is the 6SE7022-6TP50-Z a direct drop-in replacement for my existing MASTERDRIVES unit?
A: Yes, the 6SE7022-6TP50-Z is designed as a direct replacement within the SIMOVERT MASTERDRIVES 6SE70 series. It is mechanically and electrically compatible with existing cabinet installations using the same power rating and voltage class. We recommend verifying the firmware version and restoring your saved parameter set after installation to ensure full functional compatibility with your specific application configuration.

Q2: What testing is performed before the unit is shipped?
A: Every 6SE7022-6TP50-Z unit dispatched by NINERMAS undergoes a pre-shipment functional inspection covering power-on self-test, DC bus integrity check, and visual inspection of all connectors, terminals, and the cooling fan assembly. Units that do not pass inspection are not shipped. A test report is available upon request for critical infrastructure applications.

Q3: Can NINERMAS support long-term supply for legacy MASTERDRIVES systems that are no longer in Siemens’ active production?
A: Yes. NINERMAS specializes in long-term spare parts support for discontinued and end-of-life industrial automation products. We maintain stock of 6SE70 series components and can provide supply continuity planning for facilities operating legacy MASTERDRIVES installations. Contact our team to discuss a dedicated inventory reservation or annual supply agreement.

Q4: What does the 12-month warranty cover, and what is the claims process?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or operation outside the rated specifications. To initiate a warranty claim, contact NINERMAS with the original invoice, a description of the fault, and the unit’s serial number. Our technical team will assess the claim and arrange replacement or repair within the agreed service timeline.
