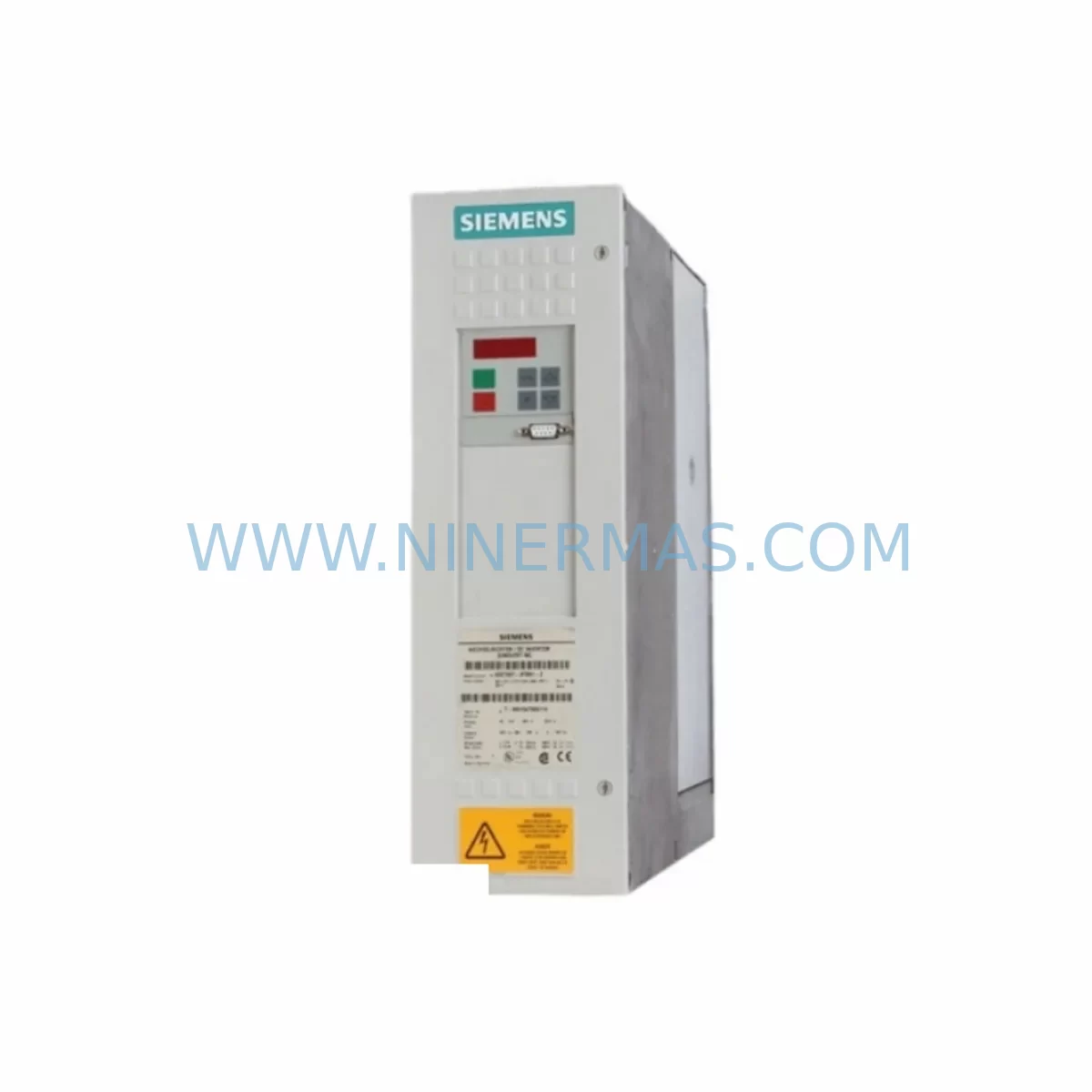

The Siemens 6SE7021-3TB61 is a SIMOVERT Masterdrive vector control AC variable frequency drive designed for demanding industrial applications. As production facilities face the challenge of maintaining aging automation infrastructure, this unit serves as a direct retrofit replacement for discontinued drive models across a wide range of legacy control platforms. Whether your facility is upgrading a 1990s-era drive cabinet, migrating from an obsolete SIMOVERT VC series, or restoring a critical production line after an unexpected failure, the 6SE7021-3TB61 provides the electrical and mechanical compatibility needed to minimize engineering rework and reduce total downtime.

NINERMAS maintains verified stock of the 6SE7021-3TB61 with full pre-shipment functional testing and a 12-month warranty, ensuring procurement teams and maintenance engineers can source this unit with confidence — even for end-of-life system support scenarios.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a SIMOVERT Masterdrive unit in an operational plant requires careful pre-engineering to avoid configuration mismatches and extended downtime. Before removing the existing drive, maintenance teams should document all parameter sets using DriveMonitor connected via the RS-485 USS interface or a PROFIBUS DP link through the CBP2 communication board. Parameter backup is critical — the 6SE7021-3TB61 shares the same parameter structure as other 6SE70 compact units, meaning a saved parameter file from a 6SE7021-3TB50 or 6SE7021-3EB61 can typically be restored directly, significantly reducing recommissioning time.

Terminal wiring compatibility should be verified against the original cabinet drawings. The power terminals (U1/V1/W1 input, U2/V2/W2 output) and control terminal strip X101 follow the standard Masterdrive compact layout. If the existing installation uses a 6SY7010-0AA00 brake resistor or an external braking chopper module, confirm that the DC bus connection points and chopper enable wiring remain compatible with the replacement unit. For applications using encoder feedback, the HTL/TTL pulse encoder interface on the CU (Control Unit) board must be reconfigured to match the original encoder type and resolution.

In multi-drive cabinet installations, the 6SE7021-3TB61 is commonly deployed alongside other SIMOVERT Masterdrive compact units such as the 6SE7022-6TC61 and 6SE7023-4TC61 for coordinated axis control. Where a SIMATIC S7-300 or S7-400 PLC acts as the master controller, the PROFIBUS DP network topology must be preserved — verify the drive’s PROFIBUS node address (set via DIP switches or parameter P918) matches the original configuration to avoid PLC communication faults on startup. If the control system uses a SIMATIC HMI panel such as the TP177B or MP277 for drive status visualization, confirm that the HMI screen tags referencing drive parameters remain valid after the replacement.

Power supply capacity in the control cabinet should be reviewed before installation. The 6SE7021-3TB61 draws 24 V DC auxiliary power from the cabinet’s SITOP PSU100S or equivalent power supply module. Verify that the existing 24 V rail has sufficient current headroom, particularly in cabinets where multiple drives, I/O modules, and communication adapters share the same supply. If the cabinet uses a 6ES7 307-series SIMATIC power supply, check the total load budget before adding the replacement drive.

For facilities running legacy SIMOREG DC master drives in parallel with AC Masterdrive units, the migration path typically involves replacing the DC drive section first while retaining the existing PROFIBUS backbone. The 6SE7021-3TB61 supports this hybrid migration approach, allowing the AC and DC drive segments to coexist on the same PROFIBUS DP network during the transition period. Signal isolators such as the Phoenix Contact MINI MCR-SL series may be required at analog setpoint inputs if the existing wiring introduces ground loop interference after the drive swap.

Installation space confirmation is essential for compact chassis drives. Measure the existing drive’s height, width, and depth, and compare against the 6SE7021-3TB61 mechanical outline drawing. Pay particular attention to the cable entry zone at the bottom of the unit and the minimum clearance required above the fan exhaust. If the original drive used a different frame size, cabinet modifications including DIN rail repositioning or backplate drilling may be required before the replacement unit can be mounted.

Downtime Control During System Migration

Minimizing production downtime during a SIMOVERT Masterdrive replacement requires a structured pre-outage preparation process. Begin by completing all parameter documentation, wiring verification, and spare parts staging before the planned maintenance window. Having the 6SE7021-3TB61 pre-configured with the backed-up parameter set — loaded offline using DriveMonitor — means the on-site commissioning phase is reduced to wiring connection, power-on verification, and a short no-load test run.

Where the process cannot tolerate extended outages, consider a staged replacement approach: install the new drive in a parallel test configuration using a temporary motor load, verify all control signals and PROFIBUS communication, then perform the final cutover during a scheduled short-stop. This approach is particularly effective in continuous process industries where even a two-hour unplanned outage carries significant production cost.

Program logic protection is another critical consideration. If the PLC program contains drive-specific function blocks referencing the Masterdrive’s parameter addresses via PROFIBUS DPV1 acyclic communication, verify that these addresses remain valid on the replacement unit. In most cases, the 6SE7021-3TB61 maintains full parameter address compatibility with other 6SE70 compact units, so existing PLC function blocks require no modification. However, if the original drive used a non-standard firmware version with custom parameter extensions, this should be confirmed before the cutover.

Field control continuity during the transition can be maintained by keeping the existing drive energized and in a safe stopped state while the replacement unit is being wired in parallel. Once the new drive’s control wiring is confirmed correct, transfer the motor cables and perform a controlled first-start under reduced speed reference to verify direction of rotation and speed feedback before returning the drive to full automatic control from the PLC.
