Siemens 6SE7021-3TB51-Z L43+G91 Retrofit AC Drive

Siemens 6SE7021-3TB51-Z L43+G91 Retrofit-Compatible AC Drive for Legacy System Modernization

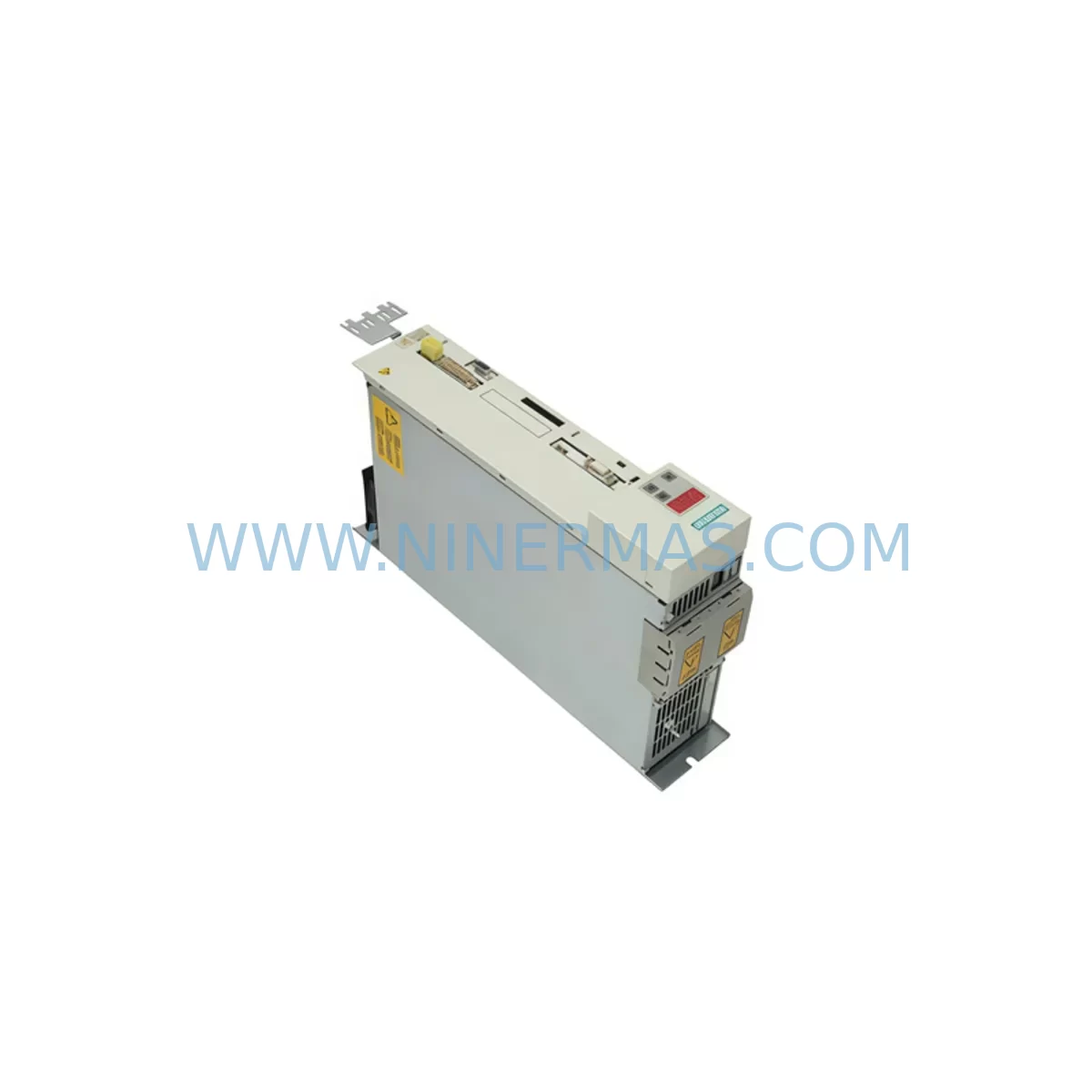

The Siemens 6SE7021-3TB51-Z L43+G91 is a SIMOVERT MASTERDRIVES series AC variable frequency drive designed for demanding industrial motion control applications. As legacy automation systems reach end-of-life and original spare parts become increasingly scarce, this unit serves as a verified retrofit-compatible replacement for aging drive cabinets, discontinued control panels, and obsolete production line infrastructure. Whether you are managing a planned system migration or responding to an unplanned drive failure, the 6SE7021-3TB51-Z L43+G91 provides a reliable, field-proven solution that minimizes engineering rework and reduces total downtime exposure.

This drive belongs to the SIMOVERT MASTERDRIVES Vector Control platform, a widely deployed Siemens drive family found across automotive assembly lines, paper mills, steel processing plants, water treatment facilities, and heavy manufacturing environments. The Z-option suffix L43+G91 indicates factory-configured option modules, which must be carefully cross-referenced against your existing cabinet wiring, backplane slot assignments, and communication topology before installation. Engineers planning a retrofit should verify the DC bus voltage rating, output current capacity, and cooling method against the original drive specification sheet to confirm a direct mechanical and electrical fit.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 6SE7021-3TB51-Z L43+G91 into an existing control cabinet begins well before the drive arrives on site. The first step is a thorough audit of the existing installation: document all terminal wiring on the power section (U1/V1/W1 input and U2/V2/W2 motor output), the DC link bus connections if the drive shares a common DC bus with adjacent units such as a SIMOVERT MASTERDRIVES Compact Plus or a regenerative feedback unit, and the 24 VDC auxiliary supply feeding the control electronics.

The option module configuration encoded in the Z-suffix is critical. The L43 option typically refers to a specific technology option board — often a PROFIBUS-DP communication module — while G91 may indicate a specific hardware or software configuration package. Before ordering, confirm these option codes against your existing drive’s nameplate and the original project documentation. If the original drive used a CBP2 PROFIBUS board or a CBD DeviceNet board, the replacement must carry the same communication interface to maintain compatibility with the upstream SIMATIC S7-300 or S7-400 PLC and the STEP 7 hardware configuration.

During the physical swap, pay close attention to the backplane connector alignment and the rack slot address. MASTERDRIVES systems use a defined slot addressing scheme that maps directly to the PLC’s hardware configuration in STEP 7. Inserting the drive into the wrong slot or failing to update the hardware configuration will result in communication faults and prevent the drive from being recognized by the controller. If the system uses a SIMATIC HMI panel — such as a TP270, OP270, or MP370 — the screen layouts referencing drive status words and fault codes should be verified against the replacement unit’s parameter set to ensure the HMI continues to display correct process values.

Power supply capacity is another area that demands careful attention. The 6SE7021-3TB51-Z L43+G91 draws from the main AC supply as well as the internal 24 VDC rail. If the existing SITOP power supply or equivalent 24 VDC source is already operating near its rated output current — particularly in cabinets that also power distributed I/O modules, signal isolators, and relay output cards — adding or replacing a drive without recalculating the total load budget can lead to nuisance tripping or undervoltage faults during startup. Review the load calculation and consider upgrading the SITOP PSU8600 or equivalent supply if headroom is insufficient.

For systems that include remote I/O expansion via ET 200M or ET 200S distributed I/O stations connected over PROFIBUS, the drive’s node address must be set correctly using the DIP switches or parameter P918 before the bus is energized. Address conflicts on the PROFIBUS segment will prevent the entire network from initializing and can cause cascading faults across all connected nodes. A PROFIBUS diagnostic tool or the STEP 7 hardware diagnostics function should be used to verify bus integrity after the drive is installed and before the system is returned to automatic mode.

Downtime Control During System Migration

Minimizing production downtime during a MASTERDRIVES retrofit requires a structured pre-commissioning strategy. The most effective approach is to upload the complete parameter set from the existing drive using a PC with DRIVE ES Basic or the DriveMonitor software connected via the RS232 serial interface or the PROFIBUS port before the old unit is removed. This parameter file — saved as a .par or .par7 file — can be downloaded directly into the replacement 6SE7021-3TB51-Z L43+G91, eliminating the need to manually re-enter hundreds of motor data, ramp time, and control word parameters.

If the original drive has already failed and a parameter backup is not available, the motor nameplate data (rated voltage, rated current, rated frequency, rated speed, and power factor) must be entered manually, followed by a stationary motor identification routine (parameter P115 = 2 or equivalent) to allow the drive to self-optimize its control model. This process adds commissioning time but is essential for stable vector control operation, particularly on high-inertia loads such as centrifugal fans, compressors, or winding machines.

Where possible, schedule the physical drive swap during a planned maintenance window and pre-stage the replacement unit with the correct parameter set, verified option modules, and tested communication link before the production line is stopped. A pre-tested unit can typically be installed and brought back online within two to four hours, compared to eight or more hours for a cold-start commissioning from scratch. All units supplied by NINERMAS undergo pre-shipment functional testing and are covered by a 12-month warranty, providing additional assurance that the replacement unit will perform correctly from the moment it is energized.

Retrofit Support FAQ

Q1: Is the 6SE7021-3TB51-Z L43+G91 a direct drop-in replacement for my existing SIMOVERT MASTERDRIVES unit?
A: In most cases, yes — provided the frame size, power rating, and Z-option modules match your existing installation. The L43 and G91 option codes must be verified against your original drive’s nameplate. If your existing unit carries different option codes, the replacement may require additional configuration or a different option board to maintain full functionality.

Q2: Can I reuse my existing terminal wiring and backplane connections?
A: The power terminals (input, motor output, and DC bus) and the control terminal strip layout are consistent across the MASTERDRIVES Vector Control platform for the same frame size. However, always verify the terminal assignment diagram in the hardware manual before reconnecting wiring, as Z-option configurations can affect the control terminal layout.

Q3: What communication protocols does this drive support, and will it work with my existing PLC?
A: The 6SE7021-3TB51-Z L43+G91 supports PROFIBUS-DP via the L43 option board and USS protocol over the RS232/RS485 serial interface. It is compatible with SIMATIC S7-300, S7-400, and S7-1500 PLCs configured with a PROFIBUS master interface. Verify the GSD file version used in your STEP 7 or TIA Portal project matches the drive firmware version.

Q4: What does the 12-month warranty cover, and how quickly can the unit be shipped?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. All units are pre-tested before dispatch. Stock availability is confirmed at the time of order, and standard lead times are provided at checkout. For urgent requirements, contact our team directly to confirm same-day or next-day dispatch options.

—
