SIEMENS 6SE7021-0EA51-Z C33+F01+G91 Retrofit AC Drive

SIEMENS 6SE7021-0EA51-Z C33+F01+G91 Retrofit-Compatible AC Drive for Legacy System Upgrades

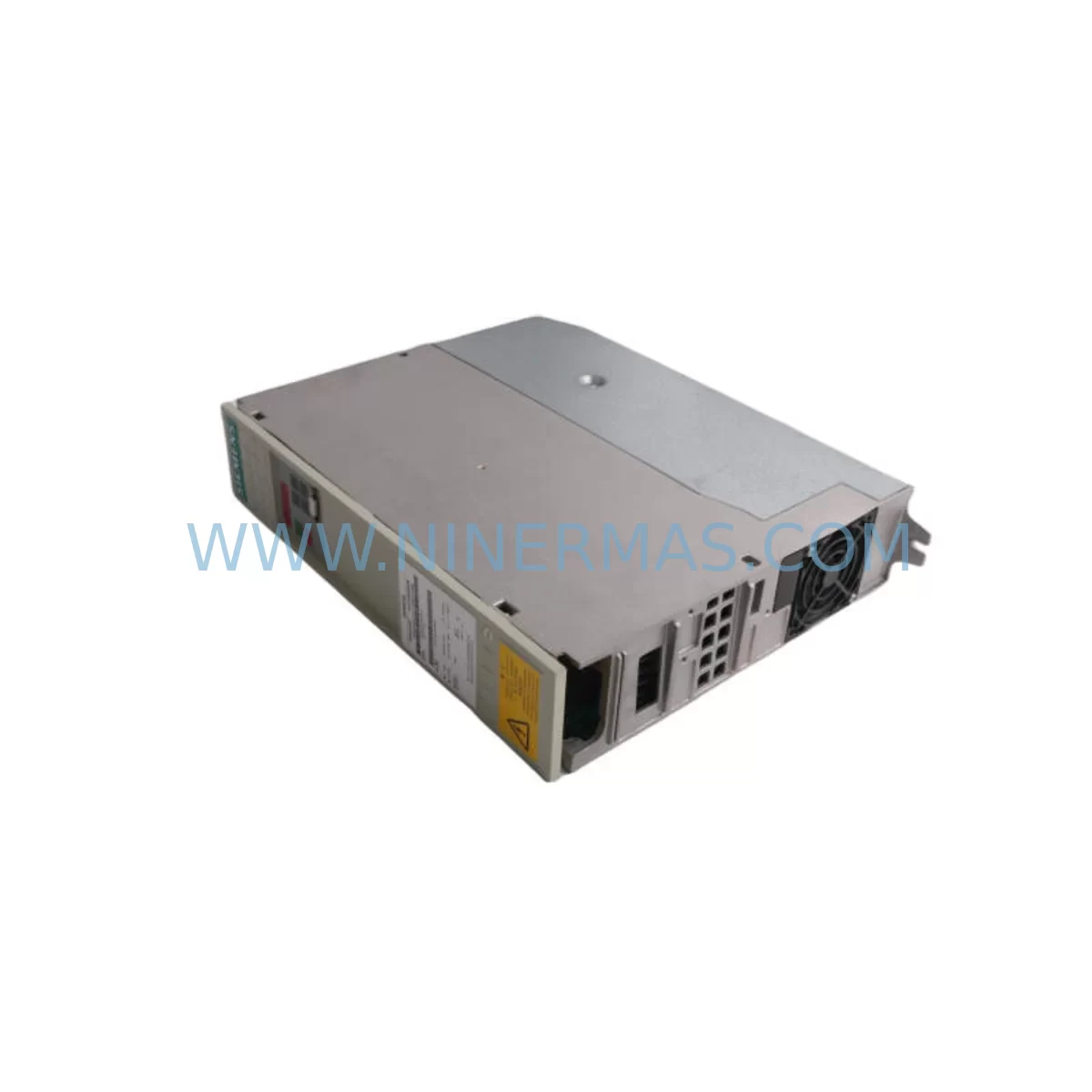

The SIEMENS 6SE7021-0EA51-Z C33+F01+G91 is a Simovert Masterdrives Vector Control AC drive unit from Siemens’ 6SE70 series, widely deployed across legacy manufacturing lines, process automation systems, and industrial control cabinets throughout the 1990s and 2000s. As original equipment reaches end-of-life and Siemens phases out support for older Masterdrives variants, plant engineers and maintenance teams are increasingly sourcing verified replacement units to extend operational continuity without committing to a full drive platform migration. NINERMAS maintains ready stock of this model to support planned retrofits, emergency breakdowns, and long-cycle spare part programs.

The base unit carries option codes C33 (external fan supply 230 V AC), F01 (basic operator panel BOP), and G91 (PROFIBUS-DP interface), making it a communications-capable drive suited for integration into SIMATIC S5 and SIMATIC S7 control architectures. The onboard PROFIBUS-DP port (G91) allows direct substitution into existing fieldbus topologies without rewiring the communication backbone, which is a critical advantage when downtime windows are measured in hours rather than days.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a 6SE7021-0EA51-Z C33+F01+G91 in an active production environment requires a structured pre-installation review. Before the unit arrives on site, the maintenance team should pull the existing drive’s parameter set using DriveMonitor connected via the PROFIBUS-DP segment or the RS-232 port on the BOP (F01). Saving the full parameter list — including ramp times, current limits, motor data, and PID setpoints — is essential because the replacement unit ships with factory defaults and must be re-commissioned to match the original motor and load profile.

Power supply verification is the next critical step. The C33 option requires a stable 230 V AC external fan supply independent of the main DC bus. Engineers should confirm that the existing cabinet’s auxiliary transformer or UPS rail can sustain the fan load alongside other auxiliary consumers such as the 6SY7000-0AC20 fan capacitor kit or any 6SE7090-series braking resistor assemblies already installed. If the cabinet also houses a 6SE7023 or 6SE7024 unit sharing the same DC bus in a common DC topology, the bus voltage and pre-charge circuit must be verified before energising the replacement drive.

Terminal wiring on the 6SE70 platform follows a standardised layout, but option-specific terminals — particularly the PROFIBUS-DP SUB-D connector associated with the G91 board and the external fan terminals introduced by C33 — must be cross-referenced against the original wiring diagram. If the original diagram is unavailable, the Siemens Simovert Masterdrives Compact and Chassis Units Operating Instructions (document 6SE7087-6AK85-0AA0) provides the definitive terminal assignment. For sites running SIMATIC S7-300 with a CP 342-5 PROFIBUS master, the GSD file for the 6SE70 drive must be loaded into STEP 7 HW Config to restore the DP slave address and I/O mapping without modifying the existing PLC program.

I/O expansion modules such as the 6SE7090-0XX84-0KA0 technology board or an external 6ES7 321-series digital input module connected to the drive’s binary input terminals should be documented and re-wired according to the saved terminal diagram. Signal isolators — particularly for analogue speed references fed from legacy 4–20 mA transmitters — should be tested for loop integrity before the drive is powered. Where the original system used a 6SE7090-0XX84-2FK0 encoder feedback board for closed-loop vector control, the encoder cable shield continuity and termination resistor settings must be confirmed to avoid speed oscillation after restart.

HMI screens linked to the drive via PROFIBUS — whether running on a SIMATIC OP7, OP17, or a more recent TP700 Comfort panel — reference drive status words and parameter numbers that are consistent across the 6SE70 family. Provided the DP address is restored correctly, HMI communication typically resumes without screen modifications. However, if the site has migrated the HMI to TIA Portal-based Comfort panels, the project engineer should verify that the drive’s process data word mapping in the HMI tag table matches the replacement unit’s default telegram structure.

Downtime Control During System Migration

Minimising production downtime during a Simovert Masterdrives replacement begins with preparation completed before the maintenance window opens. The replacement 6SE7021-0EA51-Z C33+F01+G91 should be bench-tested at NINERMAS prior to shipment: power-on verification, insulation resistance check, and a no-load run confirm that the unit is fully functional before it reaches the customer’s facility. This pre-shipment test report is available on request and forms part of the 12-month warranty documentation.

On site, the recommended sequence is: isolate and lock out the existing drive, photograph all terminal connections, disconnect power and signal cables, remove the faulty unit, install the replacement in the same mounting position, reconnect terminals in reverse order of removal, restore the saved parameter set via DriveMonitor or the BOP keypad, and perform a supervised no-load test before reconnecting the motor. For drives controlling critical processes — conveyors, compressors, pumps, or extruders — a partial-load test at reduced speed should precede full production restart to confirm that current limits, acceleration ramps, and fault thresholds are correctly restored.

Where the original PLC program references drive fault codes or status bits via PROFIBUS, a brief online monitoring session in STEP 7 or TIA Portal after restart will confirm that the data exchange is active and that no diagnostic alarms are pending. If the site operates a redundant control architecture using a 6SE7090-0XX84-0FA0 parallel interface board, the redundancy handshake sequence should be tested before returning the line to automatic mode. Keeping the replaced unit on site as a temporary spare — even if it is faulty — provides a reference for terminal identification if any wiring discrepancy is discovered during commissioning.

Retrofit Support FAQ

Q1: Is the 6SE7021-0EA51-Z C33+F01+G91 a direct drop-in replacement for other 6SE7021 variants without the C33, F01, or G91 options?
The base frame and power section are identical across 6SE7021 variants, but the option codes represent physical hardware fitted inside the unit. A unit without G91 lacks the PROFIBUS-DP board; a unit without C33 uses internal fan supply. Substituting a C33+F01+G91 unit for a base variant is generally possible but requires confirming that the external 230 V fan supply is available in the cabinet and that the PROFIBUS-DP port is correctly addressed. NINERMAS technical support can advise on option compatibility before order confirmation.

Q2: Can the parameter set from the original drive be transferred directly to the replacement unit?
Yes, provided the parameter file was saved using DriveMonitor or STARTER before the original unit failed. The 6SE70 parameter structure is consistent within the same firmware revision. If the firmware version differs between the original and replacement unit, a parameter-by-parameter review is recommended, focusing on motor data (P070–P109), control mode (P100), and communication settings (P700–P720). NINERMAS can supply units with specific firmware versions where stock allows.

Q3: What is covered under the 12-month warranty, and what is the process for a warranty claim?
All units supplied by NINERMAS carry a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. The warranty period begins from the date of shipment. In the event of a warranty claim, the customer contacts sale@ninermas.com with the order reference and a description of the fault. NINERMAS will arrange collection, inspection, and either repair or replacement at no additional cost. Units showing evidence of incorrect installation, overvoltage, or physical damage are assessed on a case-by-case basis.

Q4: How quickly can NINERMAS ship the 6SE7021-0EA51-Z C33+F01+G91, and is express delivery available for emergency breakdowns?
NINERMAS maintains warehouse stock of common Simovert Masterdrives variants including this model. Standard lead time for in-stock units is 3–5 business days to most destinations. Express air freight options are available for emergency breakdown situations — contact sale@ninermas.com or call +0086 187 5021 5667 to confirm current stock status and arrange priority dispatch. Pre-shipment functional testing is performed on all units regardless of shipping urgency.
