Siemens 6RY1803-0CM20 Retrofit-Compatible Power Supply for Legacy Systems

Siemens 6RY1803-0CM20 Retrofit-Compatible Power Supply for Legacy Systems

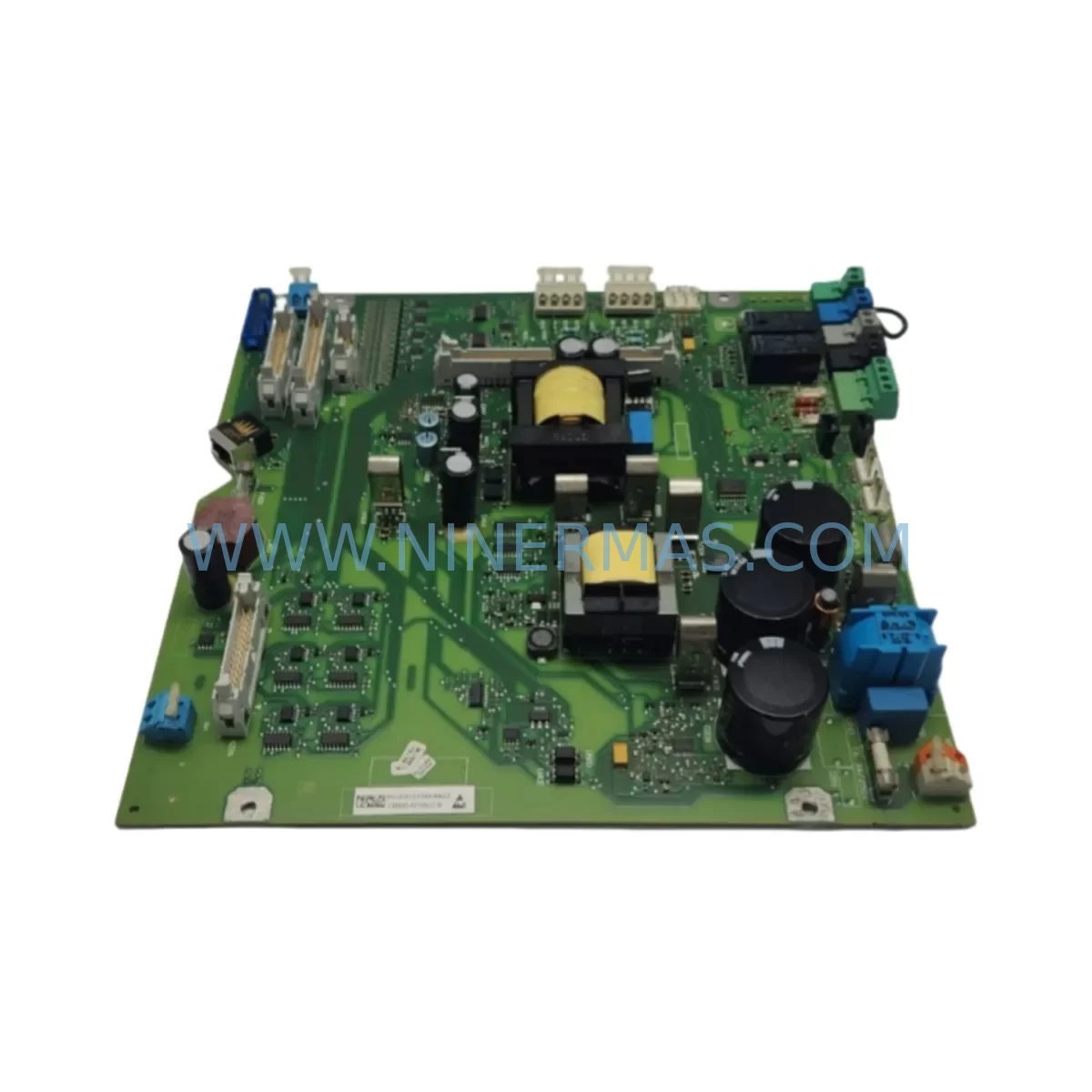

The Siemens 6RY1803-0CM20 (board reference C98043-A7109-L100) is a ruggedized internal power supply module engineered for the SIMOREG DC Master family of DC drive converters. As production lines age and original Siemens spare parts become increasingly scarce, this module serves as a critical retrofit component for facilities operating legacy DC drive systems that cannot be immediately replaced with modern AC vector drives. NINERMAS maintains verified stock of this module with full functional testing and a 12-month warranty, supporting procurement teams that require reliable, long-lead-time spare parts for continuous plant operations.

In retrofit and modernization projects, the 6RY1803-0CM20 is most commonly required when the internal power rail of a SIMOREG 6RA70 or 6RA24 series converter has degraded, causing erratic firing of the thyristor bridge, loss of field excitation, or complete drive shutdown. Because the SIMOREG platform uses a distributed internal power architecture — supplying logic boards, the CUD1 central unit board, the ADB analog-to-digital board, and the firing pulse electronics from a common regulated DC bus — a failed power supply module can cascade into apparent faults across multiple subsystems. Replacing the 6RY1803-0CM20 as a discrete module is significantly faster and more cost-effective than replacing the entire converter chassis.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the 6RY1803-0CM20, engineers must evaluate the full power distribution chain within the SIMOREG converter. The internal supply feeds the CUD1 central unit board, which hosts the main drive firmware and handles speed/torque regulation, closed-loop PID control, and all digital I/O processing. A degraded power rail often manifests first as intermittent F025 (power section) or F060 (hardware fault) alarms on the operator panel — symptoms that are frequently misdiagnosed as CUD1 failures before the supply board is inspected.

In multi-drive installations — for example, a coordinated winder or draw-bench line using several SIMOREG 6RA7085 or 6RA7091 converters in a master-follower topology — a power supply failure in one drive can disrupt the entire line synchronization. Before pulling the module, the maintenance team should download the current parameter set using DriveMonitor or STARTER software via the RS232 port on the CUD1, ensuring that all P-parameters (particularly the ramp, current limits, and encoder feedback settings) are archived. This eliminates the risk of losing tuned parameters during the swap.

The retrofit process also requires attention to the ADB analog-to-digital board and the TDB thyristor driver board, both of which draw from the same internal supply rail. If either board shows signs of secondary damage — discoloration, swollen capacitors, or burnt traces — they should be inspected and replaced concurrently with the 6RY1803-0CM20 to avoid repeat failures. For sites running field weakening control with a separate field converter (such as the 6RA7013 field supply unit), the field excitation circuit should be verified independently after the power supply swap, as field current regulation is sensitive to supply voltage stability.

Facilities that have already migrated their supervisory layer to SIMATIC S7-300 or S7-400 PLCs communicating via PROFIBUS-DP through a CBP2 communication board will find that the 6RY1803-0CM20 replacement is fully transparent to the network — no GSD file changes, no DP address reassignment, and no HMI screen updates are required. For older sites still using USS protocol over RS485 from a SIMATIC S5 or third-party controller, the same applies: the communication stack resides on the CUD1, not the power supply board.

Where the control cabinet also houses SITOP PSU100S or SITOP PSU200M 24 VDC power supplies feeding PLC I/O racks, signal isolators, or relay logic, these should be load-tested before the retrofit to confirm that the cabinet’s overall power budget is not marginal. A weak 24 V rail can cause false diagnostics during the post-swap commissioning phase. Similarly, if the cabinet includes a 6SL3040 Control Unit or any SINAMICS G120 inverter modules sharing the same panel, their supply rails should be verified as independent from the SIMOREG internal bus.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing an internal power supply module in a running production environment. The recommended approach is to pre-stage the replacement 6RY1803-0CM20 on the bench, verify its output voltages under no-load conditions using a calibrated multimeter, and confirm the board revision matches the installed unit (L100 suffix indicates the specific revision level). This bench verification step — which takes approximately 20 minutes — eliminates the risk of installing a defective replacement and extending the outage.

During the planned maintenance window, the sequence should be: (1) initiate a controlled ramp-down of the drive via the CUD1 operator panel or PLC command, (2) isolate the converter from the AC supply using the upstream circuit breaker or contactor, (3) wait for the DC bus capacitors to discharge fully (minimum 5 minutes, verify with a voltmeter across the DC bus terminals), (4) remove the power supply board using the standard Siemens extraction tool, (5) install the 6RY1803-0CM20, (6) restore power and monitor the internal supply rails before enabling the drive output.

Post-swap commissioning should include a review of the fault memory (r947/r949), a no-load run at minimum speed to confirm stable field excitation, and a ramp test to rated speed under partial load before returning the drive to full production duty. For lines where stopping is extremely costly — such as continuous casting, paper machines, or extrusion lines — a cold standby spare drive chassis pre-loaded with the archived parameter set is the preferred risk mitigation strategy. NINERMAS can support multi-unit procurement for critical spare inventory programs, with agreed lead times and consignment options for high-priority SKUs.

Retrofit Support FAQ

Q1: Is the 6RY1803-0CM20 a direct replacement for the original Siemens board, or does it require any wiring modifications?
The 6RY1803-0CM20 (C98043-A7109-L100) is a direct board-level replacement for the OEM power supply module in compatible SIMOREG 6RA70 and 6RA24 series converters. No wiring modifications, jumper changes, or parameter re-entry are required. The connector layout and mechanical footprint are identical to the original. Confirm the frame size and board revision suffix before ordering to ensure exact compatibility.

Q2: How is the module tested before shipment?
All units supplied by NINERMAS undergo functional output voltage verification and visual inspection prior to dispatch. Each module is shipped with a test record. The 12-month warranty covers functional failure under normal operating conditions. Customers requiring third-party test certification or burn-in testing should contact our sales team to discuss extended pre-shipment testing options.

Q3: What is the typical lead time, and do you hold stock?
NINERMAS maintains physical inventory of the 6RY1803-0CM20 to support urgent breakdown and planned maintenance requirements. Standard lead time for in-stock units is 3–7 business days for international shipments. For customers with recurring demand or critical spare parts programs, we offer reserved stock agreements and long-term supply commitments. Contact sale@ninermas.com for current availability and volume pricing.

Q4: Can this module be used in a SIMOREG drive that has been upgraded with a CBP2 PROFIBUS board or an SBP encoder board?
Yes. The 6RY1803-0CM20 supplies the internal electronics bus and is independent of the optional communication and encoder boards installed in the drive’s option slots. Drives fitted with the CBP2 PROFIBUS-DP board, the SBP encoder evaluation board, or the ADB analog board will continue to operate normally after the power supply replacement. No changes to the PROFIBUS configuration, GSD files, or encoder parameters are necessary.
