SIEMENS 6RY1803-0CA11 C98043-A7115-L21-7 Service-Ready Spare Part

SIEMENS 6RY1803-0CA11 C98043-A7115-L21-7 Service-Ready Spare Part for Industrial Maintenance

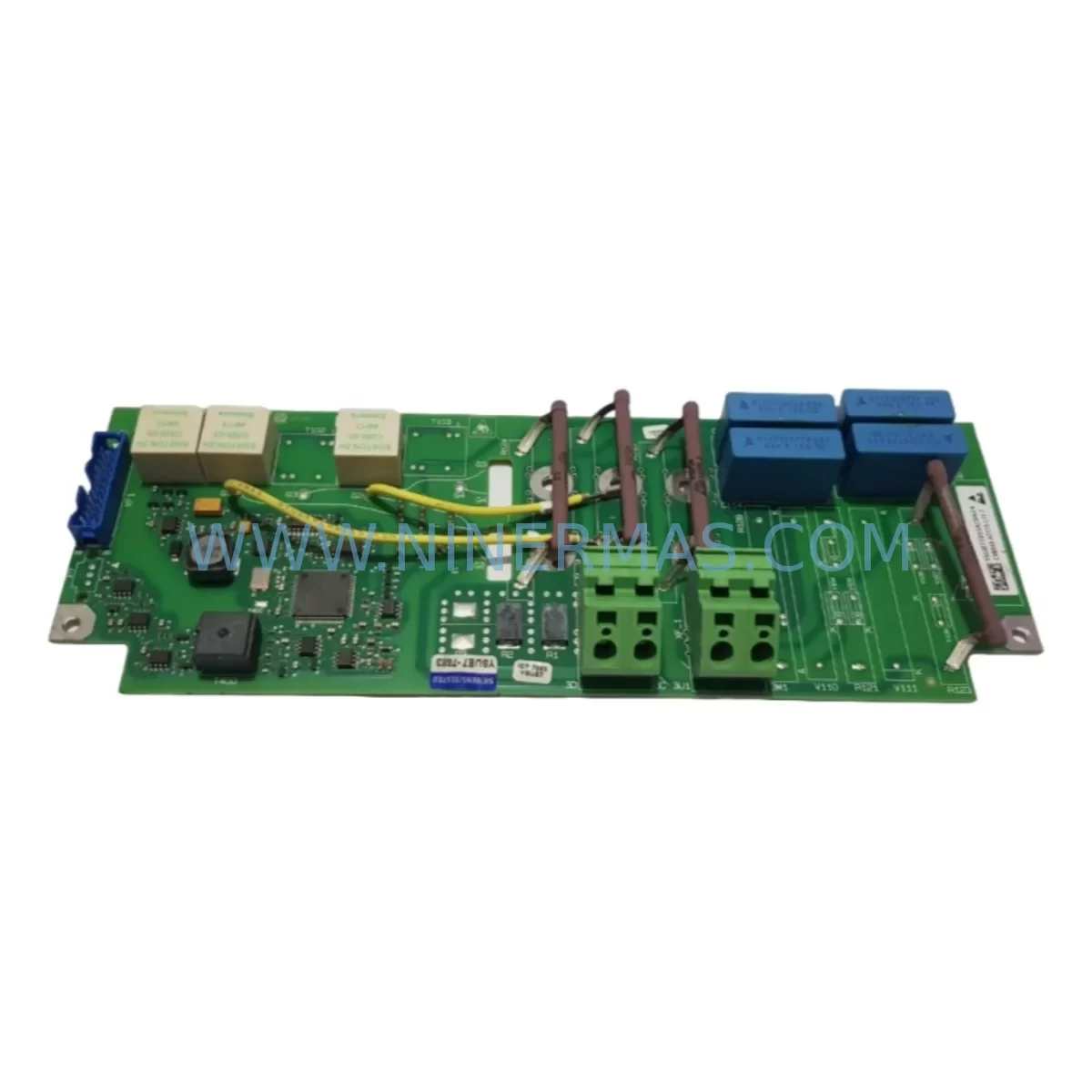

The SIEMENS 6RY1803-0CA11 (C98043-A7115-L21-7) is a critical power supply and excitation board designed for the SIMOREG DC Master series of DC drive converters. This board is responsible for providing regulated auxiliary power and field excitation control within the drive’s internal architecture, making it one of the highest-priority spare parts in any DC drive maintenance program. Unplanned failure of this component results in immediate drive shutdown, production line stoppage, and extended downtime if a replacement is not available on-site.

At NINERMAS, every unit of the 6RY1803-0CA11 C98043-A7115-L21-7 is sourced from verified supply channels, individually inspected, and function-tested prior to dispatch. Each shipment is backed by our 12-month warranty, ensuring your procurement team can plan with confidence and your maintenance engineers can install with assurance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a SIMOREG DC Master drive experiences a fault traceable to the 6RY1803-0CA11 power supply board, maintenance engineers should treat the event as a system-level inspection trigger — not an isolated component swap. The internal power distribution architecture of the SIMOREG platform means that a degraded or failed auxiliary supply board can stress adjacent components, cause secondary faults, or mask upstream issues that will resurface after replacement.

During a planned or emergency replacement of the C98043-A7115-L21-7 board, the following components and subsystems should be inspected or included in the spare parts review:

• SIMOREG CUD1 Control Board (C98043-A7100) — The central intelligence of the drive; verify firmware version compatibility and check for fault memory logs before and after board swap.
• SIMOREG Field Supply Board (C98043-A7110) — Works in close coordination with the excitation circuit; inspect for thermal stress or capacitor aging.
• DC Bus Fuses and Semiconductor Fuses — A power supply board failure is often preceded or caused by transient overcurrent events; replace fuses as a precaution during any board-level maintenance.
• SIMOREG Pulse Transformer Board (C98043-A7102) — Responsible for gate firing signals to the thyristor stack; verify signal integrity after auxiliary power restoration.
• Thyristor Modules (e.g., SKKT 106/16E or equivalent) — Inspect for thermal fatigue or gate-cathode resistance drift, especially in drives with high cycle frequency or heavy load profiles.
• 24VDC Control Power Supply (SITOP PSU series) — Confirm that the external 24V rail feeding the drive’s control electronics is within tolerance; a marginal SITOP unit can cause intermittent board faults.
• Terminal Blocks and Control Wiring (WAGO or Phoenix Contact series) — Inspect all low-voltage signal wiring connected to the drive’s X1/X2 terminal strips for loose connections, corrosion, or insulation degradation.
• PROFIBUS DP Communication Module (CBC Board or CBP2) — If the drive is networked, verify that the communication board is seated correctly and that the PROFIBUS address and baud rate settings are preserved after power cycling.
• Motor Encoder / Tachogenerator Feedback Cable — Check shielding continuity and connector integrity; encoder signal noise can trigger false speed regulation faults post-maintenance.
• SIMOREG OP1S Operator Panel or PMU — Use the operator panel to read out stored fault codes (F-codes) and confirm parameter set integrity (P051 parameter set backup recommended before any board replacement).

Procurement engineers supporting multi-drive facilities should consider maintaining a minimum of one 6RY1803-0CA11 unit per installed SIMOREG platform as part of a structured critical-spare inventory policy. Given the age profile of many SIMOREG DC Master installations — many of which have been in service for 15–25 years — OEM board availability is increasingly constrained, making proactive stock commitment essential for long-term operational continuity.

Site Replacement Workflow

Step 1 — Pre-Replacement Documentation: Before powering down the drive, use the OP1S or STARTER software to export the full parameter set. Record all active fault codes from the fault buffer (r947/r949). Photograph the existing board orientation and all connector positions.

Step 2 — Safe Isolation: Isolate the drive from the AC supply using the upstream circuit breaker or isolator. Verify zero voltage on the DC bus using a calibrated multimeter before opening the drive cabinet. Allow a minimum of 5 minutes for DC bus capacitors to discharge.

Step 3 — Board Removal: Disconnect all ribbon cables and plug connectors from the C98043-A7115-L21-7 board in sequence. Note connector labeling or apply temporary markers. Remove the board mounting screws and extract the board carefully to avoid flexing adjacent PCBs.

Step 4 — Inspection & Comparison: Compare the replacement board’s revision level (L21-7) with the removed unit. Verify that the board reference matches exactly. Inspect the replacement unit for any transit damage before installation.

Step 5 — Installation & Reconnection: Seat the new board, secure mounting hardware, and reconnect all connectors in reverse order. Double-check ribbon cable orientation — reversed ribbon cables are a common cause of post-replacement faults.

Step 6 — Power-Up & Commissioning: Restore auxiliary power first and verify that the drive’s control electronics initialize without fault. Reload the parameter set if required. Perform a no-load test run before returning the drive to production. Log the replacement in the site maintenance record with date, part number, and technician ID.

This structured workflow minimizes re-work risk, reduces mean time to repair (MTTR), and ensures system compatibility is maintained — particularly important in legacy SIMOREG installations where parameter integrity directly affects motor protection and process control accuracy.

Spare Parts Support FAQ

Q1: Is the 6RY1803-0CA11 C98043-A7115-L21-7 an original SIEMENS part or a third-party replacement?
All units supplied by NINERMAS are original OEM SIEMENS spare parts sourced from verified industrial supply channels. We do not supply counterfeit, refurbished-without-disclosure, or third-party substitute boards for safety-critical drive components. Each unit is individually inspected and function-tested before dispatch.

Q2: What does the 12-month warranty cover, and how is a warranty claim processed?
Our 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. In the event of a warranty claim, contact our support team at sale@ninermas.com with the order reference, installation date, and a description of the fault. We will arrange priority replacement dispatch or technical support as appropriate.

Q3: Can NINERMAS support long-term supply agreements for the 6RY1803-0CA11 across multiple sites?
Yes. We offer long-term supply commitments and blanket order arrangements for maintenance teams managing multiple SIMOREG DC Master installations. This is particularly valuable for facilities with aging drive fleets where OEM availability is declining. Contact our sales team to discuss volume pricing, lead-time guarantees, and consignment stock options.

Q4: How do I verify compatibility before ordering if my drive has a different frame size or firmware version?
Provide your full drive nameplate data (complete model number, rated current, firmware version if known) to our technical team at sale@ninermas.com. We will cross-reference the board revision level and confirm compatibility before order confirmation. We do not recommend ordering solely on SKU match without verifying the board revision suffix (-L21-7) against your installed unit.
