Siemens 6RA8075-6DS22-0AA0 DC Drive: Retrofit-Compatible Upgrade for Legacy SIMOREG DC Master Systems

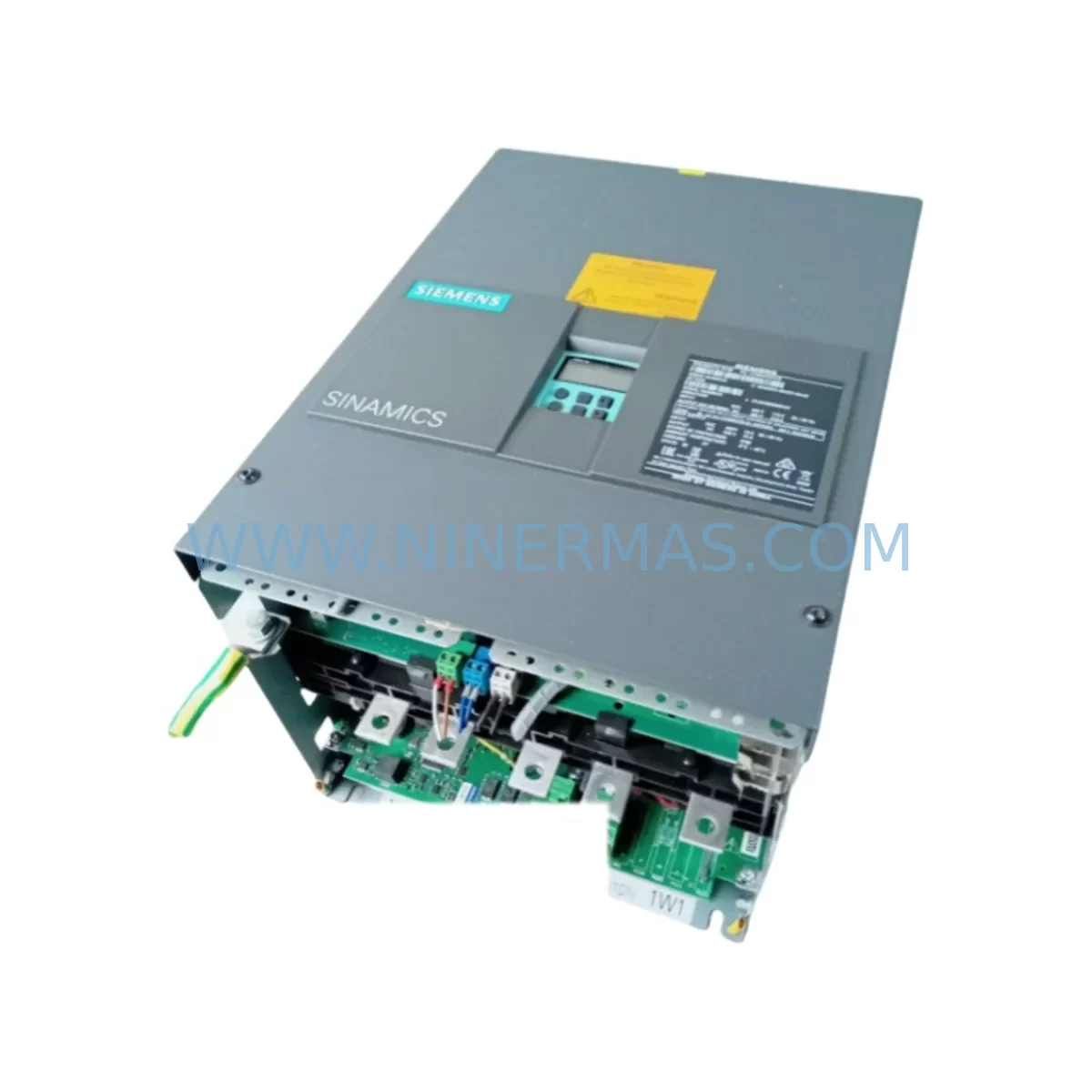

The Siemens 6RA8075-6DS22-0AA0 is a fully digital DC drive converter from the SIMOREG DC Master series, designed for demanding industrial applications including paper mills, steel rolling lines, extruders, winding systems, and heavy-duty conveyor drives. As legacy SIMOREG DC Master units approach end-of-life or become increasingly difficult to source as original spare parts, the 6RA8075-6DS22-0AA0 represents a proven retrofit-compatible replacement path that preserves existing motor assets, minimises panel re-engineering, and dramatically reduces planned downtime during system migration.

This unit operates as a four-quadrant fully controlled thyristor bridge, delivering precise armature current and field current regulation for separately excited DC motors. Its integrated PROFIBUS DP interface enables seamless communication with existing Siemens S7-300, S7-400, or S7-1500 PLC platforms without requiring protocol conversion hardware. Engineers planning a migration from older SIMOREG 6RA70 or 6RA24 series drives will find the 6RA8075-6DS22-0AA0 parameter structure familiar, significantly reducing commissioning time and the risk of logic errors during program transfer.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 6RA8075-6DS22-0AA0 into an existing control cabinet begins well before the unit arrives on site. The first step is a thorough audit of the existing panel layout: measure the available installation space, confirm the busbar ratings, and check whether the existing AC supply fusing and contactor sizing are adequate for the 6RA80 series inrush characteristics. In many legacy installations, the incoming AC supply was sized for an older 6RA70 or 6RA24 unit with different power factor correction requirements, so a brief load-flow calculation is advisable.

Terminal wiring is the next critical checkpoint. The 6RA8075-6DS22-0AA0 uses a clearly documented terminal strip layout for armature connections (U1, V1, W1 for AC supply; C, D for DC output), field winding terminals (F+, F−), and the digital/analogue I/O connector block. Engineers migrating from older drives should map each existing wire to the new terminal designation before disconnection, using the legacy wiring diagram alongside the 6RA80 operating instructions. Pay particular attention to the enable logic: the 6RA80 series uses a defined sequence of ON/OFF1/OFF2/OFF3 control word bits via PROFIBUS, which differs from the simple hardwired enable relay used on many 6RA24 installations.

For sites running a Siemens S7-300 or S7-400 PLC with an existing DP network, the integration path is straightforward: add the 6RA80 GSD file to the hardware configuration in STEP 7 or TIA Portal, assign the correct DP address (matching the drive’s DIP switch setting), and map the standard control word (STW1) and status word (ZSW1) to the existing drive function block. If the legacy drive used analogue speed reference via a SM331 analogue input module, this can be retained as a fallback reference channel during commissioning, providing a valuable safety net while the PROFIBUS link is verified under load.

Sites with a Siemens S7-1500 controller and PROFINET backbone should note that the 6RA8075-6DS22-0AA0 communicates natively over PROFIBUS DP. A PN/DP coupler or an IE/PB Link PN IO module will be required to bridge the two networks, unless a dedicated PROFIBUS master module such as the CM 1542-5 is already installed in the S7-1500 rack. This is a common scenario in phased modernisation projects where the PLC has been upgraded to S7-1500 but the drive layer remains on the legacy DP segment.

I/O expansion considerations are equally important. If the existing system relied on a ET 200S or ET 200M distributed I/O station for drive-related digital signals — such as motor thermistor trip, brake release confirmation, or speed-reached feedback — verify that these signal paths remain intact after the drive swap. The 6RA8075-6DS22-0AA0 provides onboard digital inputs and outputs sufficient for most standard drive functions, but any custom interlock logic wired through the legacy drive’s internal relay outputs must be re-routed or replicated in the PLC program.

Field weakening applications — common in winder and unwinder drives — require careful parameter setup in the 6RA80 series. The integrated field controller supports automatic field weakening above base speed, but the field characteristic curve (P100 to P107 range) must be programmed to match the specific DC motor’s field resistance and inductance. Where the legacy drive used an external field economy resistor or a separate field regulator board, these components can typically be removed once the 6RA80’s internal field controller is correctly commissioned.

Downtime Control During System Migration

Minimising production downtime is the primary commercial driver for most DC drive retrofit projects, and the 6RA8075-6DS22-0AA0 is well suited to a structured hot-swap approach when planned correctly. The recommended strategy is to pre-commission the new drive on a test bench or in a temporary panel position before the scheduled maintenance window. Using the STARTER commissioning tool, the full parameter set — including speed controller gains, current limits, field weakening curve, and PROFIBUS telegram configuration — can be configured and saved offline, then downloaded to the drive in minutes on site.

During the actual changeover, the sequence should follow a defined isolation and re-energisation procedure: isolate the AC supply, discharge the DC bus, disconnect and label all armature and field cables, remove the legacy unit, install the 6RA8075-6DS22-0AA0, reconnect in reverse order, and perform a no-load run before reconnecting the mechanical load. The entire physical swap can typically be completed within two to four hours for a cabinet-mounted unit of this class, provided the pre-commissioning work has been completed thoroughly.

Protecting the existing PLC program logic is non-negotiable. Before any hardware changes, export and archive the complete STEP 7 or TIA Portal project, including all symbol tables, data blocks, and hardware configuration files. If the drive function block references drive-specific parameters by DP address or data record number, verify these against the 6RA80 parameter list to confirm compatibility. In most cases, the standard Siemens drive function blocks (FC or FB from the DriveLib library) are directly compatible with the 6RA80 series, requiring only minor adjustments to the telegram type selection.

For continuous-process industries where even a brief unplanned stop carries significant cost, consider staging the migration during a planned maintenance shutdown and arranging for a pre-tested spare unit to be held on site. NINERMAS maintains stock of the 6RA8075-6DS22-0AA0 and related SIMOREG DC Master components, enabling rapid dispatch to support time-critical maintenance windows. All units are functionally tested prior to shipment and supplied with a test certificate and 12-month warranty, giving maintenance teams the confidence to proceed with the retrofit on schedule.

Retrofit Support FAQ

Q1: Is the 6RA8075-6DS22-0AA0 a direct drop-in replacement for my existing SIMOREG 6RA70 series drive?
The 6RA8075-6DS22-0AA0 is functionally compatible with the 6RA70 series in terms of DC motor control capability and PROFIBUS DP communication. However, it is not a mechanical drop-in replacement — terminal layouts, mounting dimensions, and cooling requirements differ between the 6RA70 and 6RA80 series. A wiring adaptation and panel modification assessment is required before installation. NINERMAS can provide a pre-delivery compatibility review based on your existing panel drawings.

Q2: What commissioning tools and software are required to set up this drive?
The 6RA8075-6DS22-0AA0 is commissioned using Siemens STARTER (v4.x or later) or SCOUT software, connected via a USB-to-RS232 adapter or PROFIBUS DP. The AOP30 Advanced Operator Panel can also be used for on-site parameter entry without a laptop. A pre-configured parameter file can be prepared by NINERMAS based on your motor nameplate data and application requirements, reducing on-site commissioning time significantly.

Q3: Does the unit come with a warranty, and has it been tested before shipment?
Yes. Every 6RA8075-6DS22-0AA0 unit supplied by NINERMAS undergoes functional testing prior to dispatch and is covered by a 12-month warranty from the date of shipment. A test certificate is included with each unit. In the event of a warranty claim, NINERMAS provides technical support and, where applicable, advance replacement to minimise production impact.

Q4: What is the typical lead time, and do you hold stock?
NINERMAS maintains inventory of the 6RA8075-6DS22-0AA0 and associated SIMOREG DC Master spare parts to support urgent maintenance requirements. Standard orders are dispatched within 1–3 business days. For time-critical shutdowns, expedited shipping options are available to most global destinations. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock availability and lead time for your specific requirement.
